ABB APOW-01C+NRED-61 Migration-Ready Drive Power Supply

Overview

ABB APOW-01C+NRED-61 Migration-Ready Drive Power Supply for Legacy ACS800 Control Systems

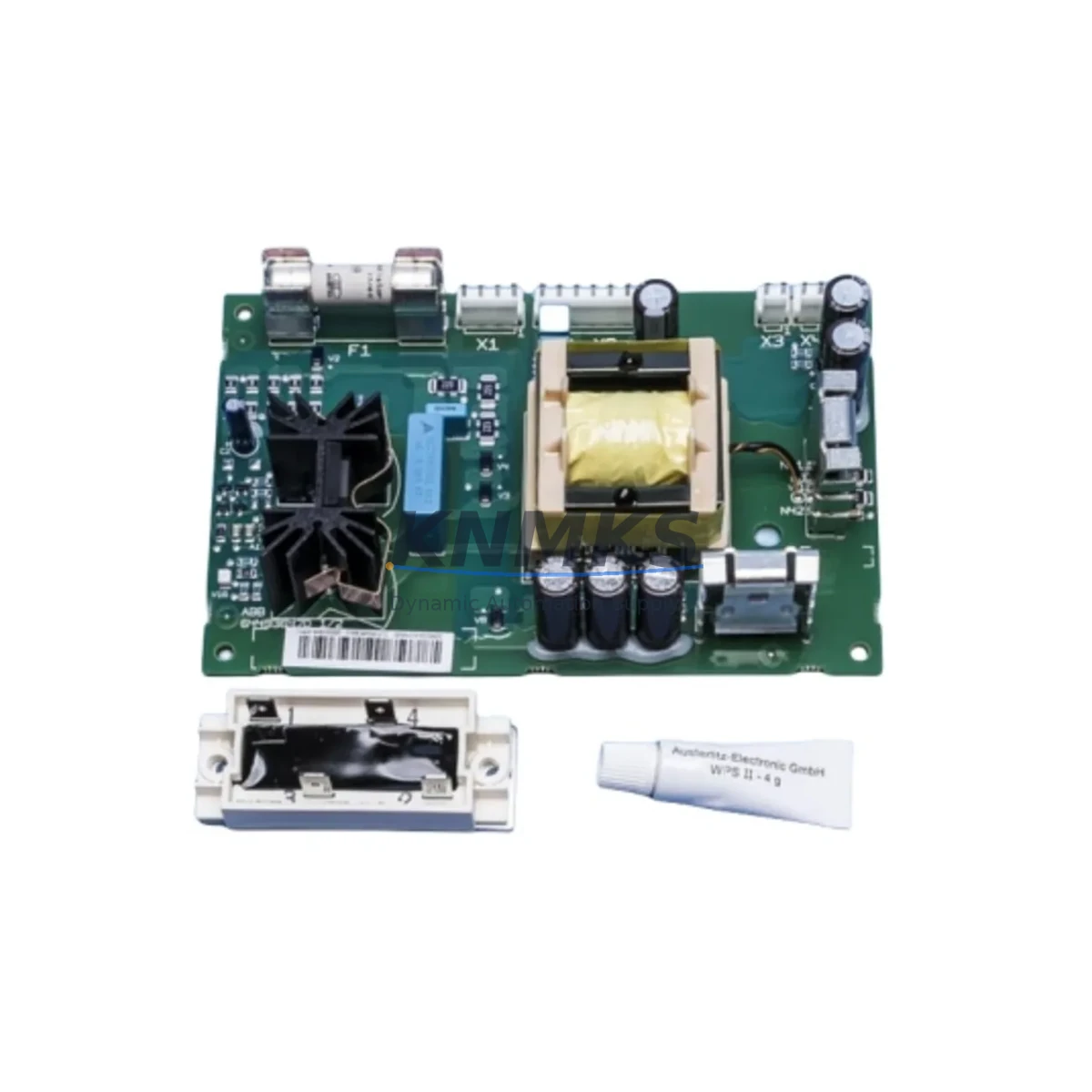

The ABB APOW-01C+NRED-61 is a combined drive power supply and brake chopper interface module designed for the ACS800 series variable frequency drive platform. As ABB progressively phases out legacy ACS800 drive components, sourcing a verified, drop-in replacement for the APOW-01C+NRED-61 assembly has become a critical priority for maintenance engineers managing aging automation infrastructure in petrochemical plants, power generation facilities, water treatment stations, and heavy industrial environments.

This unit provides the internal DC bus power supply function alongside the NRED-61 brake resistor interface, enabling controlled deceleration and energy dissipation in high-inertia load applications. When the original APOW-01C+NRED-61 fails or reaches end-of-service life, unplanned downtime can cascade across the entire drive cabinet — making pre-validated spare stock and rapid replacement capability essential to any long-term asset management strategy.

Each APOW-01C+NRED-61 unit supplied by KNMKS undergoes pre-shipment functional verification, including DC bus voltage output checks, brake chopper signal integrity testing, and connector condition inspection. Units are shipped with full anti-static packaging and a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the APOW-01C+NRED-61 within an operational ACS800 drive cabinet requires a structured approach to avoid secondary failures and ensure continuity of the broader control system. Before initiating the swap, engineers should confirm the drive’s DC bus has fully discharged — typically requiring a minimum 5-minute wait after mains isolation, verified with a calibrated multimeter at the DC bus terminals.

The ACS800 drive communicates with higher-level control systems via fieldbus adapters such as the RPBA-01 PROFIBUS adapter or the RCAN-01 CANopen module. These communication links must remain intact during the power supply replacement; the fieldbus adapter itself does not need to be removed, but its parameter settings should be documented before the drive is powered down to allow rapid restoration if a parameter reset occurs.

In multi-drive cabinet configurations, the ACS800 may share a common DC bus with adjacent drives through a DC bus bar arrangement. In such cases, the entire DC bus section must be isolated before removing the APOW-01C+NRED-61, and the NDCU-12C or NDCU-33C drive control unit parameters should be backed up using DriveWindow or DriveStudio software prior to any hardware intervention.

For systems where the ACS800 interfaces with an ABB AC500 PLC or a third-party Siemens S7-300 controller via hardwired I/O or PROFIBUS DP, the control program logic does not require modification when replacing only the power supply module. However, the HMI display — whether an ABB CP600 panel or a legacy operator panel — should be monitored during the first powered restart to confirm that drive status signals are correctly restored and no fault codes related to the power supply section are latched.

Where the ACS800 drives a high-inertia load such as a centrifugal pump, compressor, or conveyor, the NRED-61 brake chopper interface must be re-verified after replacement. Connect the external brake resistor and confirm the chopper activation threshold is within the programmed overvoltage limit. This step is critical in applications where regenerative braking energy is significant and an improperly functioning brake chopper could trigger DC bus overvoltage trips.

For installations where the original APOW-01C+NRED-61 failed due to capacitor aging or thermal stress, it is advisable to simultaneously inspect the AINT-02C or AINT-14C inverter interface board and the APBU-44C or APBU-12C pulse encoder interface for signs of heat damage or electrolytic leakage, as these components share the same thermal environment within the drive cabinet.

Downtime Control During System Migration

Minimizing production downtime during an APOW-01C+NRED-61 replacement begins with pre-staging the verified spare unit at the site before the maintenance window opens. KNMKS ships pre-tested units with all connectors protected and a pre-shipment test report included, allowing the site engineer to confirm the unit’s condition upon receipt rather than discovering issues during the replacement window itself.

The physical swap of the APOW-01C+NRED-61 is a relatively contained operation within the ACS800 drive cabinet — the module is accessible after removing the drive’s front cover and disconnecting the DC bus and control wiring harnesses. With a prepared engineer and a documented wiring reference, the mechanical replacement can typically be completed within 30 to 60 minutes. The critical time investment lies in the post-replacement commissioning: restoring drive parameters, verifying the brake chopper function, confirming fieldbus communication, and running a no-load test cycle before returning the drive to production.

To protect the original control program logic, the ACS800 parameter set should be exported to a laptop running DriveStudio or DriveWindow before the drive is de-energized. This backup ensures that if the replacement unit triggers a factory reset or if parameters are inadvertently cleared during the swap, the full parameter set — including motor data, speed references, PID tuning, and fault response configurations — can be restored within minutes rather than requiring a full recommissioning from scratch.

For critical production lines where even a brief interruption is unacceptable, KNMKS can support a hot-standby spare strategy: maintaining a second pre-tested APOW-01C+NRED-61 unit on-site, ready for immediate deployment. Combined with a documented replacement procedure and a trained maintenance technician, this approach reduces mean time to repair to under two hours for most ACS800 installations, protecting production continuity and reducing the financial impact of unplanned drive failures.

Retrofit Support FAQ

Q1: Is the KNMKS APOW-01C+NRED-61 a direct drop-in replacement for the original ABB unit?
Yes. The KNMKS-supplied APOW-01C+NRED-61 is dimensionally and electrically equivalent to the original ABB part. It uses the same backplane connector, the same terminal layout for the brake resistor interface, and requires no firmware changes or parameter modifications beyond the standard post-replacement drive parameter verification (parameters 99.06 and 99.07 for motor data confirmation).

Q2: What pre-shipment testing is performed on each unit?
Each unit undergoes DC bus voltage output verification, brake chopper signal integrity testing, connector and terminal inspection, and a functional power-on test. A pre-shipment test report is included with every shipment. Units that do not meet functional specifications are not shipped.

Q3: What is the support terms coverage and what does it include?
All APOW-01C+NRED-61 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events beyond the drive’s rated tolerance, or physical damage during installation. KNMKS provides technical support throughout the confirmed support period to assist with installation and commissioning questions.

Q4: Can KNMKS supply the APOW-01C+NRED-61 for urgent or emergency requirements?
Yes. KNMKS maintains stock of the APOW-01C+NRED-61 and can support expedited shipment for urgent maintenance requirements. Contact the KNMKS sales team with your site location and required delivery timeline to confirm availability and shipping options. Global shipping is supported, including to remote industrial sites with freight forwarding requirements.
