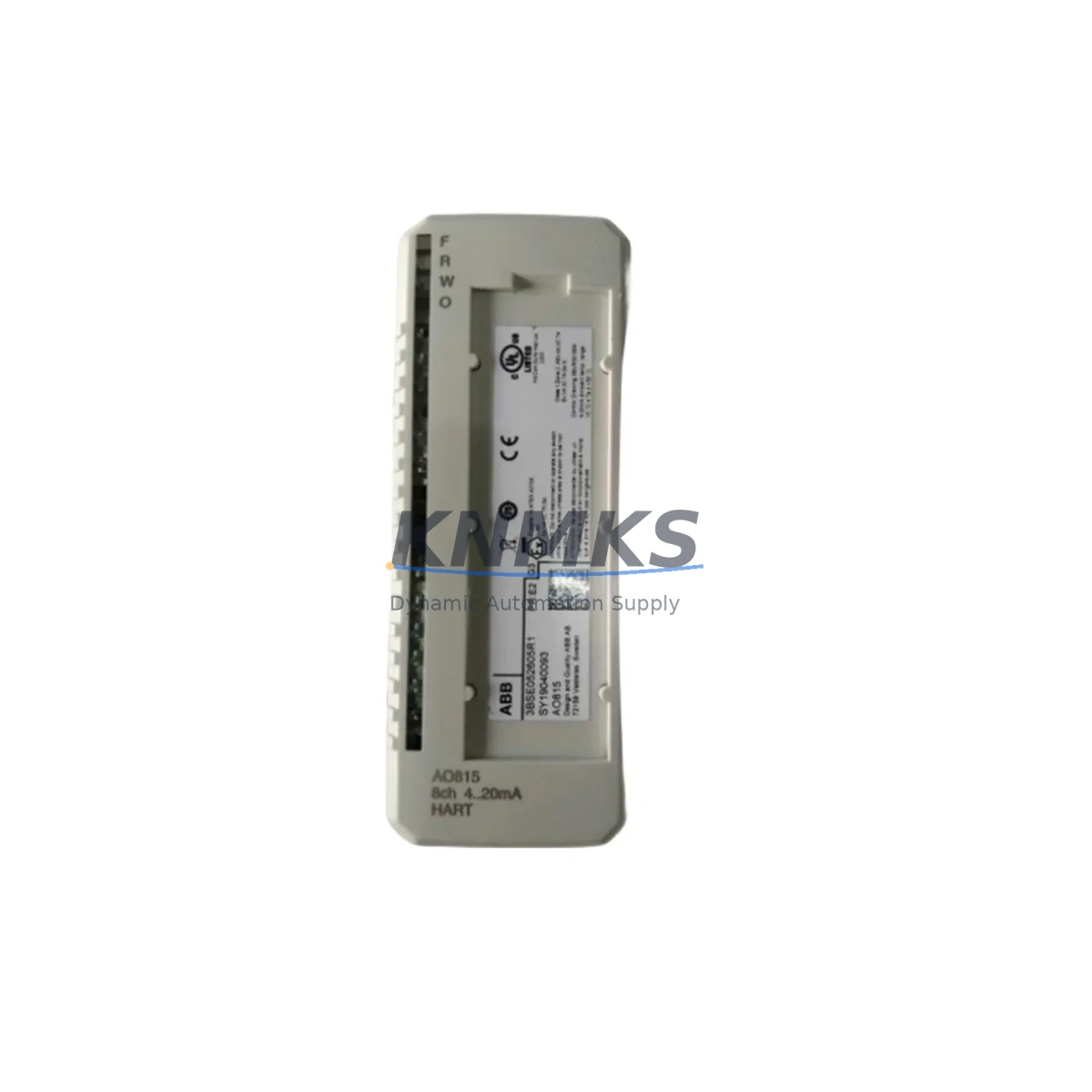

ABB AO815 3BSE052605R1 Maintenance Spare for Factory Uptime

Overview

ABB AO815 3BSE052605R1 Maintenance Spare for Factory Uptime

The ABB AO815 (catalog reference 3BSE052605R1) is an 8-channel analog output module engineered for the S800 I/O system, the field-proven distributed I/O platform used with ABB’s AC800M Process Controller across continuous process, power generation, and discrete manufacturing installations. Sourced as an original ABB component, each unit supplied by KNMKS undergoes pre-shipment functional verification and ships with a support terms confirmed by quotation — giving maintenance engineers and procurement teams a reliable, low-risk path to restoring control loop integrity without extended downtime.

For plants running AC800M-based DCS architectures, the AO815 is a critical link between the controller and field actuators: control valves, variable-speed drives, positioners, and current-loop transmitters all depend on stable, calibrated 4–20 mA or 0–10 V output signals. A degraded or failed AO815 can cascade into process upsets, safety interlock activations, or unplanned shutdowns. Maintaining at least one verified spare in the cabinet room or central stores is standard practice in facilities with uptime KPIs above 98%.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the AO815 3BSE052605R1, a disciplined maintenance engineer will treat the module swap as an opportunity to audit the surrounding control loop components. The S800 I/O station housing the AO815 typically shares a backplane with AI810 or AI820 analog input modules, DI810 digital input modules, and DO810 digital output modules — all of which should be visually inspected for corrosion, loose connectors, or LED fault indicators during the same maintenance window.

The TB820 ModuleBus Modem or TB840 Redundant Bus Terminator that connects the I/O station to the AC800M controller is a common single point of failure; verify its status LEDs and cable seating before and after the AO815 swap. On the power side, the SD821 or SD822 24 VDC power supply units feeding the I/O station should be checked for output voltage stability — a sagging rail can cause intermittent analog output errors that mimic module faults. If the plant uses redundant power feeds, confirm that the changeover relay or diode ORing module is functional.

Field wiring terminations on the MTU (Module Termination Unit) paired with the AO815 — typically an MTU-AO or equivalent marshalling terminal block — should be torqued to specification and inspected for insulation damage. Signal isolation barriers or galvanic isolators installed between the AO815 outputs and long cable runs to field actuators are worth testing for drift, particularly in installations older than five years. Fuse protection on individual analog output channels, where fitted, should be continuity-checked and replaced as a precaution during any planned outage.

For facilities managing multi-year spare parts agreements, the AO815 is best stocked alongside the PM856 or PM864 controller module, the TB820 bus terminator, and at least one AI820 analog input module to cover the most common failure modes in a single S800 I/O station. This four-part kit approach reduces emergency procurement lead times and simplifies annual inventory audits.

Site Replacement Workflow

1. Pre-replacement verification: Confirm the replacement AO815 carries the correct catalog number 3BSE052605R1 and matches the firmware baseline of the installed base where applicable. Cross-reference the plant’s I/O list to identify which control loops will be interrupted during the swap.

2. Controller preparation: In AC800M Control Builder, place the affected I/O station in forced or manual mode for all channels served by the AO815. Notify the process operator and obtain a permit-to-work before proceeding.

3. Hot-swap procedure: The S800 I/O system supports hot-swap replacement without powering down the entire station. Slide the faulty AO815 out of its slot, insert the replacement unit, and allow the AC800M to re-enumerate the module — typically within 10–30 seconds. Verify that all channel LEDs return to green and that the controller reports no hardware fault.

4. Loop verification: Command each output channel to a known engineering value (e.g., 50% = 12 mA) and confirm the corresponding field actuator responds correctly. Log the as-found and as-left readings in the maintenance management system.

5. Documentation: Record the replaced module’s serial number, installation date, and support terms expiry (12 months from KNMKS shipment date) in the plant’s asset register. Return the faulty unit for failure analysis if root cause investigation is required.

This workflow is equally applicable when migrating from an older AO810 or AO820 module to the AO815, as the S800 I/O rail and MTU footprint are compatible across the S800 analog output family, minimizing re-wiring effort and preserving existing cable schedules.

Spare Parts Support FAQ

Q1: What is the shelf life of the AO815 3BSE052605R1 in long-term storage?
When stored in original packaging at 15–25 °C with relative humidity below 75% (non-condensing), the AO815 can be held in reserve for 24–36 months without performance degradation. KNMKS recommends a functional power-on test before installation if the unit has been stored for more than 18 months. Our support terms confirmed by quotation is activated from the shipment date, not the installation date, so factor storage duration into your procurement planning.

Q2: How do I confirm compatibility with my specific AC800M controller version?
The AO815 3BSE052605R1 is compatible with all AC800M controller variants (PM851 through PM866) running S800 I/O firmware. Compatibility is determined by the S800 I/O station configuration, not the controller firmware version. If your plant uses a non-standard MTU or a third-party marshalling panel, share your I/O station drawing with our technical team at [email protected] for a pre-sale compatibility review.

Q3: Does KNMKS offer long-term supply agreements for the AO815?
Yes. KNMKS supports 12–36 month blanket purchase orders for the AO815 and related S800 I/O components. Long-term agreements include reserved stock allocation, fixed pricing, and priority shipment scheduling — reducing procurement risk for plants with multi-year maintenance contracts or ongoing retrofit programs. Contact [email protected] or call +86 18359268345 to discuss terms.

Q4: What pre-shipment testing does KNMKS perform on the AO815?
Each AO815 unit is powered on and subjected to a channel-by-channel output verification test before dispatch. We confirm that all 8 analog output channels produce accurate signals across the full 4–20 mA range, that the module communicates correctly on the S800 ModuleBus, and that no hardware fault codes are present. A test report is available on request. Units that do not pass are quarantined and not shipped.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AO815-3BSE052605R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB AO815-3BSE052605R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
