ABB AO810V2 3BSE038415R1 Migration-Ready Analog Output Module

Overview

ABB AO810V2 3BSE038415R1 Migration-Ready Analog Output Module: Legacy System Retrofit and Compatibility Upgrade

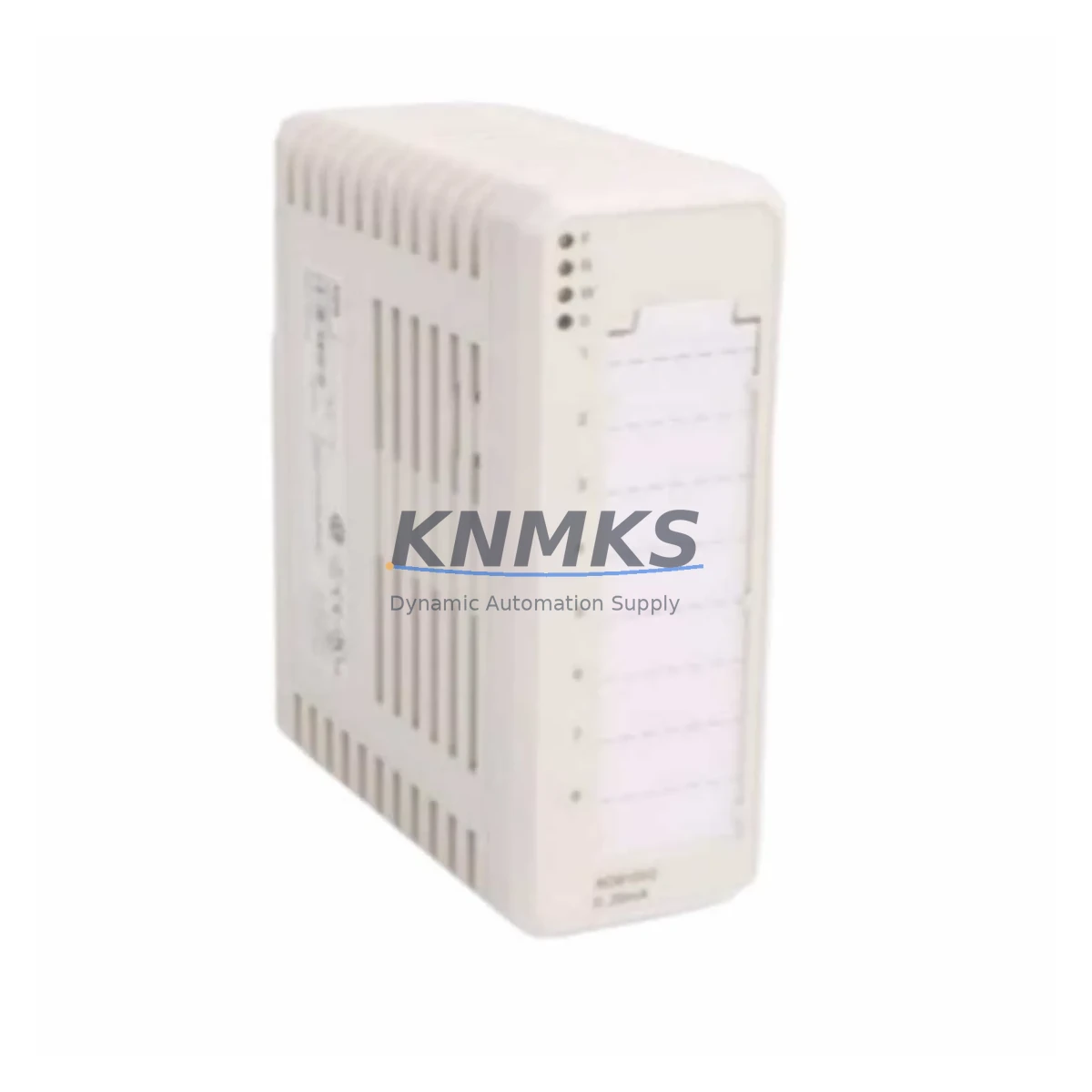

The ABB AO810V2 (part number 3BSE038415R1) is an 8-channel analog output module engineered for the AC800M controller platform and Symphony Plus distributed control system. As legacy automation infrastructure ages and original spare parts become increasingly difficult to source, the AO810V2 3BSE038415R1 serves as a verified migration-ready replacement for end-of-life analog output modules in process control, power generation, and continuous manufacturing environments. Each unit is pre-shipment tested, backed by a support terms confirmed by quotation, and available from in-stock inventory to minimize procurement lead times during planned or emergency retrofits.

When engineering teams plan a control system upgrade or emergency spare replacement, the AO810V2 must be evaluated against the existing rack configuration, backplane slot assignment, module address settings, and field wiring termination layout. The module occupies a standard S800 I/O station slot and communicates over the MasterBus 300 or Modulebus backplane, making it directly compatible with existing AC800M controller cabinets without requiring backplane modifications. Field wiring connects via the standard TB820V2 or TB840A termination board, preserving existing cable runs and reducing rewiring labor during the retrofit window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AO810V2 3BSE038415R1 retrofit begins with a thorough audit of the existing S800 I/O station. Maintenance engineers should document the current slot layout, confirm the backplane type (CI810B or CI830B communication interface), and verify that the PS810 or SD821 power supply module has sufficient current headroom to support the replacement module alongside existing I/O. In multi-rack configurations where the AC800M controller manages several I/O stations over Optical ModuleBus, the module address must be set to match the outgoing unit exactly — any mismatch will cause the controller to flag a hardware fault and suspend output to the affected channels.

Field wiring termination is one of the most time-sensitive steps in the replacement process. If the existing installation uses a TB820V2 termination board, the AO810V2 3BSE038415R1 connects directly without any rewiring. Where older TB820 (non-V2) boards are in service, engineers should assess whether upgrading to the TB820V2 is warranted as part of the broader retrofit scope. Signal cables carrying 4–20 mA current loop signals to control valves, variable frequency drives, or positioners should be verified for continuity and shielding integrity before the new module is powered up.

For sites running Symphony Plus DCS alongside AC800M controllers, the AO810V2 integrates seamlessly into the System 800xA engineering environment. Control Builder M software is used to configure channel scaling, output range, and fault behavior. Engineers migrating from older Advant OCS or MOD 300 platforms should note that while the physical module is a direct replacement, the control application may require re-import into Control Builder M if the original project files were created in an earlier engineering tool version. Retaining a backup of the existing controller application before any hardware swap is a non-negotiable step in the retrofit procedure.

In I/O expansion scenarios — for example, when adding new analog output points to an existing control cabinet — the AO810V2 can be installed in any available S800 slot alongside existing AI810, DI810, or DO810 modules. The CI810B or CI830B communication interface module manages all I/O on the station, so no additional communication hardware is required for expansion. Where cabinet space is constrained, the compact form factor of the S800 I/O family allows dense packing without compromising thermal management, provided the PS810 power budget is respected.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing analog output modules in live process control environments. For the AO810V2 3BSE038415R1, the recommended approach is a cold-swap procedure during a scheduled maintenance window: the AC800M controller is placed in manual override or the affected control loops are transferred to local control at the field device level before the module is removed. This preserves process continuity and prevents uncontrolled output transients that could affect downstream equipment such as control valves or variable speed drives.

Before the swap, the engineering team should export the current controller application from Control Builder M and verify that all channel configurations — including output scaling, fault-safe values, and loop tuning parameters — are documented. After the AO810V2 3BSE038415R1 is seated and the termination board reconnected, the controller performs an automatic hardware scan on power-up. If the module address matches the configuration database, the controller will resume normal operation without requiring a program download. This hot-configuration capability significantly reduces the commissioning window compared to older generation I/O platforms.

For sites where a full maintenance window is not available, a staged replacement strategy can be employed: non-critical output channels are migrated first, with critical process loops transferred last. This approach, combined with pre-shipment testing of the replacement AO810V2 unit, reduces the risk of introducing a faulty module into a live system. Each unit shipped from our inventory undergoes functional output verification across all 8 channels prior to dispatch, ensuring that the module is confirmed operational before it reaches the installation site.

HMI screens connected to the Symphony Plus or System 800xA operator station do not require modification when replacing a like-for-like AO810V2 module, as the tag database and graphic bindings reference the controller application rather than the physical hardware address. However, if the retrofit involves a slot reassignment or a change in I/O station topology, the System 800xA configuration must be updated and a partial download performed to synchronize the hardware model with the physical installation.

Retrofit Support FAQ

Q: Is the AO810V2 3BSE038415R1 a direct drop-in replacement for the original AO810 (3BSE008516R1)?
A: Yes, the AO810V2 is the current production successor to the AO810 and is mechanically and electrically compatible with the same S800 I/O slot and TB820V2 termination board. The module address and channel configuration are preserved from the original unit, so no changes to the AC800M control application are required for a like-for-like swap.

Q: What pre-commissioning checks are required before installing the AO810V2 3BSE038415R1?
A: Verify the PS810 or SD821 power supply current budget, confirm the backplane slot address matches the outgoing module, inspect the TB820V2 termination board for corrosion or loose terminals, and ensure the AC800M controller firmware is at version 5.1 or above. A backup of the Control Builder M project should be taken before any hardware change.

Q: Does the unit come with a support terms, and has it been tested before shipment?
A: Every AO810V2 3BSE038415R1 unit is covered by a support terms confirmed by quotation against manufacturing defects. Prior to dispatch, each module undergoes a full functional test across all 8 analog output channels to confirm signal accuracy and communication integrity. Test records are available upon request.

Q: What is the typical lead time, and is stock available for urgent replacement orders?
A: Units are available from in-stock inventory and can be dispatched within 1–2 business days for standard orders. For urgent breakdown situations requiring same-day or next-day dispatch, please contact our sales team directly to confirm availability and arrange expedited shipping.
