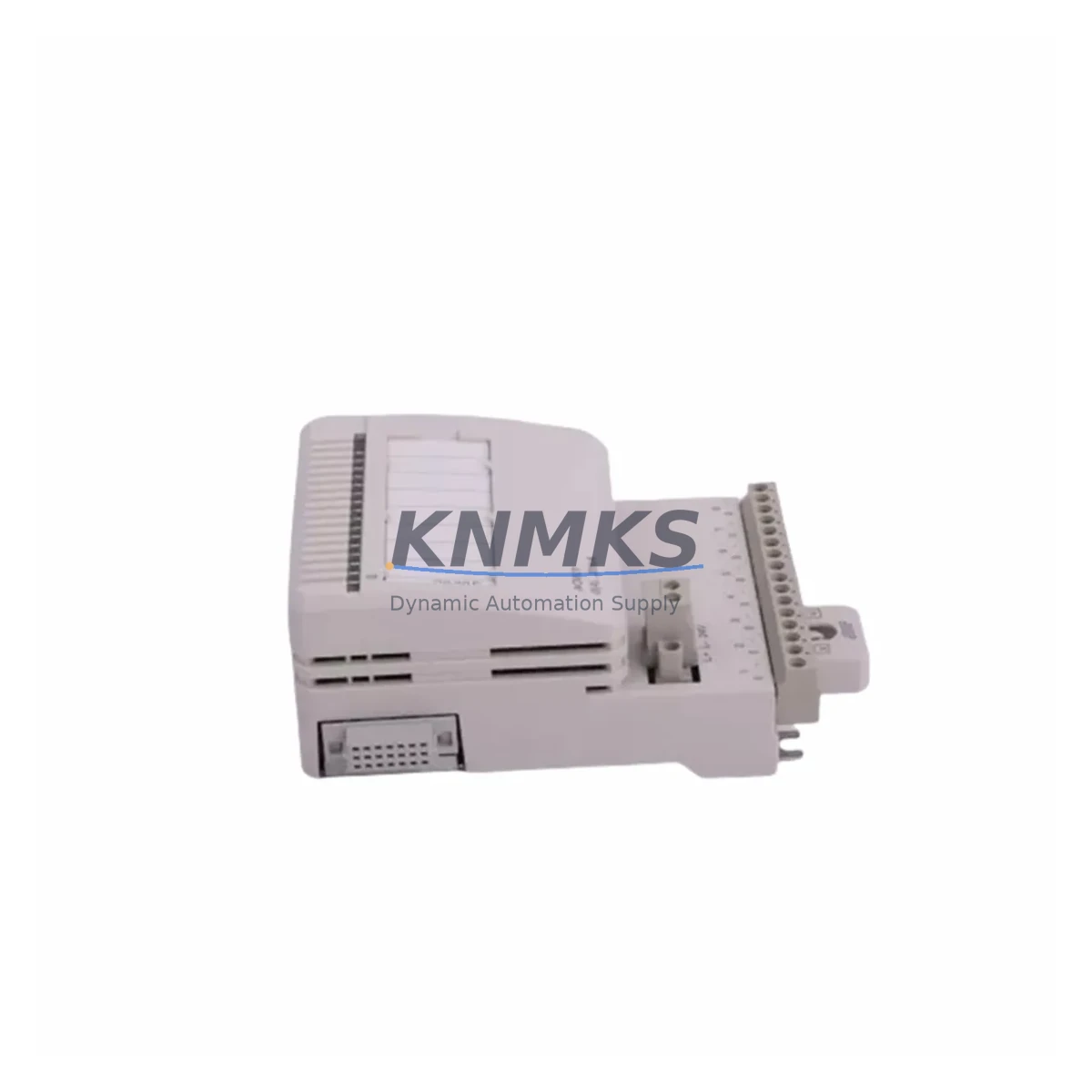

ABB AO801 3BSE020514R1 Migration-Ready Analog Output for AC800M

Overview

ABB AO801 3BSE020514R1 Migration-Ready Analog Output for AC800M: Legacy System Retrofit and Compatibility Upgrade

The ABB AO801 (3BSE020514R1) is an 8-channel analog output module engineered for the AC800M distributed control platform. Designed to deliver 4–20 mA or 0–10 V signals across eight independently configurable channels, the AO801 is a direct replacement for aging or end-of-life analog output cards in legacy ABB Advant, MOD 300, and early AC800M installations. For plants managing scheduled outages, emergency replacements, or phased control system modernization, the AO801 3BSE020514R1 provides a verified, pre-tested migration path that minimizes engineering risk and reduces commissioning time on the plant floor.

When planning a retrofit from an older ABB Advant OCS or MOD 300 analog output card to the AO801, engineers must confirm several critical parameters before the replacement module arrives on site. Power supply capacity on the S800 I/O bus or the AC800M controller backplane must be verified against the AO801’s 24 VDC supply requirement and its per-channel load specifications. Terminal wiring assignments on the TB820 or TB840 termination boards must be mapped against the legacy card’s field wiring to avoid signal inversion or ground loop issues. Backplane slot addressing must be confirmed in Control Builder M to ensure the new module occupies the correct logical node address without conflicting with adjacent modules such as the AI810 analog input module or the DI810 digital input module already installed in the same rack.

Program compatibility is a key concern during any analog output migration. Existing function block diagrams or structured text routines referencing the legacy output channel addresses must be reviewed and, where necessary, remapped to the AO801’s channel structure in Control Builder M. HMI faceplates connected to analog output signals — particularly those driving control valve positioners, variable frequency drives, or current-to-pneumatic converters — must be validated against the new channel scaling to prevent process upsets during cutover. Communication link integrity between the AC800M CPU module and the AO801 over the S800 I/O bus should be confirmed using the hardware configuration tool before the system is returned to automatic control.

Installation space is another practical constraint. The AO801 occupies a standard S800 I/O module slot and is compatible with the TB820V2 and TB840A termination units. Engineers retrofitting older cabinets should verify that the existing DIN rail mounting arrangement and cable duct routing can accommodate the module without requiring structural modifications to the control cabinet. Firmware version compatibility between the AO801 and the installed AC800M CPU — such as the PM864A or PM891 processor module — should be confirmed against the ABB hardware compatibility matrix prior to ordering, particularly for sites running older versions of the AC800M firmware baseline.

Every AO801 3BSE020514R1 unit supplied by KNMKS is sourced from verified supply channels, subjected to pre-shipment functional testing across all eight output channels, and shipped with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions. Multi-region stock is maintained to support both emergency same-week dispatch and scheduled outage planning, ensuring that procurement teams can align delivery with planned maintenance windows rather than accepting extended lead times from OEM channels.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AO801 retrofit begins well before the module arrives on site. The first step is a full audit of the existing S800 I/O rack configuration, identifying which slots are occupied by modules such as the AI810 analog input module, the DI810 digital input module, and the DO810 digital output module, and confirming that the AO801 can be inserted into the correct slot without disrupting the rack’s power distribution or bus communication sequence. If the existing rack is a CI801 or CI830 communication interface variant, the bus coupler firmware should also be reviewed for compatibility with the AO801’s hardware revision.

Field wiring connected to the legacy analog output card must be documented before disconnection. Each channel’s field device — whether a control valve positioner, a variable speed drive reference input, or a current-to-pneumatic transducer — should be tagged and its loop impedance recorded. The TB820V2 termination unit simplifies reconnection by preserving the existing field cable terminations, but engineers should verify that the terminal block screw torque specifications are met to prevent intermittent contact failures after commissioning. Signal isolators or loop-powered barriers installed in the field wiring circuit should be checked for compatibility with the AO801’s output drive capability.

On the software side, Control Builder M project files must be backed up before any hardware changes are made. Function block diagrams referencing the legacy AO channel addresses should be exported and reviewed. If the replacement AO801 occupies a different logical address than the legacy card — which can occur when the slot position changes — all downstream references in the control application must be updated before the new configuration is downloaded to the PM864A or PM891 processor module. After download, a cold restart of the AC800M controller should be performed in a controlled sequence to allow the S800 I/O bus to re-enumerate all connected modules, including the newly installed AO801, before the system is returned to automatic mode.

Downtime Control During System Migration

Minimizing unplanned downtime during an AO801 replacement requires a structured cutover plan that accounts for both the hardware swap and the software reconfiguration. Where process conditions allow, the affected control loops should be placed in manual mode at the DCS level before the legacy analog output card is removed. This preserves the last known output value at the field device — typically a control valve or drive reference — and prevents process upsets caused by a loss of the 4–20 mA signal during the module exchange.

The AO801 3BSE020514R1 supports hot-insertion in S800 I/O racks that are powered and communicating with the AC800M controller, provided the rack’s bus coupler is configured to allow dynamic module addition. This capability can significantly reduce the duration of the control interruption, as the new module can be inserted and recognized by the controller without requiring a full rack power cycle. Once the AO801 is recognized in Control Builder M, the downloaded hardware configuration should be verified against the physical slot assignment, and each output channel should be exercised through a manual output test before the control loops are returned to automatic.

Original program logic — including PID tuning parameters, output scaling factors, and interlock conditions — should be preserved without modification during the hardware replacement. Any changes to the control application should be deferred to a separate commissioning phase after the AO801 has been confirmed operational. This approach protects the integrity of the existing control strategy and allows the plant to resume production quickly while post-retrofit optimization is scheduled for a subsequent maintenance window. KNMKS provides pre-shipment test documentation for each AO801 unit, which can be used as a baseline reference during on-site commissioning to confirm that the module’s output accuracy meets the original loop calibration requirements.

Retrofit Support FAQ

Q: Is the ABB AO801 3BSE020514R1 a direct drop-in replacement for older ABB Advant analog output cards?
A: The AO801 is functionally compatible with the AC800M S800 I/O architecture and can replace legacy Advant OCS and MOD 300 analog output cards in most retrofit scenarios. However, termination unit compatibility (TB820V2 or TB840A) and slot address assignment in Control Builder M must be verified before installation. Field wiring signal types (mA vs. voltage) and loop impedance should also be confirmed against the AO801’s output specifications.

Q: What commissioning steps are required after installing the AO801 in an existing AC800M rack?
A: After physical installation, download the updated hardware configuration from Control Builder M to the AC800M processor (PM864A or PM891). Perform a cold restart to allow the S800 I/O bus to enumerate the new module. Verify the AO801 appears in the hardware status view, then execute a manual output test on each channel before returning control loops to automatic mode. Confirm HMI faceplate scaling matches the new channel configuration.

Q: Does KNMKS provide pre-shipment testing for the AO801 3BSE020514R1?
A: Yes. Every AO801 unit is functionally tested across all eight output channels prior to shipment. Test documentation is available upon request and can be used as a commissioning baseline on site. All units are supplied with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions.

Q: What is the typical lead time and stock availability for the AO801 3BSE020514R1?
A: KNMKS maintains multi-region stock of the AO801 3BSE020514R1 to support both emergency same-week dispatch and scheduled outage planning. Contact the sales team to confirm current inventory levels and delivery timelines for your region. Priority dispatch is available for critical plant shutdowns and unplanned failures.
