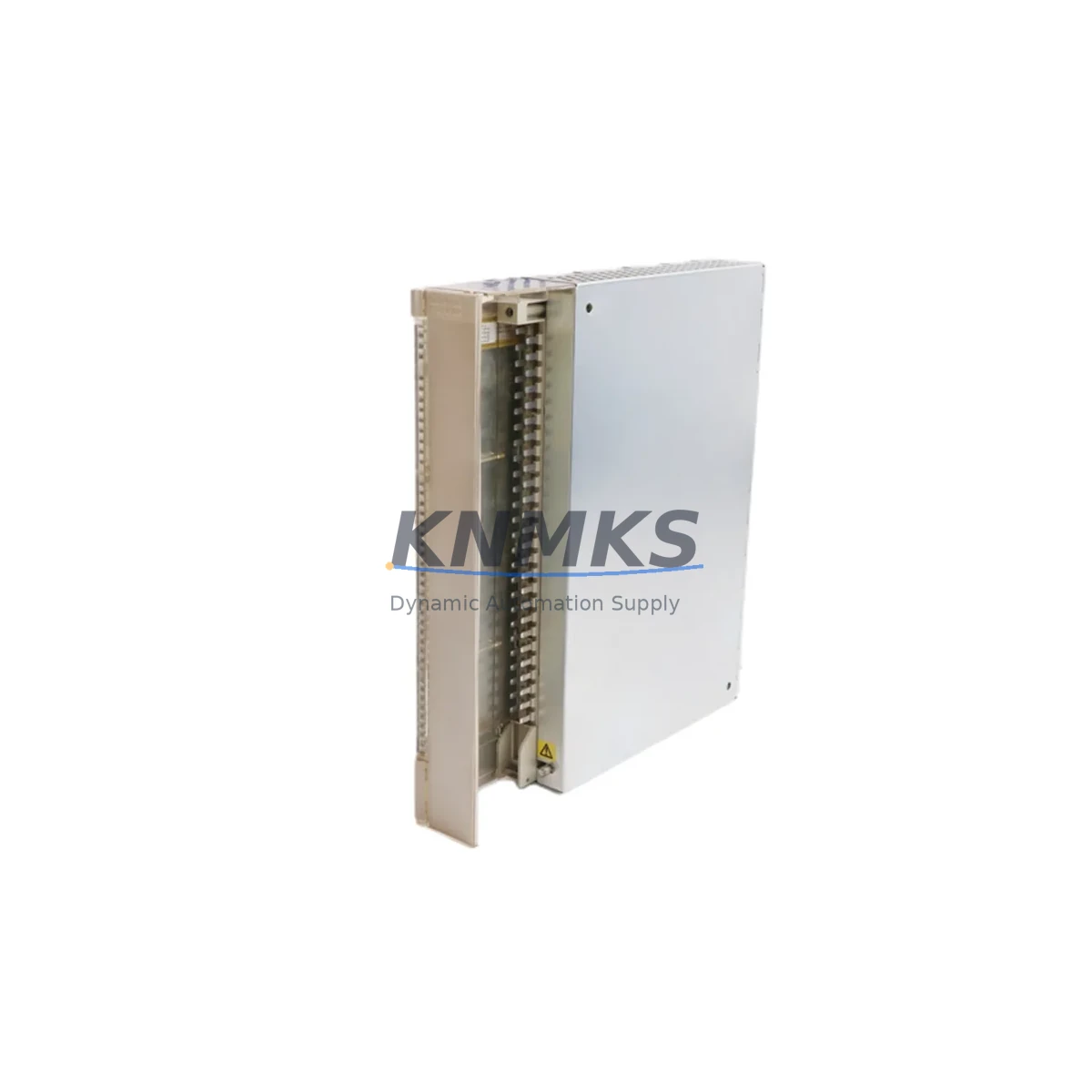

ABB AO650 3BHT300051R1 Migration-Ready Analog Output

Overview

ABB AO650 3BHT300051R1 Migration-Ready Analog Output for Legacy Control Systems

The ABB AO650 (3BHT300051R1) is an 8-channel analog output module engineered for the ABB AC800M distributed control system and the S800 I/O platform. As legacy DCS installations age and OEM support windows close, the AO650 has become a critical spare part for engineers managing retrofit projects, control cabinet upgrades, and phased system migrations. Whether you are replacing a failed module in an operating plant or pre-positioning inventory for a multi-site modernization program, the AO650 3BHT300051R1 delivers the signal fidelity and backplane compatibility required to maintain continuous process control without forcing a full platform migration.

Each unit shipped by KNMKS is pre-tested against factory output specifications before dispatch. Signal range, channel isolation, and communication handshake with the S800 I/O bus are verified under load conditions. A support terms confirmed by quotation covers all units from the date of shipment, providing procurement teams with the confidence needed for long-cycle maintenance planning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AO650 retrofit begins well before the module arrives on site. Engineers replacing discontinued analog output modules such as the AO610 or AO615 must audit the existing I/O list to confirm channel assignments, engineering unit scaling, and fail-safe output states. The AO650 uses the same S800 I/O backplane slot as earlier generation modules, but terminal wiring layouts and channel count may differ, requiring careful review of the field wiring schedule before any physical swap.

Power budget verification is a mandatory pre-step. The ABB PS701 or PS702 power supply module feeding the I/O cluster must have sufficient headroom to support the AO650’s 24 V DC draw alongside other modules in the same rack. If the existing power supply is already near capacity, adding a second PS module or redistributing I/O across clusters should be planned before the maintenance window opens.

For installations where the AC800M controller communicates with field devices over PROFIBUS DP or FOUNDATION Fieldbus segments, the AO650 operates on the internal S800 I/O bus and does not require protocol conversion. However, if the retrofit scope includes migrating from a third-party PLC platform to AC800M, a CI854 PROFIBUS DP communication interface or CI840A PROFIBUS DP slave interface may be required to bridge legacy field device networks into the new control architecture.

HMI faceplates and operator graphics referencing the replaced module’s tag names should be reviewed in ABB 800xA or the relevant SCADA system. Tag renaming or I/O reassignment during the retrofit can cause display anomalies or alarm suppression if graphics are not updated in parallel with the control builder configuration. Coordinate HMI updates with the control program download to minimize operator confusion during commissioning.

Where I/O expansion is part of the modernization scope, the TB820V2 I/O bus terminator supports up to 12 S800 I/O modules per cluster, allowing the AO650 to be added alongside AI810 analog input modules or DI810 digital input modules without requiring a new controller node. This modular expansion path is one of the key advantages of the S800 I/O architecture for phased retrofit programs where full system replacement is not economically justified.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary constraint in any live plant retrofit. For AO650 replacements in operating facilities, the recommended approach is a hot-standby swap procedure where the replacement module is pre-configured offline — module address set, firmware version confirmed, and output scaling verified — before the maintenance window begins. This reduces in-window activity to physical removal, insertion, and a brief functional check, typically achievable within a 30-minute planned outage.

Before removing the failed or end-of-life AO module, export the current control builder project and create a tagged backup of the I/O configuration. This preserves the original program logic, module addressing, and channel scaling parameters, allowing rapid restoration if the replacement module requires configuration adjustment. Do not rely on undocumented field modifications — verify the as-built configuration against the control builder project before proceeding.

For processes where analog output continuity is critical — such as control valve positioners, variable speed drives, or temperature controllers — consider placing the affected control loops in manual mode at the DCS operator station before initiating the swap. This prevents the field device from responding to undefined output states during the module changeover and protects process equipment from uncontrolled movement. Once the AO650 is seated and recognized by the controller, restore automatic mode loop by loop, verifying output signal at the field device before releasing each loop to automatic control.

Post-swap commissioning should include a full channel-by-channel output verification using a calibrated loop calibrator or multimeter at the field terminal. Confirm that each channel’s 4–20 mA or voltage output matches the setpoint commanded from the DCS. Document the commissioning results and retain them with the plant maintenance record. KNMKS provides pre-shipment test data for each AO650 unit on request, which can serve as a baseline reference during site commissioning.

Retrofit Support FAQ

Q1: Is the AO650 3BHT300051R1 a direct replacement for the discontinued AO610 and AO615 modules?
The AO650 is functionally compatible with the AC800M / S800 I/O platform and can replace the AO610 and AO615 in most applications. However, the AO650 provides 8 output channels versus the 6-channel AO610, and terminal wiring layouts differ. Review the field wiring schedule and I/O list before installation. No software re-licensing is required — the module is recognized natively by AC800M Control Builder.

Q2: What commissioning steps are required after installing the AO650?
After physical installation, confirm the module address matches the original configuration in Control Builder. Download the project to the controller and verify that the AO650 appears online in the I/O tree. Perform a channel-by-channel output check using a loop calibrator. Confirm fail-safe output states are configured correctly for each channel. If replacing a module in a redundant I/O cluster, verify switchover behavior before returning the loop to automatic control.

Q3: Does KNMKS provide pre-shipment testing and documentation for the AO650?
Yes. Every AO650 3BHT300051R1 unit is tested against factory output specifications before dispatch. Testing covers all 8 output channels across the full 4–20 mA and voltage output range, backplane communication handshake, and channel isolation. A test report is available on request. All units are covered by a support terms confirmed by quotation from the shipment date.

Q4: What is the typical lead time and inventory availability?
KNMKS maintains stock of the AO650 3BHT300051R1 to support urgent replacement and planned retrofit programs. Standard orders ship within 3–5 business days. For multi-unit procurement supporting long-cycle maintenance contracts (12–36 months), contact our sales team to discuss reserved inventory arrangements and volume pricing. We supply globally with export documentation available for international shipments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AO650 3BHT300051R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB AO650 3BHT300051R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
