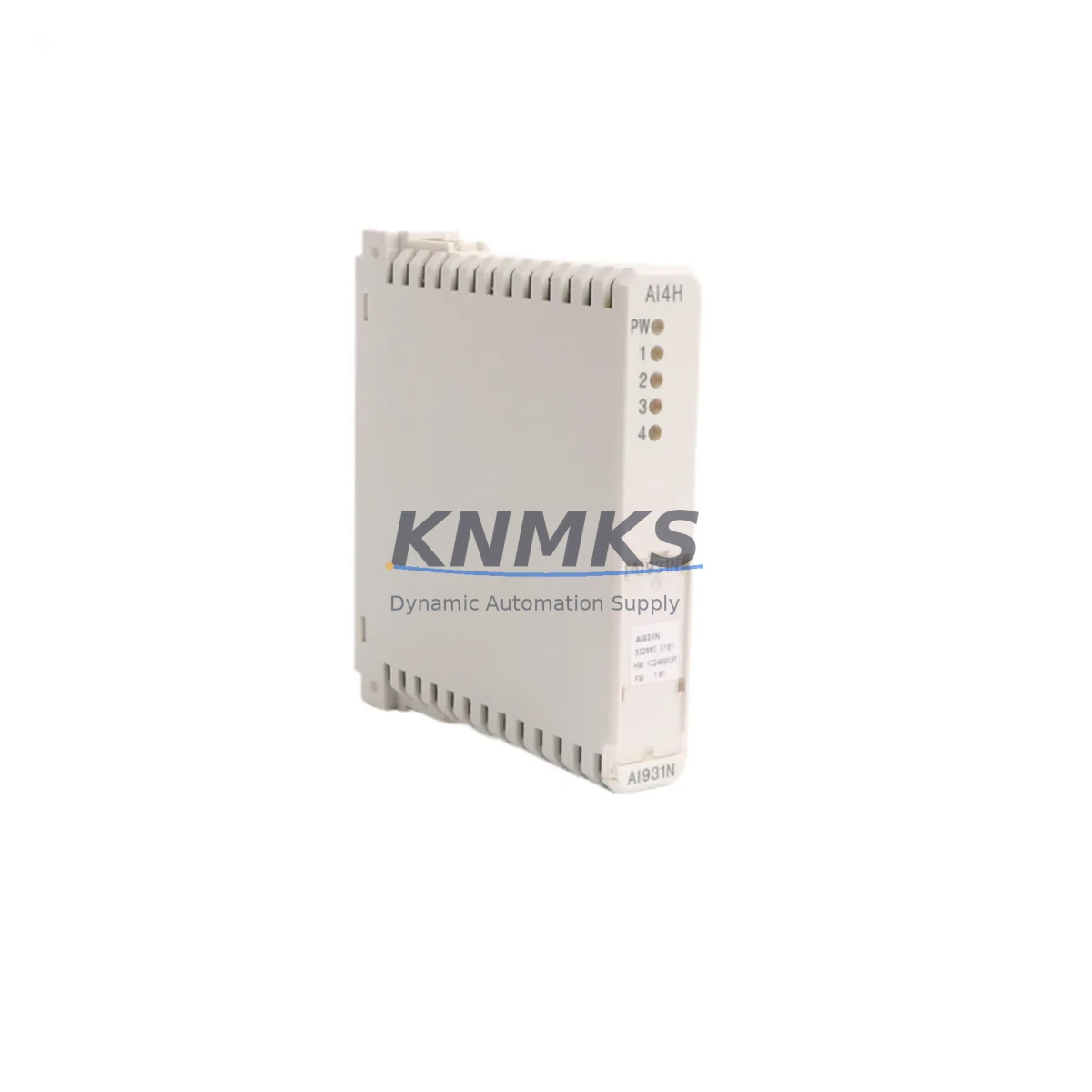

ABB AI931N 3KDE175513L9310 Fail-Safe HART Analog Input Module

Overview

ABB AI931N 3KDE175513L9310 Fail-Safe HART Analog Input Module: Critical Field Reliability and Fault Protection

The ABB AI931N (3KDE175513L9310) is an 8-channel HART-enabled analog input module engineered for deployment in the most demanding industrial control environments. Designed as a core I/O component within ABB’s AC800M and AC870P Distributed Control System (DCS) platforms, this module delivers fail-safe signal acquisition, robust surge immunity, and continuous process monitoring across petrochemical, power generation, mining, water treatment, metallurgical, and continuous manufacturing facilities.

In critical production environments where unplanned downtime carries severe operational and safety consequences, the AI931N provides the signal integrity and fault-tolerant architecture that control engineers depend on. Its HART communication capability enables simultaneous analog signal transmission and digital diagnostics over the same two-wire loop, reducing wiring complexity while enhancing field device visibility. Each channel is independently isolated, ensuring that a fault on one loop does not propagate to adjacent channels or compromise the integrity of the broader safety interlock system.

The module’s design addresses the full spectrum of field-level hazards: signal drift caused by temperature fluctuations, electromagnetic interference from variable frequency drives and high-voltage switchgear, surge transients from lightning or capacitive discharge events, and ground loop noise in large-scale industrial installations. By maintaining stable 4–20 mA signal acquisition under these conditions, the AI931N ensures that the AC800M controller receives accurate process values at all times — a prerequisite for reliable PID control, alarm management, and safety function execution.

For control cabinet integrators, the AI931N fits seamlessly into standard S800 I/O backplane assemblies. When paired with the ABB TB820V2 ModuleBus Optical Modem or the ABB CI854 PROFIBUS DP Communication Interface, the module participates in a fully redundant communication architecture that eliminates single points of failure at the fieldbus level. Power supply stability is equally critical: deploying the AI931N alongside a ABB SD821 or SD822 24 VDC Power Supply Unit ensures that voltage fluctuations and transient dips do not interrupt analog signal sampling. In high-availability configurations, the ABB SS822 Power Supply Supervisor provides automatic switchover between redundant power feeds, protecting the entire I/O rack from power-related faults.

In heavy-load control cabinets operating in high-temperature or high-vibration environments — common in steel mills, cement plants, and offshore platforms — thermal management and mechanical stability are non-negotiable. The AI931N’s conformal-coated PCB and DIN-rail-compatible form factor provide resistance to condensation, dust ingress, and vibration-induced connector fatigue. When the control system also incorporates the ABB AI801 8-Channel Analog Input Module for non-HART loops or the ABB AO810V2 Analog Output Module for final control element commands, the AI931N integrates without configuration conflict, sharing the same S800 I/O bus and engineering tool environment.

Replacement and spare-part logistics are a critical dimension of industrial safety. A failed or degraded analog input module that cannot be sourced promptly forces extended manual operation, increases operator workload, and elevates the risk of process excursions. KNMKS maintains verified inventory of the AI931N 3KDE175513L9310, with pre-shipment functional testing performed on every unit. Each module is verified for channel accuracy, HART communication handshake, and isolation integrity before dispatch, ensuring that field replacement restores full system capability without commissioning surprises.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet built around the AI931N requires a layered protection strategy that addresses power quality, communication integrity, and I/O redundancy simultaneously. At the power layer, the ABB SD822 24 VDC Power Supply provides stable, regulated voltage to the S800 I/O bus, while the ABB SS822 Power Supply Supervisor monitors both primary and redundant feeds, executing bumpless switchover in the event of a supply failure — preventing any interruption to analog signal sampling during power events.

At the communication layer, the ABB CI854 PROFIBUS DP Interface Module connects the S800 I/O station to the AC800M controller over a redundant fieldbus, eliminating the single-point communication failure risk that is unacceptable in safety-critical loops. For installations requiring optical isolation between I/O stations and the controller backplane, the ABB TB820V2 ModuleBus Optical Modem provides galvanic separation that further suppresses ground-loop noise and surge propagation along the bus.

Where the process requires both HART analog inputs (AI931N) and standard analog outputs for valve positioners or variable speed drives, the ABB AO810V2 Analog Output Module completes the control loop within the same I/O rack, maintaining a consistent engineering environment and minimizing inter-module latency. For non-HART analog input loops — such as legacy 4–20 mA transmitters without digital communication — the ABB AI801 Analog Input Module can be deployed in parallel racks, sharing the same backplane infrastructure and reducing spare-part complexity across the site.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units such as distillation columns, reactor feed systems, and compressor trains, the AI931N acquires pressure, temperature, and flow signals from HART-enabled field transmitters. Its per-channel isolation prevents a ground fault on one measurement loop from corrupting adjacent safety interlock inputs, a critical requirement in SIL-rated process safety systems.

Power Generation and Substation Control: Turbine control and boiler management systems demand sub-second analog update rates and zero tolerance for signal drift. The AI931N’s EMI-hardened design withstands the high-frequency interference generated by generator excitation systems and high-voltage bus switching, maintaining accurate megawatt, temperature, and pressure readings throughout load transients.

Mining and Mineral Processing: Conveyor drive systems, crusher controls, and flotation cell management in underground and open-pit mining environments expose control hardware to extreme vibration, dust, and humidity. The AI931N’s conformal coating and robust connector design maintain signal integrity in these conditions, supporting continuous production without unplanned I/O failures.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on accurate flow, pH, turbidity, and chlorine residual measurements for regulatory compliance and process safety. The AI931N’s HART capability enables remote diagnostics of field transmitters without process interruption, reducing maintenance downtime and supporting predictive maintenance programs.

Metallurgy and Steel Production: Electric arc furnace controls, rolling mill automation, and continuous casting systems operate in environments with extreme thermal cycling and electromagnetic interference from high-current bus systems. The AI931N’s surge-protected inputs and wide operating temperature range ensure reliable analog acquisition throughout the production cycle.

Port, Marine, and Offshore Installations: Ship propulsion control, offshore platform process automation, and port crane management systems require control hardware certified for high-humidity, salt-air, and vibration-intensive environments. The AI931N’s industrial-grade construction and DCS integration capability make it a dependable choice for marine and offshore I/O applications where replacement logistics are complex and downtime costs are extreme.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the AI931N 3KDE175513L9310?
The 12-month KNMKS support terms covers all functional defects in the AI931N module, including channel accuracy failures, HART communication faults, isolation breakdown, and power interface failures. If a verified defect is identified within the confirmed support period, KNMKS will provide a replacement unit or repair service. Each unit is pre-tested before shipment to minimize the risk of field failures on arrival.

Q2: What pre-shipment testing is performed on each AI931N module?
Every AI931N 3KDE175513L9310 dispatched by KNMKS undergoes a structured functional test covering: (1) per-channel 4–20 mA signal accuracy verification, (2) HART communication handshake confirmation, (3) channel-to-channel isolation resistance measurement, and (4) visual inspection for connector integrity and PCB condition. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the AI931N 3KDE175513L9310 compatible with both AC800M and AC870P systems?
Yes. The AI931N is a member of the ABB S800 I/O family and is compatible with AC800M and AC870P DCS platforms when installed on a compatible ModuleBus backplane (TB820 or TB840 series). Compatibility with Symphony Plus and extended AC800M configurations should be confirmed against the specific system software version and I/O station configuration in use. KNMKS technical support can assist with compatibility verification prior to order placement.

Q4: Can KNMKS support long-term and repeat supply of the AI931N for ongoing maintenance programs?
Yes. KNMKS maintains standing inventory of the AI931N 3KDE175513L9310 to support both emergency replacement and planned maintenance procurement. For facilities managing multi-year spare-part programs or requiring periodic replenishment of S800 I/O modules, KNMKS can provide volume pricing, reserved stock arrangements, and consistent lead times. Contact [email protected] or +86 18359268345 to discuss your site’s ongoing supply requirements.
