ABB AI880A 3BSE039293R1 Migration-Ready HART Analog Input

Overview

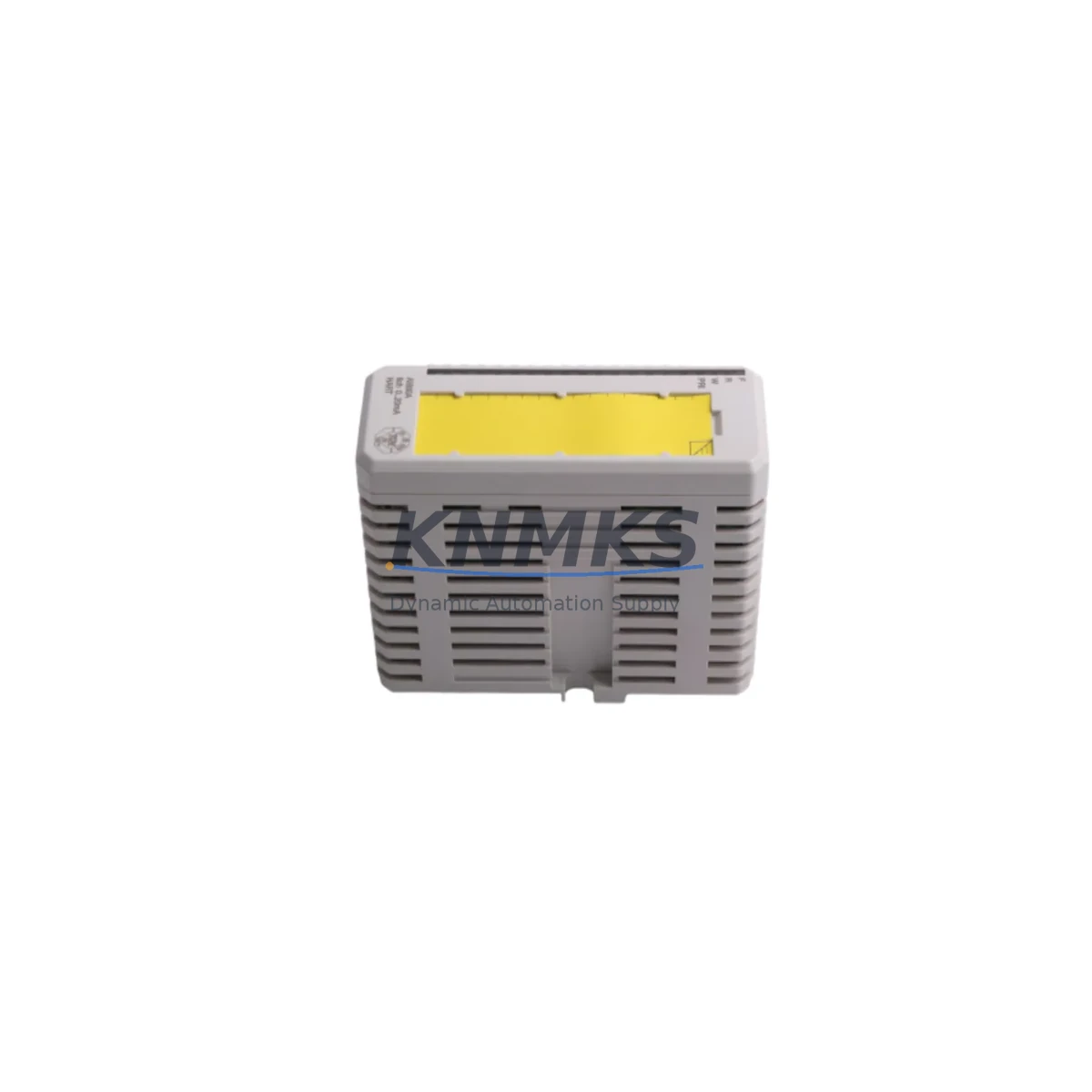

ABB AI880A 3BSE039293R1 Migration-Ready HART Analog Input for Legacy Control Systems

The ABB AI880A (3BSE039293R1) is a HART-enabled analog input module designed for the S800 I/O platform, widely deployed across AC800M-based distributed control systems in oil & gas, power generation, chemical processing, and pulp & paper industries. As legacy S800 installations approach end-of-life or require capacity expansion, the AI880A remains a critical migration-ready component — offering direct drop-in compatibility with existing S800 I/O stations, TB820V2 termination boards, and CI854 PROFIBUS communication interfaces without requiring PLC program restructuring or HMI screen redesign.

Our stock of AI880A 3BSE039293R1 modules is sourced from verified industrial channels, subject to pre-shipment functional testing, and backed by a support terms confirmed by quotation. Units are available for immediate dispatch to support emergency replacement, planned retrofit, and long-term spare parts inventory programs.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the AI880A 3BSE039293R1 into an existing S800 I/O station requires a structured pre-retrofit assessment. Engineers should begin by auditing the current I/O station configuration — confirming the number of occupied slots, the installed CI854 or CI858 PROFIBUS DP communication interface module, and the firmware revision running on the AC800M controller. The AI880A slots directly into the S800 baseplate and connects to field instruments via the TB820V2 termination board; if the existing installation uses an older TB820 (non-V2) variant, termination board replacement should be factored into the project scope.

HART pass-through functionality requires that the CI854 communication interface is configured to support HART variable mapping in the AC800M application. If the legacy system was running the predecessor AI880 (3BSE020512R1), the channel signal ranges and HART device descriptors are preserved, significantly reducing re-commissioning time. Engineers should verify that the SB822 S800 bus module or equivalent baseplate is rated for the additional module and that the PS802 or PS810 power supply module provides sufficient current headroom for the expanded I/O count.

For systems undergoing broader modernization — such as migration from a legacy MOD 300 or Advant OCS platform to AC800M — the AI880A is frequently deployed alongside the TP830 PROFIBUS DP termination panel, CI858 redundant communication interface, and AF100 Fieldbus communication modules to establish a complete field signal infrastructure. HMI screens built on ABB’s 800xA System should be reviewed to confirm that analog input tags mapped to the AI880A channels are correctly bound to the new module address and that HART secondary variables (temperature, pressure, flow) are correctly surfaced in the operator display.

Downtime Control During System Migration

Minimizing production downtime during an S800 I/O retrofit requires careful sequencing of module swap activities. Where process conditions permit, a hot-swap approach can be used: the AC800M controller is placed in manual override for the affected analog input channels, the AI880A is inserted into the vacated slot, and the controller is returned to automatic control after signal verification — typically achievable within a 15–30 minute maintenance window per module.

For critical loops — such as reactor temperature inputs or compressor surge control signals — a parallel wiring strategy is recommended: the replacement AI880A is wired in parallel with the existing module on the TB820V2 termination board, signals are verified against the live process values, and the cutover is executed during a scheduled low-load period. This approach preserves original program logic, retains existing function block configurations in the AC800M application, and avoids the need for a full controller restart.

All pre-shipment tested units are dispatched with a functional test report. Upon receipt, engineers should perform a bench verification of HART communication using a HART communicator (e.g., Emerson 475 Field Communicator) before installation to confirm channel integrity and device descriptor compatibility with installed field transmitters. Firmware version alignment between the AI880A and the AC800M base system should be confirmed in the System Version Information tool within ABB’s Control Builder M engineering environment.

Retrofit Support FAQ

Q1: Is the AI880A 3BSE039293R1 a direct replacement for the AI880 3BSE020512R1?
Yes. The AI880A is the designated successor to the AI880. It maintains the same S800 single-slot form factor, identical channel count (8 channels), and compatible HART signal handling. No changes to the AC800M application program or HMI tag assignments are required when replacing AI880 with AI880A in the same slot position.

Q2: What termination board is required, and does it need to be replaced?
The AI880A is designed for use with the TB820V2 termination board. If the existing installation uses the original TB820 (without V2 designation), the termination board should be replaced as part of the retrofit. Field wiring connections on the TB820V2 are compatible with standard 4–20 mA two-wire and four-wire HART transmitter configurations.

Q3: How is the module address configured, and does it affect the existing PLC program?
The module address is set via DIP switches on the AI880A front face. When replacing an existing AI880 in the same physical slot, the DIP switch setting should match the original module’s address to ensure the AC800M application recognizes the replacement module without requiring a program download or I/O configuration change in Control Builder M.

Q4: What support terms and testing assurance is provided with each unit?
Every AI880A 3BSE039293R1 unit dispatched from our inventory has undergone pre-shipment functional testing covering channel signal integrity, HART communication handshake, and power consumption verification. Each unit is covered by a support terms confirmed by quotation from the date of dispatch. Replacement or repair support is available for units that exhibit functional defects within the confirmed support period. Contact [email protected] or +86 18359268345 for support requests and technical support.
