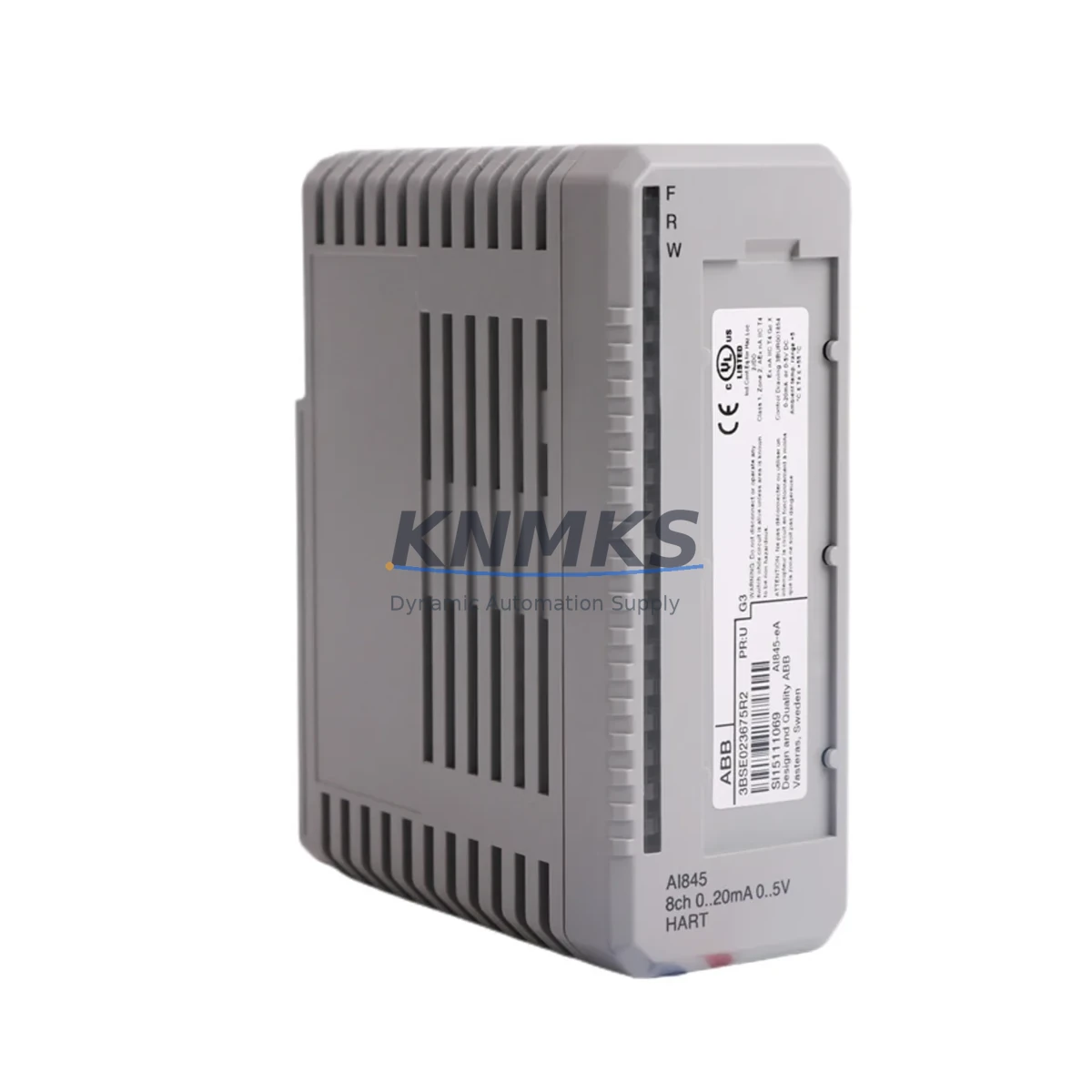

ABB AI845-EA 3BSE023675R2 Maintenance-Proven Spare Part

Overview

ABB AI845-EA 3BSE023675R2 Maintenance-Proven Spare Part for Factory Uptime

The ABB AI845-EA (3BSE023675R2) is an original analog input module from the S800 I/O series, engineered for continuous-duty deployment within ABB AC800M Distributed Control Systems. For maintenance engineers managing aging DCS infrastructure, this module represents a critical line-item in any structured spare parts program. Its role spans routine point-check cycles, fault isolation during unplanned shutdowns, emergency swap-out during production incidents, and annual overhaul restocking. Sourced as an original ABB component, the AI845-EA 3BSE023675R2 ensures signal fidelity, firmware compatibility, and long-term system stability — factors that generic or counterfeit substitutes cannot reliably guarantee.

Procurement engineers sourcing this module for warehouse stock should verify the full part reference: AI845-EA with catalog number 3BSE023675R2. Mismatched revisions or suffix variants may introduce configuration incompatibilities within the S800 I/O bus architecture. KNMKS supplies this module pre-tested against ABB factory electrical specifications, with each unit shipped with a support terms confirmed by quotation and full inspection documentation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the AI845-EA 3BSE023675R2 in a live AC800M control cabinet, a disciplined maintenance engineer will not limit the inspection to the module itself. The S800 I/O architecture distributes analog signal processing across interconnected components, and a failed or degraded AI845-EA is frequently a symptom of upstream or downstream stress rather than an isolated failure.

Begin by inspecting the TB820V2 or TB840A baseunit to which the AI845-EA is mounted. Damaged bus connectors or corroded baseunit contacts are a common root cause of intermittent analog signal faults that are incorrectly attributed to the input module. If the baseunit shows mechanical wear or discoloration from heat, replace it concurrently with the AI845-EA to avoid repeat failures.

Next, verify the SD821 or SD822 24 VDC power supply module feeding the S800 I/O rail. Voltage sag or ripple on the DC bus can corrupt analog readings and accelerate module degradation. A power supply operating near its rated load ceiling should be flagged for replacement during the same maintenance window.

Inspect all field signal cables and terminal blocks connected to the AI845-EA’s input channels. Loose terminations, corroded ferrules, or undersized cable cross-sections introduce measurement drift that is difficult to distinguish from module failure during fault isolation. Re-torque all terminals and replace any discolored or brittle wiring.

For systems using CI854A or CI858 PROFIBUS/PROFINET communication interfaces, confirm that the fieldbus configuration still maps correctly after the module swap. A replacement AI845-EA installed in a different slot position may require a configuration download from the AC800M controller to restore correct channel addressing.

If the control loop served by this analog input feeds a PM866 or PM864A AC800M controller module, verify controller firmware compatibility with the replacement module revision. ABB periodically releases S800 I/O firmware updates that affect module behavior; confirm the installed controller firmware version against ABB’s compatibility matrix before commissioning the replacement.

Finally, check any signal isolators or loop-powered transmitter barriers installed between field instruments and the AI845-EA input channels. A failed isolator can present as an analog input module fault and will cause the replacement module to exhibit the same symptoms if not identified and replaced. Stocking a small quantity of signal isolators alongside the AI845-EA in your spare parts cabinet is a low-cost insurance measure that significantly reduces mean time to repair.

Site Replacement Workflow

Step 1 — Isolation: Place the affected S800 I/O station in manual control mode via the AC800M engineering workstation. Confirm all analog loops served by the AI845-EA are held at safe output values before proceeding.

Step 2 — Module Removal: The AI845-EA is hot-swap capable within the S800 I/O architecture. Unlatch the module from the baseunit and slide it clear. Inspect the baseunit connector for damage before inserting the replacement.

Step 3 — Replacement Installation: Insert the new AI845-EA 3BSE023675R2 into the same baseunit slot. The module will self-identify to the AC800M controller and load its configuration automatically if the controller project is correctly configured for automatic module recognition.

Step 4 — Verification: Monitor all eight analog input channels from the AC800M engineering workstation. Confirm signal values are within expected process ranges and that no diagnostic alarms are active on the replacement module.

Step 5 — Return to Auto: Once all channels are verified, return the affected control loops to automatic mode. Document the replacement in the site maintenance log, including the module serial number, replacement date, and pre-shipment test certificate reference.

This workflow is applicable to both planned annual overhaul replacements and emergency swap-outs during unplanned downtime events. Maintaining one or two AI845-EA 3BSE023675R2 units in on-site spare stock eliminates the lead-time risk associated with emergency procurement and is strongly recommended for facilities operating more than four S800 I/O stations.

Spare Parts Support FAQ

Q1: Is the AI845-EA 3BSE023675R2 still in production, and can KNMKS guarantee long-term supply?
The AI845-EA is an established S800 I/O series module with broad installed-base adoption across global process industries. KNMKS maintains buffer stock and multi-source procurement channels to support long-term supply continuity. Customers with annual maintenance contracts or multi-year MRO programs are encouraged to contact our sales team to discuss scheduled delivery arrangements.

Q2: How do I confirm compatibility between the AI845-EA 3BSE023675R2 and my existing AC800M system revision?
Compatibility is determined by the AC800M controller firmware version and the S800 I/O bus configuration in your Control Builder M project. KNMKS recommends providing your controller firmware version and existing module revision when placing an order. Our technical team will cross-reference ABB’s compatibility documentation and confirm suitability before shipment.

Q3: What pre-shipment testing does KNMKS perform on the AI845-EA 3BSE023675R2?
Every unit undergoes electrical continuity verification, bus interface testing, and analog channel functional checks prior to dispatch. Test results are documented and available upon request. Units that do not meet ABB factory electrical specifications are not shipped. This process applies to both new and refurbished-to-specification stock.

Q4: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions consistent with ABB’s published environmental and electrical specifications for the AI845-EA. In the event of a support terms claim, contact KNMKS at [email protected] with the unit serial number, fault description, and site installation details. Replacement or repair will be arranged within the confirmed support period without additional charge for the module itself.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AI845-EA 3BSE023675R2
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB AI845-EA 3BSE023675R2
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
