ABB AI830A 3BSE040662R1 Maintenance-Proven Spare Part

Overview

ABB AI830A 3BSE040662R1 Maintenance-Proven Spare Part for Factory Uptime

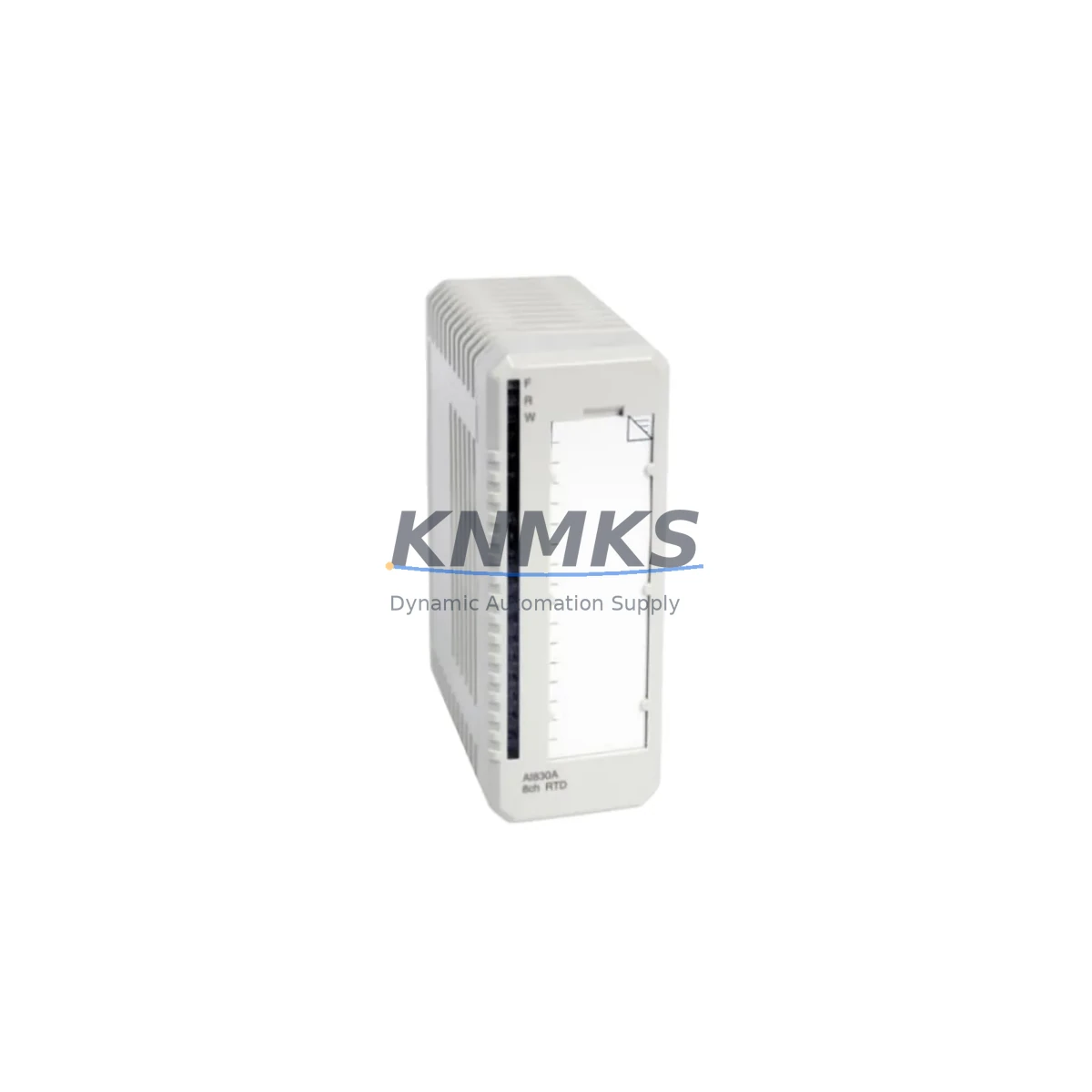

The ABB AI830A (3BSE040662R1) is an 8-channel RTD analog input module designed for the S800 I/O system, fully compatible with the AC800M process controller platform. As a critical measurement front-end in temperature-intensive process loops, this module is routinely found in power generation, chemical processing, pulp and paper, and oil & gas control cabinets. When a plant experiences unexpected RTD signal loss or analog input drift, the AI830A is one of the first modules maintenance engineers isolate and replace to restore process visibility and resume safe production.

KNMKS stocks the AI830A 3BSE040662R1 as a verified original ABB spare, pre-shipment tested under functional conditions, and backed by a support terms confirmed by quotation. Each unit is inspected for firmware integrity, channel isolation, and connector condition before dispatch — ensuring that what arrives on-site is ready to install without additional bench testing delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the AI830A 3BSE040662R1 in a live S800 cabinet is rarely an isolated task. Maintenance engineers and procurement teams should treat this module replacement as an opportunity to audit the surrounding electrical environment and reduce the risk of repeat failures.

Start with the TB820V2 or TB840A baseplate — the AI830A seats directly onto the S800 baseplate, and worn or corroded baseplate connectors are a common source of intermittent channel faults that are misdiagnosed as module failure. Inspect the baseplate locking mechanism and connector pins before installing the replacement module.

The ModuleBus communication path should also be verified. The AI830A communicates via the S800 ModuleBus, which is managed by a CI830 or CI840A ModuleBus Modem. If the AI830A replacement does not restore signal, the CI840A modem or its fiber-optic link to the AC800M controller should be the next diagnostic step. Keep a CI840A in your critical spares inventory if your plant runs multiple S800 clusters.

On the field wiring side, inspect the TB82 or TB84 terminal base connections for each RTD channel. Loose or oxidized terminal screws on the field-side terminal base are a frequent cause of high-resistance readings and false over-temperature alarms. Torque all terminals to specification after module swap.

For plants running AC800M PM864 or PM866 controllers, confirm that the controller firmware version supports the AI830A channel configuration currently loaded in Control Builder M. A firmware mismatch after a module swap can cause the controller to report configuration errors even when the hardware is correctly installed.

Additionally, review the 24 VDC field power supply feeding the S800 cabinet. The AI830A draws power from the ModuleBus backplane, but field-side RTD excitation current is supplied through the terminal base. A degraded cabinet power supply — such as an aging ABB PSMV or SD series DIN-rail PSU — can introduce noise into RTD measurements, causing erratic temperature readings that appear to be module faults. Replacing the AI830A without addressing a marginal power supply will result in recurring issues.

Finally, if the plant uses signal isolators or barriers between the RTD field devices and the AI830A terminal base (common in hazardous area installations), verify that the isolator output range matches the AI830A input configuration. Mismatched isolator output impedance is a known source of calibration offset errors after module replacement.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement AI830A 3BSE040662R1 matches the installed firmware baseline. Check the module label for hardware revision. In ABB Control Builder M, note the current channel configuration (RTD type, range, filter settings) before removing the faulty module.

Step 2 — Safe removal: Place the AC800M controller in manual mode or transfer control to a redundant path if available. The S800 I/O system supports hot-swap on most configurations, but verify this against your plant’s safety procedures before proceeding. Unlock the module latch, slide the AI830A out of the baseplate, and cap the baseplate slot to prevent contamination during the swap.

Step 3 — Installation: Insert the replacement AI830A firmly until the latch clicks. The module will perform a self-test on power-up. In Control Builder M, the module should appear online within 30–60 seconds. Verify that all 8 channels report valid RTD values before returning the loop to automatic control.

Step 4 — Post-replacement validation: Compare live RTD readings against reference thermometers or historian trend data to confirm calibration accuracy. Document the replacement in the plant maintenance management system (CMMS) with the module serial number, installation date, and channel configuration for future reference.

This workflow applies equally to planned annual shutdowns and emergency unplanned replacements. Having a pre-tested AI830A 3BSE040662R1 on the shelf reduces mean time to repair (MTTR) from hours to under 30 minutes.

Spare Parts Support FAQ

Q1: Is the AI830A 3BSE040662R1 compatible with all AC800M controller versions?
The AI830A is designed for the S800 I/O system and is compatible with all AC800M controller variants (PM851 through PM866) running Control Builder M. Older AC800 (non-M) controllers using the S800 I/O via a CI810B or CI820V1 interface module are also supported. Always verify the ModuleBus modem firmware version matches your installed base before deploying a replacement module in a mixed-revision cabinet.

Q2: What is the recommended spare parts holding strategy for the AI830A?
For plants with 5 or more AI830A modules installed, a minimum of 1 spare per 10 installed units is recommended, with a floor of 2 spares regardless of installed quantity. Given that ABB has transitioned the S800 series toward end-of-life support phases, procurement teams should consider securing a 24–36 month forward stock position to avoid lead-time exposure as OEM availability tightens. KNMKS supports long-term supply agreements for this purpose.

Q3: How does KNMKS verify the AI830A before shipment?
Every AI830A 3BSE040662R1 dispatched by KNMKS undergoes a functional pre-shipment test that includes power-up self-test verification, channel continuity checks across all 8 RTD inputs, ModuleBus communication handshake confirmation, and visual inspection of the baseplate connector and module housing. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q4: Can KNMKS support long-term or blanket purchase orders for the AI830A?
Yes. KNMKS offers long-term supply agreements for critical S800 I/O spare parts including the AI830A 3BSE040662R1. Blanket orders with scheduled releases allow procurement teams to lock in pricing, guarantee availability, and reduce emergency procurement risk. Contact our team to discuss volume pricing, lead times, and consignment stock options tailored to your plant’s maintenance cycle.
