ABB AI620 3BHT300005R1 Maintenance-Ready Spare for S800 Automation

Overview

ABB AI620 3BHT300005R1 Maintenance-Ready Spare for S800 Automation

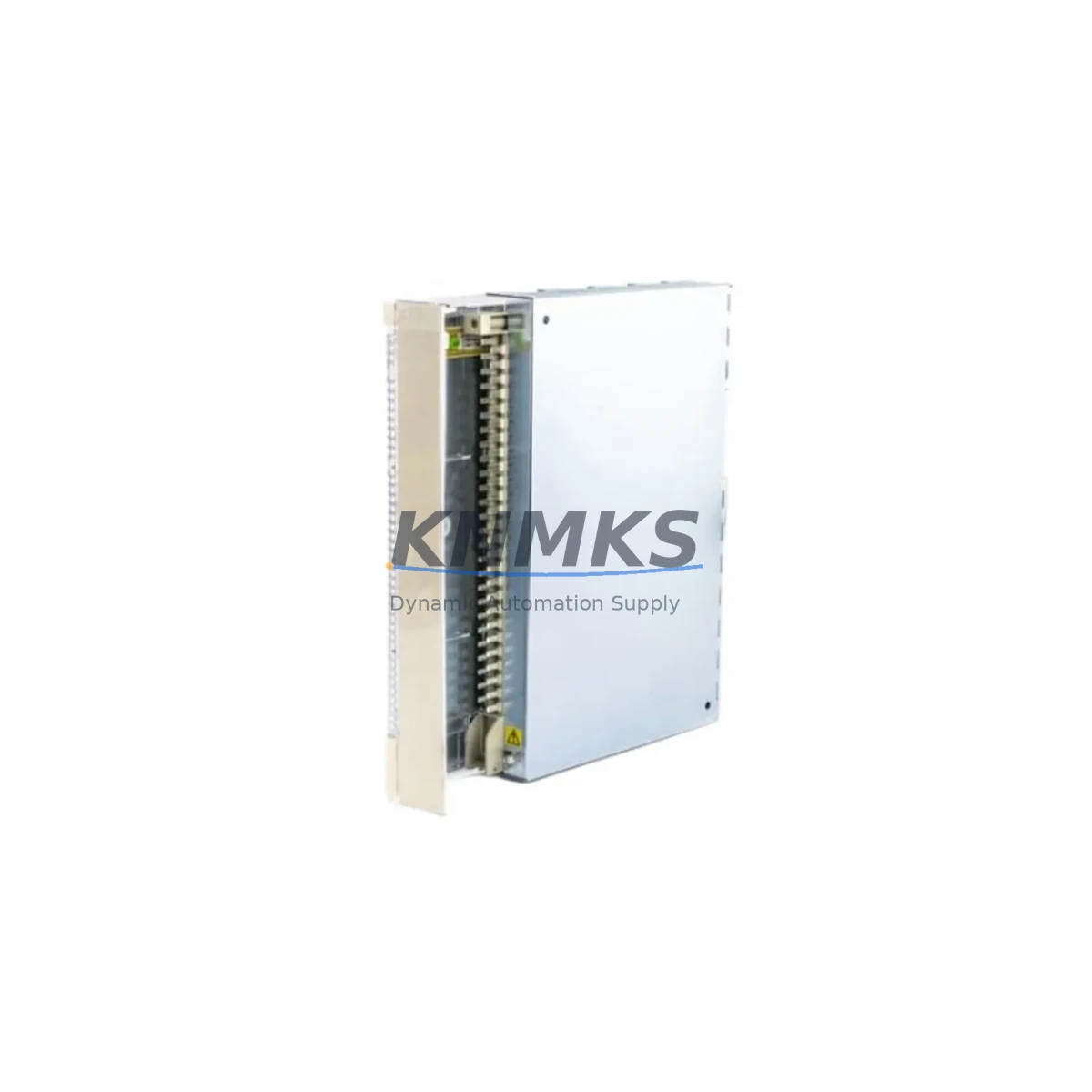

The ABB AI620 3BHT300005R1 is an original 8-channel analog input module engineered for the ABB S800 I/O system and fully compatible with the AC800M Distributed Control System (DCS). As a precision-grade field I/O module, the AI620 handles analog signal acquisition from process transmitters, sensors, and field instruments across continuous manufacturing, power generation, chemical processing, and pulp & paper industries. Maintaining a verified spare of the 3BHT300005R1 in your critical spare parts inventory is a proven strategy to eliminate unplanned downtime and protect production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a process plant relies on the ABB AC800M controller paired with an S800 I/O cluster, the AI620 3BHT300005R1 sits at the heart of analog signal integrity. A degraded or failed AI620 can silently corrupt process variable readings — triggering false alarms, incorrect PID responses, or emergency shutdowns. Maintenance engineers conducting routine cabinet inspections should treat the AI620 as a tier-1 critical spare.

During scheduled annual overhauls or predictive maintenance cycles, the AI620 should be inspected alongside its host TB820V2 or TB840A ModuleBus Modem, which governs cluster communication. A faulty modem can mimic AI620 channel faults, so both components should be verified before condemning the input module. Similarly, the SD821 or SD822 power supply module feeding the S800 station should be load-tested — undervoltage conditions are a leading cause of intermittent analog input errors that are often misdiagnosed as module failure.

Field wiring integrity is equally critical. Inspect the TB807 or TB811 terminal base that the AI620 plugs into for corrosion, loose screw terminals, and shield continuity. In high-EMI environments such as motor control centers or variable frequency drive (VFD) cabinets, signal isolation degradation on the 4–20 mA loops can introduce noise that exceeds the module’s input filter capacity. In these cases, adding a dedicated signal isolator or loop conditioner upstream of the AI620 input channels is a recommended corrective action.

For plants running extended S800 clusters with multiple I/O stations, the CI854 PROFIBUS DP communication interface or CI855 ModuleBus Optical Interface should be included in the annual inspection checklist. Communication faults at the interface level can cause entire I/O station dropouts, making it appear that multiple AI620 modules have failed simultaneously. Verifying optical fiber connections, termination resistors, and interface firmware versions before replacing individual modules saves significant diagnostic time.

Procurement engineers building a resilient spare parts strategy for AC800M-based systems should also consider stocking the AO820 analog output module and DI810 or DI811 digital input modules as companion spares. These modules share the same S800 I/O station architecture and are subject to similar aging and environmental stress factors. A consolidated spare kit covering AI, AO, and DI modules ensures that a single cabinet fault event does not require multiple emergency procurement cycles.

Site Replacement Workflow

Step 1 — Isolation & Safety: Place the AC800M controller in manual mode or transfer control to a redundant controller if available. Isolate the affected S800 I/O station from field power. Follow site LOTO (Lockout/Tagout) procedures before opening the control cabinet.

Step 2 — Module Identification: Confirm the slot address and channel assignment of the failed AI620 3BHT300005R1 using the AC800M engineering tool (Control Builder M). Record the current channel configuration — signal type, range, filter settings, and alarm limits — before removal.

Step 3 — Physical Replacement: The AI620 is a hot-swap capable module within the S800 architecture when the station is configured for redundant power. Slide the module out of the TB807/TB811 terminal base. Insert the replacement 3BHT300005R1 and confirm the module LED status indicates healthy communication within 10–15 seconds of insertion.

Step 4 — Configuration Restore: If the replacement module does not inherit configuration automatically from the AC800M project, download the I/O configuration from Control Builder M. Verify all 8 channels report correct process values against field reference instruments before returning the loop to automatic control.

Step 5 — Post-Replacement Verification: Log the replacement event in the plant CMMS. Update the spare parts inventory record and initiate a replenishment order for the next AI620 3BHT300005R1 spare to maintain minimum stock levels. All units supplied by KNMKS are tested prior to shipment and covered by a support terms confirmed by quotation from the date of invoice.
