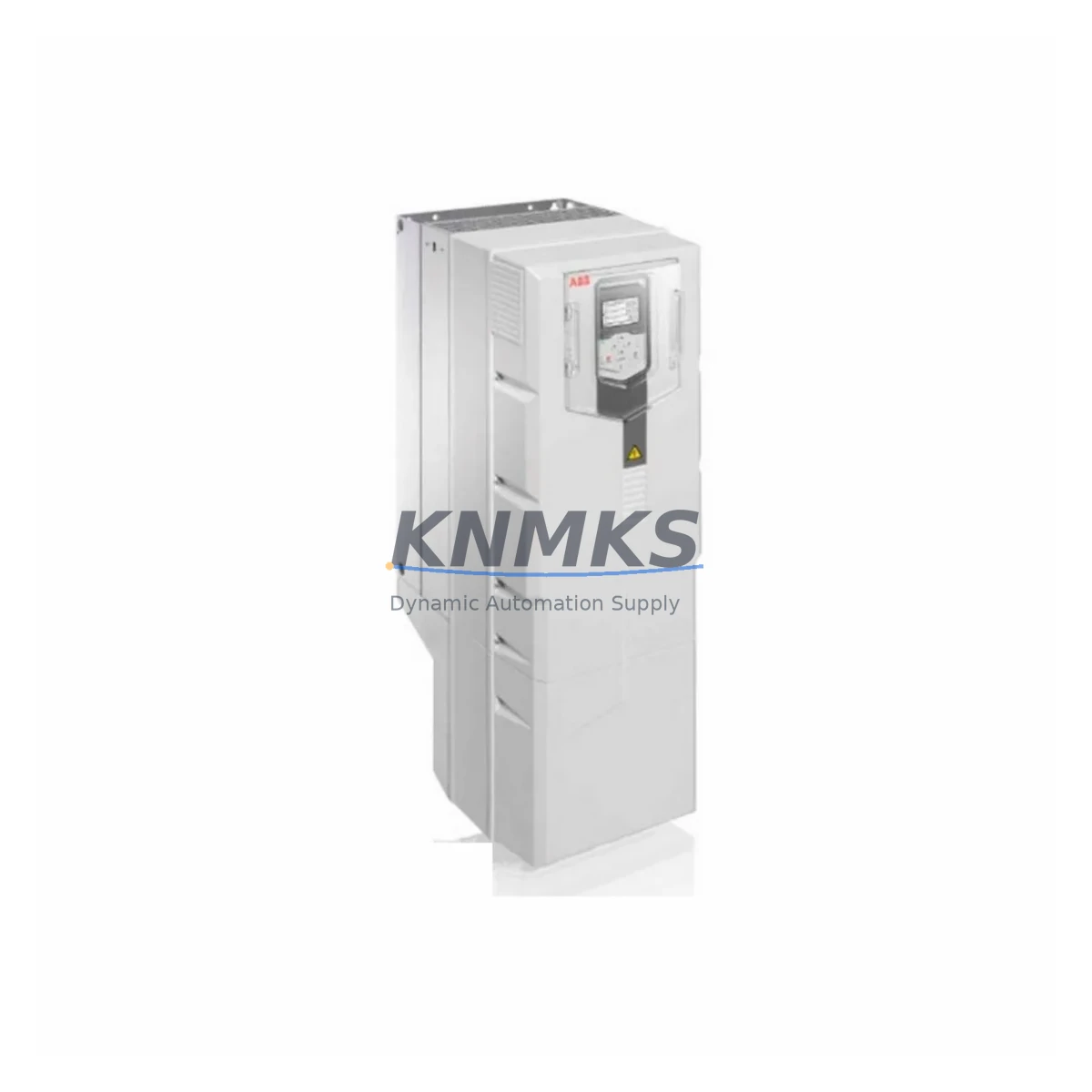

ABB ACS580-01-096A-4 Migration-Ready VFD for Legacy Systems

Overview

ABB ACS580-01-096A-4 Migration-Ready VFD for Legacy Control Systems

The ABB ACS580-01-096A-4 is a 45 kW (400 V, 96 A) general-purpose variable frequency drive from ABB’s ACS580 series, purpose-built for industrial motor control in demanding process environments. As legacy ACS550, ACS510, and ACS355 drives reach end-of-life or become increasingly difficult to source as spare parts, the ACS580-01-096A-4 represents the most direct and validated migration path for engineers managing aging automation infrastructure. Its backward-compatible mounting footprint, familiar ABB commissioning workflow, and support for both PROFIBUS-DP and Modbus RTU fieldbus protocols make it a preferred choice for retrofit projects where minimizing downtime and preserving existing control logic are the primary objectives.

Before initiating a swap-out, engineers should verify several critical parameters: confirm that the existing supply transformer or MCC section can sustain the ACS580’s input current demand under full load; inspect terminal block pitch and cable cross-section compatibility against the ACS580-01-096A-4 wiring diagram (terminals U1/V1/W1 for input, U2/V2/W2 for motor output); and validate that the control cabinet depth and DIN rail spacing accommodate the drive’s 237 mm depth. If the legacy installation used an ACS550 with an RDNA-01 DeviceNet adapter, note that the ACS580 uses the FENA-21 Ethernet/IP or FPBA-01 PROFIBUS adapter family — fieldbus adapter substitution must be reflected in the PLC program’s I/O mapping before go-live.

For sites running Siemens S7-300 or S7-400 PLCs with existing PROFIBUS-DP segments, the ACS580-01-096A-4 integrates directly using the FPBA-01 adapter, preserving the existing GSD file structure with minor parameter updates. Sites on Allen-Bradley ControlLogix or CompactLogix platforms communicating via EtherNet/IP should deploy the FENA-21 adapter and update the EDS file in Studio 5000 accordingly. In both cases, the drive’s parameter set — including ramp times, current limits, and PID references — can be pre-loaded via the ABB Drive Composer PC tool or cloned from a compatible ACS580 unit using the ACS-AP-I assistant control panel, significantly reducing on-site commissioning time.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. Start by auditing the existing control cabinet layout: confirm that the ACS580-01-096A-4 can be mounted in the same rail position as the outgoing drive, and that adjacent components — including the input choke, EMC filter, and braking resistor — remain compatible. The ACS580 series supports an optional du/dt filter (NOCH0016-60) for long motor cable runs exceeding 100 m, which is particularly relevant in pump and fan applications where cable routing through cable trays is fixed.

On the I/O side, the ACS580-01-096A-4 provides six digital inputs, two analog inputs (0–10 V / 4–20 mA selectable), two analog outputs, and two relay outputs — a configuration that maps cleanly to most ACS550 and ACS510 wiring schemes. If the legacy system used an RAIO-01 analog I/O extension module, verify whether the additional channels are still required or can be consolidated into the ACS580’s native I/O. For installations with a Siemens ET 200S or Phoenix Contact Inline I/O block handling distributed signals, the existing PROFIBUS segment can be retained without modification, with only the drive node address and GSD file requiring an update.

Power supply integrity is a common retrofit risk. Confirm that the 24 VDC auxiliary supply feeding the drive’s control board (terminals +24V / DGND) is stable and within the 20.4–28.8 VDC tolerance band. If the site uses a Phoenix Contact QUINT or Siemens SITOP power supply module, these typically meet the ACS580’s auxiliary power specification without modification. For the motor circuit, verify that the existing motor protection relay or circuit breaker is rated for the ACS580’s output current and that the motor’s insulation class is compatible with the drive’s output voltage rise rate.

Programming cable access is another practical consideration: the ACS580 uses a standard USB-A to USB-B cable for PC connectivity via Drive Composer, eliminating the proprietary serial cable required by older ACS355 or ACS150 drives. If the site’s PLC program references the drive via a Modbus RTU link, the existing RS-485 wiring to terminals B+/A- on the ACS580 can be reused directly, with only the slave address and baud rate parameters requiring confirmation against the PLC’s communication configuration.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement requires a structured pre-commissioning approach. Before the maintenance window, use Drive Composer to prepare a parameter file (.dcp) with all application-specific settings — motor nameplate data, ramp times, PID gains, and fieldbus node configuration — so that the new ACS580-01-096A-4 can be loaded and ready to run within minutes of physical installation. If a second ACS580 unit is available on-site as a hot spare, clone the parameter set to it using the ACS-AP-I panel’s parameter copy function, ensuring that a verified backup drive is always available.

During the swap, follow a disciplined sequence: isolate the incoming supply at the MCC, discharge the DC bus (wait a minimum of 5 minutes after power-off before touching terminals), remove the legacy drive, mount the ACS580, re-terminate power and control wiring, and restore the fieldbus connection. Verify that the motor rotation direction is correct with a brief jog command before returning the process to automatic mode. For critical continuous processes — such as cooling water pumps or compressor drives — consider scheduling the swap during a planned production break or coordinating with the process control team to enable a manual bypass valve or mechanical interlock during the transition.

Post-installation, run the ACS580’s built-in motor identification routine (ID run) to optimize current control for the connected motor. This step is particularly important when the motor’s nameplate data differs from the legacy drive’s stored parameters, or when the motor has been rewound or replaced. Log the commissioning results — including output frequency, current, and voltage at rated load — and retain them as part of the site’s maintenance record. All units supplied are pre-shipment tested under load conditions, with test reports available on request, and are covered by a support terms confirmed by quotation from the dispatch date.

Retrofit Support FAQ

Q1: Is the ACS580-01-096A-4 a direct replacement for the ACS550-01-087A-4?
Yes. The ACS580-01-096A-4 is the recommended migration target for the ACS550-01-087A-4 (45 kW, 400 V). The power rating and voltage class are identical. The mounting footprint is compatible at Frame R6, though cabinet depth should be verified. Control terminal wiring requires re-termination due to differences in terminal block layout between the ACS550 and ACS580 series. Parameter migration is supported via Drive Composer.

Q2: Can I reuse the existing PROFIBUS-DP wiring and PLC program?
The existing PROFIBUS-DP cable and termination resistors can be reused. The ACS580 requires the FPBA-01 PROFIBUS adapter (ordered separately if not included). The PLC program’s drive function block will require a GSD file update and I/O address remapping, but the core control logic — start/stop commands, speed reference, and status word monitoring — remains structurally compatible.

Q3: What is the lead time and support terms coverage?
Units are dispatched from verified stock within 2–5 business days. Each ACS580-01-096A-4 is pre-shipment tested under load and covered by a support terms confirmed by quotation from the dispatch date. Support terms covers manufacturing defects and verified functional failures under normal operating conditions. Expedited dispatch is available for critical breakdown situations — contact [email protected] or +86 18359268345 for availability confirmation.

Q4: How do I verify compatibility before ordering?
Provide your existing drive’s full model number, nameplate motor data (kW, voltage, current, frequency), fieldbus protocol, and PLC platform. Our technical team will confirm compatibility, identify any required adapters or accessories, and advise on any wiring or parameter changes needed for your specific installation. Pre-order compatibility checks are provided at no charge.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

ACS580-01-096A-4
Legacy Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB ACS580-01-096A-4
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
