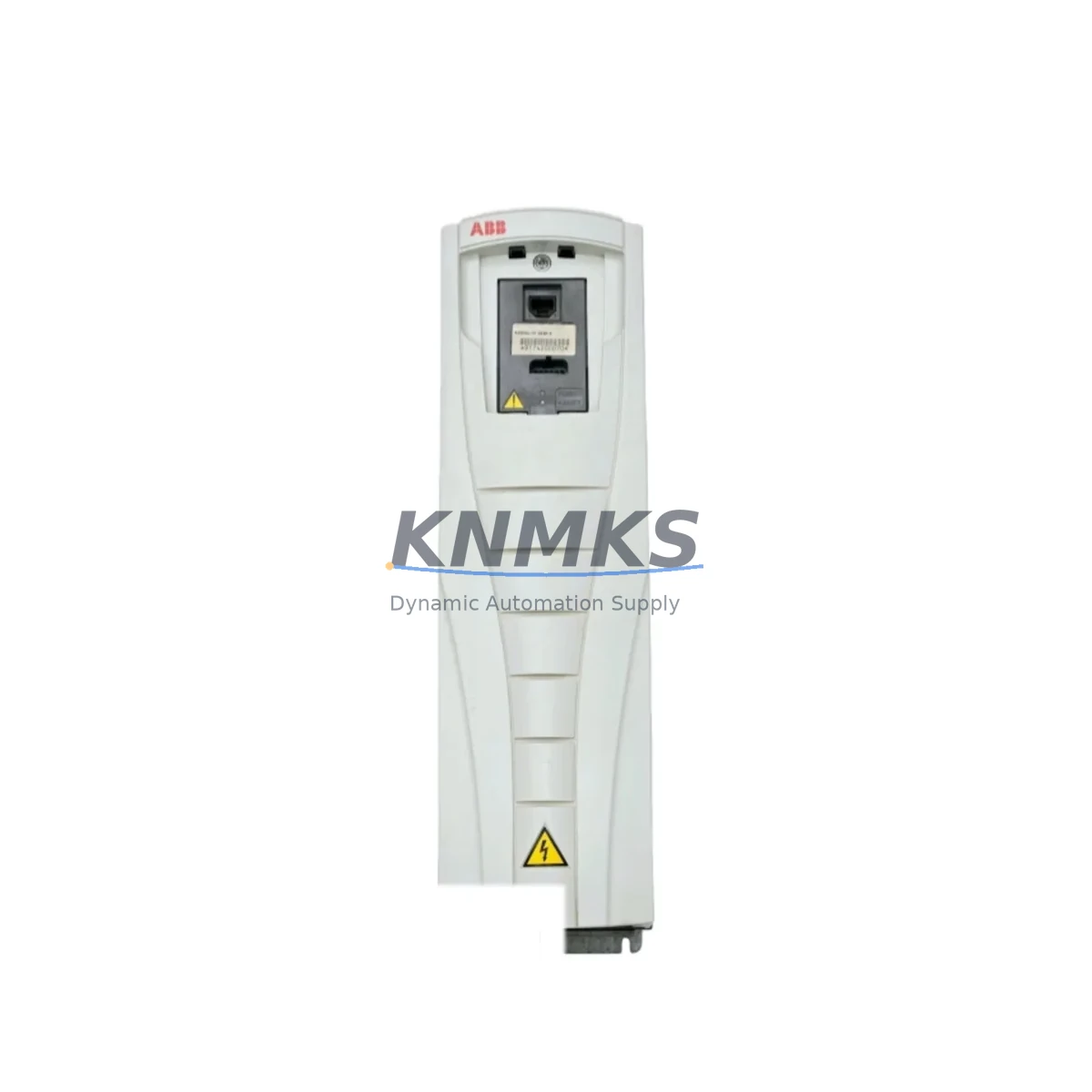

ABB ACS550-01-023A-4 Migration-Ready VFD for Legacy Systems

Overview

ABB ACS550-01-023A-4 Migration-Ready VFD for Legacy Control Systems

The ABB ACS550-01-023A-4 is an 11 kW (15 HP), 380–480 V three-phase variable frequency drive from ABB’s proven ACS550 series. Designed for industrial motor control in pumps, fans, compressors, and conveyor systems, this drive is a direct migration candidate for aging ACS400, ACS500, and early ACS550 installations that have reached end-of-life or are no longer supported under active ABB firmware maintenance cycles. With verified compatibility across the ACS550 hardware platform, this unit supports a controlled, low-risk transition from legacy automation infrastructure to a modernized, maintainable control architecture.

For facilities managing aging distributed control systems, the ACS550-01-023A-4 provides a reliable path forward. Its standard D3 frame footprint, consistent terminal block layout, and support for both scalar (V/Hz) and vector control modes make it a practical drop-in replacement in most retrofit scenarios without requiring full cabinet redesign. Engineers planning a phased migration can integrate this drive alongside existing ABB ACS355 or ACS580 units within the same control cabinet, maintaining a unified ABB ecosystem while progressively retiring obsolete hardware.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the drive is physically installed. When replacing an ACS400 or ACS500 series drive with the ACS550-01-023A-4, the first step is a full terminal mapping exercise. The legacy drive’s analog input (AI1, AI2), digital input (DI1–DI6), relay output (RO1–RO3), and analog output (AO1) assignments must be documented and cross-referenced against the ACS550 terminal block layout. In most cases, the signal assignments are functionally equivalent, but wire labeling and terminal numbering may differ, requiring careful re-termination rather than a direct pin-for-pin swap.

Power supply capacity is a critical pre-installation check. The ACS550-01-023A-4 draws up to 23 A at full load. If the existing cabinet power distribution was sized for a lower-rated legacy drive, the incoming fusing, cable cross-section, and busbar ratings must be re-evaluated. In multi-drive cabinets where an ABB ACS880 or ACS580 series drive is already installed on the same supply rail, total harmonic distortion (THD) and inrush current must be assessed to avoid nuisance tripping of upstream protection devices.

For systems using PROFIBUS DP as the primary fieldbus, the RPBA-01 PROFIBUS adapter module must be ordered and installed in the ACS550’s option slot before commissioning. The GSD file for the ACS550 must be loaded into the PLC engineering station — typically a Siemens STEP 7 or TIA Portal project — and the drive’s node address set via parameter 98.02. If the legacy system used DeviceNet, the RDNA-01 adapter provides an equivalent migration path. Engineers should verify that the PLC’s I/O mapping, including speed reference word, control word, and status word bit assignments, matches the ACS550 fieldbus profile before going live.

Backplane and rack considerations apply when the ACS550-01-023A-4 is being integrated into a control cabinet that also houses an ABB AC500 PLC or a third-party controller with dedicated I/O expansion modules. Ensure that the drive’s EMC filter (built-in Class C2) does not introduce ground loop interference with sensitive analog signal modules or signal isolators mounted in the same enclosure. In high-noise environments, installing a dedicated signal isolator between the drive’s analog output and the PLC’s analog input module is recommended practice.

HMI screen updates are often overlooked during drive replacements. If the existing SCADA or HMI system — whether running on an ABB CP600 panel, a Siemens TP700, or a Weintek cMT series — displays drive-specific parameters such as output frequency, motor current, fault codes, or run/stop status via Modbus register addresses, those register maps must be verified against the ACS550 Modbus register table. Legacy drives may use different register offsets for the same parameters, requiring HMI tag updates before the system can be returned to normal operation.

Programming cable access is required during initial commissioning. The ACS550 supports parameter upload and download via the ACS-CP-C control panel or through the DriveWindow Light PC tool connected via the drive’s RS-232 service port. If the legacy drive’s parameter set was archived, it can serve as a baseline reference, but parameters must be individually reviewed and re-entered for the ACS550’s parameter structure — a direct parameter file transfer from ACS400 to ACS550 is not supported.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement requires a structured pre-commissioning approach. Before the scheduled maintenance window, the replacement ACS550-01-023A-4 should be bench-tested with a test motor to verify basic run/stop function, speed reference response, and fault-free operation under no-load conditions. This pre-test eliminates the risk of discovering a configuration issue during the live cutover window.

The original drive’s full parameter list should be printed or exported before removal. Key parameters include motor nameplate data (groups 99), speed limits (groups 20–22), PID control settings (group 40), and any application macro selections. These values form the commissioning baseline for the replacement unit and allow the site engineer to restore the control logic to its pre-retrofit state within the maintenance window without relying on memory or incomplete documentation.

During the physical swap, control wiring should be transferred terminal by terminal using the pre-prepared mapping document. Power cables should be re-torqued to the ACS550’s specified values (refer to the hardware manual for conductor size-specific torque requirements). After power-up, the drive should be run in local control mode first — using the ACS-CP-C panel — to confirm motor rotation direction, acceleration ramp behavior, and current draw before switching control authority back to the PLC or DCS.

For critical processes where even a brief unplanned stop is unacceptable, a parallel installation approach can be used: the replacement drive is wired and configured in parallel with the legacy unit, with a manual changeover switch allowing instant reversion to the old drive if commissioning issues arise. This approach extends the installation time but eliminates the risk of an extended unplanned outage and is particularly recommended for pump and compressor applications where process continuity is essential.

Once the ACS550-01-023A-4 is confirmed operational under PLC control, a full functional test should be conducted: verify all digital input responses, analog reference tracking, relay output behavior, fieldbus communication status, and fault history. Document the as-commissioned parameter set and store it in the site’s maintenance management system for future reference.

Retrofit Support FAQ

Q: Is the ACS550-01-023A-4 a direct replacement for the ACS400 series?
A: The ACS550-01-023A-4 is functionally compatible with ACS400 applications of equivalent power rating, but it is not a pin-for-pin drop-in replacement. Terminal layouts, parameter structures, and control panel interfaces differ between the two series. A terminal mapping exercise and parameter re-entry are required. The ACS550 offers improved performance, expanded fieldbus options, and longer-term ABB support compared to the discontinued ACS400 platform.

Q: What pre-shipment testing is performed on this unit?
A: Each ACS550-01-023A-4 unit undergoes functional power-on verification and output integrity checks prior to dispatch. Units are inspected for physical condition, firmware version confirmation, and packaging integrity. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: Can I reuse the existing control wiring from my legacy drive installation?
A: In many cases, existing control cables can be reused provided they meet the ACS550’s signal level and insulation requirements. Shielded cables are recommended for analog signals. Terminal assignments must be re-mapped according to the ACS550 wiring diagram — do not assume that terminal numbers are identical to the legacy drive. Inspect cable condition and re-terminate all connections to the specified torque values.

Q: What is the lead time and stock availability?
A: We maintain ready stock of the ACS550-01-023A-4 to support urgent replacement and planned maintenance schedules. Standard orders ship within 1–3 business days. For large-quantity or project-based procurement, contact our sales team to confirm availability and arrange a supply commitment aligned with your project timeline.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

ACS550-01-023A-4
Legacy Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB ACS550-01-023A-4
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
