ABB 89NG03 Migration-Ready Relay Output for Legacy Control Systems

Overview

ABB 89NG03 Migration-Ready Relay Output for Legacy Control Systems

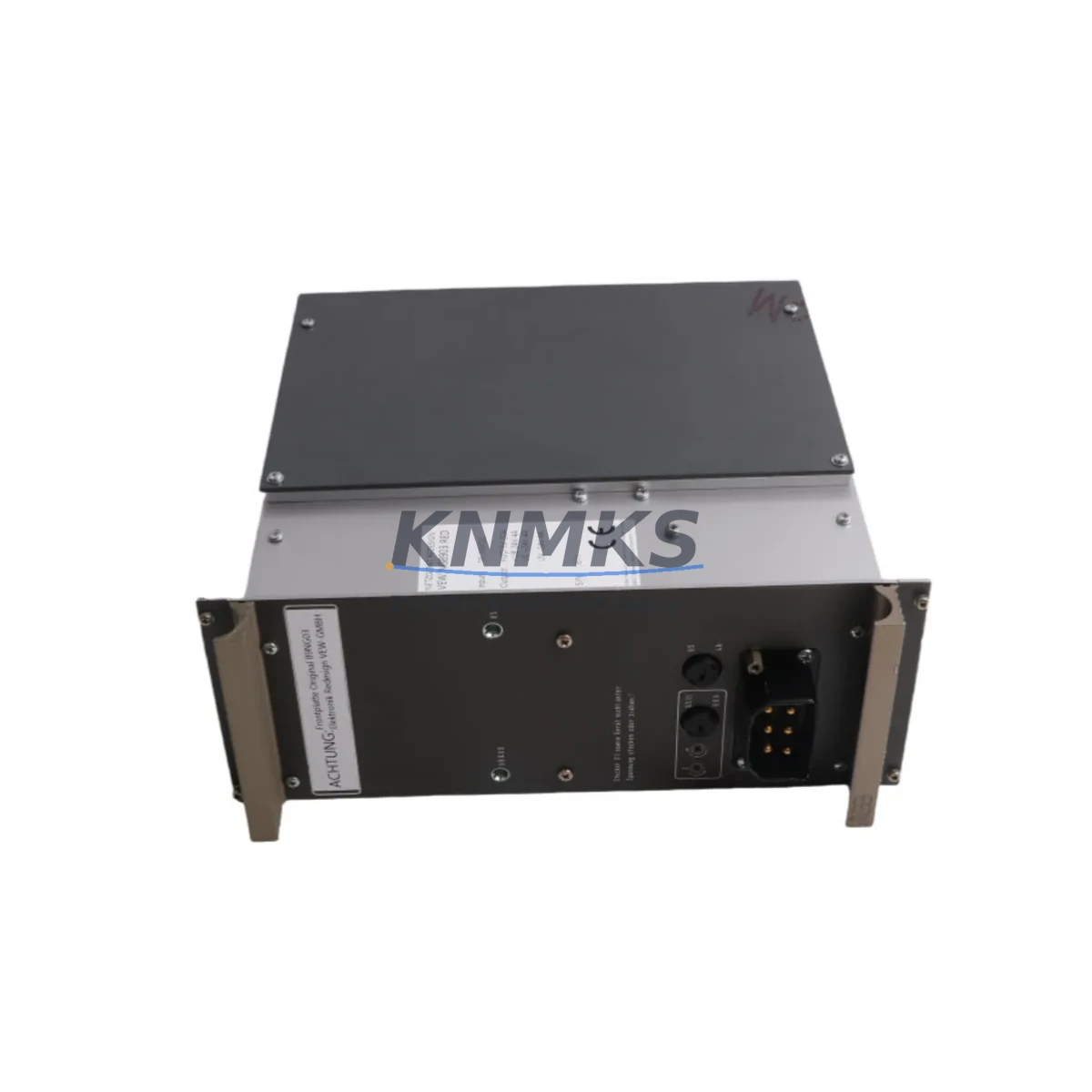

The ABB 89NG03 (VEW NG8903 RED) is a migration-ready relay output module engineered for direct integration into PROCONTIC T200 control systems and compatible ABB modular PLC platforms. As legacy PROCONTIC T200 installations approach end-of-support milestones, plant engineers and system integrators face increasing pressure to source verified replacement modules that preserve existing wiring infrastructure, maintain program logic continuity, and eliminate unplanned downtime. The 89NG03 addresses each of these requirements with a form-factor-matched design, relay contact ratings consistent with the original specification, and a backplane interface that aligns with the T200 rack architecture.

Replacing a relay output module in an active production environment demands more than a physical fit check. Engineers must confirm terminal block pinout compatibility, validate relay coil voltage against the existing 24 VDC or 120 VAC supply rail, verify module address assignment within the rack, and ensure that the replacement module responds correctly to the existing ladder logic or function block program without requiring a full PLC re-download. The 89NG03 is pre-tested against these parameters prior to shipment, reducing on-site commissioning time and protecting the integrity of the original control program.

In retrofit projects where the PROCONTIC T200 rack is being partially upgraded alongside newer ABB AC500 or AC31 series controllers, the 89NG03 can serve as a bridge output module during the transition phase, allowing the legacy relay wiring to remain in service while the upstream control logic is migrated. This approach is particularly effective in control cabinet upgrades where space constraints prevent a full rack replacement in a single maintenance window. The module’s compact DIN-rail-compatible footprint and standard terminal pitch support installation alongside ABB TB82 or TB84 terminal bases without requiring additional adapter hardware.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful relay output module retrofit begins well before the maintenance window opens. During the planning phase, engineers should pull the original T200 rack configuration printout and cross-reference each slot’s module type, address, and wiring diagram. When the 89NG03 is being installed as part of a broader control cabinet upgrade, it is common to simultaneously address the ABB PROCONTIC T200 power supply module, which may be operating beyond its rated service life and contributing to intermittent output faults. Replacing the power supply in the same window eliminates a secondary failure risk and ensures the relay output module receives a stable 24 VDC supply rail.

In systems where the T200 rack communicates upstream via an ABB CI590-CS31 or similar CS31 communication interface module, engineers must confirm that the relay output module’s slot address does not conflict with the communication module’s I/O mapping. If the retrofit includes expanding the I/O count, an ABB DI524 digital input module or DO524 digital output module may be added to adjacent rack slots, requiring a corresponding update to the CPU’s I/O configuration table. HMI screens connected via an ABB CP600 or legacy OP series operator panel should be reviewed to confirm that output status tags referencing the relay module’s address remain valid after the slot reassignment.

For sites migrating from PROCONTIC T200 to an ABB AC500 platform, the 89NG03 can remain in service on the legacy rack during a phased cutover, with the AC500 SM560 CPU handling new control logic while the T200 rack continues to drive existing relay outputs through a shared backplane or hardwired interlock. This staged approach reduces the risk of simultaneous failure across multiple control loops and allows the commissioning team to validate each output channel independently before transferring full control authority to the new platform.

Downtime Control During System Migration

Minimizing downtime during a relay output module replacement requires a structured pre-outage checklist and a clear rollback plan. Before removing the 89NG03 from the rack, the control program should be uploaded from the CPU and saved to a verified backup location. The existing relay wiring should be photographed and labeled at the terminal block level, with particular attention to any shared neutral or common terminal configurations that may not be immediately obvious from the schematic. If the T200 CPU supports online program monitoring, the output channel status should be confirmed as de-energized before the module is extracted.

During installation, the replacement 89NG03 should be inserted into the same rack slot as the original module to preserve the module address without requiring a program modification. After seating the module, the backplane connector should be inspected for bent pins or contamination before the rack power is restored. A channel-by-channel functional test using the CPU’s force output function or a dedicated I/O test routine confirms relay contact operation before the system is returned to automatic mode. Pre-shipment testing performed at our facility ensures that each 89NG03 unit arrives in verified operational condition, reducing the risk of a failed installation during a time-critical maintenance window. The support terms confirmed by quotation cover manufacturing defects identified during commissioning or normal service operation.

Retrofit Support FAQ

Q: Is the ABB 89NG03 a direct replacement for the original VEW NG8903 RED module?
A: Yes. The 89NG03 and VEW NG8903 RED designations refer to the same module. It is a direct drop-in replacement for PROCONTIC T200 racks, maintaining the same slot width, backplane connector, and relay output configuration as the original part.

Q: Do I need to modify my existing ladder logic or function block program after installing the 89NG03?
A: No program modification is required if the replacement module is installed in the same rack slot as the original. The T200 CPU assigns I/O addresses based on slot position, so maintaining the original slot preserves all existing output references without a re-download.

Q: What wiring checks should I perform before powering up the rack after module replacement?
A: Verify terminal block torque, confirm NO/NC contact wiring matches the original schematic, check that the common terminal is correctly connected, and inspect the backplane connector for damage. A continuity check on each output circuit before energizing the rack is strongly recommended.

Q: What does the support terms confirmed by quotation cover, and is pre-shipment testing included?
A: Each 89NG03 unit undergoes pre-shipment functional testing covering relay contact operation, backplane interface integrity, and output channel verification. The support terms confirmed by quotation cover manufacturing defects identified during installation or normal service operation. In-stock units are available for immediate dispatch to support urgent replacement requirements.
