ABB 40PB3201A Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 40PB3201A Maintenance-Proven Spare Part for Factory Uptime

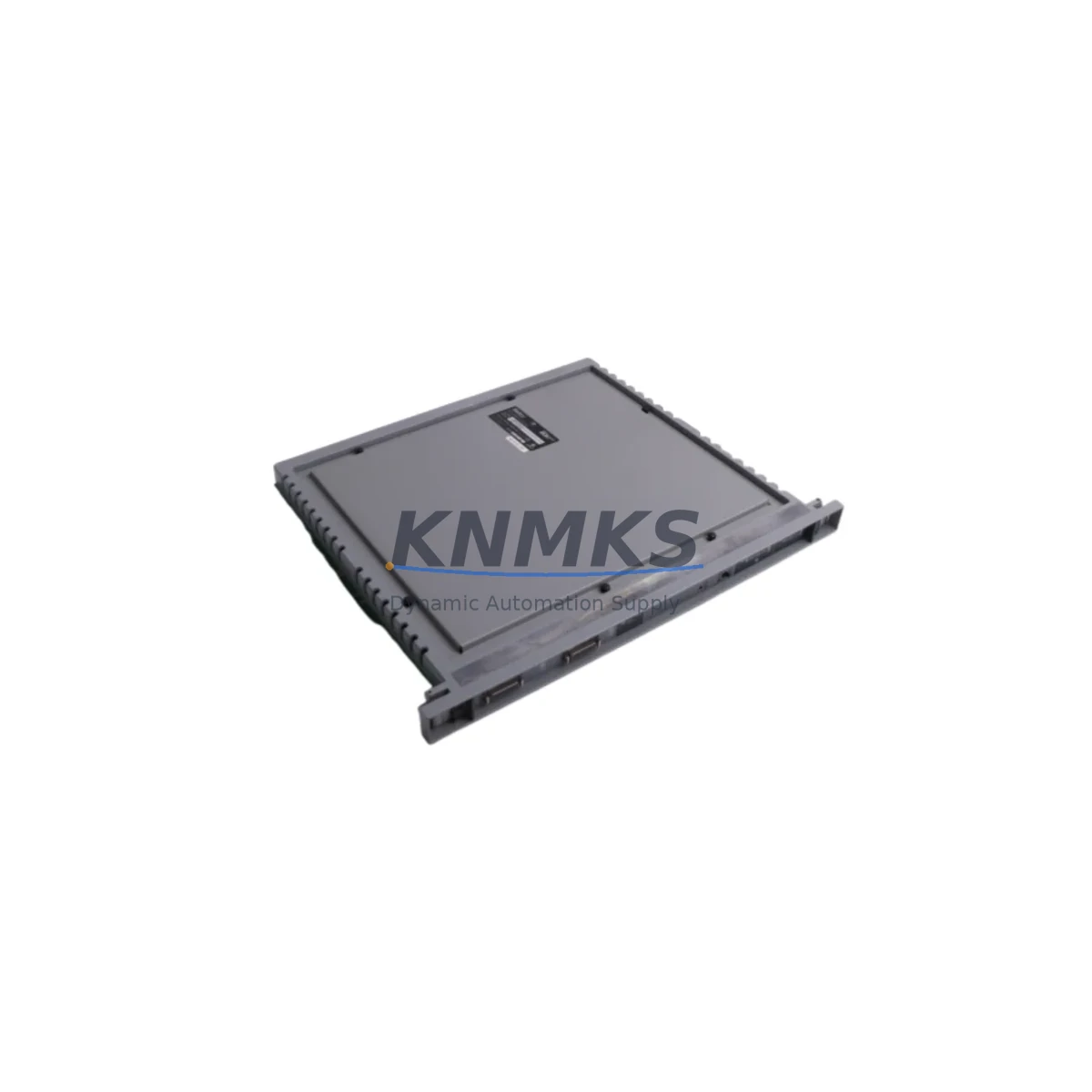

The ABB 40PB3201A is a digital I/O interface board designed for the AC800M Distributed Control System platform — one of ABB’s most widely deployed process automation architectures across oil & gas, power generation, pulp & paper, and chemical processing facilities. When this board fails or degrades, the consequences extend beyond a single I/O channel: the entire controller node may lose process visibility, triggering unplanned shutdowns, safety interlocks, or manual override procedures that consume engineering hours and erode production targets.

Stocking the 40PB3201A as a verified spare eliminates the most dangerous variable in any maintenance plan: lead time. With OEM procurement windows often stretching 8–20 weeks for legacy DCS components, a pre-qualified, shelf-ready replacement allows maintenance teams to restore full system operation within a single shift rather than waiting weeks for factory delivery. Our 40PB3201A units are sourced from authorized supply chains, individually tested prior to shipment, and backed by a support terms confirmed by quotation covering functional performance under normal operating conditions.

From the perspective of a maintenance engineer, the 40PB3201A sits at the intersection of control integrity and field reliability. Its role in the AC800M backplane is to bridge the controller CPU with field-side I/O signals — digital inputs from limit switches, proximity sensors, and interlock circuits, and digital outputs driving solenoid valves, motor starters, and alarm annunciators. Any degradation in this interface layer — whether from capacitor aging, connector oxidation, or firmware incompatibility after a controller upgrade — manifests as intermittent signal loss, false trips, or diagnostic faults that are difficult to isolate without a known-good spare on hand.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 40PB3201A in the field is rarely an isolated task. A disciplined maintenance engineer will treat the board swap as an opportunity to audit the surrounding electrical environment and confirm that the root cause of failure has been addressed — not just the symptom.

Begin with the AC800M PM891 or PM864 processor module in the same controller cabinet. If the I/O board has failed due to a power transient or backplane fault, the CPU module may carry latent damage that will surface weeks after the I/O board is replaced. Verify firmware revision compatibility between the new 40PB3201A and the installed processor before powering up.

Inspect the SD821 or SD822 power supply module that feeds the controller rack. Voltage ripple, inadequate current headroom, or a failing capacitor bank in the power supply is a common upstream cause of I/O board degradation. Measure output voltage under load and compare against ABB’s published tolerance bands before declaring the cabinet healthy.

Check all TB820 or TB840 termination units connected to the 40PB3201A’s field wiring. Loose terminal screws, corroded conductors, or reversed polarity on digital input circuits can cause the board to report false states or sustain input-side damage. Re-torque all terminals to specification and verify continuity on each I/O channel.

If the AC800M system communicates over PROFIBUS DP or Modbus RTU, inspect the communication cable shielding and termination resistors at both ends of the segment. A degraded communication link can cause the controller to log I/O board faults that are actually network-layer errors — misdiagnosed as hardware failure.

For cabinets that include an OP516 or PP836 operator panel (HMI), confirm that the panel’s process variable displays are consistent with field instrument readings after the board replacement. Discrepancies may indicate a configuration mismatch or an unresolved I/O mapping issue in the AC800M project database.

Finally, verify the integrity of any signal isolators or surge protection modules installed between the 40PB3201A’s I/O terminals and field devices. These components absorb transient energy that would otherwise reach the board directly; a failed isolator that was not replaced alongside the I/O board will simply destroy the new spare within the same maintenance cycle.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the installed part number matches 40PB3201A. Cross-reference the AC800M hardware configuration in Control Builder M to identify the slot address and I/O channel assignments. Export the current hardware configuration as a backup before any physical work begins.

Step 2 — Safe Isolation: Place the controller in manual mode or transfer control to a redundant path if available. De-energize the I/O module slot following ABB’s lockout/tagout procedure. Do not remove the board under live backplane power unless the system design explicitly supports hot-swap for this module revision.

Step 3 — Physical Replacement: Remove the failed 40PB3201A by releasing the front-panel locking lever and sliding the board out of the backplane slot. Insert the replacement unit, confirm the locking lever engages fully, and verify the status LED sequence matches the expected initialization pattern described in ABB’s hardware manual.

Step 4 — Configuration Restore: Re-download the hardware configuration from Control Builder M to the AC800M processor. Verify that all I/O channels report correct states against known field conditions before returning the loop to automatic control.

Step 5 — Post-Replacement Functional Test: Exercise each digital input and output channel through its full operating range. Document the test results in the site maintenance log. Confirm that no diagnostic alarms remain active in the AC800M system event log before closing the work order.

This workflow applies equally to first-time installations and to situations where the 40PB3201A is being used to replace an older or discontinued ABB I/O board variant. The drop-in mechanical and electrical compatibility of the AC800M platform means that firmware-level configuration is typically the only adjustment required when substituting between compatible board revisions.

Spare Parts Support FAQ

Q1: Is the 40PB3201A compatible with all AC800M controller revisions?
The 40PB3201A is designed for the ABB AC800M platform and is compatible with the S800 I/O bus architecture used across the AC800M product family. Compatibility with specific processor module revisions (PM864, PM891, etc.) should be confirmed against the firmware version installed in the target system. We recommend providing your current Control Builder M project version when placing an order so our technical team can confirm revision alignment before shipment.

Q2: What testing is performed before the unit ships?
Every 40PB3201A unit undergoes functional verification prior to dispatch. Testing covers power-on initialization, backplane communication handshake, and I/O channel continuity. Units that do not pass all test criteria are quarantined and not offered for sale. A test confirmation is available upon request for quality documentation purposes.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the specified environmental range. Support requests are processed with priority dispatch of a replacement unit to minimize site downtime.

Q4: Can you support long-term supply agreements for the 40PB3201A?
Yes. For facilities operating multiple AC800M systems or managing multi-site maintenance programs, we offer forward stock agreements that reserve inventory against your projected annual consumption. This eliminates spot-market risk for discontinued or allocation-constrained ABB components and provides price stability across your maintenance budget cycle. Contact our team to discuss volume and lead-time requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
