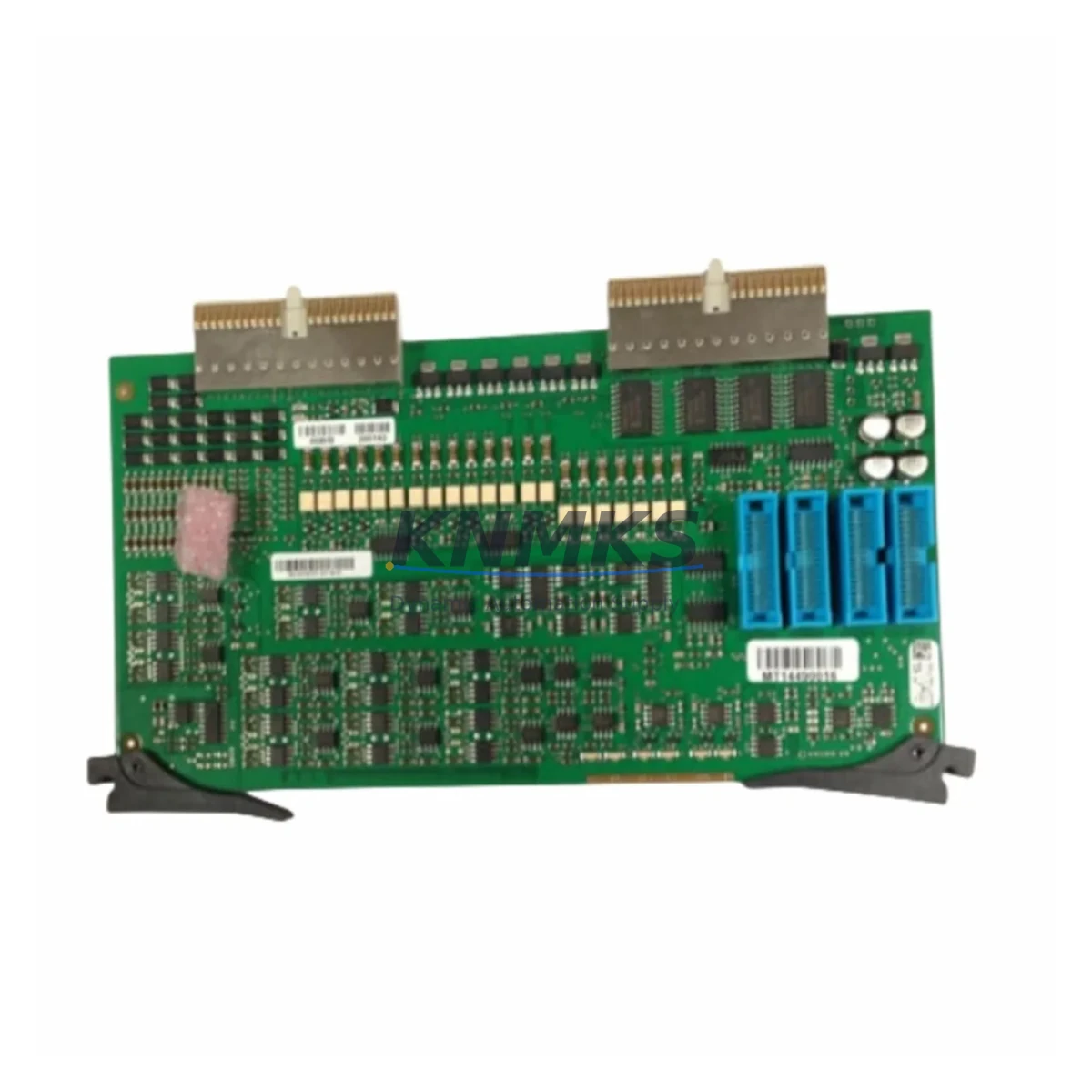

ABB 3BUS208797-001 Migration-Ready Condition Board for Legacy Control Systems

The ABB 3BUS208797-001 is a Condition Board designed for the AC800M controller platform — one of ABB’s most widely deployed process automation controllers in power generation, oil & gas, pulp & paper, and chemical industries. As legacy AC800M installations approach end-of-support milestones, the 3BUS208797-001 serves as a critical migration-ready replacement component, enabling facilities to extend operational life, restore system health, and defer full DCS overhauls without compromising control continuity.

This board is engineered to slot directly into existing AC800M controller racks, maintaining full backplane compatibility with the PM861, PM864, and PM866 processor modules. Before installation, engineers must verify the rack’s backplane revision, confirm available slot addressing, and cross-check the firmware version running on the active processor module. Mismatched firmware revisions between the Condition Board and the host controller can result in initialization faults or degraded diagnostic reporting — a critical checkpoint during any retrofit planning phase.

When replacing a failed or end-of-life Condition Board in a live system, the recommended procedure involves capturing the current controller configuration via Control Builder M, exporting all function block diagrams and hardware configuration files, and staging the replacement board in a parallel test rack where possible. This approach protects the original program logic and minimizes the risk of configuration loss during the swap. Terminal wiring on the associated I/O modules — including AI810, AO810, DI810, and DO810 series — should be documented and photographed prior to any physical intervention.

Power supply capacity is a frequently overlooked factor in AC800M retrofit projects. The 3BUS208797-001 draws from the rack’s internal power bus, and facilities running near the rated capacity of their SD821 or SD822 power supply modules must audit total rack load before adding or replacing boards. In multi-rack configurations connected via the MasterBus 300 or PROFIBUS DP communication backbones, the Condition Board’s diagnostic outputs feed into the system’s health monitoring layer — ensuring that upstream SCADA and historian platforms continue to receive accurate controller status data post-replacement.

For sites migrating from older AC800M hardware revisions to current-generation configurations, the 3BUS208797-001 also plays a role in validating signal integrity across the controller’s internal communication paths. Integration with CI854 PROFIBUS communication interface modules and CI857 Industrial Ethernet modules should be tested during commissioning to confirm that all fieldbus segments remain stable after the board replacement. HMI screens built on ABB’s 800xA system or third-party SCADA platforms should be reviewed to ensure that diagnostic tags mapped to the Condition Board’s status outputs are correctly resolved after the swap.

Installation space confirmation is mandatory before ordering. The 3BUS208797-001 occupies a standard AC800M module slot and must be installed in a compatible rack with sufficient clearance for ventilation and cable management. Facilities operating in high-ambient-temperature environments should verify that rack airflow is unobstructed and that the replacement board’s operating temperature range aligns with local conditions.

All units supplied by KNMKS are pre-tested, firmware-verified, and shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes outgoing quality inspection prior to dispatch, with test records available upon request. Global shipping is supported with standard lead times of 3–7 business days for in-stock units.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AC800M retrofit begins well before the replacement board arrives on site. The engineering team should audit the full rack configuration, documenting every installed module — including any AI810 analog input modules, DI810 digital input modules, DO810 digital output modules, and AO810 analog output modules — along with their channel assignments and signal ranges. This baseline documentation becomes the reference for post-replacement verification.

The SD821 or SD822 power supply module feeding the rack must be load-tested to confirm it can support the existing module complement plus the replacement Condition Board without exceeding rated output. In racks where the power budget is tight, facilities may need to redistribute modules across available rack slots or add a supplementary power supply before proceeding.

Communication continuity is equally critical. If the AC800M controller is acting as a PROFIBUS DP master via a CI854 interface module, the fieldbus segment must remain live during the board swap — or a controlled shutdown sequence must be coordinated with the operations team to avoid uncontrolled process upsets. Similarly, if the controller communicates with remote I/O stations or drives via Industrial Ethernet through a CI857 module, network topology and IP addressing must be confirmed to remain unchanged post-replacement.

For facilities using ABB’s 800xA Operator Workplace, the HMI faceplate and alarm configurations tied to the AC800M controller should be reviewed in advance. Any diagnostic or health-status tags sourced from the Condition Board’s outputs must be validated against the replacement unit’s tag structure to prevent alarm flooding or blind spots in the operator display during the transition period.

Programming cable access via the controller’s front-panel service port — typically using a standard USB or RS-232 programming cable compatible with Control Builder M — should be confirmed before the maintenance window begins. Having a pre-loaded backup of the controller application program on a dedicated engineering workstation ensures that program restoration can be completed within minutes if required.

Downtime Control During System Migration

Minimizing unplanned downtime during a Condition Board replacement requires a structured pre-maintenance protocol. The recommended approach is to schedule the replacement during a planned maintenance window, with the process held in a safe state and all interlocks confirmed active. A full online backup of the AC800M application — including hardware configuration, function block programs, and communication settings — must be completed and verified before any physical work begins.

Where hot-standby redundancy is available via a paired PM864 or PM866 processor module, the switchover sequence should be tested in advance to confirm that the standby controller can assume control cleanly. This allows the primary controller rack to be taken offline for the board replacement without interrupting process control — a significant advantage in continuous-process industries where even brief control interruptions carry substantial risk.

After the 3BUS208797-001 is installed, the controller should be powered up in offline mode first, with the application program downloaded and verified before returning to online control. Diagnostic LEDs on the Condition Board and the host processor module should be checked against the expected startup sequence documented in the AC800M hardware manual. Any fault codes should be resolved before the controller is returned to service.

Post-replacement, a 24-hour monitoring period is recommended, during which the operations team tracks controller health diagnostics, communication link status, and I/O signal integrity. This period allows any latent issues — such as marginal backplane contacts or firmware initialization anomalies — to surface under normal operating conditions before the maintenance window is formally closed.

Retrofit Support FAQ

Q: Is the ABB 3BUS208797-001 a direct replacement for the original Condition Board in my AC800M rack?
A: Yes. The 3BUS208797-001 is designed as a direct drop-in replacement for the original Condition Board in compatible AC800M racks. Verify your rack revision and processor module firmware version before installation to ensure full compatibility.

Q: What commissioning steps are required after installing the 3BUS208797-001?
A: After physical installation, download the backed-up application program via Control Builder M, verify all I/O channel assignments, confirm PROFIBUS and Ethernet communication link status, and validate diagnostic tag mapping in your SCADA or 800xA system. A 24-hour post-installation monitoring period is recommended.

Q: How do I confirm terminal wiring compatibility before replacing the Condition Board?
A: Document all existing terminal connections on associated I/O modules (AI810, DI810, DO810, AO810) before removal. The 3BUS208797-001 does not alter I/O terminal assignments — wiring changes are only required if the associated I/O modules are also being replaced or reconfigured.

Q: What support terms and stock availability does KNMKS provide for the 3BUS208797-001?
A: All units carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. In-stock units ship within 3–7 business days globally. Contact our team for lead time confirmation on high-volume orders.
