ABB 3BSE076939R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3BSE076939R1 Maintenance-Proven Spare Part for Factory Uptime

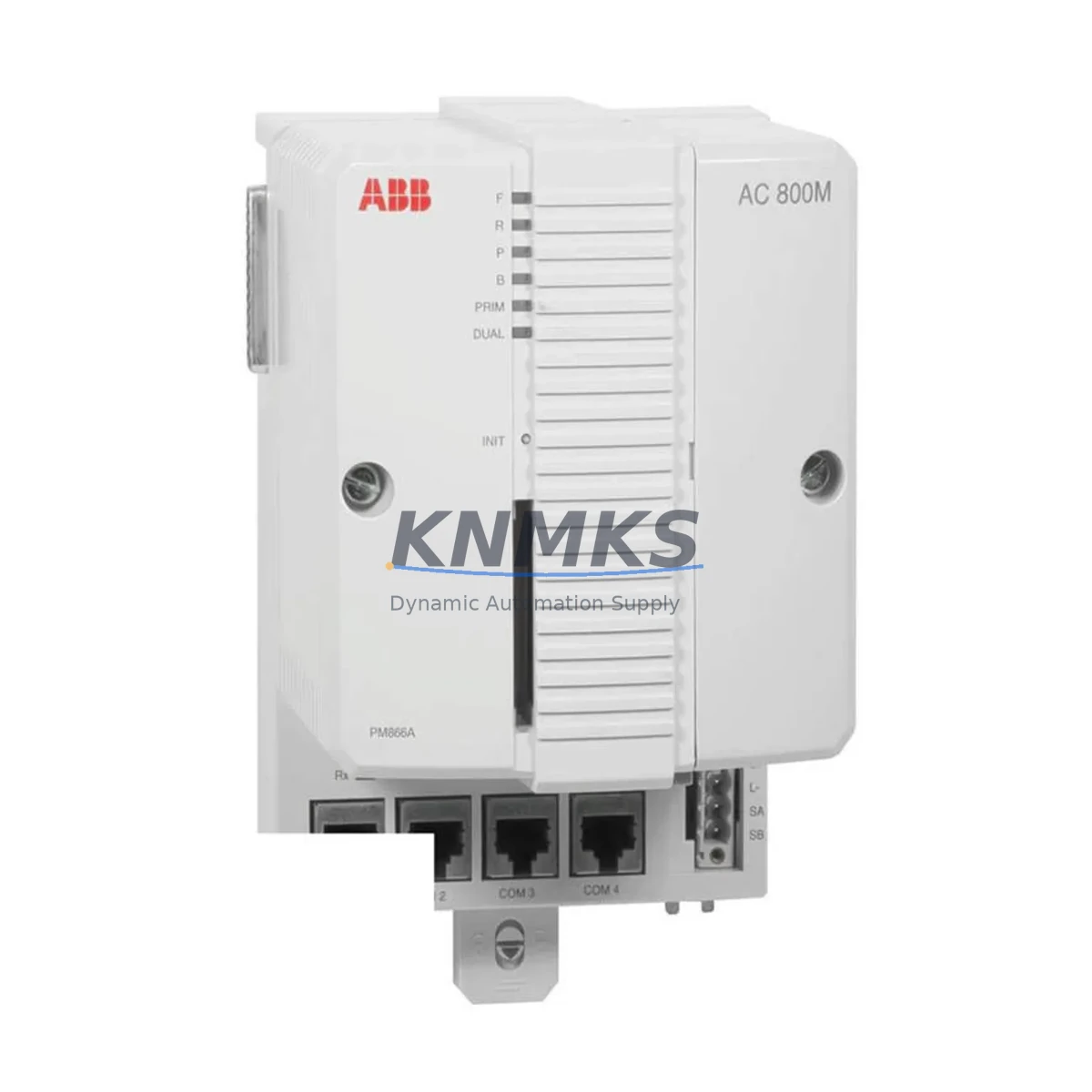

The ABB 3BSE076939R1 (BPM866AK01) is a high-performance CPU module designed for the AC800M controller platform — one of ABB’s most widely deployed process automation architectures across power generation, oil & gas, pulp & paper, and chemical manufacturing. For maintenance engineers managing aging DCS infrastructure, securing a verified spare of the 3BSE076939R1 is a critical step in any uptime protection strategy. Unplanned CPU failures in AC800M systems can cascade into full process shutdowns within minutes; having a pre-tested, shelf-ready replacement eliminates the most dangerous variable in emergency recovery.

At KNMKS, every 3BSE076939R1 unit is sourced from verified supply channels, subjected to functional pre-shipment testing, and backed by a support terms confirmed by quotation. Whether you are building a strategic spare parts buffer, responding to an active fault, or planning a scheduled annual overhaul, this module ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3BSE076939R1 CPU module in an AC800M controller is rarely an isolated task. A disciplined maintenance engineer treats a CPU swap as an opportunity to audit the entire control cabinet for latent faults that could trigger the next unplanned shutdown. Before returning the system to service, the following associated components should be inspected or replaced as part of the same maintenance window:

The PM866 power supply module (e.g., 3BSE050198R1) feeds the CPU directly; any ripple, undervoltage, or thermal degradation in the power module will shorten the service life of a newly installed CPU. Verify output voltage stability under load before closing the cabinet. Similarly, the CI854A PROFIBUS DP communication interface (3BSE030220R1) should be checked for firmware currency and connector integrity — a degraded fieldbus interface can cause intermittent I/O faults that are frequently misdiagnosed as CPU failures.

On the I/O side, inspect the S800 I/O modules connected via the CEX-Bus, particularly any AI810 analog input modules or DO810 digital output modules that share the same rack. Loose backplane connectors or oxidized bus contacts are a common source of spurious alarms after a CPU replacement. The TB820V2 ModuleBus modem (3BSE013208R1), which bridges the optical ModuleBus to remote I/O clusters, should also be verified for signal integrity — especially in installations where cable runs exceed 50 metres.

For sites running Panel 800 HMI terminals (PP865 or PP886 series) connected to the AC800M over OPC or Ethernet, confirm that the HMI project database and tag mappings remain intact after the CPU swap. A firmware mismatch between the CPU and HMI communication driver is a frequently overlooked post-replacement issue. Finally, inspect the cabinet’s 24 VDC distribution fuses and terminal blocks — particularly any Phoenix Contact or Weidmüller fused terminal strips protecting individual I/O loops — and replace any that show signs of thermal stress or discoloration.

Building a minimum viable spare parts kit around the 3BSE076939R1 for a single AC800M cabinet typically includes: one CPU module, one PM866 power supply, one CI854A communication interface, and a set of critical I/O modules matched to the process. Procurement engineers should negotiate 12–36 month supply agreements for these components simultaneously to avoid split-order delays during emergency events.

Site Replacement Workflow

Step 1 — Pre-replacement backup: Export the full AC800M project from ABB Control Builder M, including all application programs, hardware configuration, and communication settings. Store the backup on an isolated engineering workstation and a secondary USB drive kept in the control room.

Step 2 — System isolation: Place the controller in manual mode at the DCS level. Notify process operators and confirm all critical loops are under local or manual control before de-energizing the cabinet section.

Step 3 — Module extraction: De-energize the PM866 power supply. Remove the 3BSE076939R1 by releasing the front locking lever and sliding the module clear of the backplane. Inspect the backplane connector for bent pins or contamination before inserting the replacement unit.

Step 4 — Replacement installation: Insert the new 3BSE076939R1, ensuring the module seats fully on the backplane. Re-energize the PM866 and observe the CPU status LEDs — a solid green RUN indicator confirms successful power-on. If the module enters a fault state, verify firmware compatibility and re-download the application project via Control Builder M.

Step 5 — Communication verification: Confirm PROFIBUS and Ethernet link status on the CI854A interface. Verify all S800 I/O modules report healthy status in the hardware tree. Check HMI tag communication and confirm process values are updating correctly before returning loops to automatic control.

Step 6 — Documentation: Record the replacement date, new module serial number, firmware version, and any observations in the site maintenance log. Update the spare parts inventory to trigger a replenishment order for the consumed 3BSE076939R1 unit.

This workflow is applicable to both emergency replacements and planned annual overhauls. For legacy AC800M installations running firmware versions below 6.0, consult ABB’s migration notes before installing BPM866AK01 variants to confirm backward compatibility.

Spare Parts Support FAQ

Q1: Is the 3BSE076939R1 a direct drop-in replacement for earlier BPM866 CPU variants?
In most AC800M configurations, yes — the BPM866AK01 is designed as a functional replacement for earlier BPM866 revisions. However, firmware compatibility must be verified using ABB Control Builder M before installation. Sites running firmware below version 5.1 may require an upgrade sequence. KNMKS can provide compatibility guidance based on your specific system version upon request.

Q2: What pre-shipment testing does KNMKS perform on the 3BSE076939R1?
Each unit undergoes a functional power-on test and communication interface verification before dispatch. Units that fail any test parameter are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes. All shipped units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: Can KNMKS support long-term supply agreements for the 3BSE076939R1 and associated AC800M components?
Yes. KNMKS offers 12–36 month supply agreements for the 3BSE076939R1 and related components including PM866 power modules, CI854A communication interfaces, and S800 I/O modules. Long-term agreements include priority allocation, fixed pricing windows, and dedicated account support — reducing procurement risk for sites with multi-year maintenance plans.

Q4: What is the recommended inventory strategy for the 3BSE076939R1 in a multi-site operation?
For operations running three or more AC800M controllers across multiple sites, maintaining a minimum of one 3BSE076939R1 per site — plus one regional float unit — is the standard recommendation. CPU module MTBF data for the AC800M platform supports a replacement cycle of 8–12 years under normal operating conditions, but procurement lead times for legacy DCS components can exceed 16 weeks from OEM channels. Holding verified spares at site eliminates this risk entirely and is the most cost-effective uptime insurance available.
