ABB 3BSE050201R1 PM866-2 Maintenance-Proven Spare Part for Factory Uptime

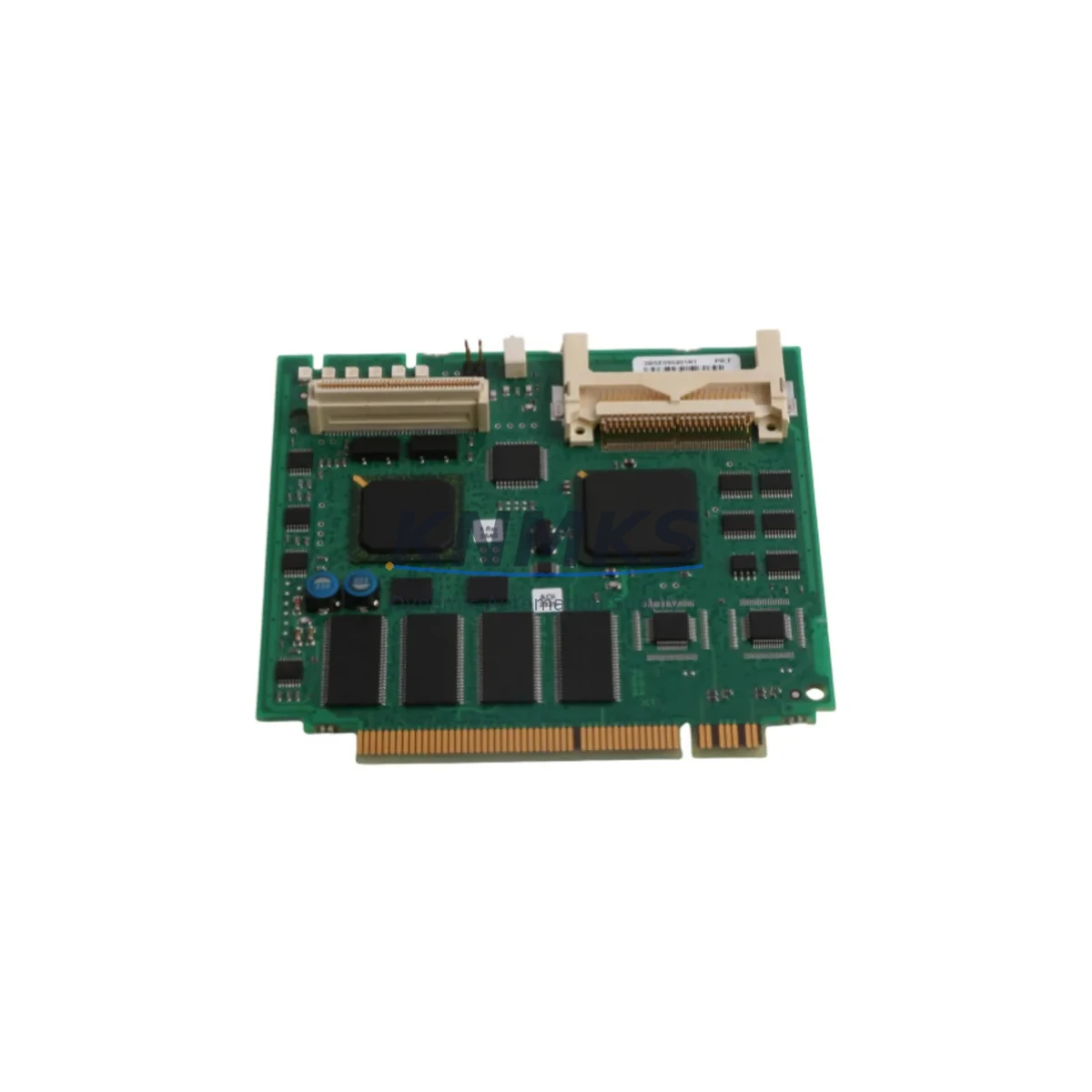

The ABB 3BSE050201R1 (PM866-2) is a redundant processor module engineered for the AC800M controller platform — one of ABB’s most widely deployed distributed control systems in power generation, oil & gas, pulp & paper, and heavy process industries. Maintaining an on-hand spare of the 3BSE050201R1 is a cornerstone of any credible maintenance strategy for facilities running AC800M-based control architectures. When a processor fault triggers an unplanned shutdown, the difference between a two-hour recovery and a two-day outage is almost always determined by whether a verified, pre-tested replacement module is already in the cabinet spares kit.

This listing covers an original ABB PM866-2 processor module, sourced through established industrial supply channels, pre-shipment tested for firmware integrity and communication handshake, and backed by a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Each unit is inspected for physical connector condition, backplane interface integrity, and memory module seating before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for an AC800M system extends well beyond holding a single processor spare. The PM866-2 operates within a tightly integrated control cabinet ecosystem, and a thorough annual inspection or emergency fault-isolation procedure should address every component in the same electrical and communication loop.

When replacing or inspecting the 3BSE050201R1, maintenance engineers should simultaneously verify the condition of the TB820V2 or TB840A backplane modules, which provide the physical and electrical interface between the processor and I/O modules. Backplane connector wear or oxidation is a common root cause of intermittent processor faults that are incorrectly attributed to the CPU itself. Alongside the backplane, the SD802F or SD812F power supply modules that feed the AC800M rack should be load-tested — an aging power supply delivering marginal voltage under full I/O load can cause processor resets that mimic firmware or hardware failure.

Communication continuity is equally critical. The CEX-Bus fiber or copper interconnects linking redundant PM866-2 processors should be inspected for connector cleanliness and signal integrity. If the site uses CI854A or CI857 fieldbus communication interface modules for PROFIBUS or FOUNDATION Fieldbus connectivity, these should be included in the same inspection cycle, as fieldbus communication errors frequently cascade into processor alarm states. For sites with Modbus TCP or OPC-based SCADA integration, verifying the Ethernet switch port assignments and cable continuity at the industrial managed switch level prevents false processor fault diagnoses.

I/O module health is another dimension that should not be overlooked during a PM866-2 replacement event. AI810, AO810, DI810, and DO810 series I/O modules in the same rack should be visually inspected for terminal block corrosion, loose field wiring, and LED fault indicators. A processor swap that returns the system to operation but leaves a marginal I/O module in place simply defers the next unplanned outage. Signal isolators on analog loops and fuse integrity on digital output circuits should be confirmed before the system is returned to automatic control.

For facilities managing older AC800M installations approaching end-of-support milestones, holding a minimum of one PM866-2 spare per controller cluster — alongside spares for the associated backplane, power supply, and primary fieldbus interface — is the recommended buffer stock posture to contain lead-time risk and protect against OEM allocation constraints.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement 3BSE050201R1 firmware version matches or is compatible with the installed Control Builder M project version. Mismatched firmware revisions are the leading cause of failed hot-swap attempts in redundant AC800M configurations.

Step 2 — Redundancy State Check: In a redundant PM866-2 pair, verify that the standby processor has successfully assumed control before removing the faulty primary. Use the AC800M system status display or Control Builder M online view to confirm switchover completion and alarm acknowledgment.

Step 3 — Physical Removal: Power down the faulty module slot if operating in simplex mode. In redundant mode, the hot-swap procedure allows module removal without process interruption — follow ABB’s documented hot-swap sequence to avoid backplane bus errors.

Step 4 — Module Insertion and Initialization: Insert the replacement PM866-2 into the vacated slot. The module will perform a self-test sequence and, in redundant configurations, automatically synchronize application data from the active processor. Allow 60–120 seconds for full synchronization before declaring the redundant pair restored.

Step 5 — Post-Replacement Validation: Confirm all I/O module status LEDs return to normal, verify fieldbus communication re-establishment on CI854A or CI857 interfaces, and check SCADA or DCS historian for any gap in data logging that would indicate an extended switchover period. Document the replacement event, module serial number, and firmware version in the site maintenance log.

This workflow applies equally to planned annual maintenance replacements and emergency fault-response scenarios. The key differentiator for minimizing downtime is pre-positioning a tested spare — a 3BSE050201R1 that has been verified before the fault event, not sourced reactively after it.

Spare Parts Support FAQ

Q1: Is this 3BSE050201R1 an original ABB module or a third-party compatible?
This is an original ABB PM866-2 processor module sourced through established industrial supply channels. It is not a clone, aftermarket reproduction, or third-party compatible. Each unit carries the original ABB part marking and is traceable to ABB’s manufacturing specifications for the AC800M platform.

Q2: What does the support terms confirmed by quotation cover, and how is a support terms claim handled?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the module’s rated environmental parameters. Support requests are handled by contacting [email protected] with the order reference, module serial number, and a description of the fault symptom.

Q3: How do I verify firmware compatibility before installation?
The PM866-2 firmware version is displayed on the module label and can be confirmed via Control Builder M’s hardware catalog. ABB’s compatibility matrix for AC800M processor firmware versus CBM project versions is documented in the AC800M Getting Started guide (document 3BSE041880). If your installed CBM version requires a specific firmware baseline, confirm the module label version before dispatch — our team can assist with firmware version verification on request.

Q4: Can you support long-term or blanket purchase orders for AC800M spare parts?
Yes. For facilities managing multiple AC800M controller clusters or operating under a planned maintenance schedule, we support blanket purchase orders, forward stock agreements, and scheduled dispatch programs. Long-term supply arrangements help contain lead-time risk for modules approaching OEM end-of-availability status. Contact [email protected] or +86 18359268345 to discuss volume pricing and supply continuity options.
