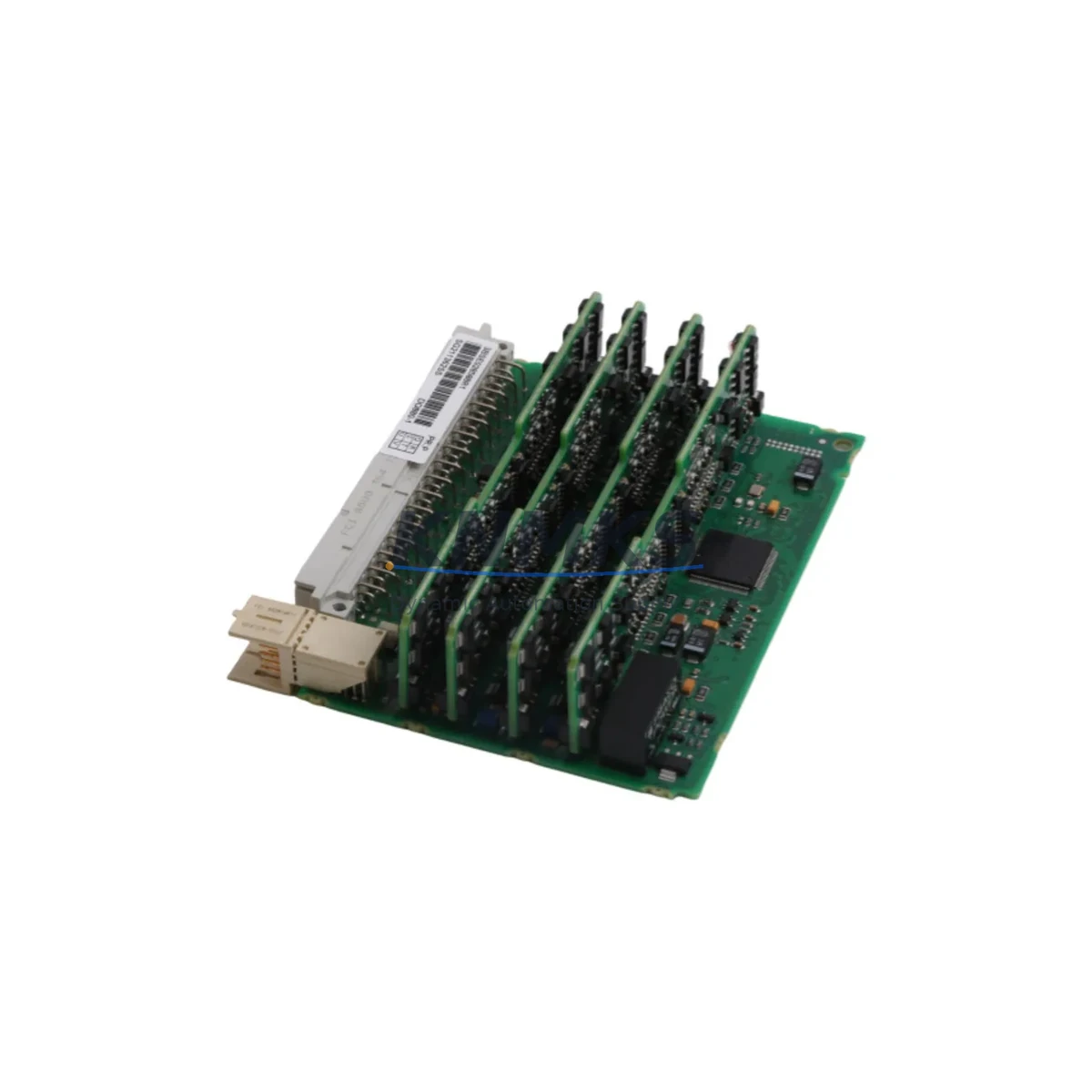

ABB 3BSE028588R1 DO880-1 Migration-Ready Digital Output for Legacy Control Systems

The ABB 3BSE028588R1 DO880-1 is a 32-channel digital output module engineered for the AC800M Distributed Control System platform. As legacy automation infrastructure ages and OEM support windows close, the DO880-1 has become a critical spare part for facilities managing long-lifecycle control systems across power generation, oil & gas, chemical processing, and pulp & paper industries. KNMKS maintains verified stock of the 3BSE028588R1 to support unplanned failures, scheduled turnarounds, and phased system modernization programs.

When replacing a failed or end-of-life digital output module in an existing AC800M cabinet, engineers must confirm several parameters before committing to a swap. The DO880-1 operates on the S800 I/O bus and connects to the AC800M controller via the TB820V2 ModuleBus Modem or equivalent communication interface. Verify that the existing backplane slot assignment and module address configuration match the replacement unit’s expected addressing scheme. In most installations, the module address is set via DIP switches on the TB820V2 or the associated S800 I/O station — confirm these settings against the original project documentation before powering the new module.

Terminal wiring on the DO880-1 follows the standard S800 I/O termination unit convention. The module mates with a dedicated termination unit (TU810V1 or TU812V1 depending on field wiring density), which remains in place during module hot-swap procedures. This design allows the DO880-1 to be replaced without disconnecting field cables, significantly reducing downtime during unplanned outages. Confirm that the installed termination unit is compatible with the 3BSE028588R1 before proceeding — mismatched termination units are a common source of commissioning delays during retrofit projects.

Power budget verification is essential when adding or replacing modules in an existing S800 I/O station. Each DO880-1 draws load current from the station’s 24 VDC supply rail. If the existing power supply module — such as the SD821 or SD822 — is already operating near capacity, adding a replacement DO880-1 without recalculating the station power budget can cause supply instability. Review the power consumption figures in the S800 I/O Hardware Product Manual (3BSE020924) and compare against the installed supply module’s rated output before finalizing the replacement plan.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DO880-1 retrofit begins well before the module arrives on site. In a typical AC800M control cabinet, the S800 I/O station hosting the DO880-1 may also contain analog input modules such as the AI810 or AI820, digital input modules like the DI810, and communication interface modules connecting to PROFIBUS DP or FOUNDATION Fieldbus segments. Understanding the interdependencies between these modules is critical — replacing the DO880-1 in isolation without reviewing the broader I/O station configuration can introduce unexpected behavior if the station’s ModuleBus communication is interrupted during the swap.

For facilities running older AC800M controller revisions, it is advisable to audit the PM861 or PM864 processor module firmware version before executing any I/O replacement. Certain early firmware builds have known limitations in handling hot-swap events on the S800 bus, and a firmware update to the controller may be warranted as part of the broader retrofit scope. This is particularly relevant in installations where the AC800M communicates with third-party SCADA systems via OPC DA or OPC UA — a controller restart triggered by a firmware update will require coordination with the SCADA team to prevent alarm floods and historian data gaps.

Where the retrofit scope extends beyond a single module replacement to a full I/O station upgrade, consider the sequencing of work carefully. Replacing the TB820V2 ModuleBus Modem, the S800 power supply module, and multiple I/O modules in a single maintenance window increases risk. A phased approach — replacing the DO880-1 first, validating field device response, then addressing other modules — reduces the blast radius of any commissioning issue. Document each step with before-and-after photographs of DIP switch settings, terminal wiring, and LED status indicators to support post-retrofit verification and future maintenance.

In installations where the DO880-1 drives solenoid valves, motor starters, or relay coils, confirm the output load current requirements against the module’s rated per-channel output capacity. Inductive loads require suppression diodes or RC snubbers at the field device — verify these are in place before energizing the replacement module to prevent output transistor damage. If the original installation used external relay modules between the DO880-1 and field devices, confirm the relay coil voltage and current draw are within the module’s drive capability.

Downtime Control During System Migration

Minimizing production downtime during a DO880-1 replacement requires a structured approach to pre-work, execution, and post-swap validation. Begin by exporting the current AC800M project from Control Builder M and archiving it to a secure location before touching any hardware. This ensures that the original control logic, I/O configuration, and communication settings are preserved and can be restored if the replacement introduces unexpected behavior.

The DO880-1 supports hot-swap replacement within a powered S800 I/O station, provided the termination unit remains connected and the station’s ModuleBus communication is stable. In practice, hot-swap success depends on the controller firmware version and the station’s current load. Before executing a hot-swap in a live production environment, test the procedure in a maintenance window on a non-critical I/O station first. Monitor the AC800M event log in Control Builder M during the swap to confirm the module is recognized and initialized without errors.

After the replacement module is seated and the LED status indicators confirm normal operation, perform a structured output test: command each of the 32 output channels from the control system and verify field device response. Use the AC800M’s built-in I/O forcing function in Control Builder M to step through each channel systematically. Document the test results and retain them as part of the maintenance record. If the installation includes a Safety Instrumented System (SIS) with interlocks driven by the DO880-1 outputs, coordinate with the SIS engineer to validate that safety function integrity is maintained after the replacement.

For facilities with strict change management requirements, prepare a Method Statement and Risk Assessment (MSRA) document before the replacement window. Include the module part number (3BSE028588R1), the termination unit model, the I/O station address, the controller node address, and the expected duration of any control interruption. Having this documentation approved in advance prevents last-minute delays and ensures all stakeholders — operations, maintenance, and HSE — are aligned before work begins.

Retrofit Support FAQ

Q1: Is the ABB 3BSE028588R1 DO880-1 a direct replacement for older S800 digital output modules?
Yes. The DO880-1 is the current production variant of the S800 32-channel digital output module for AC800M systems. It is mechanically and electrically compatible with the same termination units (TU810V1, TU812V1) used by earlier S800 DO module variants. No wiring changes are required for a like-for-like swap, provided the termination unit model is confirmed before installation.

Q2: Does KNMKS perform pre-shipment testing on the DO880-1?
Yes. Every 3BSE028588R1 unit shipped by KNMKS undergoes functional testing before dispatch. A test report is available on request. Units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and DOA (dead-on-arrival) failures. Replacement or refund is processed within 30 days for confirmed support requests.

Q3: What should I verify before installing the DO880-1 in an existing AC800M cabinet?
Confirm the following before installation: (1) termination unit model (TU810V1 or TU812V1) matches the replacement module; (2) S800 I/O station power budget has sufficient headroom for the DO880-1’s current draw; (3) TB820V2 ModuleBus Modem DIP switch address settings match the original module’s address; (4) AC800M controller firmware version is compatible (≥ 5.0 recommended); (5) field device output load current and inductive load suppression are within module specifications.

Q4: Can KNMKS supply the DO880-1 for long-term spare parts agreements?
Yes. KNMKS supports 12–36 month spare parts supply agreements for the 3BSE028588R1 and related S800 I/O modules. Contact our team to discuss inventory reservation, lead time commitments, and multi-site delivery arrangements. We maintain stock across multiple procurement channels to support both emergency replacement and planned maintenance programs.
