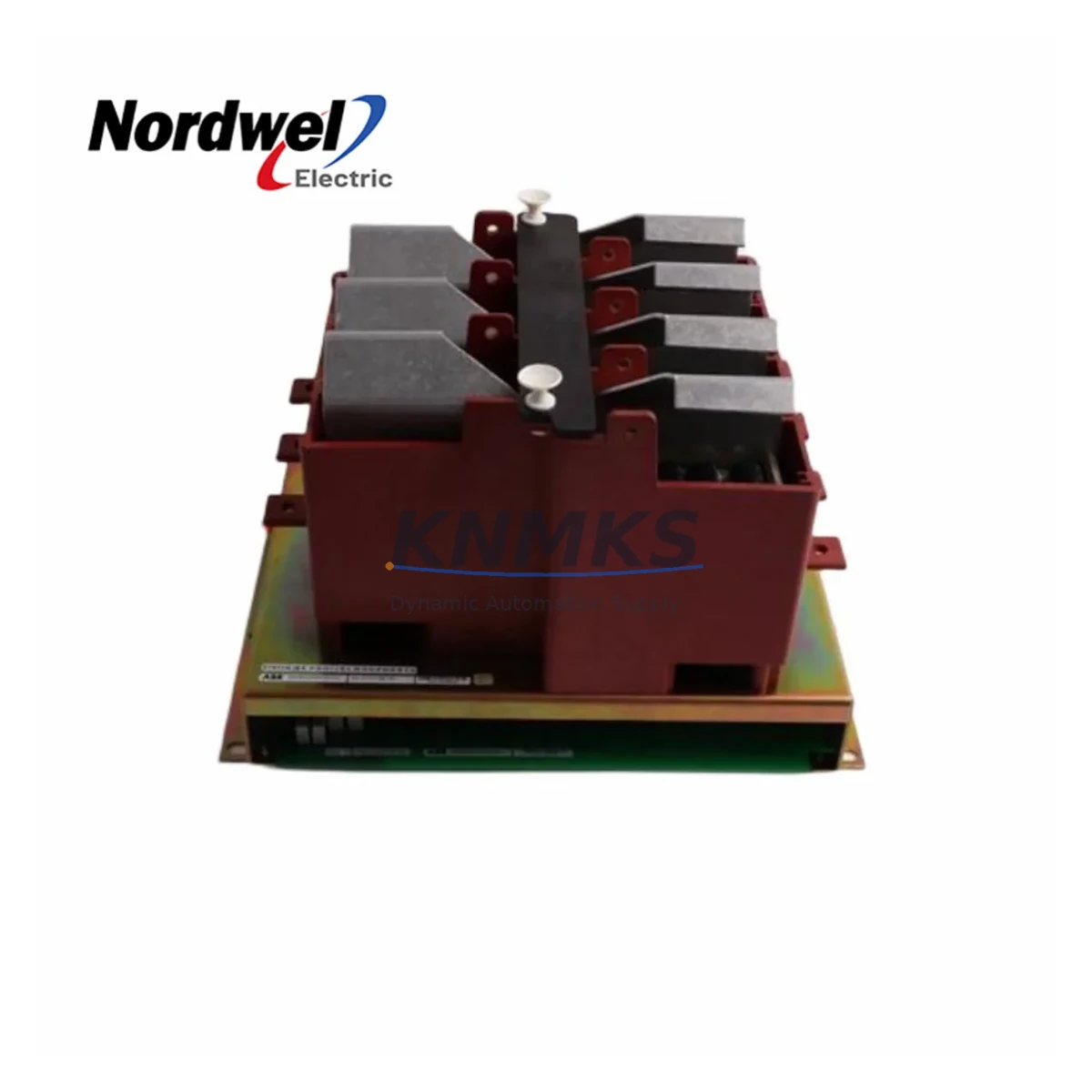

ABB 3BHT200014R1411 Migration-Ready PCB for Legacy DCS

Overview

ABB 3BHT200014R1411 Migration-Ready PCB for Legacy DCS Control Systems

The ABB 3BHT200014R1411 is a critical PCB assembly designed for the INDACTIC 650 Distributed Control System (DCS) platform — one of ABB’s legacy process automation architectures widely deployed in power generation, chemical processing, and heavy industrial facilities. As the INDACTIC 650 series approaches end-of-life and spare parts become increasingly scarce, the 3BHT200014R1411 serves as a verified drop-in replacement board that enables engineers to extend system life, restore failed control loops, and defer costly full-platform migrations.

This module carries the cross-reference designation 3BHT310084R20, which appears in ABB’s legacy documentation and is commonly referenced in retrofit BOMs. Procurement teams sourcing this board should confirm both part numbers against their installed revision to ensure firmware and hardware compatibility before installation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 3BHT200014R1411 in an active INDACTIC 650 installation requires careful pre-work to avoid unplanned downtime and control disruptions. Before pulling the failed board, engineers should document the existing terminal wiring layout, capture the current I/O module address assignments, and verify that the rack’s power supply — typically an ABB INDACTIC 650 PSU module — has sufficient headroom to support the replacement board without voltage sag on adjacent slots.

In many legacy DCS cabinets, the 3BHT200014R1411 operates alongside communication interface modules that bridge the INDACTIC 650 backplane to upstream SCADA or historian systems. If the site uses a serial or early fieldbus link, the replacement board’s firmware version must be validated against the communication module’s protocol stack to prevent handshake failures after restart. Sites running ABB’s proprietary INSUM or early PROFIBUS gateway adapters should pay particular attention to this step.

For facilities undertaking a broader control cabinet upgrade — migrating from INDACTIC 650 to a modern ABB System 800xA or AC500 PLC platform — the 3BHT200014R1411 is frequently used as a bridging spare to keep the legacy system operational during phased cutover. During this window, I/O signal isolators are often inserted between the old DCS field terminals and the new controller’s analog input cards to protect both systems from ground loops and voltage mismatches. Procurement teams should also account for replacement terminal blocks and DIN rail hardware if the cabinet layout is being reorganized as part of the upgrade.

HMI screen updates are another common oversight in INDACTIC 650 retrofits. If the replacement board changes the tag address structure or alters the data block mapping, operator displays built on legacy ABB INFI 90 or third-party SCADA platforms will require corresponding tag remapping. Coordinating this work in advance — ideally during a scheduled maintenance window — prevents operators from losing visibility into critical process variables during the transition.

For sites extending the life of the INDACTIC 650 rather than migrating away from it, a programming cable compatible with the ABB INDACTIC configuration tool is essential for uploading the correct application logic to the replacement board. Confirm the cable pinout and driver version before the maintenance window begins to avoid last-minute delays.

Downtime Control During System Migration

Minimizing production impact during a DCS board replacement starts with preparation, not execution. For the 3BHT200014R1411, the recommended approach is to pre-configure the replacement board offline — loading the correct firmware revision and verifying the module address settings — before the maintenance window opens. This reduces in-cabinet work time to a physical swap and a loop verification sequence rather than a full commissioning cycle.

Where the process cannot tolerate a cold restart, engineers should evaluate whether the INDACTIC 650 rack supports hot-standby redundancy for the affected slot. If redundancy is not available, coordinating the swap with the process control team to place the affected loops in manual mode before board removal protects field equipment and prevents spurious actuator movements during the transition.

After installation, a structured loop verification — verifying each I/O channel against the P&ID, confirming HMI readbacks, and checking communication link status — should be completed before returning the system to automatic control. Documenting the as-found and as-left condition of each loop provides an audit trail and supports future maintenance planning. All boards shipped from our inventory undergo pre-shipment functional testing, and each unit is covered by a support terms confirmed by quotation from the date of shipment, reducing the risk of repeat failures during the critical post-retrofit period.

Retrofit Support FAQ

Q: Is the 3BHT200014R1411 a direct replacement for the 3BHT310084R20?
A: Yes. The 3BHT310084R20 is a cross-reference designation for the same board assembly used in ABB INDACTIC 650 systems. Confirm the hardware revision against your system’s BOM before installation to ensure full compatibility.

Q: What commissioning steps are required after installing this board?
A: After physical installation, verify the module address configuration, perform a channel-by-channel I/O loop check, confirm HMI tag readbacks, and validate communication link status with upstream systems. If the board carries application logic, upload the correct program version using the appropriate ABB configuration tool before returning loops to automatic.

Q: How do I verify terminal wiring compatibility before replacement?
A: Document the existing wiring against the INDACTIC 650 terminal assignment drawing for the affected slot. The 3BHT200014R1411 uses the standard INDACTIC 650 backplane connector, so no rewiring is required for a like-for-like replacement. If the cabinet is being reorganized, verify terminal block pitch and DIN rail spacing before reassigning field cables.

Q: What support terms and testing does this board carry?
A: Every 3BHT200014R1411 unit shipped from our inventory is covered by a support terms confirmed by quotation from the date of shipment. Pre-shipment functional testing is performed on each board to verify basic operation before dispatch. In-stock units are available for immediate shipment to minimize system downtime.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHT200014R1411 INDACTIC 650 3BHT310084R20
Legacy Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB 3BHT200014R1411 INDACTIC 650 3BHT310084R20
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
