ABB 3BHE030312R0101 Maintenance-Proven Spare Part for Factory Uptime

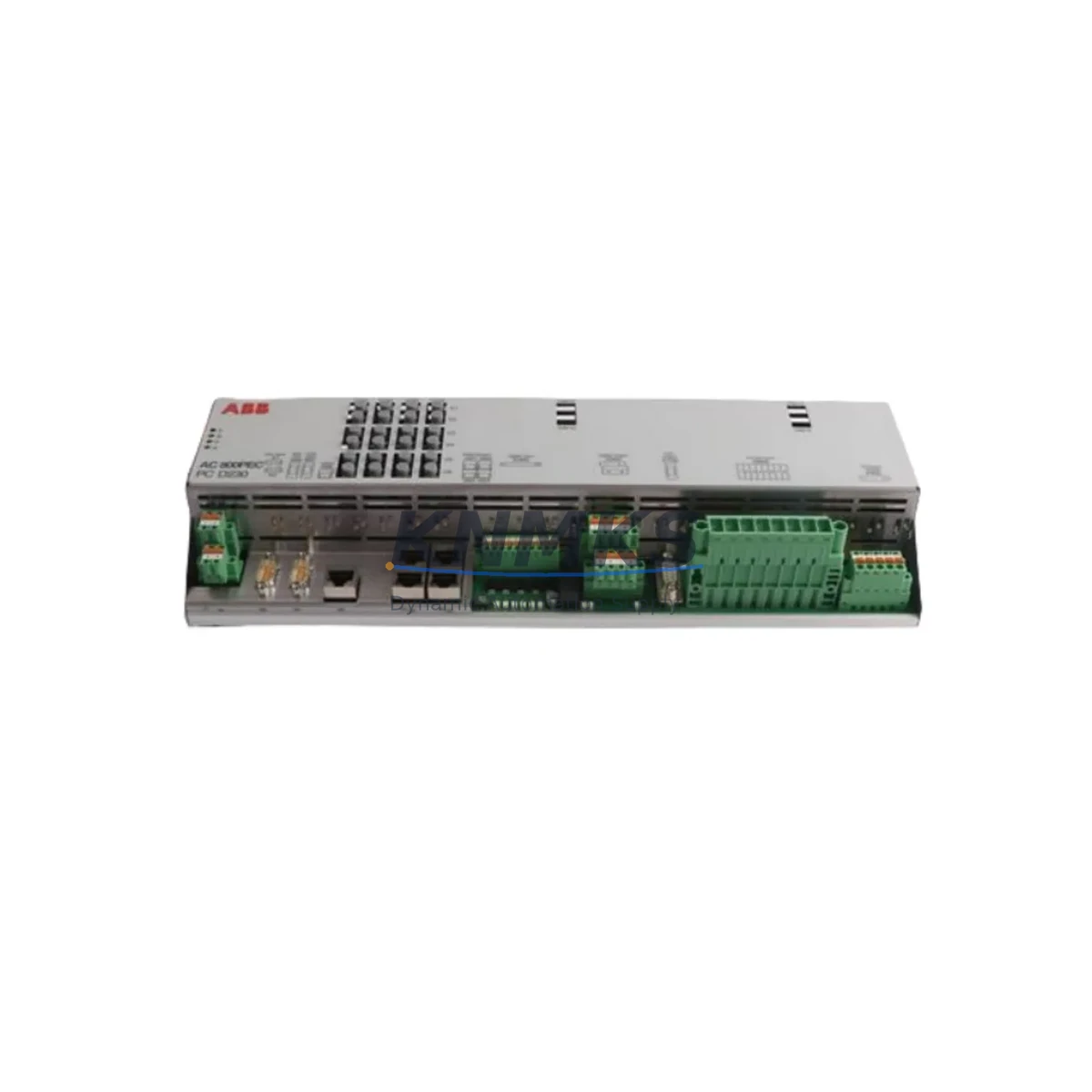

The ABB 3BHE030312R0101 is a critical processor module designed for the AC800M and AC800PEC control platforms — two of ABB’s most widely deployed automation architectures in power generation, oil & gas, pulp & paper, and heavy manufacturing. As a maintenance-proven spare part, the 3BHE030312R0101 is engineered to restore control system functionality with minimal downtime, making it an essential component in any structured spare parts inventory for facilities running ABB Freelance, Symphony Plus, or AC800M-based DCS/PLC systems.

Sourced from verified supply channels and pre-shipment tested against ABB factory specifications, every unit we ship undergoes functional verification before dispatch. Our support terms confirmed by quotation cover operational defects under normal industrial use conditions, giving maintenance engineers and procurement teams the confidence to plan long-cycle replacements without risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3BHE030312R0101 processor module fails or is flagged during a scheduled inspection, the fault rarely exists in isolation. Experienced maintenance engineers know that a processor fault in an AC800M rack is often accompanied by — or caused by — degradation in adjacent components. A structured replacement workflow should include inspection of the following:

Power Supply (PM8xx Series): The AC800M processor draws regulated 24 VDC from the PM803F or PM861A power supply module. A marginal power supply can cause intermittent processor resets that mimic CPU failure. Always verify output voltage stability and ripple before condemning the processor.

Backplane and CEX-Bus Integrity: The TB840A or TB842A termination boards and the CEX-Bus backplane carry all inter-module communication. Oxidized connectors or cracked backplane traces can cause the 3BHE030312R0101 to report communication faults. Clean and inspect all backplane connectors during replacement.

I/O Modules (DI810, DO810, AI810, AO810): Faulty I/O modules can generate bus errors that cascade to the processor. During a processor swap, verify that all connected I/O modules are responding correctly and that no channel faults are latched in the system log.

Communication Modules (CI854A, CI857): If the AC800M is connected to a PROFIBUS DP or Modbus network via a CI854A or CI857 communication interface module, verify that these modules are functioning correctly after the processor replacement. A new processor may require re-initialization of communication parameters.

Signal Isolators and Analog Input Conditioning: In process-critical loops, signal isolators between field transmitters and AI810 analog input modules should be checked for drift or failure, particularly in high-temperature or high-humidity environments. Replacing the processor without addressing signal quality issues will result in recurring alarms.

Fuses and Surge Protection: Inspect all 24 VDC fuses in the control cabinet, particularly those protecting the processor rack supply rail. A blown fuse or a nuisance trip from a surge protection device (SPD) can be the root cause of a processor fault event.

Stocking the 3BHE030312R0101 alongside a PM803F power supply module, a spare CI854A communication interface, and a set of DI810/DO810 I/O modules provides a comprehensive emergency kit for AC800M-based control systems. This approach reduces mean time to repair (MTTR) from days to hours in the event of a critical control system failure.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the faulty 3BHE030312R0101, export the current application program and configuration from the AC800M using ABB Control Builder M. Confirm the firmware version on the replacement unit matches the installed base. If the firmware version differs, plan for a firmware update before commissioning.

Step 2 — Safe Isolation: Place the controller in STOP mode and notify the operations team. For redundant AC800M configurations, verify that the standby controller has assumed control before isolating the primary processor. Do not remove the module under power unless the system design explicitly supports hot-swap.

Step 3 — Physical Replacement: Remove the faulty module from the backplane slot. Inspect the slot connector for bent pins or contamination. Insert the 3BHE030312R0101 replacement unit firmly until the locking tabs engage. Verify the module LED status indicators show correct initialization sequence.

Step 4 — Configuration Restore: Download the saved application program and configuration to the new processor using Control Builder M. Verify all I/O assignments, communication parameters, and safety interlocks are correctly restored before returning the system to RUN mode.

Step 5 — Post-Replacement Validation: Monitor the system for a minimum of 30 minutes after restart. Check all analog and digital I/O channels for correct values. Verify PROFIBUS or Modbus communication is stable. Document the replacement in the site maintenance log with the new module serial number and date.

This workflow is compatible with both simplex and redundant AC800M configurations and is designed to minimize process interruption while maintaining full system integrity.

Spare Parts Support FAQ

Q1: Is the 3BHE030312R0101 compatible with all AC800M hardware revisions?
The 3BHE030312R0101 is designed for the AC800M platform and is compatible with standard AC800M backplane configurations. Compatibility with specific hardware revisions (HW Rev A through D) should be confirmed against the ABB AC800M Hardware Unit Description document. We recommend providing your existing module’s hardware revision when ordering to ensure a matched replacement. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on each unit?
Every 3BHE030312R0101 unit undergoes functional power-on testing, communication interface verification, and visual inspection for physical damage before dispatch. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality-critical applications.

Q3: Can you support long-term supply agreements for this part number?
Yes. We support structured supply agreements covering 12 to 36 months of forward inventory for the 3BHE030312R0101 and related AC800M components. Long-term agreements include priority allocation, fixed pricing, and scheduled delivery to support annual maintenance planning and capital budget cycles. Contact our sales team to discuss terms.

Q4: What does the support terms confirmed by quotation cover?
Our support terms confirmed by quotation cover operational defects in materials and workmanship under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified environmental parameters. In the event of a support terms claim, we provide a replacement unit with priority shipping to minimize site downtime. All support requests are processed within 5 business days of receipt of the returned unit.
