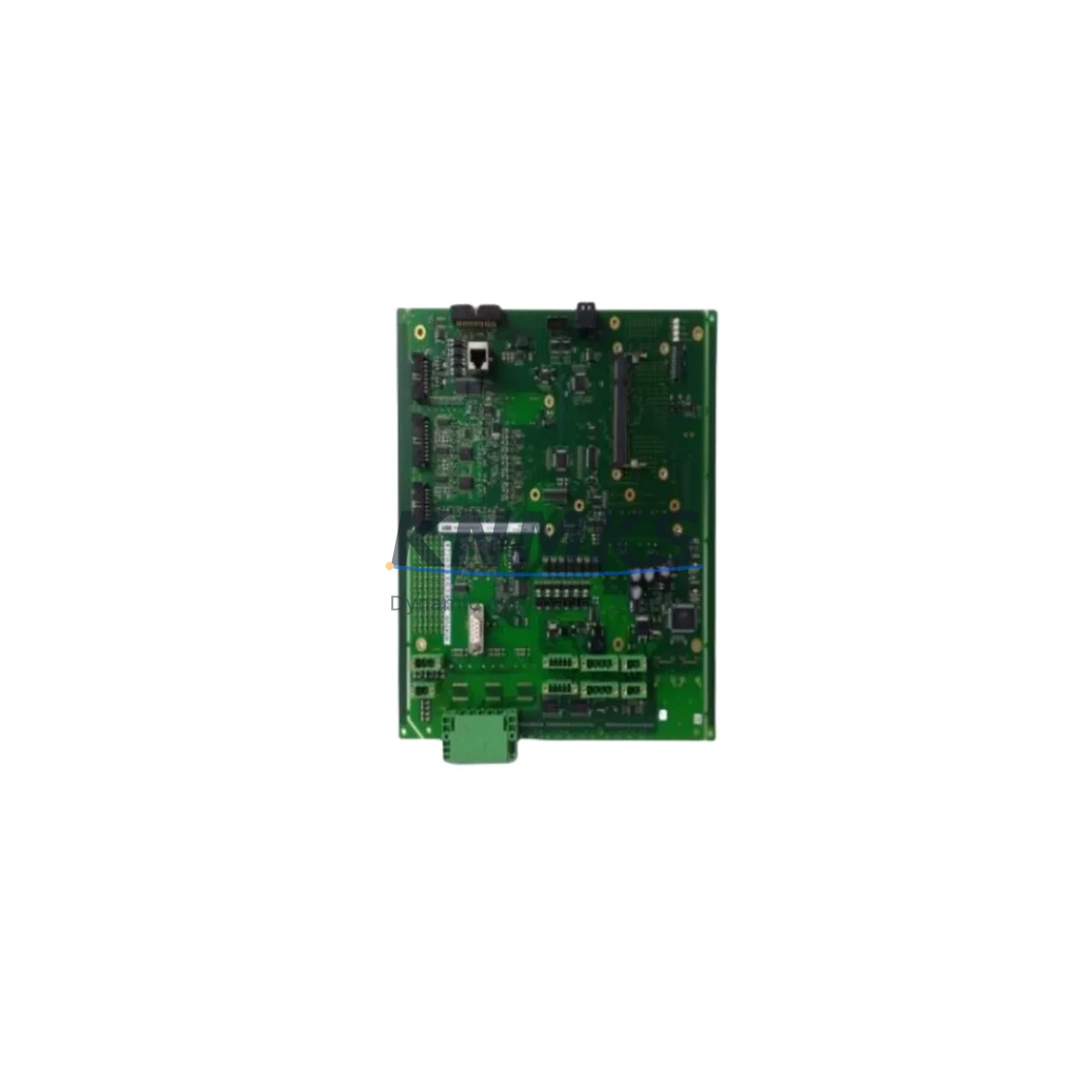

ABB 3BHE022287R0101 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3BHE022287R0101 Maintenance-Proven Spare Part for Factory Uptime

The ABB 3BHE022287R0101 (UC D240) is a high-performance CPU module designed for the ABB AC800M Distributed Control System platform — one of the most widely deployed DCS architectures in the global process and power industries. For maintenance engineers managing aging control infrastructure, this module represents a critical line of defense against unplanned production shutdowns. Whether you are responding to a CPU fault alarm, executing a planned annual overhaul, or building a strategic spare parts inventory for a multi-year maintenance contract, the 3BHE022287R0101 delivers the processing reliability and compatibility your facility demands.

At KNMKS, every 3BHE022287R0101 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. We understand that a DCS CPU failure is not a minor inconvenience — it can halt an entire production line, trigger safety system responses, and generate significant financial losses within hours. Our inventory and logistics infrastructure is built to support emergency replacement scenarios as well as long-term procurement planning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3BHE022287R0101 CPU module in an AC800M controller cabinet is rarely an isolated task. Experienced maintenance engineers know that a CPU fault often signals broader stress on the control system. During any planned or emergency replacement of this module, a thorough inspection of adjacent components is essential to prevent repeat failures and ensure long-term system stability.

Begin by verifying the condition of the PM856 or PM860 power supply module, which feeds the CPU backplane. A degraded power supply is a common root cause of CPU instability and should be tested or replaced concurrently. Next, inspect the TB820 or TB840 ModuleBus modem that handles communication between the CPU and remote I/O clusters — connector corrosion or firmware mismatch can cause intermittent communication faults that mimic CPU failures.

Check all S800 I/O modules connected to the affected controller, particularly the AI810 analog input and DO810 digital output modules, for signs of overheating, loose terminal connections, or channel faults. Signal integrity issues at the I/O level can generate excessive interrupt loads on the CPU, accelerating wear. If the system includes CI854 PROFIBUS communication modules or CI857 HART multiplexers, verify their configuration files are backed up and compatible with the replacement CPU firmware version.

For cabinets operating in high-humidity or dusty environments, inspect the fuse holders and 24 VDC distribution terminals on the backplane rail. Oxidized fuse contacts are a frequent source of intermittent power interruptions that can corrupt CPU memory. Finally, if the facility uses an OP516 or Panel 800 HMI connected to the AC800M network, confirm that the HMI communication configuration does not require re-pairing after the CPU swap — some firmware versions require a manual re-synchronization step.

Building a minimum viable spare parts kit around the 3BHE022287R0101 for a typical AC800M cabinet should include at least one backup CPU module, one power supply module, one ModuleBus modem, and a selection of the most critical I/O modules for your process. This approach reduces mean time to repair (MTTR) from days to hours and is strongly recommended for facilities with 24/7 production requirements.

Site Replacement Workflow

The 3BHE022287R0101 is a direct replacement for earlier UC D240 variants and is backward-compatible with existing AC800M backplane configurations, eliminating the need for hardware modifications during swap-out. The replacement procedure follows a structured sequence to minimize downtime and protect process integrity.

Before beginning, ensure the replacement unit’s firmware version is documented and compared against the existing system configuration. In most AC800M installations, the application program is stored on a Compact Flash card or downloaded from the engineering workstation via Control Builder M — confirm which method your site uses before powering down the controller. If the application resides on the CF card, the card can be transferred directly to the new CPU module, significantly reducing restoration time.

Execute a controlled shutdown of the affected controller partition, verify that redundant controllers (if present) have assumed control, then remove the faulty CPU module following ABB’s ESD handling guidelines. Install the 3BHE022287R0101, restore the application program, and perform a staged power-up with I/O verification before returning the controller to automatic mode. Document the replacement in your CMMS with the module serial number, firmware version, and test results for traceability and support terms purposes.

For sites migrating from older AC800M hardware generations, the 3BHE022287R0101 supports the same CEX-Bus and ModuleBus architecture, making it a low-risk upgrade path that preserves existing wiring, I/O configurations, and HMI integrations. This compatibility significantly reduces engineering hours compared to a full controller platform migration.

Spare Parts Support FAQ

Q1: Is the 3BHE022287R0101 compatible with all AC800M controller variants?
The UC D240 CPU module is compatible with the AC800M controller family, including configurations using PM851, PM856, PM860, and PM861 power supply modules. Compatibility with specific firmware versions and application configurations should be verified against your site’s Control Builder M project files before installation. Our technical team can assist with compatibility confirmation prior to purchase.

Q2: What does pre-shipment testing include, and how does it support my procurement risk management?
Every 3BHE022287R0101 unit shipped by KNMKS undergoes functional power-on verification and basic communication interface testing before dispatch. This process eliminates dead-on-arrival (DOA) risk and provides procurement engineers with documented evidence of module functionality — a critical requirement for facilities with strict incoming inspection protocols. Test records are available upon request.

Q3: Can KNMKS support long-term supply agreements for the 3BHE022287R0101?
Yes. We specialize in long-term spare parts supply agreements for industrial automation components, including 12–36 month inventory reservation arrangements. For facilities managing multiple AC800M installations or planning multi-year maintenance contracts, we offer priority allocation, consignment stock options, and dedicated account management to ensure supply continuity regardless of market availability fluctuations.

Q4: What is covered under the support terms confirmed by quotation, and what is the claims process?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a support terms claim, contact our sales team with the module serial number, purchase order reference, and a description of the fault. We target a response within one business day and offer advance replacement options for critical production environments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE022287R0101
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 3BHE022287R0101
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
