ABB 3BHE021889R0101 Migration-Ready Excitation Control for Legacy Systems

Overview

ABB 3BHE021889R0101 Migration-Ready Excitation Control for Legacy Systems

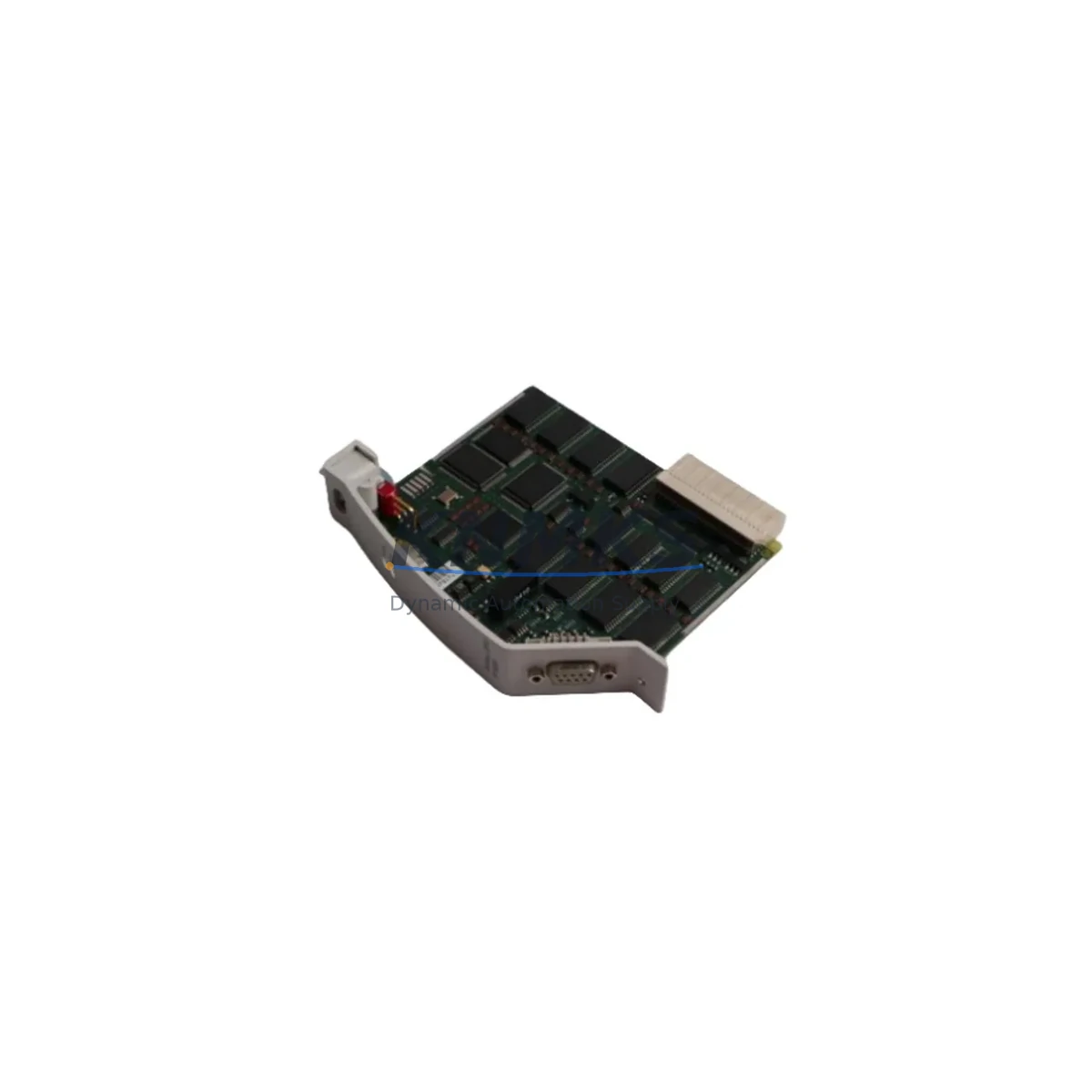

The ABB 3BHE021889R0101 (UFC721 BE101) is a field-proven excitation control module designed for deployment within ABB’s UNITROL automatic voltage regulator (AVR) platform. As legacy UNITROL 5000 and UNITROL 6000 installations approach end-of-support milestones, this module serves as a verified drop-in replacement and migration bridge for power generation facilities, industrial drives, and utility-grade synchronous machine control systems. Each unit is pre-shipment tested, covered by a support terms confirmed by quotation, and dispatched from verified stock to minimize procurement lead times during critical retrofit windows.

The UFC721 BE101 board integrates directly into the UNITROL rack architecture, interfacing with the excitation transformer, field current feedback circuits, and the supervisory AC800M controller via the internal DDCS fiber-optic communication link. Engineers planning a control system modernization must confirm that the existing UNITROL backplane revision is compatible with the BE101 board generation, as earlier UNITROL 5000 chassis may require a firmware alignment step before the replacement module is recognized by the AVR supervisory logic.

When replacing a failed or end-of-life UFC721 board, the field team should document the existing field current setpoints, ceiling voltage parameters, and PSS (Power System Stabilizer) tuning coefficients stored in the outgoing module’s non-volatile memory before removal. These parameters must be re-entered or transferred to the replacement 3BHE021889R0101 during commissioning. If the site uses an ABB Symphony Plus DCS or a standalone AC800M controller for AVR supervision, the communication node address and DDCS channel assignment must be verified against the existing network topology to avoid address conflicts with adjacent modules such as the UFC760 gate pulse amplifier or the UNS0881 field suppression unit.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the ABB 3BHE021889R0101 into an operating power plant or industrial facility requires a structured pre-outage engineering review. The first step is to audit the existing UNITROL rack for available slot positions and to confirm that the 24 VDC auxiliary power supply — typically sourced from the UNITROL PSU module — has sufficient current headroom to support the replacement UFC721 BE101 board alongside other active modules in the same chassis. Overloaded PSU rails are a common cause of intermittent excitation faults after module replacement and must be ruled out before the outage window begins.

Terminal wiring on the UNITROL I/O interface board must be photographed and documented before any module is removed. The field current measurement input, the voltage transformer secondary connections, and the binary I/O signals for AVR mode selection (Auto/Manual/Limiter) are all routed through the rack’s internal wiring harness and are not affected by the UFC721 swap itself — but any disturbance to the terminal block during module extraction must be verified against the original wiring diagram. Sites that have previously installed a UNS0881 field suppression contactor interface or a UFC760 gate pulse amplifier in adjacent slots should confirm that the backplane signal routing between these modules and the new 3BHE021889R0101 remains intact after re-seating.

For facilities running ABB’s AC800M controller as the AVR supervisory platform, the DDCS fiber-optic link between the AC800M DDCS master module and the UFC721 BE101 must be re-established after the swap. The node address configured in the AC800M application program must match the hardware DIP switch or firmware setting on the replacement module. If the site also uses an ABB Panel 800 HMI or an Operator Panel OP516 for local AVR status display, the HMI faceplate variables linked to excitation current, field voltage, and AVR mode status should be verified to confirm that the data tags are still resolving correctly after the module replacement. In some legacy UNITROL 5000 installations, the HMI display variables are mapped directly to DDCS node addresses, and a node address mismatch will cause blank or frozen readings on the operator panel without generating a hard fault alarm.

I/O expansion requirements should also be reviewed during the retrofit planning phase. If the existing control cabinet includes a UNITROL I/O extension module for additional binary inputs or analog feedback channels, the address mapping of these extension modules relative to the UFC721 master must be re-confirmed in the UNITROL configuration tool after the replacement board is installed. Sites that are simultaneously upgrading from a legacy UNITROL 5000 to a UNITROL 6000 platform may also need to replace the associated excitation transformer interface board and re-calibrate the field current transducer scaling factors to match the new module’s input range.

Downtime Control During System Migration

Minimizing unplanned downtime during an excitation control module replacement requires a pre-staged swap strategy. The replacement 3BHE021889R0101 should be bench-configured with the correct firmware version and node address settings before the outage window opens, so that the physical installation and DDCS link verification can be completed within the allocated maintenance slot. A pre-configured spare eliminates the most common source of extended outages: discovering firmware mismatches or address conflicts only after the original module has been removed from service.

The original control program logic residing in the AC800M controller is not affected by the UFC721 board replacement, provided the DDCS communication link is restored correctly and the node address matches the application configuration. This means that the AVR control algorithm, the PSS function blocks, the limiter logic, and the sequence-of-events recording configuration all remain intact in the AC800M memory and do not need to be re-downloaded after the module swap. The primary commissioning tasks are limited to re-entering the excitation setpoints stored in the UFC721’s own non-volatile memory, verifying the field current feedback scaling, and performing a no-load AVR step response test to confirm that the voltage regulation loop is stable before returning the machine to service.

For sites where a cold standby spare is not feasible, a documented rollback plan should be prepared before the outage begins. This includes retaining the original UFC721 module in a labeled anti-static bag with its parameter backup, so that it can be re-installed within minutes if the replacement module fails to commission within the available window. All units supplied by KNMKS are pre-shipment tested to reduce the probability of a commissioning failure caused by a latent hardware defect, and the support terms confirmed by quotation provides coverage for any post-installation failure that occurs within normal operating conditions.

Retrofit Support FAQ

Q1: Is the ABB 3BHE021889R0101 a direct replacement for all UFC721 variants?
The 3BHE021889R0101 (UFC721 BE101) is the current production revision of the UFC721 excitation control board. It is compatible with UNITROL 5000 and UNITROL 6000 rack systems. Earlier UFC721 revisions (e.g., BE100 or earlier) may require a firmware update on the replacement module to match the site’s UNITROL software baseline. Always cross-reference the existing module’s revision label against ABB’s UFC721 compatibility matrix before ordering.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation and DDCS link restoration, the primary commissioning steps are: (1) verify the node address matches the AC800M application configuration; (2) re-enter AVR setpoints, ceiling voltage, and PSS tuning coefficients from the pre-outage parameter backup; (3) perform a no-load voltage step response test; and (4) confirm that all HMI display variables — including field current, field voltage, and AVR mode status — are resolving correctly on the operator panel before returning the machine to service.

Q3: Can the module be installed without shutting down the entire control cabinet?
The UFC721 BE101 is not rated for hot-swap installation in a live UNITROL rack. The machine must be de-excited and the UNITROL auxiliary power supply must be de-energized before the module is removed or inserted. Attempting a live swap risks damage to the backplane connector and may corrupt the DDCS communication state of adjacent modules in the same rack.

Q4: What support terms and testing coverage is provided with this unit?
Every ABB 3BHE021889R0101 supplied by KNMKS is pre-shipment tested for functional operation and DDCS communication loop integrity before dispatch. A support terms confirmed by quotation from the date of shipment covers manufacturing defects and component failures under normal operating conditions. Support requests are supported by our technical team with direct RMA processing and priority replacement dispatch to minimize site downtime.
