ABB 3BHE020455R0001 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3BHE020455R0001 Maintenance-Proven Spare Part for Factory Uptime

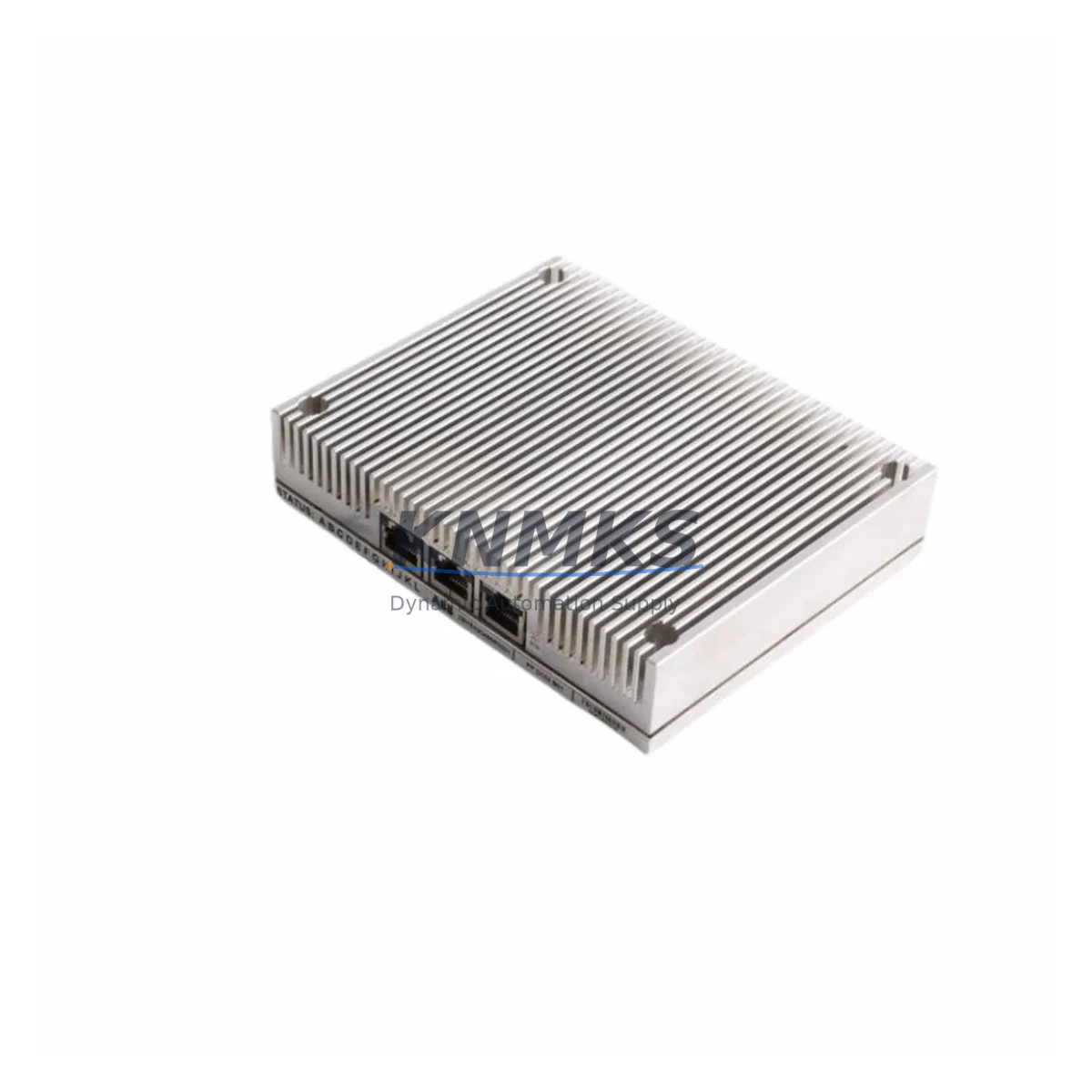

The ABB 3BHE020455R0001 (PPD103 B01) is a critical DCS controller board used across ABB AC800M distributed control system installations in power generation, oil & gas, chemical processing, and heavy manufacturing environments. Sourced as an original spare, this unit is pre-tested and ready for immediate deployment to minimize unplanned downtime and restore production continuity.

Maintenance engineers and procurement teams managing aging AC800M control cabinets rely on the PPD103 B01 board as a first-line replacement component. Its role in the control loop — handling process I/O coordination, inter-module communication, and real-time execution — makes it one of the highest-priority items on any DCS spare parts list. Keeping a verified unit availability confirmed by RFQ eliminates the lead-time risk that turns a minor fault into a multi-day outage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the 3BHE020455R0001 PPD103 B01, a thorough cabinet inspection is essential to prevent repeat failures and ensure the restored system operates reliably through the next maintenance cycle.

Begin by verifying the AC800M PM865 or PM866 processor module — the PPD103 board operates in close coordination with the CPU module, and a degraded processor can cause misdiagnosed board faults. Simultaneously inspect the TB820 or TB840 ModuleBus modem for signal integrity issues that may have contributed to the original failure.

Check all 24 VDC power supply modules (such as the ABB SD831 or SD832) feeding the controller rack. Voltage ripple or transient spikes are a leading cause of premature board failure in AC800M installations. If the cabinet uses a CI854 or CI857 PROFIBUS communication interface, inspect the fieldbus wiring and termination resistors — communication faults can cascade into controller board errors.

For I/O-intensive installations, audit the AI810, AO810, DI810, and DO810 I/O modules in the same rack. A shorted field device connected to an I/O module can inject fault currents that stress the controller board. Also verify the condition of TK850 or TK851 optical ModuleBus cables between racks — degraded fiber links are a common but overlooked source of intermittent DCS faults.

Finally, inspect the backplane connector and rack chassis for oxidation or mechanical damage. A clean, torque-verified seating of the PPD103 B01 board is critical to long-term reliability. Document all findings in your CMMS before returning the system to service.

Site Replacement Workflow

Step 1 — Isolation: Follow your site’s LOTO procedure. Place the AC800M controller in manual or backup mode before removing the faulty PPD103 B01 board to prevent process upsets.

Step 2 — Compatibility Verification: Confirm the replacement 3BHE020455R0001 matches the hardware revision and firmware baseline of the installed system. Cross-reference the ABB system release notes for your AC800M software version.

Step 3 — Board Swap: Remove the defective board from the backplane slot. Insert the replacement PPD103 B01, ensuring the ejector levers are fully engaged. Avoid touching the PCB edge connectors.

Step 4 — System Restart and Diagnostics: Power up the rack and monitor the ABB Control Builder or System 800xA diagnostic view for fault codes. Confirm all I/O channels report correctly before releasing the loop to automatic control.

Step 5 — Documentation: Record the replaced part number, serial number, installation date, and post-replacement test results. Update your spare parts inventory and reorder a replacement unit to maintain minimum stock levels.

This workflow supports a typical replacement time of under 60 minutes for experienced DCS maintenance teams, significantly reducing mean time to repair (MTTR) compared to sourcing a board on an emergency basis.

Spare Parts Support FAQ

Q1: Is the 3BHE020455R0001 compatible with all AC800M hardware generations?
The PPD103 B01 is designed for use within the ABB AC800M platform. Compatibility depends on the specific rack generation and firmware version. We recommend confirming your system’s hardware revision against ABB’s compatibility matrix before installation. Our technical team can assist with cross-referencing.

Q2: How is the unit tested before shipment?
Each 3BHE020455R0001 unit undergoes functional power-on testing and communication verification prior to dispatch. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for critical installations.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or environmental contamination beyond the board’s rated specifications. Support requests are processed within 5 business days of receipt.

Q4: Can you support long-term or blanket purchase orders for this part?
Yes. For maintenance teams managing multiple AC800M installations or planning annual shutdown spares, we support blanket PO arrangements with reserved stock allocation. Contact our sales team to discuss volume pricing, lead-time guarantees, and consignment stocking options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
