ABB 3BHE014135R0011 UAD149A00-0-11 Spare Part for Factory Uptime

Overview

ABB 3BHE014135R0011 UAD149A00-0-11 Maintenance-Proven Spare Part for Factory Uptime

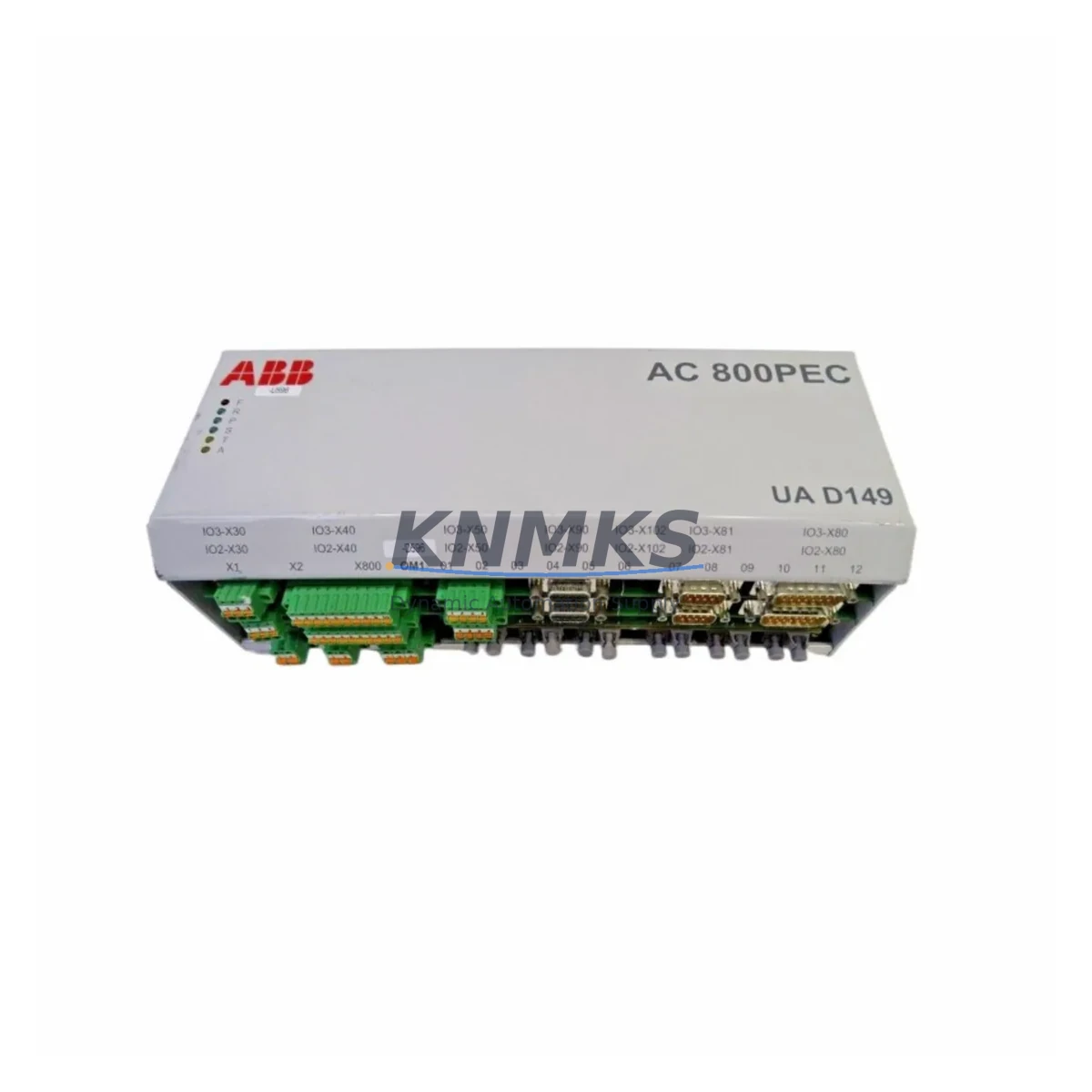

The ABB 3BHE014135R0011 (UAD149A00-0-11 / UAD149) is a critical analog I/O module designed for the ABB AC800M Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in power generation, oil & gas, chemical processing, and heavy manufacturing. For maintenance engineers managing aging control infrastructure, this module represents a high-priority spare that directly impacts plant availability and process continuity.

When a UAD149A00-0-11 module fails or degrades, the consequences extend beyond a single I/O channel. Analog signal integrity across the entire control loop is compromised, potentially triggering false alarms, process deviations, or unplanned shutdowns. Stocking a verified replacement — sourced, tested, and ready for immediate installation — is the most effective strategy to minimize mean time to repair (MTTR) and protect production schedules.

At KNMKS, every 3BHE014135R0011 unit is individually inspected, function-tested against ABB factory specifications, and shipped with full traceability documentation. Our support terms confirmed by quotation cover operational defects under normal industrial service conditions, giving procurement engineers confidence in long-term supply reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3BHE014135R0011 UAD149A00-0-11 in an AC800M system is rarely an isolated task. Experienced maintenance engineers treat module replacement as an opportunity to audit the surrounding control loop and cabinet infrastructure. A structured inspection at the time of replacement significantly reduces the risk of secondary failures and repeat downtime events.

Begin with the AC800M controller module (such as the PM865 or PM891 series) to confirm firmware compatibility and verify that the controller’s analog channel configuration matches the replacement module’s I/O mapping. Mismatched channel assignments are a common source of post-replacement signal errors that are difficult to diagnose under production pressure.

Inspect the S800 I/O backplane or TB820 Modulebus Modem for physical damage, oxidized connectors, or loose seating. A degraded backplane connection can cause intermittent faults that mimic module failure, leading to unnecessary replacements. Clean and reseat all connectors before powering up the new UAD149.

Check the 24 VDC power supply module feeding the I/O rack — typically an ABB SD831 or equivalent industrial SMPS. Voltage ripple or marginal current capacity under full I/O load can stress analog modules and shorten service life. Verify output voltage under load and inspect capacitor condition if the PSU is more than five years old.

Review the field wiring terminal blocks and signal cables connected to the analog channels. Corroded terminals, incorrect shielding grounding, or damaged cable insulation introduce noise that degrades 4–20 mA signal accuracy. Re-torque all terminal connections and verify shield continuity to the cabinet ground bar.

If the AC800M system includes CI854 PROFIBUS DP communication modules or CI840A PROFINET interface modules, confirm that the network topology and device addressing remain intact after the I/O module swap. Communication module faults can mask or amplify analog I/O errors in the DCS historian and alarm system.

For plants running extended maintenance intervals, consider adding a signal isolator or loop-powered isolator on high-priority analog channels. Isolators protect the UAD149 input circuitry from ground loops and transient surges originating in field instrumentation — a common failure mode in older process plants with mixed grounding practices.

Finally, verify the fuse protection on the I/O power rail. Blown or weakened fuses on the 24 VDC distribution bus are frequently overlooked during emergency replacements and can cause the new module to fail within hours of installation. Replace any fuse that shows signs of heat discoloration or measures above its rated resistance.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s part number (3BHE014135R0011) and variant code (UAD149A00-0-11) against the installed module label and the plant’s spare parts register. Cross-reference with the AC800M system documentation to verify slot assignment and I/O channel configuration.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. Place the affected control loop in manual mode at the DCS operator station before removing the module. Notify the control room operator and document the start time for maintenance records.

Step 3 — Module Removal: Release the module locking mechanism on the backplane, disconnect field wiring terminals (label all wires before removal), and extract the UAD149 from its slot. Inspect the backplane connector pins for damage or contamination.

Step 4 — Installation: Insert the replacement 3BHE014135R0011 into the correct backplane slot. Reconnect field wiring terminals in the correct order, verify terminal torque, and confirm shield grounding. Re-engage the module locking mechanism.

Step 5 — Power-Up and Commissioning: Restore 24 VDC power to the I/O rack. Observe the module status LEDs for normal initialization sequence. At the DCS engineering station, confirm that all analog channels report valid process values within expected engineering unit ranges.

Step 6 — Loop Test and Handover: Perform a live loop test on each analog channel using a calibrated signal source. Verify 4–20 mA linearity across the full input range. Return the control loop to automatic mode, confirm alarm setpoints are active, and close the maintenance work order with as-found / as-left documentation.

Spare Parts Support FAQ

Q1: Is the 3BHE014135R0011 a direct drop-in replacement for the UAD149A00-0-11 already installed in my AC800M system?
Yes. The 3BHE014135R0011 is the ABB catalog number for the UAD149A00-0-11 module. Both designations refer to the same hardware revision. No firmware update or hardware modification is required for a like-for-like replacement in a compatible AC800M backplane slot. Always verify the installed firmware version of your AC800M controller to ensure compatibility with the module’s embedded firmware.

Q2: How does KNMKS verify the condition of spare modules before shipment?
Each unit undergoes a multi-point inspection covering physical condition, connector integrity, and functional testing against ABB reference specifications. Modules that pass all test criteria are issued a test report and shipped with anti-static packaging and full traceability documentation. Units that do not meet specification are quarantined and not offered for sale. Our support terms confirmed by quotation cover all operational defects arising under normal industrial service conditions.

Q3: What is the recommended inventory strategy for the UAD149A00-0-11 in a critical process plant?
For plants with AC800M systems controlling critical process loops, we recommend maintaining a minimum of one cold-standby UAD149A00-0-11 per controller rack on-site, with a second unit held at the regional maintenance hub. Given that ABB has transitioned the AC800M platform toward the AC800xA architecture, long-term availability of original UAD149 modules from the open market will tighten. Establishing a multi-year supply agreement with a verified distributor is the most effective way to protect against obsolescence risk.

Q4: Can KNMKS support long-term supply for legacy AC800M spare parts beyond a single order?
Yes. KNMKS specializes in long-term supply of industrial automation spare parts for legacy and end-of-life platforms. We maintain standing inventory of AC800M series modules and can support scheduled procurement programs, blanket orders, and emergency call-off arrangements. Contact our technical sales team to discuss your plant’s specific spare parts requirements and establish a supply framework that aligns with your maintenance planning cycle.
