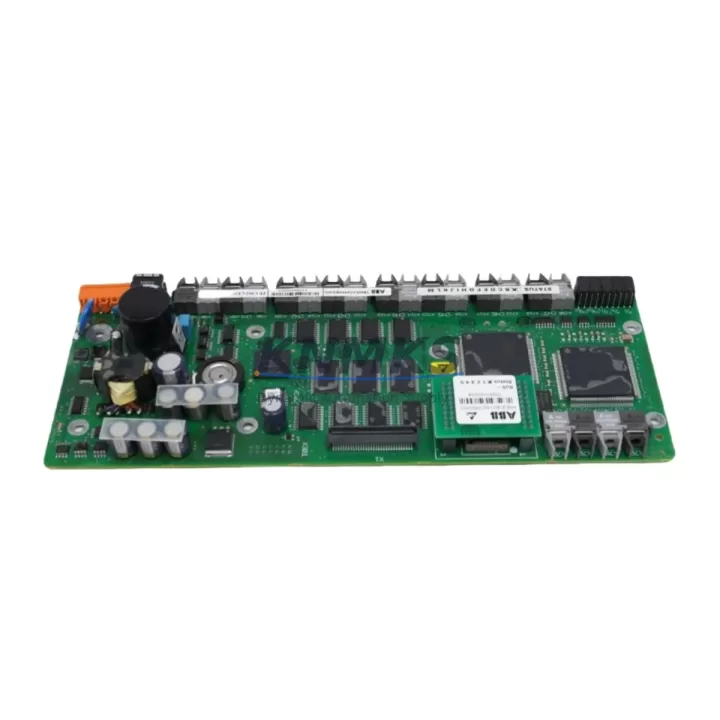

ABB 3BHE014070R0101 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3BHE014070R0101 Maintenance-Proven Spare Part for Factory Uptime

The ABB 3BHE014070R0101, also referenced as PP C905 AE101, is a critical protection and processing module designed for ABB’s AC800M controller platform and Symphony Plus DCS architecture. In high-availability process industries — including power generation, oil & gas, chemical processing, and pulp & paper — this module serves as a core component in the controller backplane, managing protection logic, I/O coordination, and real-time process supervision. When this module fails or degrades, the consequences extend beyond a single controller: entire process loops, safety interlocks, and SCADA data feeds can be disrupted, triggering unplanned shutdowns and costly production losses.

Sourced from verified supply channels and tested prior to shipment, the 3BHE014070R0101 available through KNMKS is backed by a support terms confirmed by quotation and supported by long-term inventory commitment — ensuring your maintenance team can respond to both emergency callouts and planned annual overhauls without lead-time risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB 3BHE014070R0101 in an AC800M controller cabinet is rarely an isolated task. Experienced maintenance engineers know that a protection module fault is often a symptom of broader electrical stress in the control cabinet. Before declaring the replacement complete, a thorough site inspection should cover the following associated components:

Start with the PM865 or PM866 processor module seated in the same controller rack — if the 3BHE014070R0101 has been running in a degraded state, the processor may have logged persistent fault codes or experienced watchdog resets that warrant a firmware check or module swap. Alongside this, inspect the SD821 or SD822 power supply module feeding the AC800M rack: voltage ripple or marginal output on the 24 VDC rail is a common root cause of protection module instability and is frequently overlooked during emergency callouts.

Check the TB820 or TB840 Modulebus Modem for communication integrity — a degraded modem can cause the protection module to report spurious faults, leading to unnecessary replacements. Similarly, review the AI810 or AI820 analog input modules in the S800 I/O cluster connected to this controller: signal drift or channel failures in the I/O layer can propagate upstream and trigger protection responses in the 3BHE014070R0101.

For cabinets with legacy wiring, inspect terminal blocks and field wiring connectors on the I/O bus for oxidation, loose crimps, or insulation breakdown — particularly in humid or high-vibration environments. If the system includes signal isolators or barriers between field instruments and the S800 I/O, verify their output ranges are within specification, as out-of-range signals can cause the protection module to enter a fault state.

Finally, confirm that cabinet ventilation and cooling fans are operational and that ambient temperature inside the enclosure does not exceed the module’s rated operating range. Thermal stress is a leading cause of premature module failure in AC800M installations operating in tropical or desert climates.

Maintaining a minimum stock of one 3BHE014070R0101 per AC800M controller cluster — alongside a spare PM865 processor and SD821 power supply — is a widely adopted strategy among maintenance planners in continuous-process industries to ensure sub-24-hour recovery from unplanned controller faults.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the fault is isolated to the 3BHE014070R0101 by reviewing the AC800M diagnostic log in Control Builder M. Check for fault codes specific to the protection module slot before pulling the unit.

Step 2 — Safe isolation: Follow your site’s LOTO procedure. The AC800M supports hot-standby redundancy in some configurations — verify whether the redundant controller can assume control before powering down the affected module slot.

Step 3 — Module extraction: Release the module locking lever, slide the 3BHE014070R0101 out of the backplane slot, and inspect the backplane connector for bent pins or contamination before inserting the replacement unit.

Step 4 — Replacement insertion: Seat the new 3BHE014070R0101 firmly until the locking lever engages. The module will perform a self-test on power-up — allow 60–90 seconds for initialization before checking status LEDs.

Step 5 — Configuration restore: If the replacement module requires firmware or parameter loading, use Control Builder M to download the controller application. Verify all I/O channel assignments and protection setpoints match the pre-fault configuration.

Step 6 — Functional test: Confirm all process values are reading correctly in the SCADA or DCS operator station. Check that no residual fault alarms remain active before returning the controller to automatic mode.

This workflow is compatible with both direct replacement of a failed 3BHE014070R0101 and planned swap-out during scheduled annual maintenance windows, minimizing process disruption and ensuring full system compatibility is maintained.

Spare Parts Support FAQ

Q1: Is the 3BHE014070R0101 still available as a new original part, or only as refurbished stock?
KNMKS supplies original OEM units sourced from verified distribution channels. Each unit undergoes functional testing prior to shipment. We do not supply refurbished or remanufactured modules unless explicitly requested and agreed upon in writing.

Q2: How do I confirm compatibility between the 3BHE014070R0101 and my existing AC800M firmware version?
Compatibility is determined by the AC800M controller firmware revision and the Control Builder M software version in use at your site. As a general guideline, the PP C905 AE101 is compatible with AC800M firmware 5.x and later. For sites running earlier firmware, contact our technical team with your controller serial number and firmware version for a compatibility confirmation before ordering.

Q3: What is included in the support terms confirmed by quotation, and how does the claims process work?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. If a module fails within the confirmed support period, KNMKS will provide a replacement unit after receiving the failed module for inspection. Support requests are processed within 5–7 business days of receiving the returned unit. The support terms does not cover damage caused by incorrect installation, overvoltage, or environmental conditions outside the module’s rated specifications.

Q4: Can KNMKS support long-term blanket stock agreements for the 3BHE014070R0101?
Yes. For maintenance planners managing multiple AC800M installations or operating under a multi-year maintenance contract, KNMKS offers blanket purchase agreements with reserved inventory allocation, fixed pricing, and priority shipment. This is particularly valuable for sites where the 3BHE014070R0101 is classified as a critical spare with a mandatory minimum stock level. Contact our sales team to discuss terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE014070R0101 / PP C905 AE101
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 3BHE014070R0101 / PP C905 AE101
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
