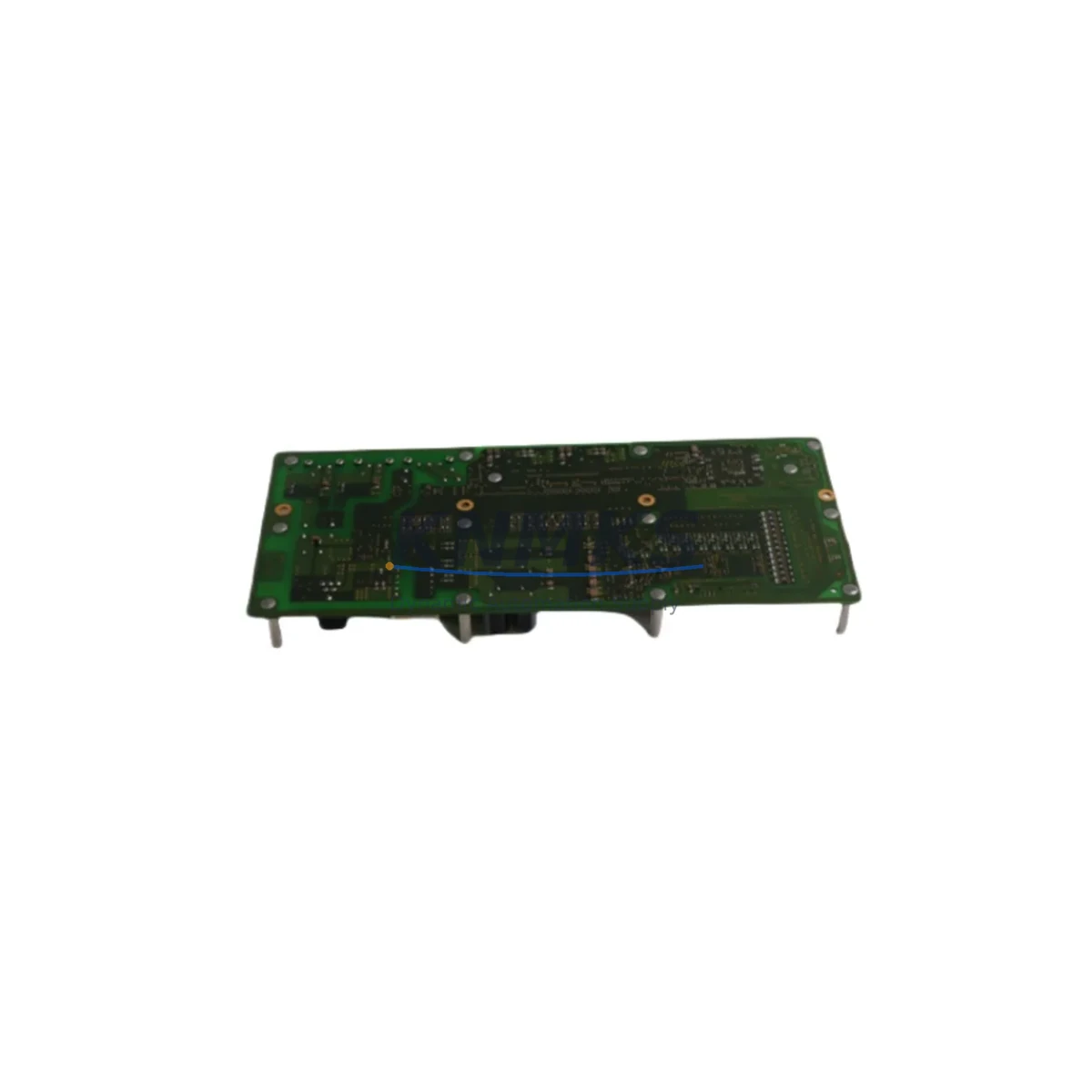

ABB 3BHE012095R0002 UAD141A02 Migration-Ready Module for Legacy Control Systems

Overview

ABB 3BHE012095R0002 UAD141A02 Migration-Ready Module for Legacy Control Systems

The ABB 3BHE012095R0002 UAD141A02 is a high-reliability controller module designed for the ABB AC800M Distributed Control System (DCS) platform. As legacy automation infrastructure ages and OEM support windows close, this module serves as a critical migration-ready replacement for facilities managing long-running process control environments in power generation, oil & gas, chemical processing, pulp and paper, and water treatment industries.

Whether you are executing a planned retrofit, responding to an unplanned failure, or building a strategic spare parts inventory to extend system life by 12 to 36 months, the 3BHE012095R0002 UAD141A02 provides a verified drop-in solution that minimizes engineering risk and reduces total downtime exposure. Each unit is pre-shipment tested under load conditions and backed by a support terms confirmed by quotation covering both hardware integrity and functional performance.

For facilities still operating on the AC800M platform, this module addresses the most common retrofit scenario: replacing a failed or end-of-life UAD141A02 without requiring a full controller migration. The module maintains backward compatibility with existing backplane slot assignments, I/O channel mappings, and communication link configurations, allowing engineering teams to restore control continuity without rewriting application logic or reconfiguring HMI display pages.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 3BHE012095R0002 UAD141A02 into an existing AC800M installation requires a structured pre-retrofit assessment. Engineering teams should begin by auditing the current rack configuration to confirm available backplane slot positions and verify that the existing PM856 or PM860 power module can support the additional load introduced by the replacement unit. Power budget shortfalls are among the most common causes of post-installation instability in legacy DCS retrofits and must be resolved before the new module is seated.

Terminal wiring documentation should be reviewed against the original I/O assignment sheets. In installations where field wiring was modified over time without corresponding documentation updates, a physical point-to-point verification is recommended before powering the replacement module. Signal isolators — particularly for thermocouple and 4–20 mA analog loops — should be inspected for drift or degradation that may have been masked by the previous module’s internal compensation.

For systems using PROFIBUS DP communication, the replacement module must be assigned the correct GSD-defined station address to match the existing network topology. Address conflicts introduced during module swap are a frequent source of communication faults that delay commissioning. Teams working with Modbus TCP or IEC 61850 configurations should verify that IP address assignments and logical node mappings remain consistent with the SCADA or DCS configuration database.

In multi-rack AC800M installations, the CI854 or CI858 communication interface modules connecting the controller to field buses should be inspected for firmware currency. Mismatched firmware between the replacement UAD141A02 and existing communication interface modules can introduce latency or handshake failures that are difficult to diagnose without a structured firmware compatibility matrix. Similarly, if the installation includes an TP830 or TP854 operator panel, HMI tag bindings should be validated after module replacement to confirm that display pages reflect accurate process values.

Where the retrofit scope extends beyond a single module replacement — for example, when upgrading an entire controller cabinet from an older AC450 or MOD 300 platform to AC800M — the 3BHE012095R0002 UAD141A02 is typically deployed alongside additional AC800M rack components including the TB820 I/O bus interface, SD821 or SD822 power supply modules, and appropriate analog or digital I/O modules from the S800 I/O series. Planning the full bill of materials in advance reduces the risk of mid-project procurement delays that extend system downtime.

Downtime Control During System Migration

Minimizing unplanned downtime during a DCS module replacement requires a combination of pre-staging, program backup, and a clearly defined rollback procedure. Before removing the failed or end-of-life UAD141A02, the engineering team should perform a full backup of the AC800M application project using ABB Control Builder M, capturing the current program logic, I/O configuration, communication parameters, and module address assignments. This backup serves as both a restoration baseline and a commissioning reference during the swap procedure.

Where process conditions permit, a hot-standby or redundant controller configuration should be leveraged to maintain field control continuity during the physical module exchange. In non-redundant installations, the replacement window should be coordinated with production scheduling to align with planned maintenance shutdowns or low-demand operating periods. A pre-tested replacement module — verified against the application firmware version and I/O configuration before the maintenance window begins — significantly reduces the time required to restore normal operation.

Post-installation commissioning should follow a structured sequence: power-on self-test verification, communication link re-establishment, I/O channel scan, HMI display validation, and a controlled process restart under operator supervision. Alarm rationalization should be performed after the first full operating cycle to identify any spurious conditions introduced by the module change. All commissioning steps should be documented and retained as part of the site modification record to support future audits and support requests.

For facilities managing multiple AC800M controllers across a plant network, a phased replacement strategy — addressing the highest-criticality controllers first while maintaining operational spares for lower-priority loops — provides the most effective balance between risk reduction and inventory investment. Stocking a minimum of one verified spare 3BHE012095R0002 UAD141A02 per controller cluster is a widely adopted practice in industries where unplanned DCS failures carry significant production loss exposure.

Retrofit Support FAQ

Q1: Is the 3BHE012095R0002 UAD141A02 a direct replacement for older UAD141A-series modules?
Yes. The UAD141A02 is the current revision of the UAD141A series and is designed as a direct functional replacement for earlier revisions within the AC800M platform. No hardware modification or adapter is required for standard backplane installations. Confirm the firmware version of your AC800M controller before installation to ensure compatibility with the replacement module revision.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, assign the correct module address in Control Builder M, perform an I/O channel scan to verify field wiring integrity, re-establish communication links to any connected CI854 or CI858 interface modules, and validate HMI tag bindings on connected operator panels. A controlled process restart under operator supervision is recommended before returning the loop to automatic control.

Q3: How is each unit tested before shipment?
Every 3BHE012095R0002 UAD141A02 unit undergoes pre-shipment functional testing under simulated load conditions. Test results are documented and available upon request. The support terms confirmed by quotation cover hardware defects and functional performance failures from the date of shipment, providing assurance for both planned retrofit projects and emergency replacement scenarios.

Q4: What is the typical lead time and inventory availability?
Units are maintained availability confirmed by RFQ to support both planned procurement and emergency replacement requirements. Standard shipment is processed within 1–3 business days. For multi-unit orders supporting long-term spare parts agreements (12–36 months), volume pricing and reserved inventory arrangements are available. Contact the sales team to discuss supply continuity options for your facility.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE012095R0002 UAD141A02
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 3BHE012095R0002 UAD141A02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
