ABB 3BHE012049R0101 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3BHE012049R0101 Maintenance-Proven Spare Part for Factory Uptime

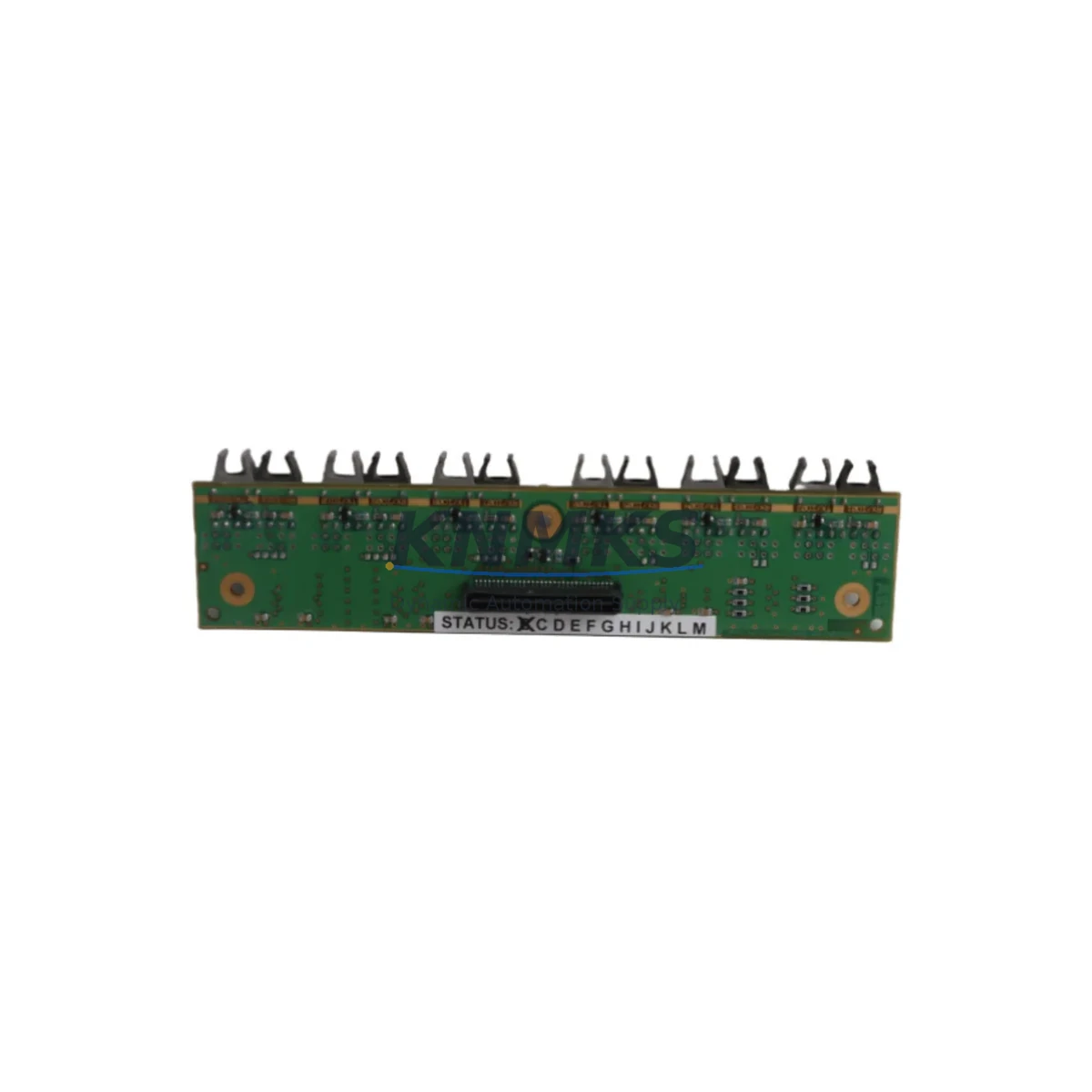

The ABB 3BHE012049R0101 (UFD128A101) is an original fiber optic communication module engineered for the ABB AC800M Distributed Control System (DCS) platform. In process industries — including oil & gas, power generation, chemical, and pulp & paper — the AC800M controller backbone depends on reliable, low-latency fiber optic links between controller modules, I/O clusters, and supervisory networks. A degraded or failed UFD128A101 directly threatens loop integrity, process visibility, and production continuity. Stocking a verified replacement unit is the most effective single action a maintenance team can take to protect uptime.

This unit is sourced from authorized supply channels, subjected to pre-shipment functional verification, and dispatched with a support terms confirmed by quotation covering manufacturing defects under normal industrial operating conditions. Global logistics support ensures rapid delivery to plant sites across North America, Europe, and Asia-Pacific, minimizing the window between fault detection and system restoration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules a planned inspection or responds to a fiber optic communication fault on an AC800M system, the 3BHE012049R0101 is rarely the only component that warrants attention. A structured cabinet inspection should accompany any fiber optic module replacement to prevent repeat failures and confirm system integrity before returning the loop to automatic control.

Begin with the AC800M controller module itself — confirm the PM8xx processor (PM856, PM860, PM864, or PM866) shows no fault LEDs and that firmware revision is compatible with the replacement UFD128A101. Inspect the S800 I/O modules connected downstream via the optical bus; AI810, AO810, DI810, and DO810 cards should be checked for channel faults that may have been masked by the communication outage. Verify the TB820 ModuleBus Optical Port or equivalent optical modem unit at the remote I/O cluster, as fiber degradation often originates at the far-end transceiver rather than the controller-side module.

Check the AC800M power supply modules (SD821, SD822, or SD823) for output voltage stability; a marginal power supply can cause intermittent optical link resets that mimic module failure. Inspect fiber patch cables and ST connectors for contamination, bend-radius violations, or physical damage — a dirty connector face is the leading cause of optical power budget loss in industrial DCS environments. If the cabinet includes a CI854 PROFIBUS DP communication interface or CI857 FOUNDATION Fieldbus HSE module, verify these are unaffected and that their diagnostic LEDs confirm normal operation.

For cabinets with redundant controller configurations, confirm the redundancy synchronization link between the primary and standby PM8xx modules is intact after the fiber optic module swap. Finally, review the CEX-Bus backplane connector seating and inspect for corrosion or mechanical stress at the module ejector levers, which can introduce intermittent contact faults in high-vibration plant environments.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use ABB Control Builder M or the 800xA System operator station to confirm the fiber optic communication fault is isolated to the 3BHE012049R0101 slot. Record the controller node address and slot position before any physical intervention.

Step 2 — Safe State Verification: Place the affected control loop in manual mode at the DCS operator station. Confirm with the process engineer that the plant section can tolerate a brief controller communication interruption. For redundant AC800M configurations, verify the standby controller has assumed control before proceeding.

Step 3 — Module Extraction: Power down the specific module slot if the AC800M backplane supports hot-swap for this module type (verify with the AC800M Hardware Manual, Doc. No. 3BSE041434). Carefully release the ejector levers, extract the faulty UFD128A101, and inspect the backplane connector for bent pins or contamination.

Step 4 — Replacement Installation: Insert the new 3BHE012049R0101 into the correct slot, seat firmly, and re-engage ejector levers. Reconnect fiber patch cables — clean ST connector faces with an appropriate fiber optic cleaning tool before mating. Power the slot and observe the module status LED sequence.

Step 5 — Communication Verification: In Control Builder M, confirm the module appears online with no fault status. Verify all downstream S800 I/O channels are communicating normally. Return the control loop to automatic mode and monitor for 15–30 minutes to confirm stable operation.

Step 6 — Documentation: Record the replacement in the plant CMMS (Computerized Maintenance Management System), including the old module serial number, new module serial number, date, technician ID, and post-replacement test results. Update the spare parts inventory to trigger reorder of a replacement buffer unit.

Spare Parts Support FAQ

Q1: Is the 3BHE012049R0101 compatible with all AC800M controller variants?
The UFD128A101 fiber optic module is designed for the AC800M platform and is compatible with PM851, PM856, PM860, PM861, PM864, and PM866 processor modules. Compatibility with specific firmware revisions should be confirmed against the AC800M Release Notes for your installed Control Builder M version. Our technical team can assist with compatibility verification prior to dispatch.

Q2: What pre-shipment testing is performed on this unit?
Each 3BHE012049R0101 unit undergoes functional verification before dispatch, including optical transceiver power output check and communication interface continuity test. Units that do not meet ABB original performance specifications are not dispatched. A test report is available upon request for critical plant applications.

Q3: What does the support terms confirmed by quotation cover, and how is a claim initiated?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal industrial operating conditions as defined by ABB’s AC800M environmental specifications. It does not cover damage from incorrect installation, overvoltage events, or physical mishandling. To initiate a support terms claim, contact our support team with the order reference, module serial number, and a description of the fault symptom. Replacement or repair is coordinated within 5 business days of claim confirmation.

Q4: Can you support long-term supply agreements for AC800M spare parts?
Yes. For plant operators managing aging AC800M installations or planning multi-year maintenance contracts, we offer long-term supply agreements covering the 3BHE012049R0101 and related AC800M components. Agreements include reserved buffer stock, priority dispatch, and fixed pricing to protect against OEM discontinuation risk. Contact our procurement team to discuss volume and lead-time requirements.
