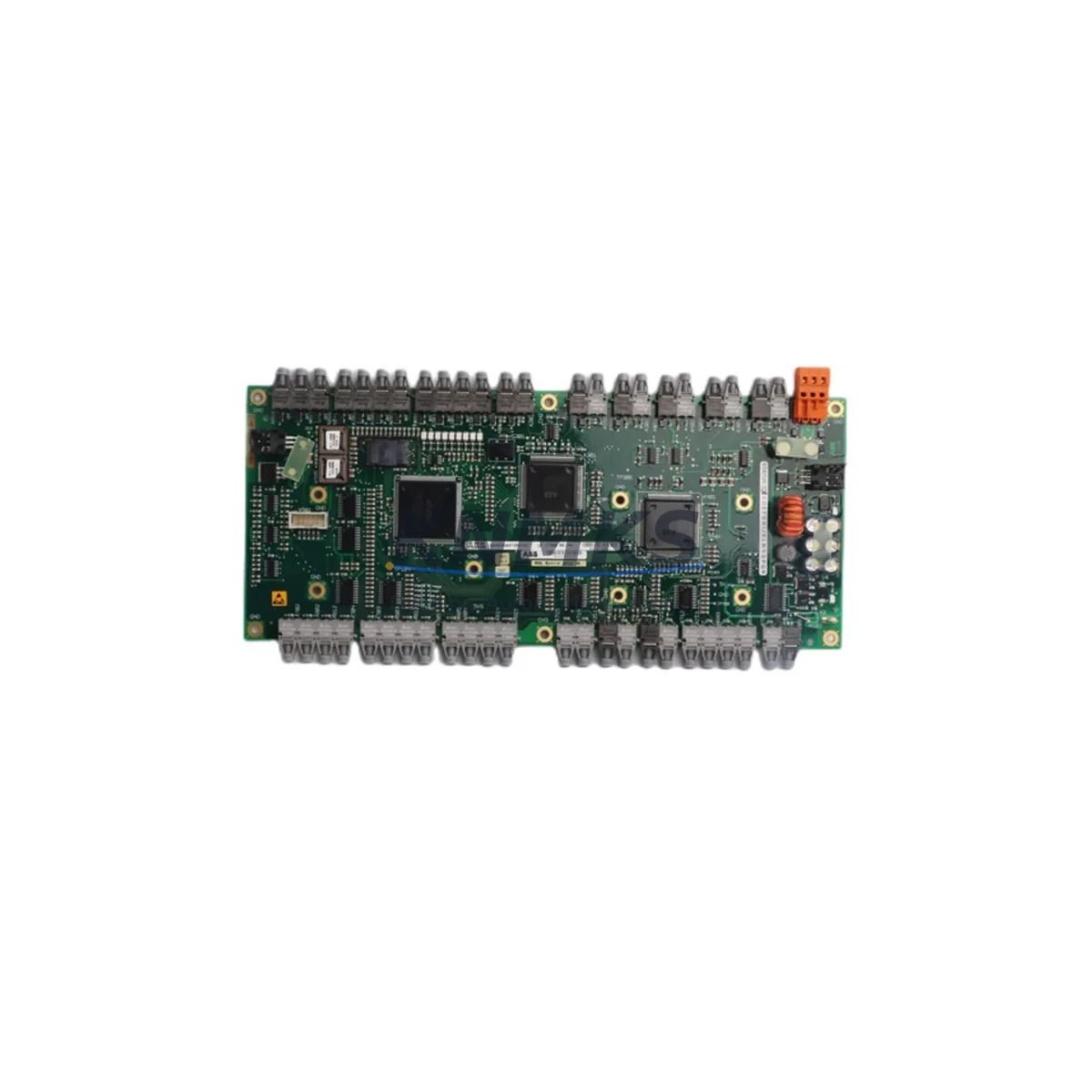

The ABB 3BHE004573R0142 (UFC760 BE142) is a DDCS fiber optic interface board engineered for high-reliability communication in ABB AC800M distributed control systems and ACS800 series variable frequency drives. As a critical link between the drive control unit and the fiber optic communication network, this board is a frontline spare for maintenance engineers managing continuous production environments where unplanned downtime carries significant operational cost.

Sourced as an original ABB spare part, each 3BHE004573R0142 unit undergoes pre-shipment functional testing to verify DDCS channel integrity, optical signal transmission, and board-level power stability. With a support terms confirmed by quotation and documented traceability, this component supports both emergency replacement and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a UFC760 BE142 fiber optic interface board fails or degrades, the DDCS communication link between the AC800M controller and the ACS800 drive is interrupted — triggering drive faults, process shutdowns, or loss of speed reference signals. Maintenance engineers should treat the 3BHE004573R0142 as a Tier-1 critical spare and keep at least one unit on-site for facilities running continuous or semi-continuous production lines.

During scheduled cabinet inspections or annual shutdowns, replacement of the UFC760 BE142 should be coordinated with a broader review of the drive communication chain. Engineers should simultaneously inspect the RDCO-02 or RDCO-03 DDCS communication option board mounted on the ACS800 drive, as fiber optic signal degradation is often shared across both ends of the link. The NAMC-11 or NAMC-51 motor control board within the ACS800 should also be checked for firmware version compatibility when swapping the UFC760 BE142.

On the controller side, verify the AC800M PM865 or PM866 processor module communication parameters and DDCS node addressing after board replacement to prevent configuration mismatch faults. The TB820 or TB840 S800 I/O bus termination unit and associated AI810 / AO810 analog I/O modules should be confirmed operational, as drive feedback signals routed through the DCS may be affected during the fiber link outage window.

For cabinet-level maintenance, inspect the 24 VDC auxiliary power supply feeding the UFC760 board slot — voltage sag or ripple on the logic supply rail is a common root cause of intermittent DDCS communication faults that are misdiagnosed as board failure. Additionally, check fiber optic cable connectors and bend radii; contaminated or cracked optical connectors account for a significant proportion of UFC760 BE142 replacement events that could otherwise be resolved with connector cleaning.

Procurement engineers sourcing the 3BHE004573R0142 for multi-site operations should consider establishing a consignment stock arrangement to reduce lead time risk, particularly for plants where ACS800 drives are used in critical pump, compressor, or conveyor applications.

Site Replacement Workflow

Step 1 — Fault Isolation: Confirm DDCS communication fault via AC800M diagnostic display or ACS800 fault log (fault code F-53 or equivalent). Verify the fault is board-level by checking fiber cable continuity and connector cleanliness first.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedure. De-energize the ACS800 drive and allow DC bus capacitors to discharge fully (minimum 5 minutes after power-off). Confirm zero voltage on DC bus terminals before opening the drive cabinet.

Step 3 — Board Removal: Disconnect fiber optic cables from the UFC760 BE142 board, noting channel assignments (CH1/CH2). Remove the board from the UFC760 slot using the extraction handle. Avoid touching optical transceiver surfaces.

Step 4 — Replacement Installation: Insert the 3BHE004573R0142 replacement board into the UFC760 slot until fully seated. Reconnect fiber optic cables to the correct channels. Verify no mechanical interference with adjacent boards.

Step 5 — Commissioning Verification: Power up the system and confirm DDCS link status on the AC800M controller. Check ACS800 drive status for cleared communication faults. Run a no-load test cycle before returning the drive to production service.

Step 6 — Documentation: Record the replaced part number, serial number, date, and technician ID in the site maintenance log. Update the spare parts inventory register.

Spare Parts Support FAQ

Q1: Is the 3BHE004573R0142 compatible with all UFC760 variants and ACS800 drive ratings?
The UFC760 BE142 board is designed for use within the ABB UFC760 module family as used in AC800M DCS and ACS800 drive systems. Compatibility should be verified against the specific UFC760 hardware revision and ACS800 firmware version at your site. Contact our technical team with your drive nameplate data for confirmation before ordering.

Q2: How is each unit tested before shipment?
Every 3BHE004573R0142 unit is functionally tested prior to dispatch. Testing covers DDCS channel signal integrity, optical transceiver output power, board power rail stability, and visual inspection for component damage. A test report is available on request. All units ship with a support terms confirmed by quotation from the date of invoice.

Q3: What is the typical lead time and do you support long-term supply?
In-stock units ship within 1–3 business days. For planned maintenance programs or multi-unit procurement, we support blanket order arrangements and consignment stock agreements to ensure supply continuity for legacy ABB systems. Contact [email protected] to discuss your annual maintenance volume.

Q4: Can this board be used to replace older or discontinued UFC760 variants?
The 3BHE004573R0142 (UFC760 BE142) may serve as a direct or compatible replacement for earlier UFC760 revisions in many installations. However, hardware revision and firmware compatibility must be confirmed for your specific system configuration. We recommend providing your existing board’s full part number and revision code so our team can verify cross-compatibility before shipment.
