ABB 3BHB006338R0002 Maintenance-Proven Spare for Factory Uptime

Overview

ABB 3BHB006338R0002 Maintenance-Proven Spare for Factory Uptime

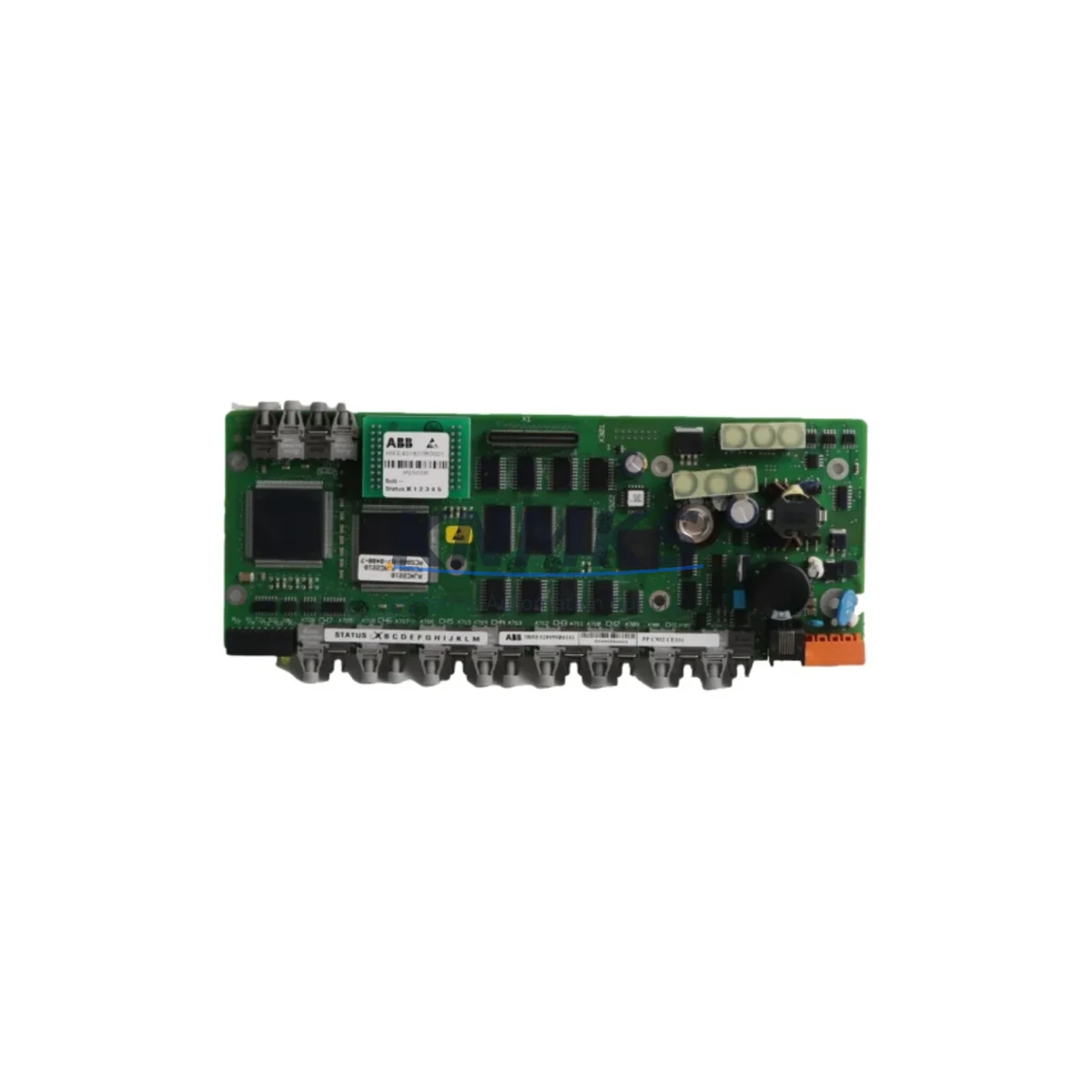

The ABB 3BHB006338R0002 (UNS0881a-P V2) is a critical I/O module within the ABB AC800M Distributed Control System architecture, widely deployed across power generation, oil & gas, pulp & paper, and heavy process industries. As a direct original spare, this module supports continuous plant operation by enabling rapid slot-for-slot replacement without firmware reconfiguration or system re-engineering. Maintenance engineers and procurement teams managing aging AC800M cabinets rely on verified original spares like the 3BHB006338R0002 to eliminate unplanned downtime and protect long-term production continuity.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including signal integrity checks, communication handshake validation, and visual inspection for connector wear or board damage. A support terms confirmed by quotation is included with each shipment, backed by documented test records available upon request. Long-term supply agreements are supported for multi-site procurement programs requiring 12–36 month inventory coverage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3BHB006338R0002 in an AC800M control cabinet, a thorough site inspection should extend beyond the module itself. Maintenance engineers should simultaneously verify the condition of the TB820V2 ModuleBus Modem and TB840A Redundancy Module, as these components share the same backplane bus and are subject to comparable wear cycles in high-uptime environments. The PM860 or PM864 processor module powering the I/O rack should be checked for firmware version compatibility and memory integrity before the replacement module is commissioned.

Power supply integrity is equally critical. The SD821 or SD822 24 VDC power supply unit feeding the S800 I/O bus should be load-tested and inspected for capacitor aging, particularly in installations exceeding five years. Fuse holders and circuit protection components on the 24 VDC rail should be replaced as a preventive measure during the same maintenance window.

Signal wiring at the I/O terminal blocks — including field-side cable shields, grounding continuity, and terminal torque — should be verified to prevent intermittent faults after module reinsertion. Where the AC800M system interfaces with a PROFIBUS DP or FOUNDATION Fieldbus segment, the communication module (such as the CI854B PROFIBUS DP Module) and its associated termination resistors should be inspected for signal degradation. For installations using AF100 or MasterBus 300 communication links, the corresponding interface modules should be included in the inspection checklist.

HMI connectivity via 800xA System operator stations should be validated post-replacement to confirm that the new module is correctly recognized by the control network and that all I/O tags are mapping as expected. Maintaining a minimum of one spare 3BHB006338R0002 per control cabinet cluster is recommended for facilities operating continuous processes where unplanned downtime carries significant production cost.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the installed module’s part number and revision against the system BOM. Verify that the replacement 3BHB006338R0002 (UNS0881a-P V2) matches the required hardware revision for your AC800M firmware version. Download and archive the current I/O configuration from the 800xA engineering station before proceeding.

Step 2 — Safe Isolation: Follow site-specific LOTO (Lockout/Tagout) procedures. Where hot-swap is supported by the system configuration, confirm redundancy status before extraction. For non-redundant installations, coordinate with operations to schedule a controlled process hold.

Step 3 — Module Exchange: Extract the faulty module using the ejector levers. Insert the replacement 3BHB006338R0002 firmly until the backplane connector is fully seated. Verify LED status indicators for power, communication, and I/O status within 30 seconds of insertion.

Step 4 — System Validation: From the 800xA operator station, confirm that all I/O channels associated with the replaced module are reporting correctly. Run a point-to-point signal check for critical process loops before returning the system to automatic control. Document the replacement in the site maintenance log with the module serial number and test results.

Step 5 — Spare Inventory Update: Replenish the replaced spare immediately. For facilities with multiple AC800M cabinets, consider a standing purchase order arrangement with KNMKS to maintain buffer stock and avoid lead-time exposure during future maintenance events.

Spare Parts Support FAQ

Q1: Is the 3BHB006338R0002 compatible with all AC800M processor module revisions?
The UNS0881a-P V2 is designed for use within the ABB AC800M S800 I/O family. Compatibility with specific processor module revisions (PM851 through PM866 series) should be confirmed against the installed firmware version. KNMKS technical support can assist with revision matching prior to shipment upon request.

Q2: What pre-shipment testing is performed on each unit?
Every 3BHB006338R0002 supplied by KNMKS undergoes functional power-on verification, backplane communication handshake testing, and visual inspection for connector integrity and board condition. Test records are available upon request and accompany long-term supply agreement orders as standard documentation.

Q3: Can KNMKS support long-term or multi-site procurement for this module?
Yes. KNMKS supports 12–36 month supply agreements for the 3BHB006338R0002 and related AC800M spare parts. Multi-site procurement programs with consolidated invoicing and staggered delivery schedules are available. Contact [email protected] to discuss volume and lead-time requirements.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions as specified in the ABB AC800M installation guidelines. Support requests are supported with return material authorization (RMA) and replacement dispatch within agreed lead times. The confirmed support period begins from the date of confirmed delivery.
