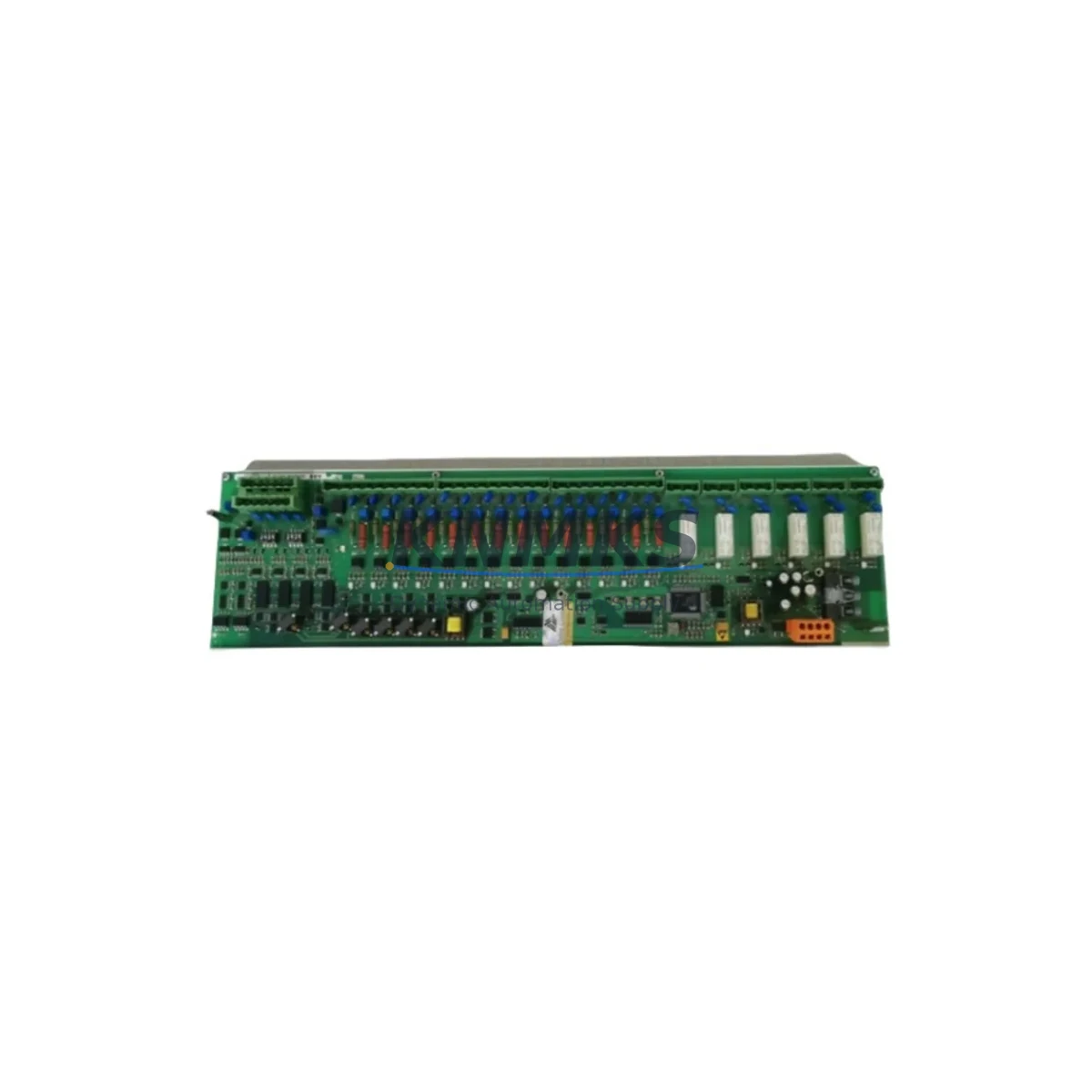

ABB 3BHB003041R0101 UFC719AE01 I/O Module for Legacy DCS

Overview

ABB 3BHB003041R0101 UFC719AE01 I/O Module for Legacy DCS Migration and Control System Upgrade

The ABB 3BHB003041R0101 UFC719AE01 is an IOEC (I/O Expander Card) interface module designed for integration within ABB’s AC800M Distributed Control System platform. As legacy AC800M installations approach end-of-life support cycles, this module remains a critical spare part for facilities seeking to extend operational continuity without committing to a full platform migration. Whether you are replacing a failed unit in an active control cabinet, restoring a redundant I/O loop, or building a retrofit inventory buffer for a multi-site plant network, the UFC719AE01 provides a verified drop-in replacement path with minimal engineering overhead.

This module interfaces directly with the IOEC bus architecture used across the AC800M family, supporting the signal routing and I/O expansion functions required in process automation environments including power generation, pulp and paper, oil and gas, and chemical processing. Its compatibility with the S800 I/O system means it can be deployed alongside existing S800 I/O modules such as the AI810, AO810, DI810, and DO810 without requiring changes to the underlying control logic or hardware addressing scheme.

Before installation, engineers should confirm the following parameters against the existing system configuration: backplane slot assignment and module addressing within the AC800M controller rack, terminal block wiring compatibility with the existing field cable schedule, IOEC bus segment load and power budget (particularly when adding modules to an already-loaded S800 I/O station), firmware version alignment between the UFC719AE01 and the AC800M CPU module (PM860, PM861, or PM864 variants), and available installation space within the control cabinet or marshalling panel.

For sites running Freelance 800F or Symphony Plus control architectures in parallel with AC800M segments, the UFC719AE01 can serve as a bridging I/O resource during phased migration projects, allowing engineers to maintain field signal continuity while transitioning control logic to updated platforms. In such scenarios, the CI854 communication interface module and TB820 Modulebus Modem are commonly deployed alongside the UFC719AE01 to maintain PROFIBUS DP or Modulebus connectivity during the cutover window.

Program compatibility should be validated in the ABB Control Builder M engineering environment prior to hot-swap or cold-replacement procedures. Existing function block libraries, signal tag assignments, and HMI faceplates linked to the I/O channels served by this module must be reviewed to confirm that address mapping remains intact after module substitution. Where HMI screens reference specific I/O channel identifiers, a pre-migration audit of the graphic display configuration in ABB’s 800xA System or Operate IT environment is recommended to prevent alarm suppression or display errors during commissioning.

For retrofit projects involving older IOEC generations or non-standard backplane configurations, the SA811 and SA812 signal conditioning modules may be required to adapt legacy field wiring to the UFC719AE01’s input specifications. Power supply capacity should also be verified — the UFC719AE01 draws from the S800 I/O station’s 24 VDC bus, and adding modules to an existing station requires confirmation that the SS822 or SS823 power supply unit has sufficient headroom to support the expanded I/O load without triggering undervoltage protection.

All units supplied by KNMKS are sourced from verified industrial channels, subjected to pre-shipment functional testing, and shipped with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions. Stock is maintained to support both immediate emergency replacement orders and planned maintenance schedules, with global logistics coverage to minimize lead time for critical plant operations.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the UFC719AE01 into an existing AC800M control system requires a structured retrofit plan that accounts for both hardware and software dependencies. The module occupies a standard slot in the S800 I/O station and communicates with the AC800M controller via the Modulebus, the same bus used by other S800 I/O modules including the AI810 analog input module and the DI810 digital input module. Engineers should document the current slot occupancy and module addressing before removal of the failed unit to ensure the replacement is assigned the correct hardware address during recommissioning.

Where the control cabinet includes a CI854 PROFIBUS DP communication interface, the UFC719AE01’s I/O channels may be mapped through the PROFIBUS network to a remote engineering station or SCADA system. In this configuration, the PROFIBUS GSD file and device configuration in the engineering tool must be reviewed to confirm that the replacement module’s I/O channel count and data type assignments match the original configuration. Any mismatch in the GSD configuration will result in communication faults that prevent the controller from reading field signals correctly.

For plants operating with a TB820 Modulebus Modem in the I/O station, the modem’s address settings and termination resistor configuration should be verified before powering the replacement UFC719AE01. Incorrect termination on the Modulebus segment is a common source of intermittent communication errors that can be difficult to diagnose after the module is installed. The SS822 or SS823 power supply unit feeding the I/O station should also be load-tested to confirm it can support the UFC719AE01 alongside any other modules in the station without voltage droop under peak I/O scan load.

HMI integration is another critical checkpoint. In systems using ABB’s 800xA System, the UFC719AE01’s I/O channels are typically represented as aspect objects linked to process graphics and alarm lists. Before replacing the module, the 800xA System topology should be exported and the relevant aspect objects reviewed to confirm that channel tag assignments, engineering unit scaling, and alarm limits are correctly configured for the replacement unit. Where the HMI uses Operate IT graphics, the graphic display configuration should be validated against the new module’s channel map to prevent display errors or missing process values after cutover.

Downtime Control During System Migration

Minimizing unplanned downtime during UFC719AE01 replacement requires a pre-planned cutover procedure that preserves the integrity of the existing control program and field signal continuity. The recommended approach is to perform the replacement during a scheduled maintenance window, with the AC800M controller placed in a controlled stop state that holds the last known output values rather than driving outputs to a default safe state, unless the process safety plan requires otherwise.

Before removing the failed module, the current control program should be backed up from the AC800M controller using ABB Control Builder M, and the backup verified against the engineering database to confirm it reflects the current deployed configuration. This backup serves as the recovery baseline if the replacement module requires a full controller restart or if the Modulebus communication fails to re-establish after module insertion.

Field signal continuity can be maintained during the physical swap by using temporary jumper wiring or a portable signal simulator to hold critical analog and digital inputs at their last known values, preventing the controller from generating spurious alarms or driving outputs to undefined states during the module exchange. After the UFC719AE01 is seated and powered, the Modulebus communication should be verified in Control Builder M before the controller is returned to automatic mode, confirming that all I/O channels are reporting correctly and that no hardware fault alarms are active in the system event log.

For multi-module replacement projects or full I/O station upgrades, a phased cutover approach — replacing one module at a time and verifying communication before proceeding to the next — reduces the risk of a system-wide I/O failure that could require a full controller restart. This approach also allows the commissioning engineer to identify and resolve individual module addressing or wiring issues without affecting the rest of the I/O station.

Retrofit Support FAQ

Q: Is the ABB 3BHB003041R0101 UFC719AE01 a direct replacement for the original module in my AC800M system?
A: Yes. The UFC719AE01 is a direct drop-in replacement for the same part number in AC800M S800 I/O stations. No hardware modifications to the backplane or terminal blocks are required. Firmware version compatibility with the AC800M CPU should be confirmed using ABB Control Builder M before commissioning.

Q: What testing is performed before shipment?
A: Every UFC719AE01 unit supplied by KNMKS undergoes pre-shipment functional testing to verify power-up behavior, Modulebus communication readiness, and I/O channel integrity. A support terms confirmed by quotation is provided covering manufacturing defects and operational failures under normal service conditions.

Q: How do I verify wiring compatibility before installing the replacement module?
A: Compare the terminal block wiring diagram from the original module’s installation manual against the field cable schedule for the I/O station. The UFC719AE01 uses the standard S800 I/O terminal block interface, so existing field wiring should connect without modification. Confirm signal type (analog/digital, voltage/current) and polarity for each channel before powering the module.

Q: What is the typical lead time and stock availability?
A: KNMKS maintains stock of the UFC719AE01 to support both emergency replacement and planned maintenance orders. Contact [email protected] or call +86 18359268345 for current availability and lead time. Global shipping is supported with priority dispatch for critical plant operations.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHB003041R0101 UFC719AE01
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 3BHB003041R0101 UFC719AE01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
