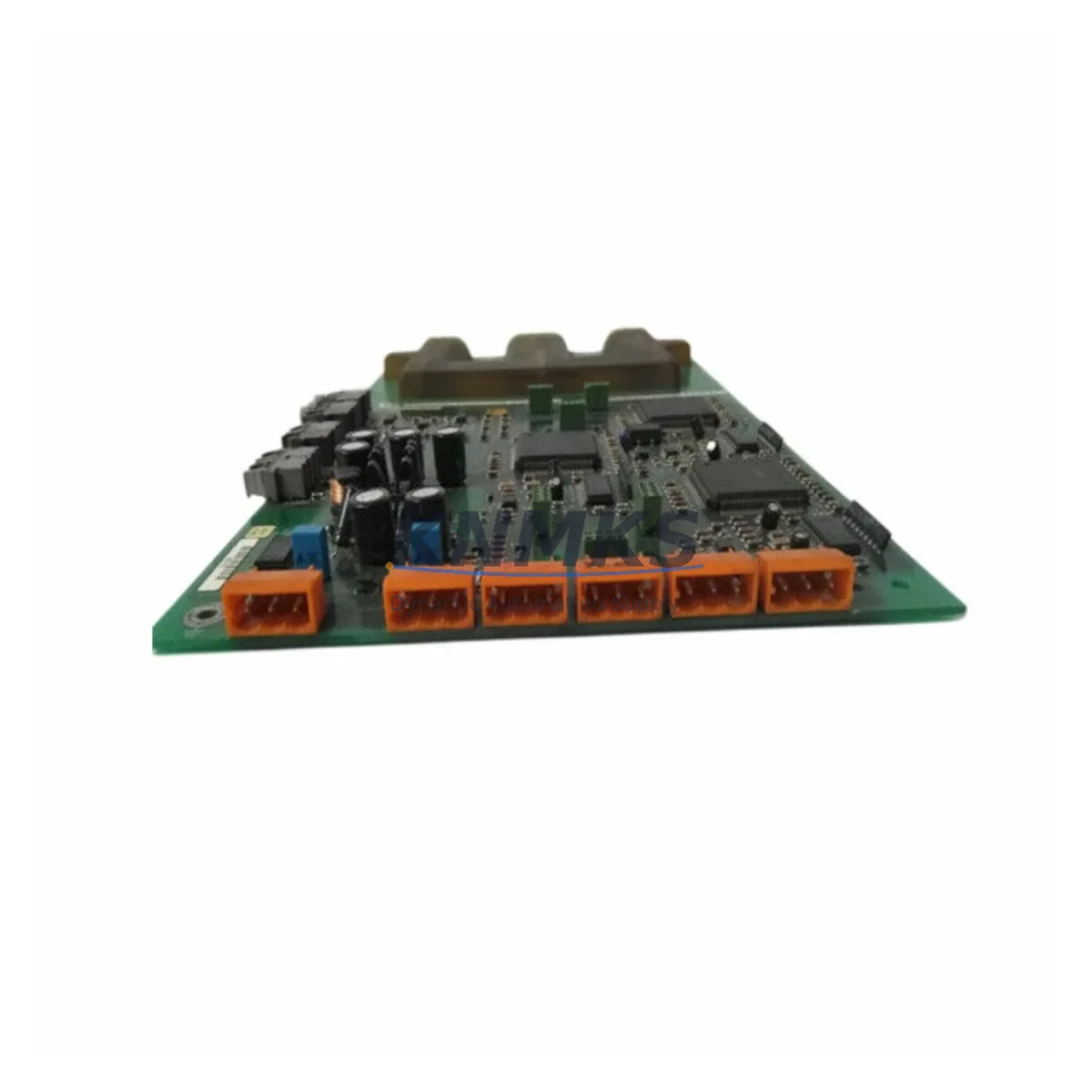

ABB 3BHB002916R0001 UFC721AE Migration-Ready CPU for Legacy DCS

Overview

ABB 3BHB002916R0001 UFC721AE Migration-Ready CPU for Legacy DCS Systems

The ABB 3BHB002916R0001 UFC721AE is a high-performance CPU module designed for the ABB AC800M Distributed Control System platform. As legacy DCS installations age and original controller hardware reaches end-of-life, the UFC721AE provides a validated, drop-in migration path that preserves existing program logic, I/O wiring infrastructure, and communication topology. This module is widely deployed in power generation, oil & gas, pulp and paper, and chemical process industries where control continuity and minimal downtime are non-negotiable requirements.

For facilities operating aging AC800M racks with earlier CPU revisions, the 3BHB002916R0001 UFC721AE offers a direct hardware replacement without requiring full system redesign. Engineers undertaking a retrofit must verify backplane slot compatibility, confirm firmware version alignment with the existing Control Builder M project, and validate PROFIBUS DP segment addressing before commissioning. The module supports dual Ethernet ports for redundant network topologies, enabling seamless integration into existing plant LAN and DCS historian architectures.

When replacing a discontinued CPU in an operational control cabinet, the migration sequence typically begins with a full backup of the Control Builder M application, followed by a cold-swap of the CPU module in the designated rack slot. Terminal wiring on associated S800 I/O modules — including AI810, AO810, DI810, and DO810 — remains undisturbed, significantly reducing rewiring risk and commissioning time. Power supply modules such as the SD821 or SD822 should be load-verified prior to installation to ensure the new CPU’s current draw is within the existing PSU capacity.

Communication migration is a critical checkpoint. If the legacy system used PROFIBUS DP via an CI854 or CI854A communication interface module, the UFC721AE maintains full compatibility with existing GSD file configurations and slave device addressing. For sites transitioning toward Industrial Ethernet, the module’s onboard Ethernet ports support PROFINET and Modbus TCP, enabling phased protocol migration without disrupting field device wiring. HMI screens built on ABB’s 800xA or third-party SCADA platforms typically require only tag re-mapping rather than full graphical redesign, provided the variable naming convention is preserved in the Control Builder M project.

Installation space confirmation is essential in dense control cabinet environments. The UFC721AE occupies a standard AC800M CPU slot and does not require additional rack hardware when replacing a same-generation module. However, if the retrofit involves upgrading from an earlier AC800 (non-M) platform, rack and backplane replacement with compatible PM865 or PM866 processor modules may be required as part of a broader migration plan. In such cases, the UFC721AE serves as the target CPU in the new rack assembly.

Every unit supplied by KNMKS undergoes pre-shipment functional testing, including power-on verification, communication port diagnostics, and firmware version confirmation. Stock is maintained to support urgent breakdown replacements and planned maintenance windows. All modules are covered by a support terms confirmed by quotation from the date of shipment.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the module arrives on-site. The engineering team should extract and archive the full Control Builder M project, including all function block diagrams, SFC sequences, and hardware configuration trees. This archive serves as the rollback baseline if commissioning issues arise. Simultaneously, the existing rack layout should be documented — noting the slot positions of all installed modules, including any CI854A PROFIBUS communication interface modules, TB820 ModuleBus optical port modules, and TK212A programming cables used for local diagnostics.

Power budget verification is a mandatory pre-installation step. The SD821 or SD822 power supply feeding the rack must have sufficient headroom to support the UFC721AE alongside all co-installed I/O and communication modules. If the existing PSU is operating near capacity, a parallel PSU or load redistribution across racks should be planned before the CPU swap.

For sites with extended I/O runs using S800 remote I/O stations, the ModuleBus segment topology should be reviewed to confirm that the new CPU’s scan cycle and communication timeout parameters align with the existing field device response times. Signal isolators installed between field transmitters and S800 analog input modules (AI810) should be verified for loop power compatibility to avoid nuisance alarms during the transition window.

After physical installation, the Control Builder M project is downloaded to the UFC721AE, and a warm restart is performed. PROFIBUS DP slave diagnostics should be checked immediately to confirm all field devices — including variable frequency drives, smart transmitters, and remote I/O adapters — have re-established communication. HMI tag bindings on the 800xA system should be validated against live process values before returning the loop to automatic control.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary constraint in any live-plant CPU replacement. The recommended approach is to schedule the swap during a planned maintenance window, with the process unit in a safe, isolated state. A pre-tested spare UFC721AE loaded with the validated Control Builder M project can reduce the active swap window to under two hours for a single-rack system.

Program logic integrity is protected by the Control Builder M offline project archive. Before the swap, engineers should perform a final online upload from the running CPU to capture any parameter changes made since the last project save. This ensures the replacement module is commissioned with the most current logic version, avoiding discrepancies between the archived project and the live configuration.

For redundant CPU configurations, the AC800M platform supports bumpless switchover between primary and standby processors. In a redundant deployment, the failed or end-of-life CPU can be replaced while the standby holds control, eliminating process interruption entirely. After replacement, the new module synchronizes with the active CPU before being promoted to standby status, maintaining full redundancy without a process upset.

Field control continuity during the transition is maintained by ensuring all S800 I/O modules remain powered and in their last-known output state during the CPU swap interval. The DO810 digital output modules hold their last commanded state during CPU absence, preventing unintended actuator movement. Analog output modules (AO810) should be reviewed for their fallback behavior — configuring safe-state output values in the hardware configuration before the swap reduces process risk during the transition gap.

Retrofit Support FAQ

Q1: Is the ABB 3BHB002916R0001 UFC721AE a direct replacement for my existing AC800M CPU?
For same-generation AC800M racks, the UFC721AE is a direct slot-for-slot replacement. No rack or backplane modifications are required. If you are migrating from an earlier AC800 (non-M) platform, a rack and backplane upgrade is necessary. Contact our technical team with your existing rack part number for a confirmed replacement path.

Q2: What commissioning steps are required after installing the UFC721AE?
After physical installation, download the validated Control Builder M project to the new CPU, perform a warm restart, and verify PROFIBUS DP slave communication status. Check all S800 I/O module diagnostics, confirm HMI tag bindings against live process values, and validate analog loop outputs before returning to automatic control. A TK212A programming cable or Ethernet connection to the engineering workstation is required for the download.

Q3: Does KNMKS provide pre-shipment testing and support terms coverage?
Yes. Every ABB 3BHB002916R0001 UFC721AE shipped by KNMKS undergoes power-on verification, communication port diagnostics, and firmware version confirmation before dispatch. All units are covered by a support terms confirmed by quotation from the date of shipment. Replacement or repair support is provided for any confirmed manufacturing defect within the confirmed support period.

Q4: Can you supply the UFC721AE for urgent breakdown replacements?
KNMKS maintains stock of the ABB 3BHB002916R0001 UFC721AE to support both planned maintenance and emergency breakdown scenarios. Contact our sales team at [email protected] or +86 18359268345 to confirm current availability and lead time for your location.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHB002916R0001 UFC721AE
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 3BHB002916R0001 UFC721AE
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
