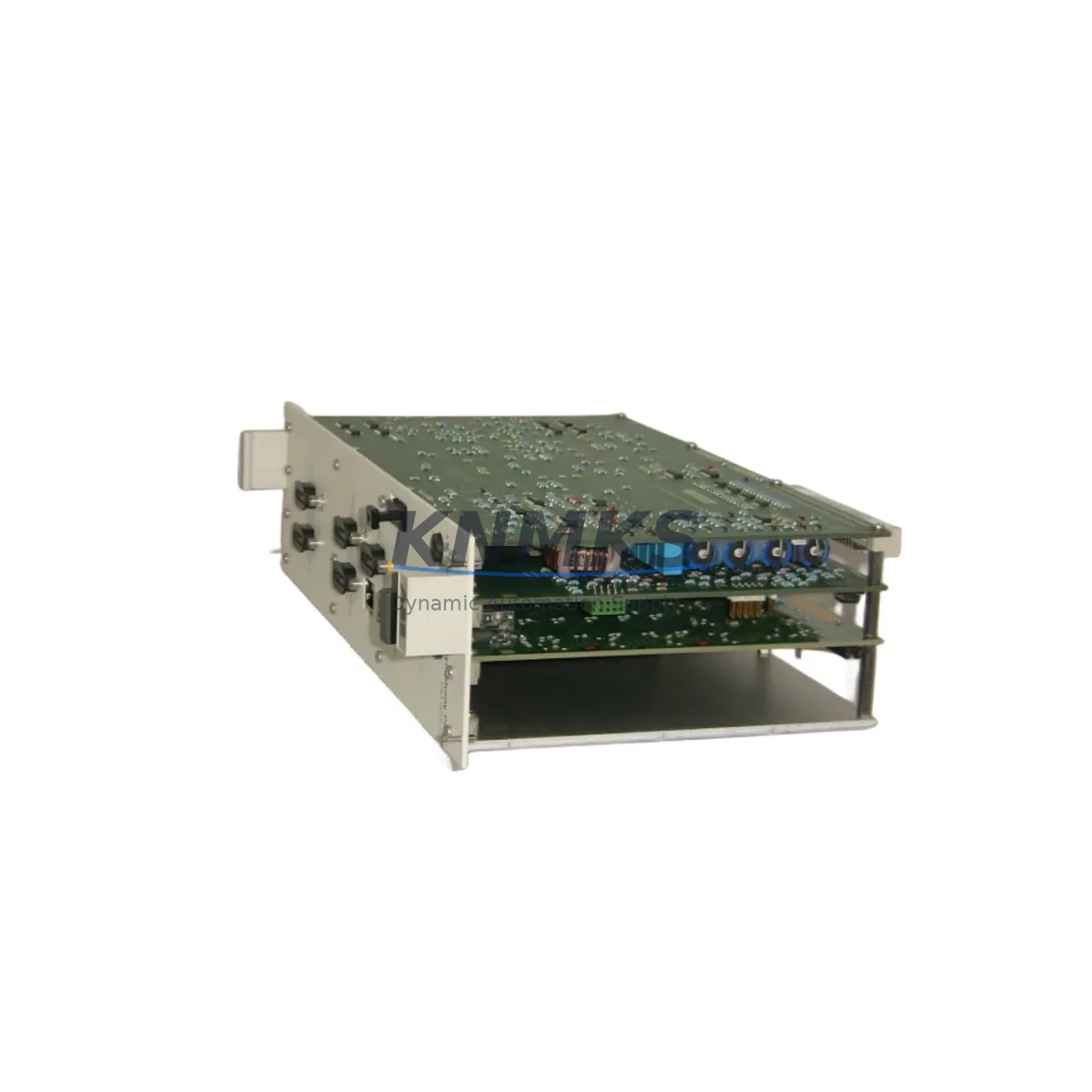

The ABB 3BDH000606R1 PM875-2 is a high-performance CPU module designed for the AC800M Distributed Control System platform — one of ABB’s most widely deployed process automation architectures across oil & gas, power generation, pulp & paper, and chemical processing industries. As a maintenance-proven spare part, the PM875-2 is engineered to deliver seamless drop-in replacement capability, enabling maintenance engineers to restore control system functionality with minimal downtime and without requiring system reconfiguration.

For facilities operating legacy AC800M installations, maintaining a verified stock of the 3BDH000606R1 PM875-2 is a critical element of any proactive spare parts strategy. CPU module failures in DCS environments can cascade rapidly — affecting I/O scanning, process variable acquisition, and safety interlock execution. Having a tested, ready-to-deploy PM875-2 on the shelf eliminates the risk of extended production halts caused by OEM lead times, which for discontinued or long-lifecycle modules can stretch from weeks to months.

Each unit supplied by KNMKS is individually tested prior to shipment, verified for firmware compatibility with the AC800M controller family, and backed by a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial use conditions. Our global logistics network supports priority dispatch to maintenance teams across Europe, North America, and Asia-Pacific.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the PM875-2 CPU module in an AC800M controller cabinet, a thorough site inspection of the surrounding electrical and communication infrastructure is essential to prevent repeat failures and ensure long-term system stability. Maintenance engineers should begin by verifying the integrity of the SD821 or SD822 power supply module, as CPU module failures are frequently preceded by power rail instability or ripple voltage exceeding tolerance. A degraded PSU can damage a replacement CPU within hours of installation if left unaddressed.

The TB820V2 or TB840A backplane unit should be inspected for oxidized connector pins, mechanical stress fractures, and proper seating of all module slots. Backplane faults are a common root cause of intermittent CPU communication errors that are often misdiagnosed as CPU failures. Similarly, the CI854A or CI858 communication interface modules installed in adjacent slots should be checked for firmware version alignment with the replacement PM875-2, as mismatched firmware revisions can prevent the controller from initializing correctly after a CPU swap.

I/O module health should not be overlooked during a CPU replacement event. DI810, DO810, AI810, and AO810 I/O modules connected via the S800 I/O bus should be verified for correct addressing and signal integrity. A CPU replacement is an ideal opportunity to perform a full I/O loop check, confirming that field signals are being received and transmitted correctly before returning the system to automatic control.

For facilities using PROFIBUS DP or FOUNDATION Fieldbus communication networks, the CI840A or CI854A fieldbus communication modules should be inspected for cable termination integrity and network segment health. Fieldbus communication faults that were masked by a failing CPU may surface after replacement and should be diagnosed proactively. Additionally, signal isolators and surge protection devices on analog input channels should be tested, as transient events that caused the original CPU failure may have also degraded these protective components.

Finally, review the UPS or battery backup system supporting the controller cabinet. An uninterruptible power supply that has degraded beyond its rated capacity is a leading cause of unexpected CPU resets and memory corruption in long-running DCS installations. Replacing the PM875-2 without addressing UPS health leaves the system vulnerable to the same failure mode recurring during the next power disturbance.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Export the current application program and configuration backup from the AC800M controller using ABB Control Builder M software. Confirm the firmware version of the replacement PM875-2 matches or is compatible with the existing system revision. Document all module slot assignments, I/O addresses, and communication parameters before powering down.

Step 2 — Safe Shutdown: Place the process under manual control at the DCS operator station. Notify operations personnel and follow site-specific lockout/tagout (LOTO) procedures. Power down the controller cabinet using the designated isolation switch, not the backplane power connector.

Step 3 — Module Removal: Release the PM875-2 module locking mechanism and extract it from the backplane slot using even, straight-line force. Inspect the backplane connector for bent pins or contamination before inserting the replacement unit.

Step 4 — Replacement Installation: Insert the new 3BDH000606R1 PM875-2 firmly into the designated CPU slot until the locking tab engages. Restore cabinet power and observe the module status LEDs — a solid green RUN indicator confirms successful initialization. If the FAULT LED illuminates, verify backplane seating and firmware compatibility before proceeding.

Step 5 — Program Restore and Verification: Download the backed-up application program via Control Builder M. Perform a full I/O scan verification and confirm all process variables are reading correctly at the operator station. Return the system to automatic control only after all loop checks are complete and signed off by the responsible engineer.

Step 6 — Documentation: Record the replacement event in the site maintenance log, including the old module serial number, new module serial number, firmware version, and technician sign-off. Update the spare parts inventory to trigger a replenishment order for the consumed PM875-2 unit.

Spare Parts Support FAQ

Q1: Is the 3BDH000606R1 PM875-2 a direct replacement for the earlier PM875 and PM875-1 models?
Yes. The PM875-2 is backward compatible with the PM875 and PM875-1 within the AC800M controller family. It can be installed in the same backplane slot without hardware modification. However, we recommend verifying the Control Builder M firmware version in use at your site, as some early R5.x revisions may require a firmware update to fully support PM875-2 feature sets. KNMKS technical support can assist with compatibility verification prior to shipment.

Q2: How does KNMKS verify the condition of PM875-2 units before shipment?
Every 3BDH000606R1 PM875-2 unit undergoes a multi-stage inspection process including visual inspection, power-on functional test, communication port verification, and firmware version confirmation. Units that do not pass all test stages are quarantined and not offered for sale. A test report is available upon request for quality-critical procurement requirements.

Q3: What is the recommended spare parts holding strategy for AC800M CPU modules?
For facilities with two or more AC800M controllers, we recommend maintaining a minimum of one PM875-2 unit in on-site inventory at all times, with a replenishment trigger set at consumption. For single-controller installations in critical process environments, a two-unit buffer is advisable given OEM lead times for this module. KNMKS offers long-term supply agreements and reserved stock programs to support annual maintenance planning cycles.

Q4: What support terms coverage applies to the PM875-2 supplied by KNMKS?
All PM875-2 units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead on arrival) scenarios. Support requests are processed within 5 business days of receipt of the returned unit. KNMKS will provide a replacement unit or documented resolution support at the customer’s discretion. The support terms does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.
