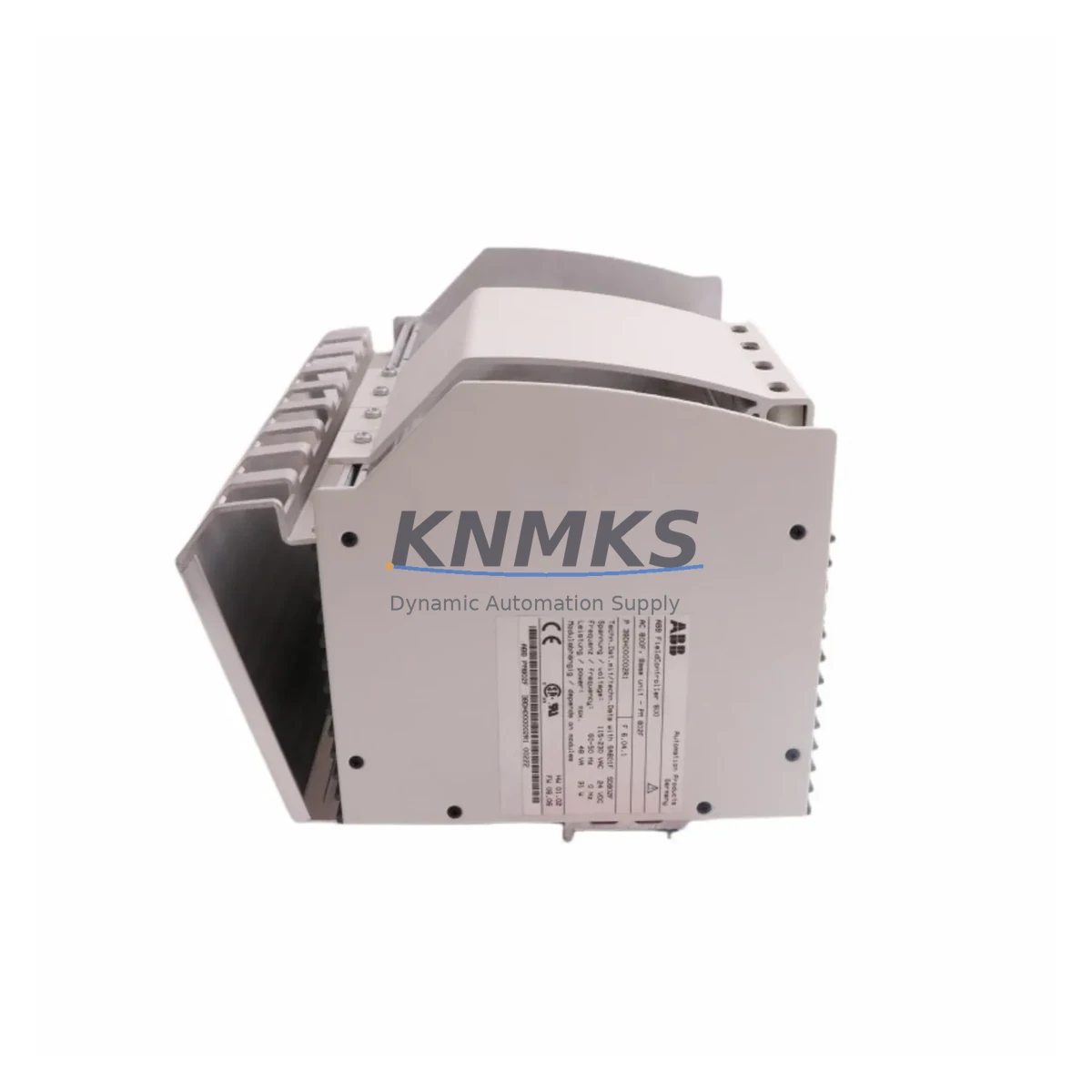

ABB 3BDH000002R1 PM802F Fail-Safe Field Controller

Overview

ABB 3BDH000002R1 PM802F Fail-Safe Field Controller: Fault-Tolerant Reliability for Critical Industrial Sites

The ABB 3BDH000002R1 PM802F is a high-integrity safety field controller from ABB’s AC800F series, purpose-built for continuous process industries where control interruption is not an option. Designed to meet the demanding requirements of SIL-rated safety loops, this controller delivers fail-safe operation across petrochemical plants, power generation facilities, mining operations, water treatment systems, metallurgical processes, and port automation environments.

In critical control cabinet installations, the PM802F addresses the full spectrum of field-level hazards: signal drift under high electromagnetic interference, power supply fluctuations, surge transients on I/O lines, communication anomalies across distributed field networks, and thermal stress in enclosed cabinet environments. Its robust hardware architecture ensures that safety interlocks remain active and control loops remain stable even under the most adverse operating conditions — including high dust ingress, elevated humidity, mechanical vibration, and wide ambient temperature swings.

For facilities running continuous production where unplanned downtime carries significant safety and financial consequences, the PM802F provides the deterministic response time and diagnostic coverage required by IEC 61508 and IEC 61511 functional safety standards. Its onboard self-diagnostics continuously monitor internal health, flagging faults before they propagate into process upsets or safety system failures. This proactive fault detection capability is essential in applications such as emergency shutdown (ESD) systems, burner management systems (BMS), and high-integrity pressure protection systems (HIPPS).

Within a typical AC800F safety architecture, the PM802F operates alongside complementary modules to form a complete, redundant safety platform. The ABB TB820V2 ModuleBus modem module provides the high-speed internal communication backbone, ensuring that I/O data from remote field units reaches the PM802F with minimal latency and maximum integrity. For power conditioning, the ABB SD821 power supply unit delivers regulated, surge-protected DC power to the controller rack, protecting the PM802F from upstream grid disturbances and voltage spikes that could otherwise cause spurious trips or controller resets. In installations requiring redundant power paths, dual SD821 units are commonly deployed to eliminate the power supply as a single point of failure.

Field I/O connectivity is typically handled through ABB AI810 analog input modules and ABB DO810 digital output modules, which interface directly with process sensors, valve positioners, and actuator feedback circuits. These modules are engineered to the same environmental and EMC standards as the PM802F, ensuring consistent signal quality across the entire I/O chain. In high-EMI environments — such as those found near large variable frequency drives, arc furnaces, or high-voltage switchgear — the combination of shielded I/O modules and the PM802F’s onboard filtering provides robust protection against induced noise that could cause false readings or missed safety events.

For facilities managing geographically distributed control architectures, the PM802F integrates seamlessly with ABB CI854A PROFIBUS DP communication interface modules, enabling reliable fieldbus communication to remote I/O stations, intelligent field devices, and third-party safety components. This communication resilience is critical in large-scale plants where a single fieldbus fault must not compromise the integrity of the safety function. The PM802F’s communication watchdog and redundancy management features ensure that fieldbus interruptions trigger safe-state transitions rather than undefined controller behavior.

Every ABB 3BDH000002R1 PM802F unit supplied by KNMKS undergoes pre-shipment functional verification, including power-on self-test confirmation, communication interface validation, and visual inspection for physical integrity. Units are shipped in anti-static, shock-protected packaging to preserve module integrity during international transit. A support terms confirmed by quotation covers all supplied units against manufacturing defects and functional failures under normal operating conditions, with direct technical support available for installation guidance and compatibility verification.

KNMKS maintains ready stock of the PM802F and associated AC800F series components, supporting both planned maintenance schedules and emergency replacement scenarios. Our inventory management prioritizes fast order processing and reliable lead times, ensuring that critical spare parts reach your facility when operational continuity depends on it.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable safety control cabinet built around the PM802F requires a layered protection strategy that addresses power integrity, signal quality, communication resilience, and thermal management simultaneously. At the power layer, the ABB SD821 power supply provides regulated, filtered DC power to the controller rack, with surge suppression that protects the PM802F from upstream grid disturbances common in heavy industrial facilities. Redundant SD821 configurations eliminate the power supply as a single point of failure in high-availability installations.

At the communication layer, the ABB TB820V2 ModuleBus modem ensures high-speed, low-latency data exchange between the PM802F and distributed I/O modules, maintaining control loop integrity even under high cabinet temperatures or vibration. For fieldbus-connected architectures, the ABB CI854A PROFIBUS DP interface module extends the PM802F’s reach to remote I/O stations and intelligent field devices, with built-in watchdog functions that enforce safe-state transitions on communication loss.

At the I/O layer, ABB AI810 analog input modules and ABB DO810 digital output modules provide the field interface, with EMC-rated designs that reject induced noise from nearby VFDs, contactors, and high-current switching equipment. Together, these components form a cohesive, fault-tolerant control cabinet architecture that minimizes the risk of spurious trips, missed safety events, and unplanned process shutdowns — protecting both personnel and production assets.

Critical Industrial Safety Applications

Petrochemical & Refining: The PM802F is deployed in emergency shutdown (ESD) systems and high-integrity pressure protection systems (HIPPS) at refineries and chemical plants, where SIL-rated response to overpressure, leak detection, and fire-and-gas events is mandatory. Its deterministic scan time and fail-safe output behavior ensure that safety valves and isolation systems respond within required response time limits.

Power Generation: In thermal, hydro, and combined-cycle power plants, the PM802F supports turbine protection systems, boiler safety interlocks, and generator protection loops. Its tolerance for high-EMI environments — generated by large transformers, bus bars, and switching equipment — makes it a reliable choice for safety-critical power plant control rooms.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust, and humidity. The PM802F’s robust construction and sealed module design maintain reliable operation in conveyor safety systems, hoist protection circuits, and ventilation control interlocks where control failure carries direct personnel safety implications.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the PM802F in pump protection systems, chemical dosing safety interlocks, and overflow prevention circuits. Its long-term operational stability reduces maintenance intervention frequency in remote or unmanned installations.

Metallurgy & Steel: In electric arc furnace (EAF) and continuous casting environments, the PM802F withstands the intense electromagnetic interference and thermal cycling that characterize steelmaking operations, maintaining reliable control of cooling water safety systems, furnace tilt interlocks, and ladle transfer protection circuits.

Port & Marine Automation: Port crane control systems and marine vessel automation platforms benefit from the PM802F’s vibration tolerance and communication resilience, supporting safe load handling, mooring system interlocks, and propulsion safety circuits in salt-air, high-humidity environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB 3BDH000002R1 PM802F?
All PM802F units supplied by KNMKS carry a support terms confirmed by quotation from the shipment date, covering manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and replacement coordination to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every unit undergoes a structured pre-shipment verification process including power-on self-test confirmation, communication interface validation, and physical inspection for connector integrity and module condition. Units are packaged in anti-static, shock-protected materials to maintain integrity during international transit.

Q3: Is the PM802F compatible with existing AC800F safety system architectures?
Yes. The PM802F is a native component of ABB’s AC800F safety controller platform and is fully compatible with AC800F I/O modules, communication interfaces (including CI854A PROFIBUS DP), and power supply units (including SD821). Compatibility with specific firmware versions and system configurations can be confirmed prior to order by contacting our technical team.

Q4: Can KNMKS support long-term spare parts supply and emergency replacement?
KNMKS maintains active inventory of the PM802F and associated AC800F series components to support both planned maintenance programs and unplanned emergency replacement scenarios. Our procurement network and stock management practices are designed to provide reliable lead times and consistent availability for critical spare parts, reducing the risk of extended production outages due to parts unavailability.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AC800F 3BDH000002R1 PM802F 3BDH000002R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB AC800F 3BDH000002R1 PM802F 3BDH000002R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
