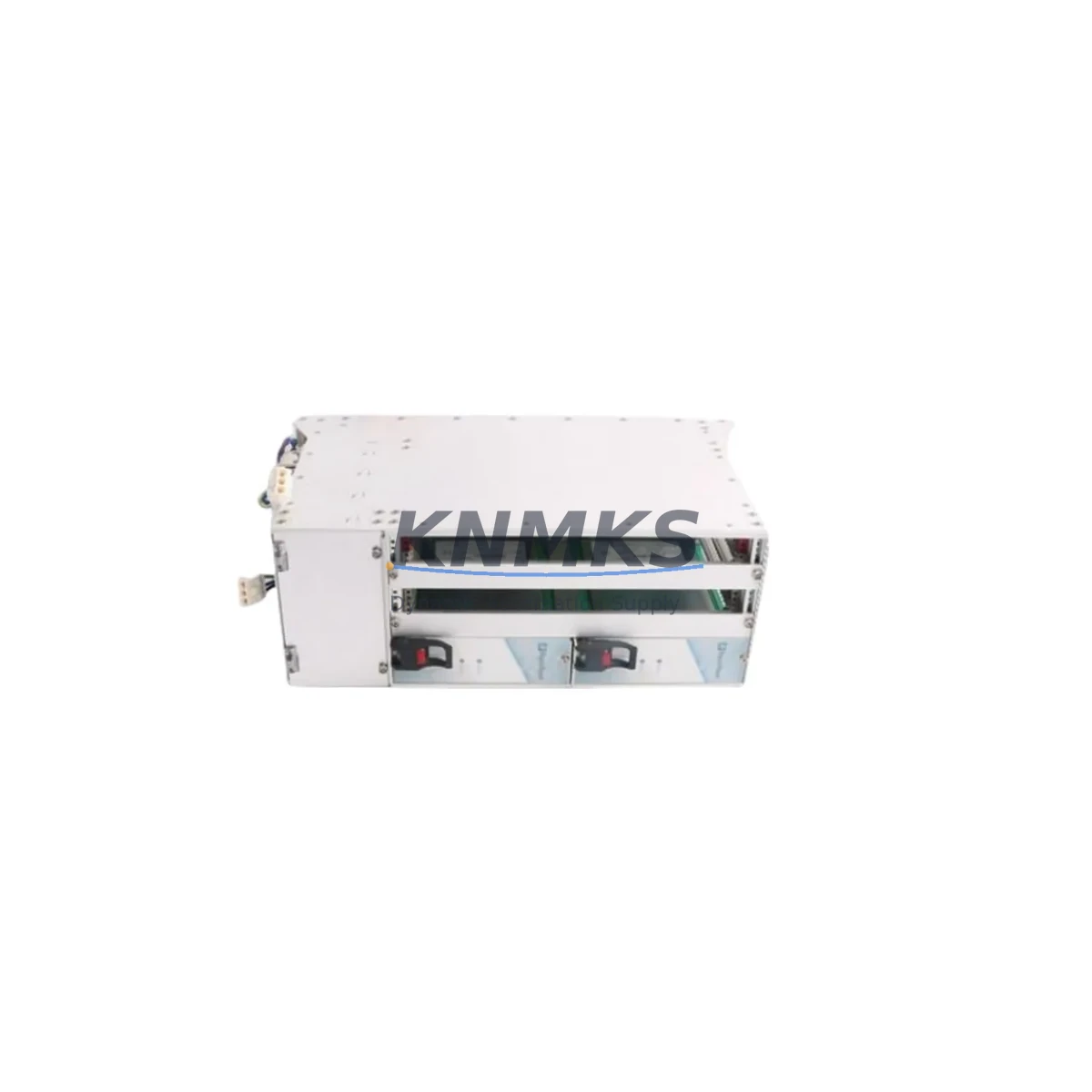

ABB 336A4976ATP051 Migration-Ready DCS Rack for Legacy Control Systems

Overview

ABB 336A4976ATP051 Migration-Ready DCS Rack for Legacy Control Systems

The ABB 336A4976ATP051 is a migration-ready DCS rack enclosure engineered for direct integration into existing AC800M distributed control system architectures. As legacy control infrastructure ages and OEM support windows close, plant engineers and automation managers face increasing pressure to source verified replacement hardware that preserves program logic, maintains communication continuity, and minimises unplanned downtime. The 336A4976ATP051 addresses this challenge by providing a structurally and electrically compatible rack platform that supports the full S800 I/O module family, PROFIBUS DP field communication, and the AC800M controller backplane interface — without requiring redesign of the existing control cabinet layout.

This unit is sourced from verified industrial supply channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation covering hardware defects and communication interface integrity. Stock is maintained to support both emergency replacement and planned retrofit schedules, with lead times confirmed at order placement.

For engineers managing multi-site AC800M installations, the 336A4976ATP051 is a proven spare that reduces retrofit risk by eliminating the need to re-engineer rack mounting geometry, backplane addressing, or field wiring termination layouts. Its compatibility with the PM861, PM864, and PM866 controller modules means that existing application programs, function block libraries, and HMI tag structures can be retained without modification during the swap procedure.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful rack replacement within an operating AC800M system requires careful sequencing of hardware, software, and field verification steps. Before removing the legacy rack, engineers should export the full application program from the PM controller using ABB’s Control Builder M engineering tool, and confirm that all S800 I/O module configurations — including AI810 analog input cards, DI810 digital input modules, and DO810 digital output modules — are documented with their current slot assignments and hardware unit addresses.

Power supply capacity is a critical pre-check. The SD822 or SD823 power supply modules feeding the rack bus must be verified against the total current draw of all installed I/O modules plus the PM controller. If the retrofit includes adding additional S800 I/O slots to the new rack, the PSU load budget must be recalculated before commissioning. Failure to account for expanded I/O load is a common cause of intermittent rack faults during post-retrofit operation.

PROFIBUS DP segment integrity must be confirmed before and after the rack swap. The DP master address assigned to the AC800M controller and the slave addresses of all field devices — including remote I/O stations, variable frequency drives, and intelligent field instruments — must remain unchanged. A PROFIBUS diagnostic tool or the built-in network diagnostics in Control Builder M should be used to verify segment health after reconnection.

For installations where the control cabinet also houses an ABB CP620 or CP635 HMI panel, the operator screen tag database should be validated against the restored application program to confirm that all process variable references remain intact. HMI communication links to the AC800M controller via MMS or OPC DA should be tested under live process conditions before returning the system to automatic control.

Where the retrofit involves migrating from an older Advant OCS or MOD 300 platform to the AC800M architecture, the 336A4976ATP051 rack serves as the physical foundation for the new control node. In this scenario, the TB820 PROFIBUS DP communication interface module and the CI854 PROFIBUS DP slave interface may be required to bridge legacy field device networks to the new controller backplane. Signal isolators and terminal adapter modules should be planned for any field wiring that does not meet the S800 I/O input specification directly.

Downtime Control During System Migration

Minimising production downtime during a DCS rack replacement requires a structured cutover plan that accounts for both hardware swap time and software restoration time. For the 336A4976ATP051, the recommended approach is a cold-swap procedure executed during a planned maintenance window, with the application program pre-loaded onto the replacement PM controller module before the maintenance window begins.

The pre-loaded controller approach eliminates the largest variable in rack replacement time: program download and compilation. With the PM861 or PM864 pre-configured and tested on the bench using the replacement rack, the on-site cutover is reduced to physical mounting, field wiring reconnection, PROFIBUS segment verification, and a controlled power-up sequence. In most AC800M installations, this reduces the active cutover window to under two hours for a single rack replacement.

Field wiring continuity should be protected by photographing or labelling all terminal connections on the S800 I/O modules before disconnection. The TB820 and TB825 terminal base units used with S800 I/O modules allow the field wiring to remain connected to the terminal base while the I/O module itself is removed — this feature significantly reduces reconnection errors and speeds up the physical swap. After the new rack is installed and powered, each I/O channel should be verified against the process before the system is returned to automatic control.

For critical process applications where even a brief interruption is unacceptable, a parallel rack installation strategy can be considered: the 336A4976ATP051 is installed alongside the legacy rack, the application is mirrored, and a controlled switchover is executed at a process-safe moment. This approach requires additional engineering effort but eliminates unplanned process interruption entirely.

Retrofit Support FAQ

Q: Is the 336A4976ATP051 a direct drop-in replacement for the original ABB AC800M rack?
A: Yes. The 336A4976ATP051 maintains the same backplane connector layout, slot geometry, and power bus configuration as the original rack. No modifications to the control cabinet, field wiring, or S800 I/O module assignments are required for a like-for-like replacement. Firmware version compatibility should be confirmed for the installed PM controller generation.

Q: What pre-shipment testing is performed on the 336A4976ATP051?
A: Each unit undergoes functional verification of the backplane communication bus, power distribution rails, and slot connector integrity before dispatch. Units are tested with representative S800 I/O modules to confirm slot addressing and PROFIBUS DP signal routing. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: Can this rack support a mixed installation of S800 I/O and S900 I/O modules?
A: The 336A4976ATP051 is designed for the S800 I/O module family. S900 I/O modules use a different backplane interface and are not compatible with this rack. For installations requiring S900 I/O integration, a separate S900 remote I/O station connected via PROFIBUS DP to the AC800M controller is the recommended architecture.

Q: What is the typical lead time and stock availability?
A: Stock is maintained for immediate dispatch on confirmed orders. Lead time for in-stock units is 3–7 business days to most destinations. For project-based procurement requiring multiple units or extended supply agreements (12–36 months), contact the sales team to discuss inventory reservation and pricing terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

336A4976ATP051
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 336A4976ATP051
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
