ABB 6632003A1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 6632003A1 Maintenance-Proven Spare Part for Factory Uptime

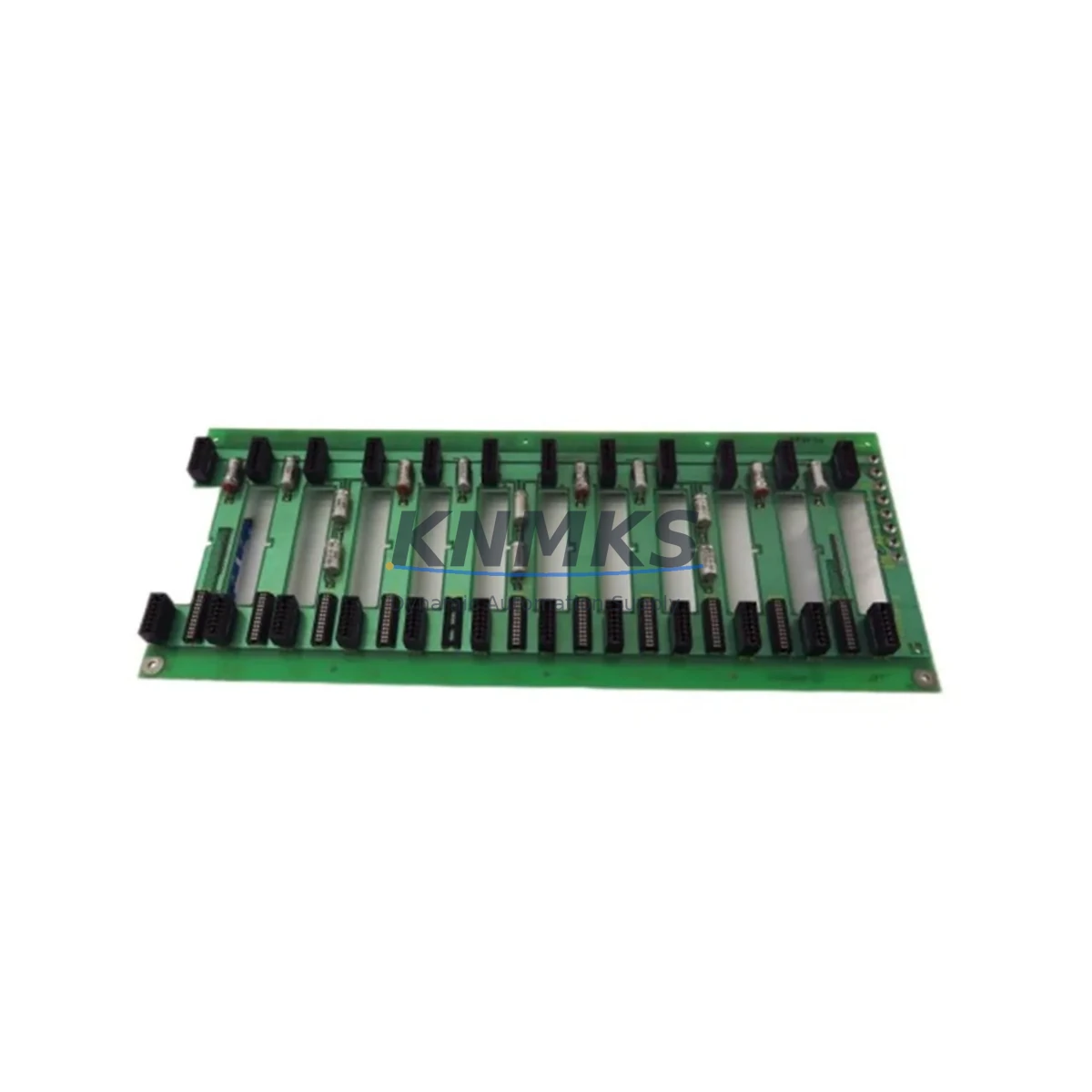

The ABB 6632003A1 is a 12-slot DCS backplane module engineered for the AC800M and 800xA distributed control system platform. As a critical structural and electrical backbone of the control cabinet, this backplane hosts processor modules, I/O modules, and communication cards, making it one of the highest-priority spare parts in any AC800M-based automation system. Sourced from ABB’s original manufacturing line in Germany, each unit supplied by KNMKS undergoes pre-shipment functional verification and is backed by a support terms confirmed by quotation.

For maintenance engineers managing aging 800xA installations, the 6632003A1 represents a direct, plug-compatible replacement for failed or degraded backplanes. Its standardized slot architecture ensures full compatibility with ABB PM861, PM864, PM866, and PM891 processor modules, as well as the full range of S800 I/O modules and CI840/CI854 communication interface cards. No firmware reconfiguration is required when replacing a like-for-like backplane in an existing rack assembly.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6632003A1 backplane failure is identified during routine control cabinet inspection or after an unplanned shutdown, the replacement scope should extend beyond the backplane itself. Maintenance engineers are advised to simultaneously inspect the ABB PM864A processor module seated in Slot 1, as backplane power rail degradation frequently causes intermittent processor faults that may not trigger a hard alarm. Check the TB820V2 ModuleBus Optical Port for signal integrity, as a failing backplane can corrupt optical bus communication and generate false I/O errors across the entire rack.

The SD832 24VDC power supply module feeding the backplane should be load-tested during the same maintenance window — a marginal power supply is often the root cause of backplane rail stress. Inspect the CI854A PROFIBUS DP communication interface for connector wear and verify that the DP network address configuration is intact after the backplane swap. For plants running FOUNDATION Fieldbus segments, the CI840A fieldbus interface module should be re-seated and its segment diagnostics reviewed post-replacement.

Terminal blocks and field wiring connected to S800 I/O modules (AI810, DI810, DO810) should be torque-checked during the outage, as vibration-induced terminal loosening is a common secondary fault in aging control cabinets. If the plant operates in a high-EMI environment, verify that the backplane’s chassis ground connection meets ABB’s specified impedance to prevent signal noise on analog I/O channels. Procurement engineers building annual MRO spare parts lists should consider stocking one 6632003A1 backplane per AC800M rack cluster, alongside at least one PM864A processor and one SD832 power supply, to cover the most statistically probable failure modes in a 5-year maintenance cycle.

Site Replacement Workflow

Step 1 — Pre-outage preparation: Download the current 800xA system configuration backup from the Engineering Workplace before initiating any hardware change. Confirm the replacement 6632003A1 serial number and verify physical condition on receipt.

Step 2 — Controlled shutdown: Place the affected controller in Manual mode via the 800xA Operations workplace. Issue a controlled shutdown command to the PM8xx processor. De-energize the SD832 power supply feeding the rack. Do not remove modules under live power.

Step 3 — Module extraction: Label and photograph all module positions before removal. Extract the processor, I/O, and communication modules in sequence. Remove the failed 6632003A1 backplane from the cabinet rail.

Step 4 — Backplane installation: Mount the replacement 6632003A1 onto the DIN rail or rack frame. Re-seat all modules in their original positions. Reconnect the ModuleBus optical cable to the TB820V2 port. Restore SD832 power.

Step 5 — System restart and verification: Power up the processor and allow the AC800M to complete its self-test sequence. Confirm all I/O modules report healthy status in the 800xA Hardware Configuration tool. Verify PROFIBUS and fieldbus segment communication via CI854A/CI840A diagnostics. Return the controller to Automatic mode only after all channel statuses are confirmed green.

This workflow minimizes downtime to under 90 minutes for a trained maintenance team and eliminates the risk of configuration loss or module damage associated with unplanned emergency replacements.

Spare Parts Support FAQ

Q1: Is the 6632003A1 compatible with both AC800M and 800xA system architectures?
Yes. The 6632003A1 backplane is the standard 12-slot rack used across the AC800M controller family and is fully supported within the ABB 800xA distributed control system environment. It is compatible with all PM8xx series processors and the complete S800 I/O module range without hardware or firmware modification.

Q2: How does KNMKS verify spare parts before shipment?
Every 6632003A1 unit undergoes a pre-shipment functional check covering power rail continuity, slot connector integrity, and chassis ground resistance. Units that do not pass inspection are not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: What is the recommended inventory strategy for this backplane?
For plants with 3 or more AC800M racks, we recommend maintaining one 6632003A1 as a cold standby spare. Given the module’s role as the structural backbone of the control rack, a single backplane failure can take an entire controller offline. Stocking one unit per rack cluster reduces mean time to repair (MTTR) from days to hours.

Q4: What support terms and long-term supply commitment does KNMKS provide?
All 6632003A1 units are covered by a support terms confirmed by quotation against manufacturing defects and functional failure under normal operating conditions. KNMKS maintains ongoing stock of ABB AC800M series components and can support long-term supply agreements for MRO procurement programs. Contact [email protected] for volume pricing and scheduled delivery arrangements.
