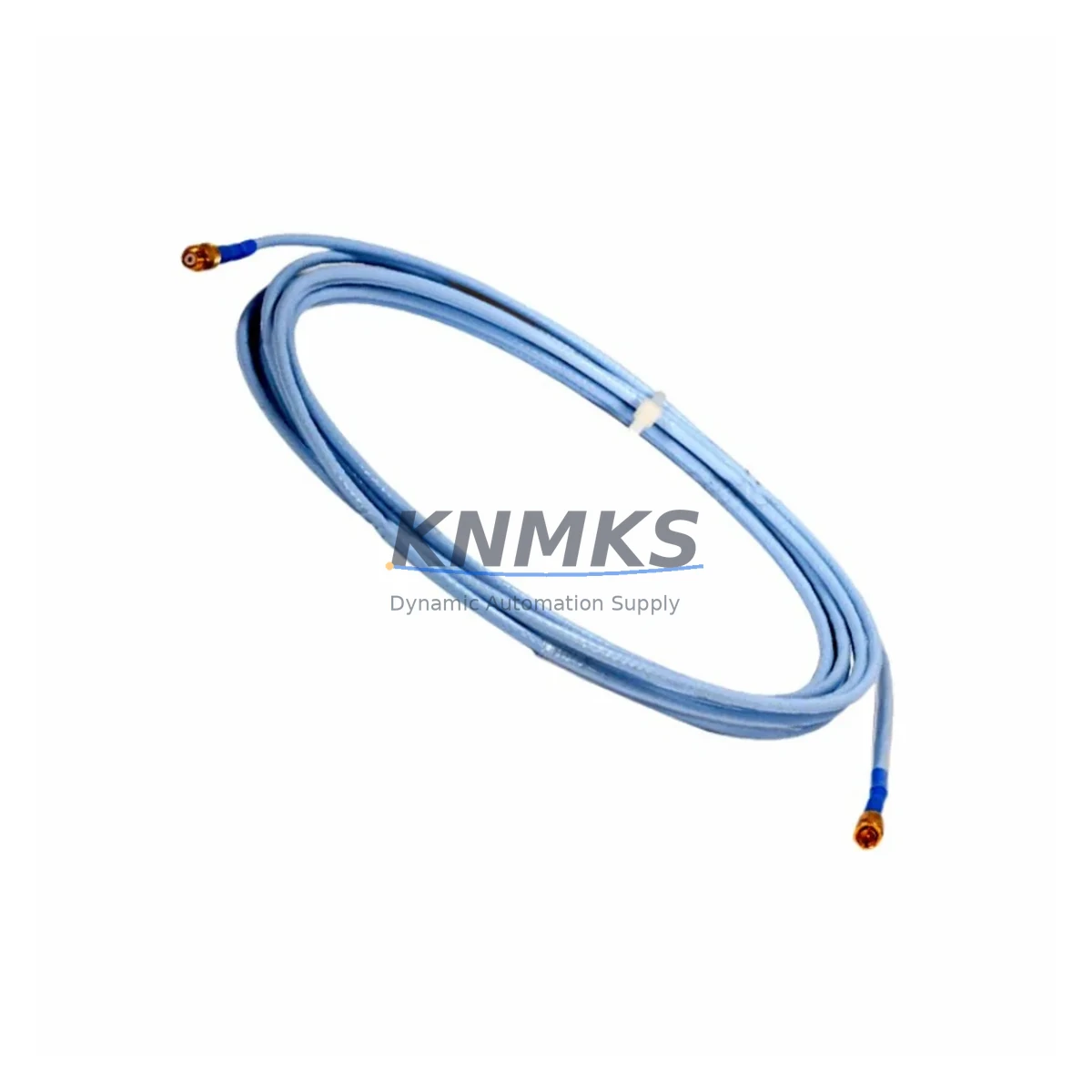

Bently Nevada 330130-045-03-00 Fail-Safe Proximity Cable

Overview

Bently Nevada 330130-045-03-00 Fail-Safe Proximity Cable: Fault Protection for Critical Industrial Control Reliability

The Bently Nevada 330130-045-03-00 is a ruggedized proximity extension cable engineered for continuous, fail-safe signal transmission in the most demanding industrial machinery protection environments. As a core component of the Bently Nevada 3300 XL vibration monitoring system, this cable maintains signal integrity between the proximity probe and the proximitor/driver, ensuring that shaft displacement, radial vibration, and axial position data reach the control system without interruption — even under severe electromagnetic interference, high ambient temperature, mechanical vibration, or moisture ingress.

In critical rotating machinery applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — any signal degradation or cable failure can trigger false trips, mask genuine fault conditions, or cause unplanned shutdowns. The 330130-045-03-00 is designed to eliminate these failure modes through precision-matched impedance, robust shielding, and environmental sealing that meets the demands of petrochemical, power generation, mining, and metallurgical plant environments.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring depends on the integrity of the entire signal chain — not just the sensor. In a well-engineered control cabinet, the 330130-045-03-00 extension cable works in concert with the Bently Nevada 3300 XL 8-mm Proximity Probe (330730-080-00-00) at the field end and the Bently Nevada 3300 XL Proximitor Sensor at the monitoring module end, forming a calibrated, impedance-matched measurement loop that resists signal drift under load fluctuations and ground noise.

In high-EMI environments — such as those adjacent to variable frequency drives, large transformer banks, or arc furnace control panels — the cable’s double-shielded coaxial construction prevents induced noise from corrupting the 0–24 VDC gap voltage signal. This is especially critical when the proximitor output feeds directly into a Bently Nevada 3500/42M Proximitor/Seismic Monitor rack card, where even millivolt-level noise can shift alarm setpoints and generate nuisance trips.

For installations requiring surge protection at the cabinet entry point, pairing this cable with a Bently Nevada 990 Rack Interface Module or a dedicated transient suppressor on the signal terminal block significantly reduces the risk of damage from lightning-induced surges or switching transients from nearby contactors and solenoid valves. In dusty or humid environments — common in cement plants, water treatment facilities, and offshore platforms — the cable’s sealed connectors and abrasion-resistant outer jacket maintain continuity without requiring frequent inspection cycles, reducing maintenance burden on field technicians.

Where long cable runs are required between the probe tip and the monitoring rack, the 330130-045-03-00 is the correct extension segment to bridge the gap between the 330730 series armored probe and the proximitor, maintaining the total system cable length within the calibrated range specified by Bently Nevada’s system documentation. Exceeding this range without the correct extension cable introduces scale factor errors that compromise the accuracy of radial vibration and eccentricity measurements.

Critical Industrial Safety Applications

The Bently Nevada 330130-045-03-00 is deployed across a wide range of safety-critical and continuous-process industries where rotating machinery protection is non-negotiable:

Petrochemical & Refining: Installed on critical compressor trains and reactor feed pumps where API 670 machinery protection standards mandate continuous vibration monitoring. Cable integrity directly supports the safety instrumented system (SIS) interlock logic that initiates emergency shutdown on high-vibration events.

Power Generation: Used on steam turbine shaft monitoring systems at coal-fired, gas-fired, and combined-cycle plants. Reliable signal transmission from the proximity probe to the 3500 series monitor ensures that turbine runup, load rejection, and coast-down events are captured accurately for both protection and condition monitoring purposes.

Mining & Mineral Processing: Applied to large ball mill drives, SAG mill pinion bearings, and slurry pump shafts in environments with extreme dust loading, high vibration, and wide temperature swings. The cable’s robust construction withstands the mechanical stress of frequent equipment access and cable flexing during maintenance cycles.

Water & Wastewater Treatment: Deployed on high-speed centrifugal blowers and vertical turbine pumps in humid, corrosive atmospheres. The moisture-resistant jacket prevents insulation breakdown that could cause signal leakage and false low-gap readings.

Metallurgy & Steel: Installed near induction furnaces, rolling mill drives, and continuous casting equipment where high electromagnetic fields and thermal cycling demand a cable with stable dielectric properties and secure connector retention under vibration.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330130-045-03-00?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, connector integrity, and cable continuity. Support requests are processed promptly with replacement or refund options.

Q2: What pre-shipment testing is performed on each cable?
Each 330130-045-03-00 unit undergoes continuity verification, shield integrity testing, and connector retention checks before dispatch. Units are individually inspected to confirm compliance with Bently Nevada 3300 XL system specifications prior to packaging.

Q3: Is this cable compatible with both the 3300 XL and 3300 NSv Proximitor systems?
Yes. The 330130-045-03-00 is designed for use with the Bently Nevada 3300 XL Proximitor and is also compatible with the 3300 NSv series, provided the total system cable length remains within the calibrated range specified in the Bently Nevada installation manual for the probe/proximitor combination in use.

Q4: Can long-term supply continuity be guaranteed for this part?
We maintain dedicated inventory of the 330130-045-03-00 to support planned maintenance schedules, emergency replacements, and capital project procurement. Customers requiring scheduled delivery programs or blanket purchase orders for ongoing plant maintenance are encouraged to contact our sales team to discuss supply agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-045-03-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-045-03-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
