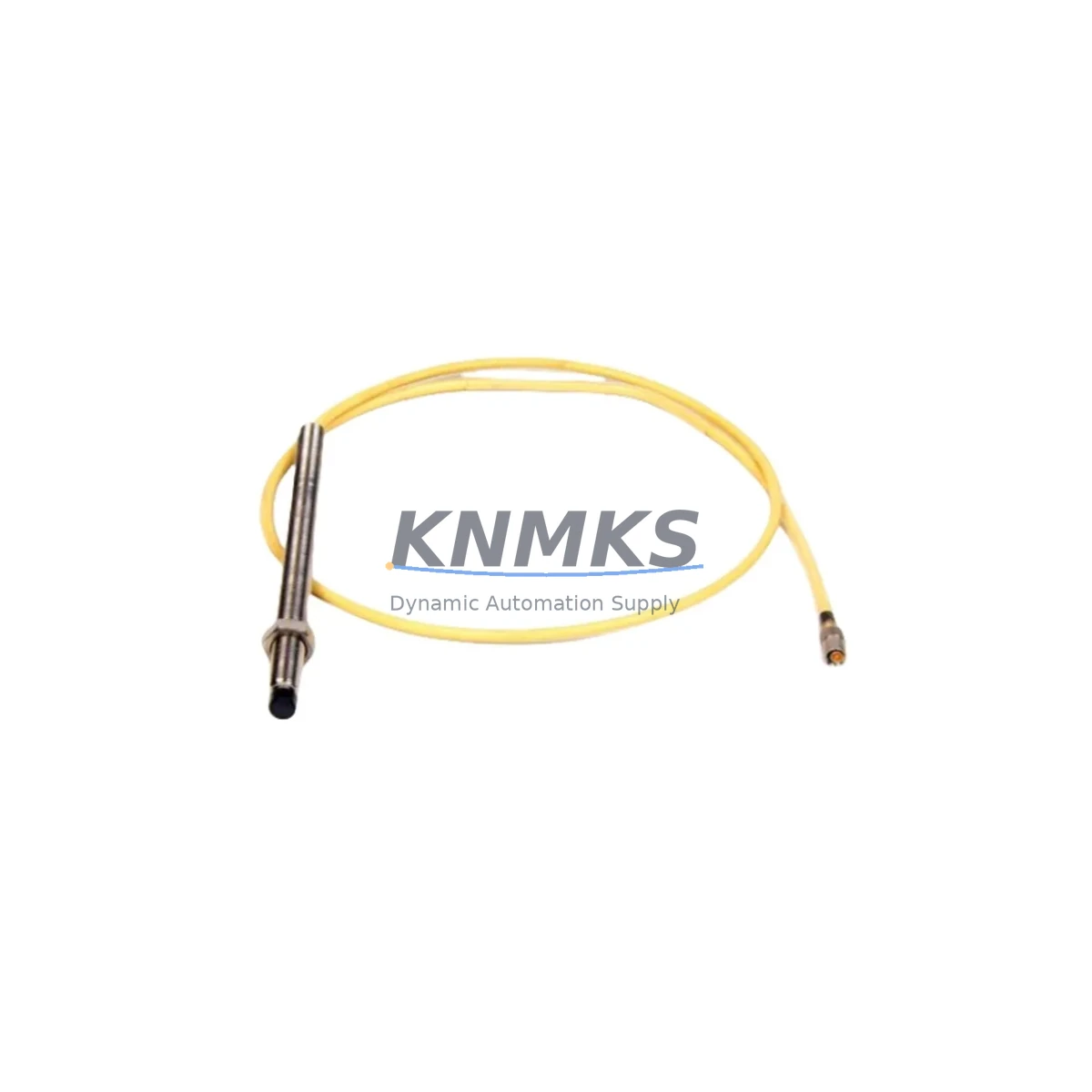

Bently Nevada 330102-04-16-10-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330102-04-16-10-02-00 Fail-Safe Proximity Probe: Fault-Protection and Critical Industrial Field Reliability

The Bently Nevada 330102-04-16-10-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe shaft vibration and position monitoring in the most demanding industrial environments. Designed to operate within Bently Nevada’s tightly integrated measurement chain, this probe delivers stable, drift-free output signals even under severe electromagnetic interference, high-temperature gradients, mechanical vibration, and moisture-laden atmospheres — conditions that routinely compromise lesser sensing technologies.

In critical rotating machinery protection — turbines, compressors, pumps, fans, and gearboxes — signal integrity is not optional. The 330102-04-16-10-02-00 uses a hardened coaxial cable assembly and precision-wound sensing coil to maintain consistent gap voltage output across its full operating range. Its non-contact measurement principle eliminates mechanical wear, ensuring that the probe remains accurate and responsive throughout its service life without scheduled recalibration intervals. This directly reduces the risk of undetected shaft displacement, rotor rub events, and catastrophic bearing failures that lead to unplanned shutdowns.

Every unit shipped from KNMKS stock undergoes pre-shipment functional verification, including output linearity checks and insulation resistance testing, to confirm it meets OEM performance specifications before reaching your control cabinet or machinery skid.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330102-04-16-10-02-00 proximity probe does not operate in isolation — its reliability is inseparable from the integrity of the complete measurement and protection chain housed within the machinery protection cabinet. When paired with the Bently Nevada 3300 XL 8mm Proximitor® Sensor (e.g., 330180-91-00), the probe-driver system forms a calibrated, matched pair that ensures the –24 VDC bias voltage and output sensitivity remain within OEM-specified tolerances. Substituting unmatched components introduces gain error and gap voltage offset, which can trigger false alarms or — more critically — mask genuine shaft excursions.

Within the same protection rack, the Bently Nevada 3500/42M Proximitor®/Seismic Monitor processes the probe’s output alongside seismic velocity inputs, providing dual-channel redundancy for API 670-compliant overspeed and high-vibration trip logic. Upstream of the monitor, a Bently Nevada 3500/15 Power Supply with internal redundancy ensures that transient grid disturbances — voltage sags, switching surges, or momentary outages — do not interrupt the –24 VDC supply rail that the Proximitor® sensor depends on. Power interruption to the sensor chain is equivalent to a loss-of-signal condition, which in a fail-safe configured system will drive a protective trip; a stable, regulated supply is therefore a direct safety requirement.

For installations in high-EMI environments such as variable-frequency drive (VFD) motor control centers, arc furnace bays, or high-voltage switchgear rooms, supplementing the probe cable routing with Bently Nevada armored extension cables and ensuring proper cabinet grounding via a dedicated instrument earth bus significantly attenuates induced noise that would otherwise appear as false vibration signal. In multi-machine protection architectures, the Bently Nevada 3500/22M Transient Data Interface captures high-resolution waveform data during startup and coast-down, enabling engineering teams to distinguish structural resonance from instrumentation artifacts — a distinction that is critical when evaluating whether a vibration alarm reflects a genuine mechanical fault or a measurement anomaly.

Critical Industrial Safety Applications

The 330102-04-16-10-02-00 is deployed across a broad spectrum of continuous-process and safety-critical industries where rotating machinery failure carries severe operational, financial, and safety consequences.

In petrochemical and refinery facilities, this probe monitors the radial shaft position of centrifugal compressors and process pumps in hydrocarbon service. An undetected rotor-to-stator contact in these machines can result in seal failure, process gas release, and fire or explosion risk. The probe’s continuous, non-contact measurement provides the early warning margin — typically detecting abnormal vibration trends hours or days before a mechanical failure becomes catastrophic.

In thermal and combined-cycle power generation, steam turbine shaft monitoring with 3300 XL probes is standard practice under API 670 and IEC 61511 functional safety frameworks. The probe’s ability to maintain calibrated output across the full turbine operating temperature range — from cold startup through full-load steady state — ensures that protection system logic receives valid, trustworthy signals at every point in the operating cycle.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives operate under extreme mechanical loading and vibration. The 330102-04-16-10-02-00’s robust coaxial construction and high-temperature probe tip rating make it suitable for bearing housing installations where ambient temperatures, lubricant contamination, and structural vibration would degrade capacitive or optical sensing alternatives.

In water and wastewater treatment infrastructure, large vertical turbine pumps and blower trains serving municipal systems require continuous availability. Proximity probe-based protection on these assets enables condition-based maintenance scheduling, reducing both unplanned outages and unnecessary preventive maintenance interventions.

In metallurgical and steel production environments — rolling mills, continuous casters, and induction furnace auxiliaries — the probe’s EMI immunity is particularly valuable, as high-current bus bars and induction heating equipment generate intense magnetic fields that can saturate or saturate competing sensor technologies.

Safety and Quality FAQ

Q1: What support terms coverage applies to the 330102-04-16-10-02-00?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and confirmed performance deviations from OEM specifications. Support requests are supported by our pre-shipment test records, which document output linearity and insulation resistance results for each unit dispatched.

Q2: How is compatibility with existing 3300 XL Proximitor® drivers confirmed?
The 330102-04-16-10-02-00 is designed as a matched component within the Bently Nevada 3300 XL measurement chain. Compatibility is determined by probe tip diameter (8mm), cable length, and the specific Proximitor® sensor model installed. KNMKS technical support can assist in verifying the correct probe-driver-extension cable combination for your existing installation before order placement, eliminating the risk of mismatched system gain.

Q3: What pre-shipment testing is performed on each unit?
Each probe undergoes functional output verification, including gap voltage linearity across the specified measurement range and coaxial cable insulation resistance testing. Units that do not meet OEM-equivalent performance thresholds are quarantined and not dispatched. Test documentation is available upon request for quality-critical procurement processes.

Q4: Can long-term supply continuity be assured for ongoing maintenance programs?
KNMKS maintains forward buffer stock of high-demand 3300 XL series components, including the 330102-04-16-10-02-00, specifically to support planned maintenance shutdowns, emergency replacements, and long-term service agreements. Customers with recurring demand are encouraged to contact our sales team to discuss scheduled supply arrangements that eliminate lead-time risk during critical maintenance windows.
