Bently Nevada 330101-00-41-15-12-05 Maintenance-Proven Spare Part

Overview

Bently Nevada 330101-00-41-15-12-05 Maintenance-Proven Spare Part for Factory Uptime

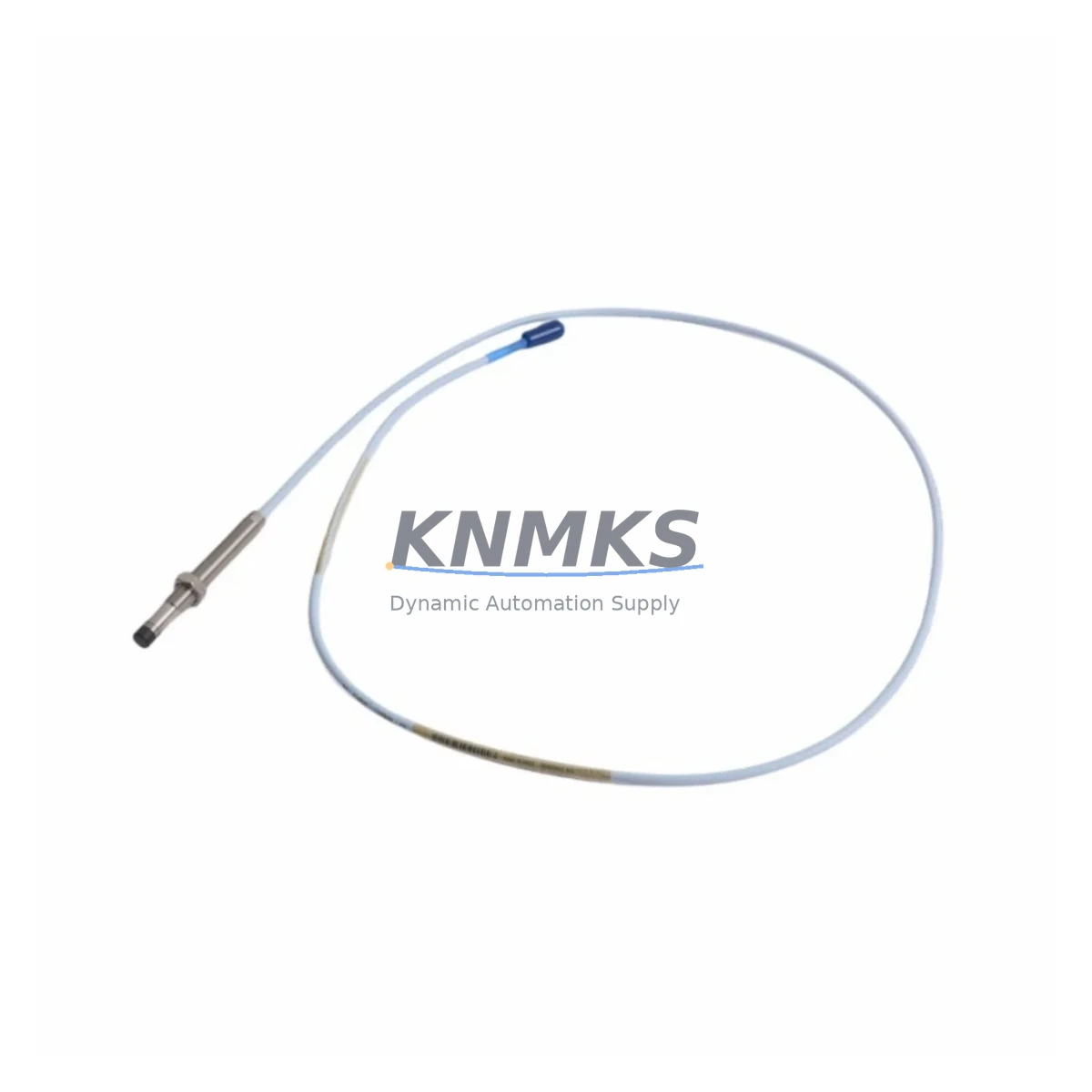

The Bently Nevada 330101-00-41-15-12-05 is an 8mm eddy-current proximity transducer engineered for continuous vibration and position monitoring in rotating machinery applications. As a core component of the Bently Nevada 3300 XL Series monitoring system, this transducer delivers reliable non-contact measurement of shaft radial vibration, axial position, and differential expansion — making it indispensable for turbines, compressors, pumps, and other critical rotating assets in power generation, petrochemical, and heavy manufacturing environments.

For maintenance engineers managing aging machinery protection systems, the 330101-00-41-15-12-05 represents a direct, drop-in replacement that restores full monitoring capability without requiring reconfiguration of the 3300 XL monitor rack. Its standardized 8mm tip diameter, 5-meter integral cable, and -18.0 Vdc nominal bias voltage ensure seamless compatibility with existing Bently Nevada signal conditioning infrastructure. Procurement engineers can source this part with confidence: each unit ships with full functional test documentation and is backed by a support terms confirmed by quotation covering manufacturing defects and performance deviations.

In daily inspection routines and fault isolation workflows, the proximity transducer is often the first component to be evaluated when a 3300 XL monitor generates a vibration alarm or a gap voltage reading falls outside the linear range. A degraded or failed transducer can produce false alarms, missed trips, or complete loss of channel data — all of which carry significant risk in safety-critical applications. Stocking at least one spare 330101-00-41-15-12-05 per monitored machine train is a widely adopted best practice in facilities operating under API 670 machinery protection standards.

When replacing the 330101-00-41-15-12-05 in the field, maintenance teams should simultaneously inspect the associated Bently Nevada 330130 extension cable for insulation damage, connector corrosion, or continuity faults, as cable degradation is a common root cause of transducer system failures. The 330180 proximitor/oscillator driver, which conditions the transducer signal before it reaches the monitor, should also be verified for correct output voltage and replaced if readings are erratic. Within the 3300 XL monitor rack itself, technicians should confirm that the 3300/16 or 3300/20 monitor card is seated correctly and that its configuration matches the transducer gap range. Power supply modules feeding the rack — typically 24 Vdc or 28 Vdc industrial DIN-rail units — should be load-tested to rule out voltage sag as a contributing factor. If the facility uses a Bently Nevada 3500 series system in adjacent machinery trains, cross-referencing spare part lists between the two platforms can help consolidate procurement and reduce total inventory carrying cost.

For annual overhaul planning and long-term asset management, procurement engineers should consider maintaining a minimum buffer stock of two to three transducer assemblies per critical machine train, particularly for equipment where unplanned downtime costs exceed the value of the spare inventory many times over. The 330101-00-41-15-12-05 is a mature, well-documented part with a stable supply chain, making it suitable for multi-year blanket purchase agreements that lock in pricing and ensure availability during peak maintenance seasons.

Every unit supplied by KNMKS undergoes pre-shipment functional verification including gap voltage linearity check, cable continuity test, and connector integrity inspection. Units are shipped in anti-static protective packaging with individual test records. Standard lead time is 3–7 business days for in-stock inventory, with expedited options available for emergency downtime recovery situations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for machinery trains monitored by the Bently Nevada 3300 XL system should treat the 330101-00-41-15-12-05 proximity transducer as part of a broader condition monitoring assembly. During scheduled outages or control cabinet inspections, technicians should work through the complete signal chain: beginning at the transducer tip and bracket mounting, through the 330130 extension cable and its field junction connectors, into the 330180 proximitor driver module, and finally to the 3300/16 or 3300/20 monitor card in the rack. Each element in this chain is a potential failure point, and replacing only the transducer without inspecting the downstream components risks a repeat fault within the same maintenance window.

Power quality to the monitor rack deserves particular attention. Fluctuations in the 24 Vdc or 28 Vdc supply rail — whether caused by aging DIN-rail power supply modules, loose terminal block connections, or shared loads from other control cabinet equipment — can manifest as spurious vibration alarms or gap voltage drift that mimics transducer failure. Including a power supply load test in the replacement workflow eliminates this variable before the machine is returned to service.

For facilities managing multiple machine trains, the 3300 XL rack’s backplane and I/O termination modules should be inspected for oxidation on card-edge connectors and terminal strip contacts, especially in humid or chemically aggressive environments. Signal isolation barriers or Zener barriers used in intrinsically safe installations should be verified for correct voltage clamping and replaced on a time-based schedule rather than waiting for failure. Where Modbus or other serial communication links connect the 3300 XL system to a DCS or SCADA platform, communication module firmware versions and cable shielding integrity should be confirmed as part of the annual review cycle.

Site Replacement Workflow

Replacing the 330101-00-41-15-12-05 in service follows a straightforward sequence that minimizes downtime and ensures the replacement unit is correctly commissioned before the machine is restarted. First, document the existing gap voltage reading from the monitor display or historian trend — this baseline confirms the original transducer’s condition and provides a reference for the new unit’s commissioning gap. Next, de-energize the proximitor driver and disconnect the extension cable at the field junction. Remove the transducer from its bracket, noting the exact axial and radial positioning relative to the shaft target area.

Install the replacement 330101-00-41-15-12-05 in the same bracket position, using the original gap setting as a starting point. Reconnect the extension cable and re-energize the proximitor. Measure the gap voltage at the monitor and adjust the transducer position until the reading falls within the linear range center — typically -10.0 Vdc to -11.0 Vdc for an 8mm transducer at nominal gap. Confirm that the monitor channel clears any latched alarms and that the vibration reading is stable and consistent with historical baseline values before releasing the machine to operations.

This workflow is equally applicable when upgrading from older Bently Nevada 7200 series transducers to the 3300 XL platform, where bracket dimensions and gap settings may require minor adjustment but the fundamental commissioning procedure remains the same. Maintaining a completed replacement record — including the technician’s name, date, gap voltage before and after, and any anomalies observed — supports traceability requirements under ISO 55000 asset management frameworks and simplifies future fault investigations.

Spare Parts Support FAQ

Q: Is the 330101-00-41-15-12-05 compatible with both the 3300 XL and older 3300 series monitors?
A: The 330101-00-41-15-12-05 is designed and specified for the Bently Nevada 3300 XL series. Compatibility with earlier 3300 series monitors depends on the specific monitor card revision and configuration. We recommend confirming the monitor card part number and firmware version before ordering if you are operating a mixed-generation rack. Our technical team can assist with compatibility verification prior to shipment.

Q: What is included in the support terms confirmed by quotation, and how is a support terms claim processed?
A: The support terms confirmed by quotation cover manufacturing defects, performance deviations from published specifications, and premature failure under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified temperature and voltage range. To initiate a support terms claim, contact [email protected] with the order number, unit serial number, and a description of the observed fault. Replacement units are dispatched upon receipt and inspection of the returned item.

Q: Can KNMKS support long-term or blanket purchase agreements for this part?
A: Yes. For customers managing multiple machine trains or operating under planned maintenance schedules, KNMKS offers blanket purchase agreements that reserve inventory allocation and lock in pricing for 12-month periods. This arrangement is particularly beneficial for facilities in regions with longer import lead times or where emergency procurement costs are a significant operational risk. Contact [email protected] or call +86 18359268345 to discuss terms.

Q: How do I verify that a replacement transducer is functioning correctly before installing it on the machine?
A: Each unit shipped by KNMKS includes a pre-shipment test record confirming gap voltage linearity across the specified linear range, cable continuity from tip to connector, and connector pin integrity. Upon receipt, the transducer can be bench-tested using a 330180 proximitor driver, a calibrated gap fixture, and a digital voltmeter — a standard procedure described in Bently Nevada’s installation and maintenance manual for the 3300 XL series. If you require assistance with acceptance testing procedures, our technical support team is available via email or phone.
