YOKOGAWA SEA4D Fail-Safe Analog Input for Control Reliability

Overview

YOKOGAWA SEA4D Fail-Safe Analog Input for Industrial Control Reliability

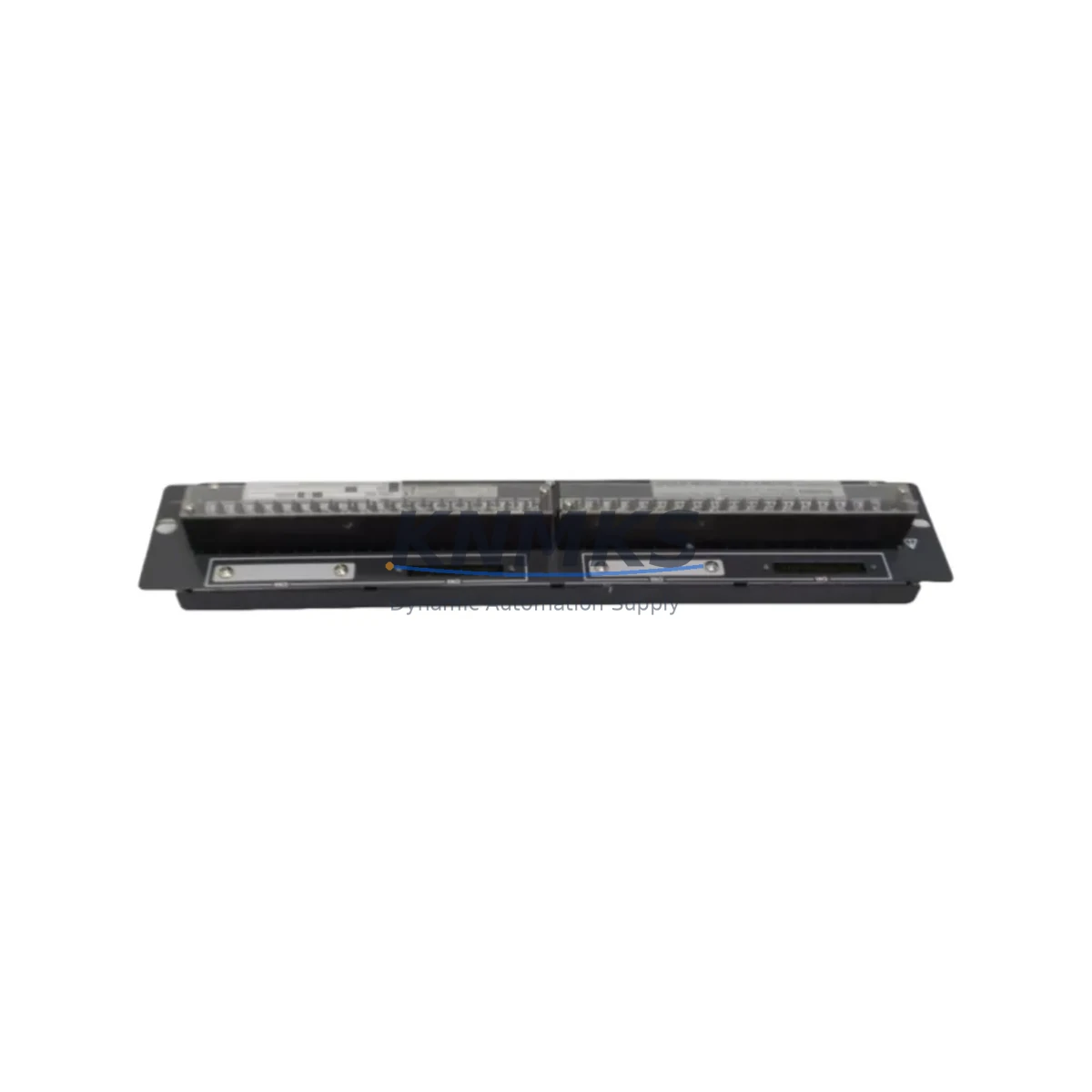

The YOKOGAWA SEA4D is a safety-grade analog input module engineered for continuous, uninterrupted operation in the most demanding industrial control environments. Designed for integration within the CENTUM VP Distributed Control System architecture, the SEA4D delivers precision 4–20 mA signal acquisition with built-in fail-safe diagnostics, making it a cornerstone component for critical process loops in petrochemical, power generation, mining, water treatment, metallurgical, and continuous manufacturing facilities.

In high-stakes control cabinets where signal integrity is non-negotiable, the SEA4D provides hardware-level fault detection that immediately flags open-circuit, short-circuit, and out-of-range conditions before they can propagate into process upsets or unplanned shutdowns. Its robust input isolation architecture suppresses common-mode noise and ground loop interference — a critical advantage in high-EMI environments such as variable-frequency drive (VFD) rooms, high-voltage switchgear bays, and arc furnace control areas. Signal drift caused by temperature fluctuation or aging sensors is actively compensated, ensuring measurement accuracy is maintained across the full operating temperature range without manual recalibration cycles.

Within a CENTUM VP control cabinet, the SEA4D operates alongside complementary modules including the YOKOGAWA SEA4D-compatible SB401 Bus Interface Module, SCP401 Safety Controller, and SER4D Safety Enhanced Relay Output Module to form a complete safety instrumented loop. Power conditioning for the cabinet is typically provided by the YOKOGAWA PW481 or PW482 Power Supply Module, which delivers regulated 24 VDC with redundant feed capability — eliminating power-side single points of failure that could compromise the analog input chain. For communication integrity, the SEA4D integrates with the YOKOGAWA ESB Bus coupler and FCS Field Control Station, maintaining deterministic scan cycles even under high bus load conditions.

The SEA4D is specifically rated for operation in environments with elevated dust ingress, condensation risk, and mechanical vibration — conditions routinely encountered in cement plants, offshore platforms, and port crane control rooms. Its conformal-coated PCB and sealed terminal block design resist corrosive atmospheres, while the module’s wide operating temperature tolerance ensures stable performance from sub-zero cold-start conditions to high-ambient cabinet interiors exceeding 55°C.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable CENTUM VP control cabinet is only as strong as its weakest module. The SEA4D anchors the analog input layer of the safety loop, but its effectiveness depends on the integrity of the surrounding architecture. The YOKOGAWA SCP401 Safety Controller processes SEA4D input data within deterministic scan cycles, executing safety logic without latency that could delay protective action. Upstream, the YOKOGAWA PW481 Power Supply Module provides clean, regulated DC power with surge suppression, protecting the SEA4D and co-installed modules from voltage transients caused by motor starts, capacitor bank switching, or utility grid disturbances.

For cabinets operating in high-vibration or high-humidity environments — such as those found in mining concentrators or coastal desalination plants — the YOKOGAWA SER4D Safety Enhanced Relay Output Module is commonly paired with the SEA4D to close the control loop between analog measurement and discrete actuator response. The YOKOGAWA ESB Bus Coupler maintains communication continuity between the field control station and I/O modules, preventing communication timeouts that could trigger spurious shutdowns. Where redundant communication paths are required, the YOKOGAWA FCS Field Control Station supports dual-bus configurations that keep the SEA4D’s data stream intact even during partial bus failures. Together, these components form a layered cabinet protection strategy that minimizes the risk of control interruption, signal loss, and unplanned process downtime.

Critical Industrial Safety Applications

The YOKOGAWA SEA4D is deployed across a broad spectrum of critical industrial applications where analog signal reliability directly impacts process safety and production continuity. In petrochemical and refinery operations, the SEA4D monitors pressure transmitter and flow meter signals feeding into emergency shutdown (ESD) interlocks, where a missed or drifted reading could trigger a hazardous release or delay a protective trip. In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the module provides accurate turbine inlet temperature and steam pressure readings that feed governor control loops, where measurement errors translate directly into efficiency losses or equipment damage.

In mining and mineral processing environments, the SEA4D withstands the extreme dust loading and vibration characteristic of crusher control rooms and conveyor drive panels, maintaining signal accuracy for load cell and belt tension monitoring systems. Water and wastewater treatment plants rely on the SEA4D for pH, dissolved oxygen, and flow measurement inputs that govern dosing pump control — applications where signal dropout can result in regulatory non-compliance or treatment failure. In metallurgical and steel mill control systems, the module’s high-temperature tolerance and EMI immunity make it suitable for electric arc furnace electrode regulation and continuous casting mold level control. Port and marine terminal automation systems use the SEA4D in crane load monitoring and ballast control applications, where reliable analog feedback is essential for safe cargo handling operations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the YOKOGAWA SEA4D?
The support terms confirmed by quotation cover all functional failures arising from manufacturing defects or component failure under normal operating conditions consistent with YOKOGAWA’s published specifications. This includes signal accuracy degradation, diagnostic false-alarm faults, and communication interface failures. Physical damage caused by incorrect installation, overvoltage beyond rated limits, or unauthorized modification is excluded. Support requests are processed with priority turnaround to minimize control system downtime.

Q2: What pre-shipment testing is performed on each SEA4D unit?
Every SEA4D unit undergoes a full functional verification prior to dispatch, including channel-by-channel signal accuracy testing across the 4–20 mA range, open-circuit and short-circuit fault detection confirmation, bus communication handshake verification, and visual inspection for physical integrity. Test records are retained and available upon request for quality audit purposes.

Q3: Is the SEA4D compatible with both CENTUM VP and CS3000 systems?
The SEA4D is designed for the CENTUM VP platform. Backward compatibility with CS3000 depends on the specific firmware revision and ESB bus configuration of the target system. Based on YOKOGAWA’s platform migration documentation, many CENTUM VP I/O modules support drop-in replacement in CS3000 cabinets with appropriate bus coupler configuration. We recommend confirming the target FCS firmware version before ordering for CS3000 integration.

Q4: Can long-term supply continuity be guaranteed for the SEA4D?
We maintain dedicated buffer stock of the SEA4D to support planned maintenance programs, emergency replacements, and blanket purchase agreements. For facilities operating CENTUM VP systems with multi-year maintenance contracts, we offer reserved inventory arrangements that guarantee availability against scheduled outage windows. Contact our sales team to discuss long-term supply agreements tailored to your plant’s spare parts management strategy.
