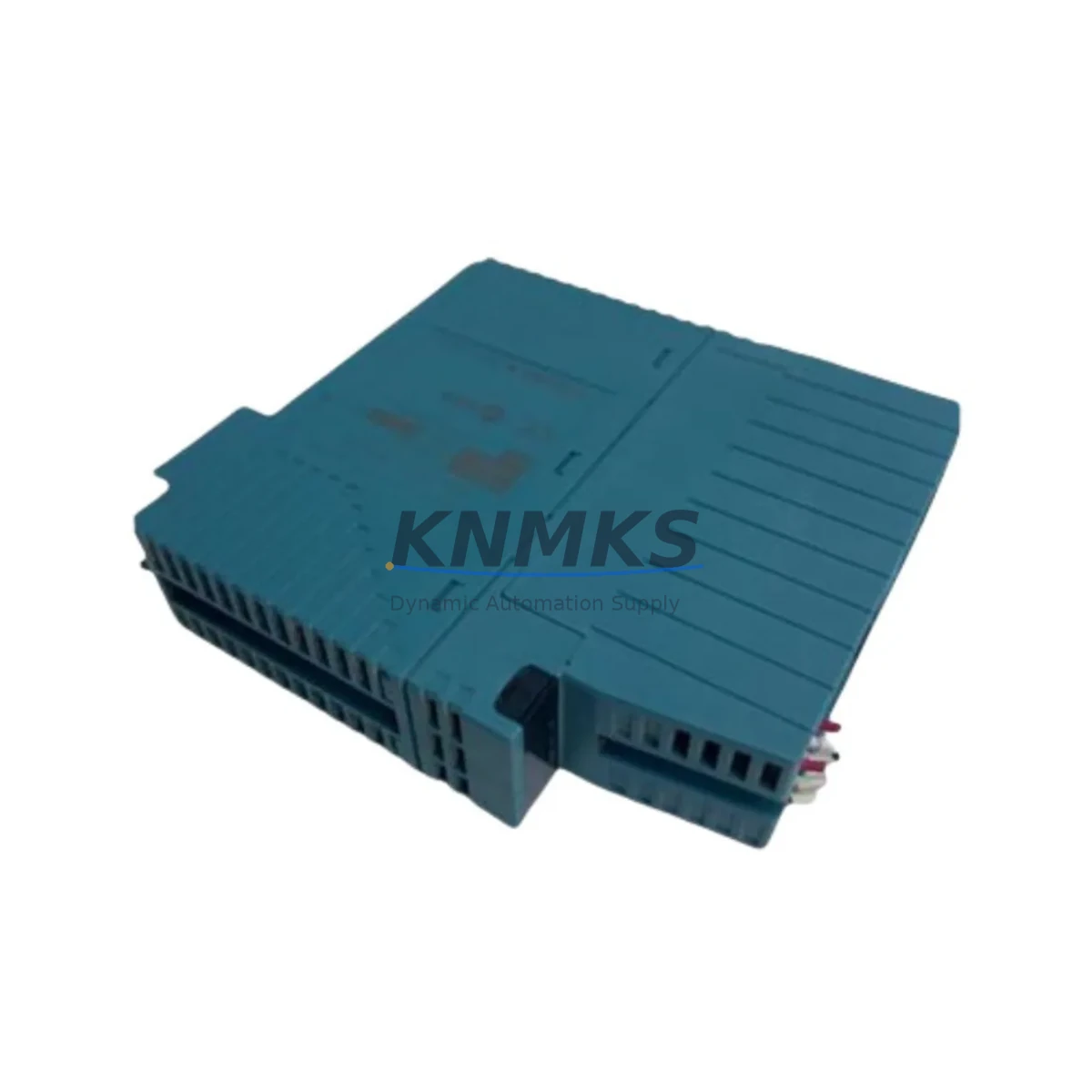

Yokogawa NFAR181-S00 Maintenance-Proven Spare Part for Factory Uptime

Overview

Yokogawa NFAR181-S00 Maintenance-Proven Spare Part for Factory Uptime

The Yokogawa NFAR181-S00 is an original RTD (Resistance Temperature Detector) input module designed for the ProSafe-RS Safety Instrumented System (SIS). As a certified safety I/O module operating within IEC 61511-compliant architectures, the NFAR181-S00 plays a critical role in temperature signal acquisition for process safety loops across oil & gas, petrochemical, power generation, and chemical plant environments. Maintaining an on-hand spare of the NFAR181-S00 is a fundamental requirement for any maintenance team responsible for ProSafe-RS system continuity and SIL-rated loop integrity.

When a safety I/O module such as the NFAR181-S00 fails or degrades, the consequences extend beyond a single channel — the entire safety function associated with that loop may be impaired, triggering a forced shutdown or placing the process in a degraded safety state. Rapid replacement with a tested, original spare is the only reliable path to restoring full SIS functionality without compromising the safety integrity level of the affected loop. Our NFAR181-S00 units are sourced from authorized channels, individually tested prior to shipment, and backed by a support terms confirmed by quotation covering both functional performance and hardware integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a ProSafe-RS system requires more than simply stocking the NFAR181-S00 in isolation. When performing a scheduled replacement or responding to a fault alarm on an RTD input channel, maintenance engineers should conduct a concurrent inspection of the surrounding safety loop infrastructure to prevent secondary failures from extending downtime.

Begin with the ProSafe-RS I/O backplane and chassis slot connectors — oxidized or mechanically worn backplane contacts are a common root cause of intermittent channel faults that are frequently misdiagnosed as module failure. Inspect the NFPR181-S00 power supply module or equivalent ProSafe-RS power distribution unit that feeds the I/O chassis; an unstable rail voltage will cause repeated RTD input errors even after a module swap. Verify the NFSV181-S00 or NFSV181-S10 safety CPU module firmware version is compatible with the replacement NFAR181-S00 to avoid configuration mismatch alarms on first boot.

On the field wiring side, inspect the RTD terminal blocks and marshalling panels connected to the NFAR181-S00 input channels. Corroded terminals, loose Pt100 sensor leads, or incorrect 2-wire vs. 3-wire RTD wiring configurations will produce persistent input errors that cannot be resolved by module replacement alone. If the plant uses signal isolators or safety barriers between field RTD sensors and the ProSafe-RS I/O, these should be tested for drift or degradation as part of the same maintenance window. Additionally, review the NFAI181-S00 analog input module installed in adjacent slots — cross-channel interference or shared ground faults can affect multiple I/O modules simultaneously.

For sites running extended annual turnarounds, it is best practice to pre-stage a complete spare set including the NFAR181-S00, associated terminal assemblies, and at least one spare ProSafe-RS communication module (NFCP181-S00) to ensure the safety network remains fully redundant throughout the maintenance period. Procurement engineers should establish a blanket stock agreement to maintain a minimum of two NFAR181-S00 units on-site, given the long lead times associated with safety-certified I/O modules from OEM channels.

Site Replacement Workflow

Replacing the NFAR181-S00 in a live ProSafe-RS system requires strict adherence to the site’s Management of Change (MOC) procedure and the SIS bypass protocol. Before initiating the swap, confirm that the affected safety loop has been placed in a defined safe state or that an approved bypass is active and documented. Power down the I/O chassis slot using the ProSafe-RS engineering workstation (SENG) before extracting the module — hot-swap capability varies by chassis revision and should be verified against the site-specific system configuration.

Remove the NFAR181-S00 by releasing the front locking lever and sliding the module clear of the backplane connector. Inspect the backplane pins for damage before inserting the replacement unit. After seating the new NFAR181-S00, use the SENG software to perform a channel-by-channel diagnostic check, confirming that all eight RTD input channels return valid process values within the expected engineering unit range. Verify that the module’s self-test status LED indicates normal operation before releasing the bypass and returning the safety loop to service.

This workflow is compatible with ProSafe-RS R3.xx and R4.xx platforms and supports direct replacement of legacy NFAR181-S00 units without requiring a full system reconfiguration, provided the replacement module carries the same hardware revision. For sites migrating from an older ProSafe-RS revision, consult the Yokogawa compatibility matrix or contact our technical team to confirm backward compatibility before ordering.

Spare Parts Support FAQ

Q1: Is the NFAR181-S00 compatible with both ProSafe-RS R3 and R4 platforms?
Yes. The NFAR181-S00 is designed for use across ProSafe-RS R3.xx and R4.xx controller platforms. Hardware revision markings on the module label should be cross-referenced with the site’s system configuration record to confirm slot compatibility. Our team can assist with revision verification prior to shipment.

Q2: What testing is performed before the NFAR181-S00 is shipped?
Each NFAR181-S00 unit undergoes functional power-on testing and channel-level input verification before dispatch. Units that do not pass our pre-shipment test protocol are not released for sale. A support terms confirmed by quotation is provided from the date of shipment, covering hardware defects and functional failures under normal operating conditions.

Q3: How quickly can the NFAR181-S00 be delivered for emergency breakdown situations?
We maintain regional stock of the NFAR181-S00 to support emergency breakdown orders. Express international shipping is available to most industrial regions. Contact our sales team at [email protected] or +86 18359268345 to confirm current stock availability and lead time for your location.

Q4: Can you support long-term supply of the NFAR181-S00 for multi-year maintenance contracts?
Yes. We offer blanket purchase order arrangements and long-term supply agreements for the NFAR181-S00 and related ProSafe-RS spare parts. This is particularly valuable for sites with extended turnaround cycles or those managing aging ProSafe-RS systems where OEM availability is constrained. Contact us to discuss volume pricing and scheduled delivery programs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

YOKOGAWA
Assorted Brands

Model / Series

NFAR181-S00
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: YOKOGAWA NFAR181-S00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
