YASKAWA JACP-317215 Migration-Ready CPU for CP-317 Systems

Overview

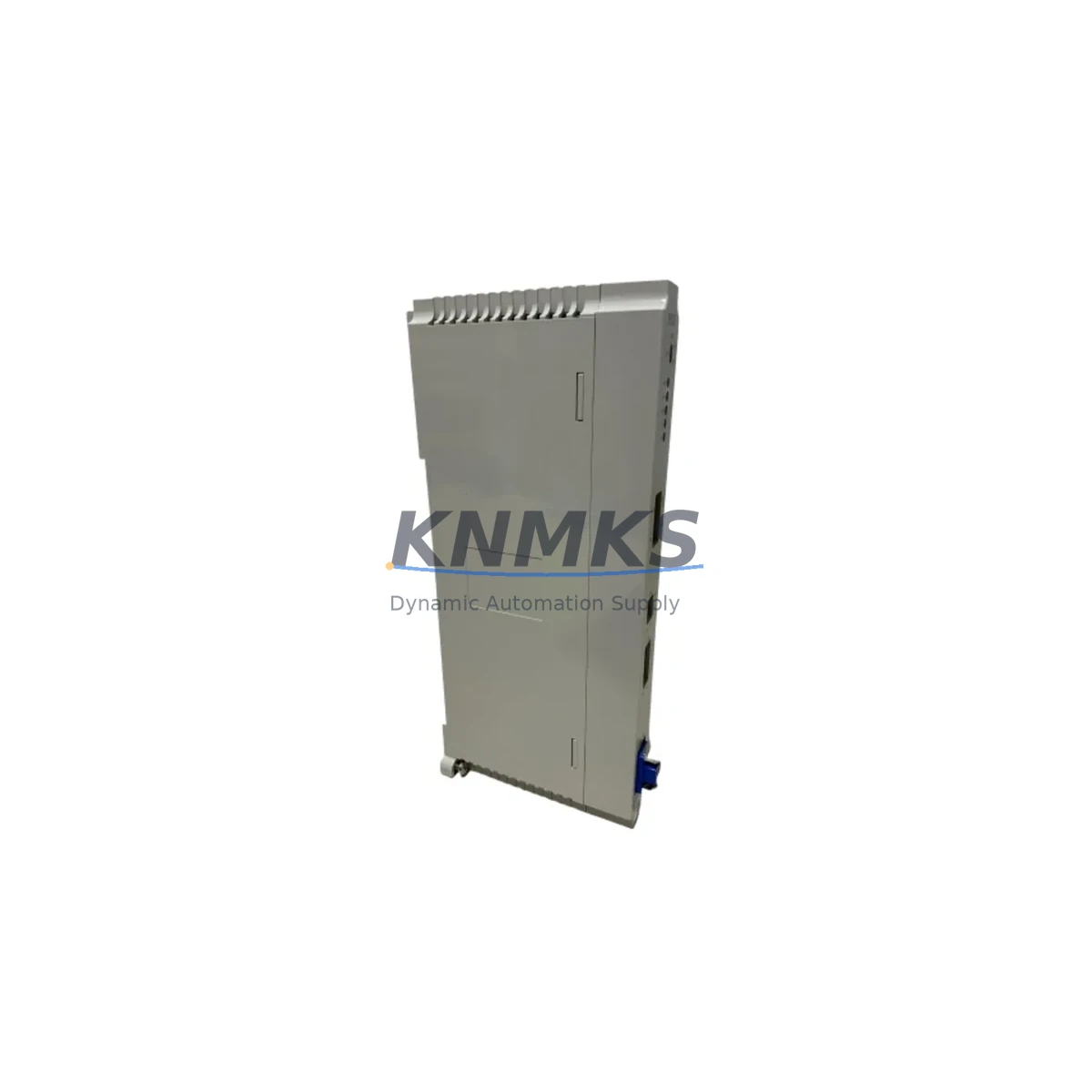

YASKAWA JACP-317215 Migration-Ready CPU for Legacy CP-317 Control Systems

The YASKAWA JACP-317215 is a migration-ready CPU module engineered as a validated replacement for aging CP-317 programmable logic controller platforms. As YASKAWA’s CP-317 series approaches end-of-life support cycles, facilities operating in petrochemical processing, power generation, water treatment, metallurgy, and port automation face increasing pressure to source reliable spare CPUs that can be installed without rewriting control logic or reconfiguring field wiring. The JACP-317215 addresses this challenge directly: it slots into the existing CP-317 rack, retains Memobus and Modbus RTU communication compatibility, and supports the original ladder logic program structure — allowing maintenance teams to restore system operation with minimal downtime.

Each unit supplied by KNMKS undergoes pre-shipment functional verification, including power-on self-test, memory integrity check, and communication port validation. A support terms confirmed by quotation is included with every shipment, backed by in-stock inventory held in Xiamen for rapid international dispatch. Whether you are managing a planned upgrade cycle or responding to an unplanned CPU failure, the JACP-317215 provides a dependable, cost-effective path to system continuity.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful JACP-317215 retrofit begins well before the replacement unit arrives on site. Maintenance engineers should first audit the full CP-317 rack configuration, documenting every installed module — including digital and analog I/O modules such as the JARCR-XFB01B and JARCR-XFB02B, the rack power supply module, and any communication interface cards bridging the CP-317 to upstream DCS or SCADA networks. This audit ensures that the replacement CPU is configured to address all I/O points correctly and that the rack power budget is not exceeded after the swap.

Communication continuity is a critical planning element. Many CP-317 installations use dedicated Memobus master/slave links to connect the CPU to remote I/O stations, variable frequency drives, and operator interface panels. Before removing the original CPU, engineers should capture all active communication parameters — baud rate, parity, station address, and timeout settings — from the existing configuration. These values must be replicated in the JACP-317215 during commissioning to prevent link failures that could affect production continuity.

HMI screen mapping is another area that requires pre-swap verification. Operator panels connected via Memobus or RS-232 serial links reference specific register addresses in the CPU. If the JACP-317215 is configured with a different memory map or register offset, HMI displays may show incorrect values or fail to respond to operator inputs. Coordinating with the HMI programming team — or retaining the original register map documentation — eliminates this risk before the replacement CPU is powered on.

For sites where the CP-317 rack also hosts signal conditioning modules or isolation barriers between field sensors and the CPU’s analog input channels, it is important to verify that the JACP-317215’s analog input scaling parameters match the original configuration. Mismatched scaling can cause process variable readings to drift outside normal operating bands, triggering spurious alarms or, in safety-critical applications, unintended shutdowns. Where the original CPU interfaced with a programming cable such as the JZRCR-YPP01 for ladder logic upload and download, the same cable and programming software version should be used with the JACP-317215 to ensure program transfer integrity.

Downtime Control During System Migration

Minimizing unplanned downtime during a CP-317 CPU replacement requires a structured, time-boxed approach. The recommended sequence begins with a full program backup from the existing CPU using the original programming software, followed by a rack power-down in a controlled maintenance window. The JACP-317215 is then installed in the same slot, module address switches are set to match the original configuration, and the rack is powered up for initial diagnostics before the program is reloaded.

Because the JACP-317215 is a validated drop-in replacement, the program reload process does not require logic recompilation or I/O remapping — the original ladder program can be transferred directly from the backup file. Communication links to field devices, including any connected remote I/O racks or serial-linked drives, should be verified sequentially after program load, starting with the highest-priority process loops. This staged verification approach allows the maintenance team to confirm system integrity before returning the process to automatic control, reducing the risk of a second unplanned outage caused by a missed configuration step.

For facilities with strict change management requirements, KNMKS can provide unit-level documentation including the pre-shipment test report and firmware version record, supporting the site’s modification management and audit trail processes. Maintaining a spare JACP-317215 in the site’s critical spare parts inventory — alongside the rack power supply module and key I/O modules — is strongly recommended to further reduce mean time to repair for future CPU failures.

Retrofit Support FAQ

Q1: Is the JACP-317215 a direct replacement for all CP-317 CPU variants?
The JACP-317215 is designed as a migration-ready replacement for the CP-317 CPU platform. Compatibility depends on the specific firmware version and rack configuration at your site. Please provide your existing CPU part number and firmware version when ordering so KNMKS can confirm compatibility and pre-configure the unit accordingly.

Q2: What commissioning steps are required after installing the JACP-317215?
After physical installation, the standard commissioning sequence includes: verifying module address switch settings, reloading the backed-up ladder program via the programming cable, confirming Memobus/Modbus communication link status, and performing a controlled I/O check across all connected field devices. KNMKS provides a commissioning checklist with each shipment to guide on-site engineers through this process.

Q3: Can the original field wiring and terminal connections be reused?
Yes. The JACP-317215 uses the same backplane connector and terminal layout as the original CP-317 CPU, so no rewiring is required. It is recommended to inspect all connector pins and terminal screws for corrosion or looseness before reinstalling the rack cover, particularly in high-humidity or chemically aggressive environments.

Q4: What does the support terms confirmed by quotation cover, and what is the lead time?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Units confirmed dead-on-arrival (DOA) are eligible for priority replacement. KNMKS maintains in-stock inventory of the JACP-317215 in Xiamen; standard international shipping lead time is 3–7 business days depending on destination. Express dispatch is available for urgent breakdown situations.
