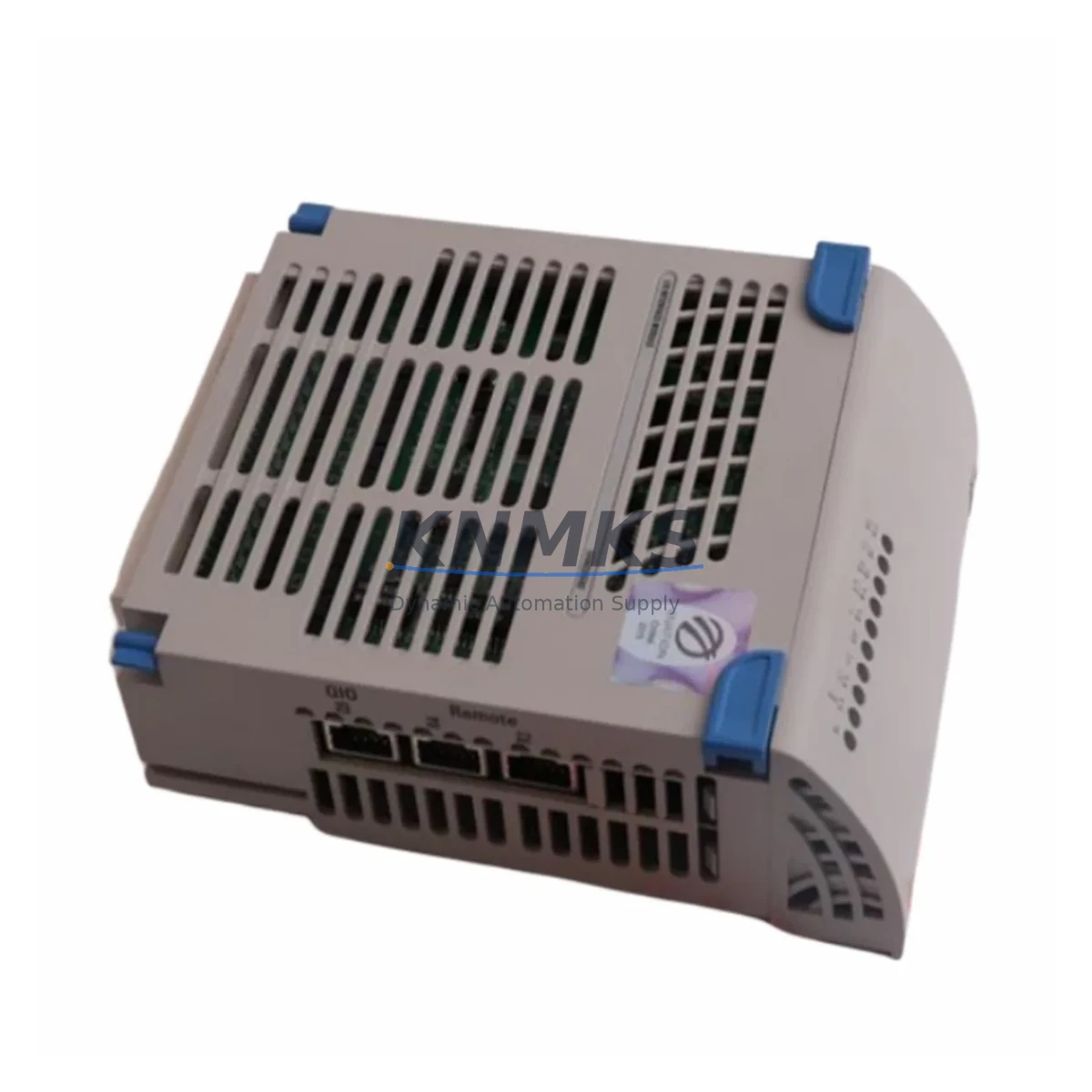

Westinghouse 1C31147G01 Migration-Ready Pulse Accumulator

Overview

Westinghouse 1C31147G01 Migration-Ready Pulse Accumulator for Legacy Control Systems

The Westinghouse 1C31147G01 is a Pulse Accumulator Input Module designed for the Ovation Distributed Control System (DCS) platform. As legacy Ovation installations approach end-of-life support cycles, the 1C31147G01 remains a critical spare for power generation, water treatment, and process industries that depend on high-accuracy pulse counting for flow measurement, turbine speed monitoring, and utility metering. This module is sourced from verified inventory, pre-shipment tested, and backed by a support terms confirmed by quotation — making it a reliable choice for both emergency replacement and planned retrofit programs.

Whether you are managing an unplanned outage or executing a phased control system upgrade, the 1C31147G01 provides a direct drop-in path that preserves existing wiring terminations, module addressing, and Ovation controller logic without requiring program rewrites or HMI screen modifications.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 1C31147G01 in an operating Ovation system requires careful coordination across several interdependent components. Before pulling the module, maintenance engineers should confirm the Ovation I/O backplane slot assignment and verify that the replacement module’s firmware revision is compatible with the installed Ovation controller version. In multi-drop Ovation architectures, the I/O drop number and node address must be documented prior to removal to avoid communication faults on the Ovation network after reinsertion.

Terminal wiring on the 1C31147G01 follows the standard Ovation field termination assembly (FTA) layout. If the site uses a remote termination panel, confirm that the FTA cable — typically a 1C31194 or equivalent Ovation FTA interconnect cable — is intact and correctly seated before powering the replacement module. In installations where the Ovation power supply module (such as the 1X00024H01 or 5X00106G01 series) is shared across multiple I/O drops, verify that the available 24 VDC or 5 VDC rail capacity is sufficient to support the replacement module without triggering an undervoltage condition on adjacent modules.

For sites running Ovation version 3.x or later, the Ovation Developer Studio workstation is used to verify module configuration and confirm that the pulse accumulator channel assignments match the existing control narrative. If the site operates legacy Ovation 1.x or 2.x software, consult the Ovation I/O module compatibility matrix before proceeding. In parallel, the Ovation communication module — often an OCR400 or OCR1100 controller — should be checked to confirm that the I/O scan rate and module health status are correctly reported after the swap.

Where the retrofit involves upgrading from an older Westinghouse WDPF (Distributed Processing Family) platform to Ovation, the 1C31147G01 may serve as part of a broader I/O migration strategy. In these scenarios, signal isolators and marshalling panels are often introduced to bridge legacy WDPF field wiring to the Ovation FTA format, and the Ovation 1C31234G01 analog input module or 1C31166G01 digital output module may be installed in adjacent slots as part of the same cabinet upgrade. Proper labeling of all terminal connections and a pre-migration wiring audit are essential steps before any live cutover.

Downtime Control During System Migration

Minimizing unplanned downtime during a 1C31147G01 replacement begins with advance preparation. Sourcing a verified, pre-tested spare before the scheduled maintenance window eliminates the risk of receiving an untested or incompatible module on short notice. Our pre-shipment functional test confirms that the module powers up correctly, communicates on the Ovation I/O bus, and passes channel-level diagnostics before leaving the warehouse.

During the physical swap, the Ovation controller should be placed in manual mode for the affected control loops to prevent process upsets while the module is offline. The existing module should be removed with the Ovation I/O drop powered down where possible, following the site’s lockout/tagout (LOTO) procedure. After inserting the replacement 1C31147G01, the Ovation system will typically perform an automatic module recognition sequence — confirm that the module status LED indicates a healthy state and that the Ovation operator station reports no I/O faults before returning the affected loops to automatic control.

For critical applications where even brief interruptions are unacceptable, a hot-standby or redundant I/O strategy using Ovation’s redundant controller pair (such as the OCR400 redundant controller set) can be evaluated as part of a longer-term upgrade plan. Documenting the pre-swap and post-swap Ovation diagnostic snapshots provides a clear audit trail and supports future maintenance planning. With a verified spare, a structured cutover procedure, and a support terms confirmed by quotation covering the replacement module, the total risk exposure of the migration is significantly reduced.

Retrofit Support FAQ

Q: Is the 1C31147G01 a direct replacement for the original Westinghouse Ovation Pulse Accumulator module?
A: Yes. The 1C31147G01 is a direct form-fit-function replacement. It installs into the same Ovation I/O backplane slot, uses the same FTA wiring terminations, and retains the existing module address — no changes to the Ovation control program or HMI graphics are required.

Q: What pre-shipment testing is performed before dispatch?
A: Each 1C31147G01 unit undergoes a functional power-on test and Ovation I/O bus communication verification before shipment. A test report is available upon request. All units are dispatched with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: How do I confirm firmware compatibility with my installed Ovation controller version?
A: Check the firmware revision label on the module and cross-reference it with the Ovation I/O module compatibility matrix for your controller version (OCR400, OCR1100, or equivalent). If you are unsure, provide your Ovation system version and controller model when placing your order and our technical team will confirm compatibility before dispatch.

Q: What is the lead time and stock availability?
A: The 1C31147G01 is held availability confirmed by RFQ and available for immediate dispatch. Standard lead time for in-stock units is 1–3 business days. For urgent outage support, expedited shipping options are available. Contact us to confirm current stock levels and delivery timelines for your location.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Westinghouse
Assorted Brands

Model / Series

1C31147G01
Assorted Series

Product Family

I/O Modules

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

I/O range

Digital, analog and remote I/O modules

Common needs

Channel count, signal and bus type

Project support

PLC expansion and distributed control

Inquiry Support

• Digital and analog signal matching
• Remote station and rack expansion support
• Spare module inquiry for downtime recovery

What to Send Us

• Brand and exact model number: Westinghouse 1C31147G01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
