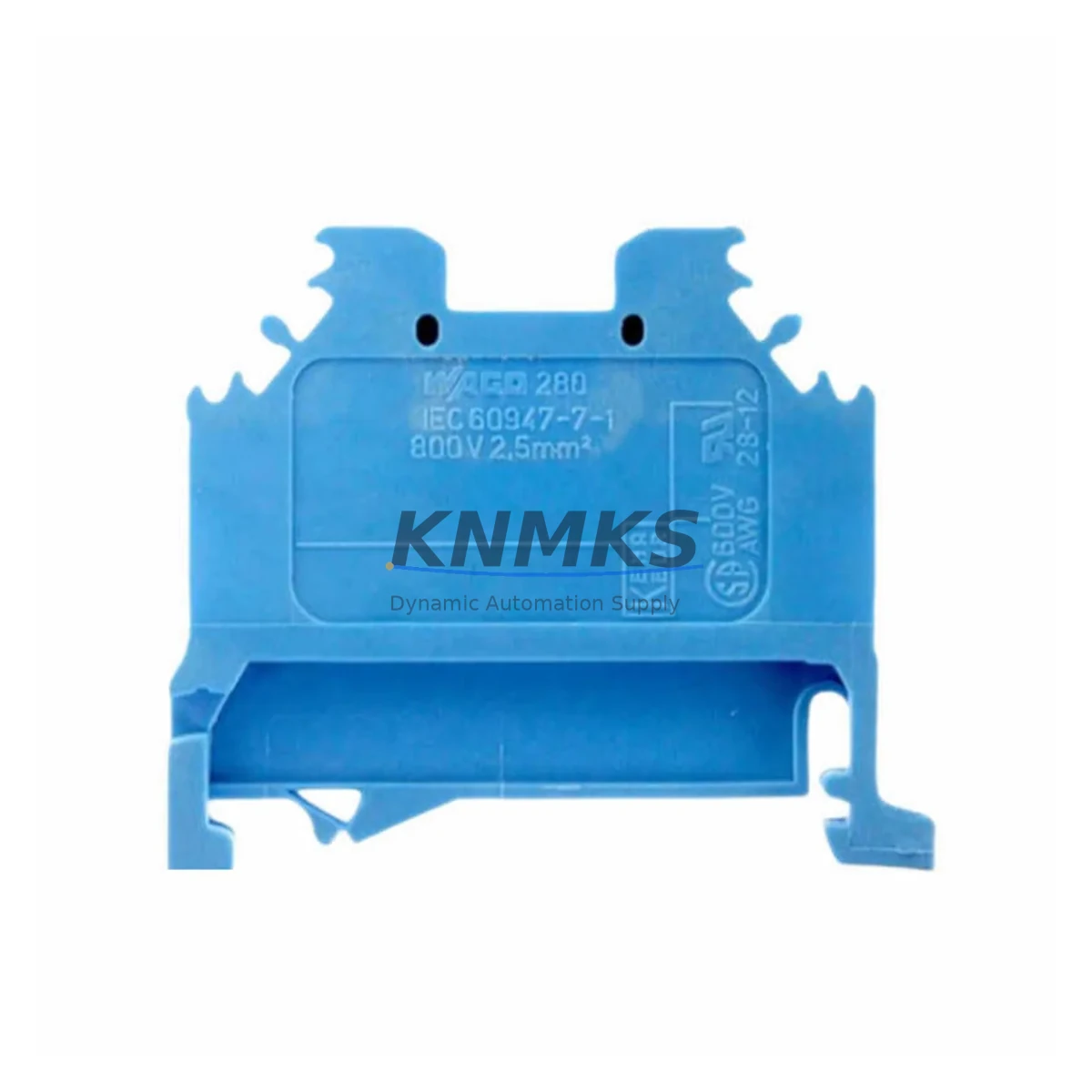

WAGO 280-104 Migration-Ready Terminal Block for Legacy Systems

Overview

WAGO 280-104 Migration-Ready Terminal Block for Legacy Control Systems

The WAGO 280-104 is a TOPJOB S series through terminal block rated at 32A and 800V, engineered for direct integration into existing control cabinets and legacy wiring infrastructure. As industrial facilities face increasing pressure to modernize aging automation systems without full panel rebuilds, the 280-104 provides a reliable, code-compliant drop-in solution that preserves existing wiring layouts while meeting current IEC and UL standards. Its push-in CAGE CLAMP® connection technology eliminates the need for ferrules or screwdrivers, significantly reducing installation time during retrofit operations and minimizing the risk of wiring errors in live panel environments.

For maintenance engineers managing end-of-life control systems, the 280-104 is a direct functional replacement for older screw-type terminal blocks commonly found in legacy Siemens, Allen-Bradley, and Schneider Electric control cabinets. The 6mm² conductor cross-section and standard 6mm pitch are dimensionally compatible with most DIN rail assemblies built to EN 50022 specifications, allowing side-by-side installation with existing terminal rows without requiring new DIN rail sections or jumper bar modifications.

When planning a retrofit involving the WAGO 280-104, engineers should verify the following before committing to a replacement schedule: available panel depth and width for DIN rail mounting, existing conductor gauge and insulation type, current terminal marking system compatibility, and whether existing jumper bridges (such as the WAGO 280-492 or 280-400 series cross-connectors) are reusable. In many legacy installations, the 280-104 can be installed alongside WAGO 281-series or 282-series terminal blocks within the same rail section, preserving mixed-density wiring configurations common in older PLC I/O marshalling panels.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the WAGO 280-104 into a legacy automation system requires a structured pre-installation audit. Begin by documenting the existing terminal block layout, including the number of occupied positions, jumper bridge groupings, and any terminal-mounted components such as fuse holders or disconnect links. In panels where WAGO 281-611 or 281-612 fused terminal blocks are already installed, the 280-104 can be inserted into the same rail section without disrupting the fused circuit groupings, provided the rail end brackets are repositioned to accommodate the new terminal body width.

For PLC I/O marshalling applications — particularly in legacy Siemens S5 or S7-300 systems where field wiring terminates at intermediate terminal strips before connecting to I/O module connectors — the 280-104 provides a reliable intermediate termination point. Engineers should confirm that the existing WAGO 280-110 or 280-107 end stop brackets are in serviceable condition and that the rail grounding continuity is maintained through the replacement section. In installations using WAGO 788-series or 750-series I/O modules with direct field wiring, the 280-104 can serve as the marshalling terminal, with signal cables routed to the module’s front connector via short jumper wires.

Power distribution panels undergoing partial modernization often retain legacy 24VDC WAGO 787-series power supply units alongside newer components. In these mixed environments, the 280-104 is well-suited for distributing 24VDC control power to field devices, with its 32A rating providing adequate headroom for multi-branch distribution without requiring a larger terminal block format. Where analog signal integrity is a concern — particularly in 4–20mA loop wiring — consider installing WAGO 857-series signal conditioners or isolators adjacent to the 280-104 terminal row to prevent ground loop interference introduced during the retrofit process.

Before finalizing the retrofit plan, confirm that the control cabinet has sufficient internal volume to accommodate any changes in terminal block depth or height. The 280-104’s compact profile is generally compatible with standard 200mm and 300mm deep enclosures, but panels with tight cable duct routing may require minor duct repositioning. Document all wiring changes in the as-built drawings and update the terminal block schedule to reflect the new 280-104 positions and their associated circuit references.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy terminal block replacement project. For the WAGO 280-104, the push-in CAGE CLAMP® connection technology is a significant advantage: conductors can be inserted and released without tools, allowing individual terminals to be replaced one at a time while adjacent circuits remain energized — provided that appropriate arc flash and electrical safety procedures are followed per NFPA 70E or IEC 60900 standards.

The recommended approach for live-panel terminal replacement is a sequential substitution method: identify and label each conductor before removal, replace the terminal block in the vacated position, reinsert the conductor, and verify continuity before moving to the next position. This method preserves the original program logic in the connected PLC — whether a legacy Allen-Bradley SLC 500, Siemens S7-300, or Mitsubishi Q-series controller — because no I/O signals are interrupted simultaneously. HMI screens connected to the control system will continue to display accurate process values throughout the replacement sequence, provided that each conductor is re-terminated within the same scan cycle window.

For systems where a planned shutdown is unavoidable, pre-stage all replacement 280-104 terminals on a spare DIN rail section, pre-label them according to the existing terminal schedule, and prepare a conductor transfer checklist organized by circuit priority. Critical control circuits — such as emergency stop loops, safety relay inputs, and motor starter interlocks — should be transferred last and verified with a loop test before the system is re-energized. After re-energization, perform a full I/O scan from the PLC programming terminal to confirm that all input and output addresses are responding correctly before releasing the system to production.

Retrofit Support FAQ

Q1: Is the WAGO 280-104 a direct replacement for older screw-type terminal blocks in legacy control panels?
Yes. The 280-104 is dimensionally and electrically compatible with most 6mm pitch screw-type terminal blocks rated up to 32A/800V, including common types from Phoenix Contact, Weidmüller, and Klippon. The push-in connection replaces the screw mechanism without requiring changes to conductor preparation or DIN rail mounting. Verify conductor cross-section is within the 0.5–6mm² range before installation.

Q2: What commissioning steps are required after installing the 280-104 in a PLC I/O panel?
After installation, perform a point-to-point continuity check on each replaced terminal using a calibrated multimeter or loop tester. For analog signal circuits, verify the 4–20mA loop current at both the transmitter and the PLC analog input module to confirm no signal degradation. For digital I/O circuits, force each input and output from the PLC programming terminal and confirm the field device responds correctly. Document all test results in the commissioning record.

Q3: Are existing WAGO jumper bars and cross-connectors compatible with the 280-104?
The 280-104 is compatible with WAGO 280-400 series cross-connectors and 280-492 jumper bars. Before reusing existing jumper bars, inspect them for corrosion, deformation, or contact wear. Damaged jumper bars should be replaced to ensure reliable electrical continuity across the terminal group. New jumper bars are available in 2, 3, 5, and 10-position configurations to match the existing grouping layout.

Q4: What support terms and pre-shipment testing is provided with the WAGO 280-104?
All WAGO 280-104 units supplied by KNMKS are covered by a support terms confirmed by quotation against manufacturing defects from the date of delivery. Pre-shipment inspection includes dimensional verification, CAGE CLAMP® mechanism function test, and conductor insertion/release cycle check. Units are shipped in original WAGO packaging with batch traceability documentation. Expedited stock is available for urgent maintenance and breakdown replacement requirements.
