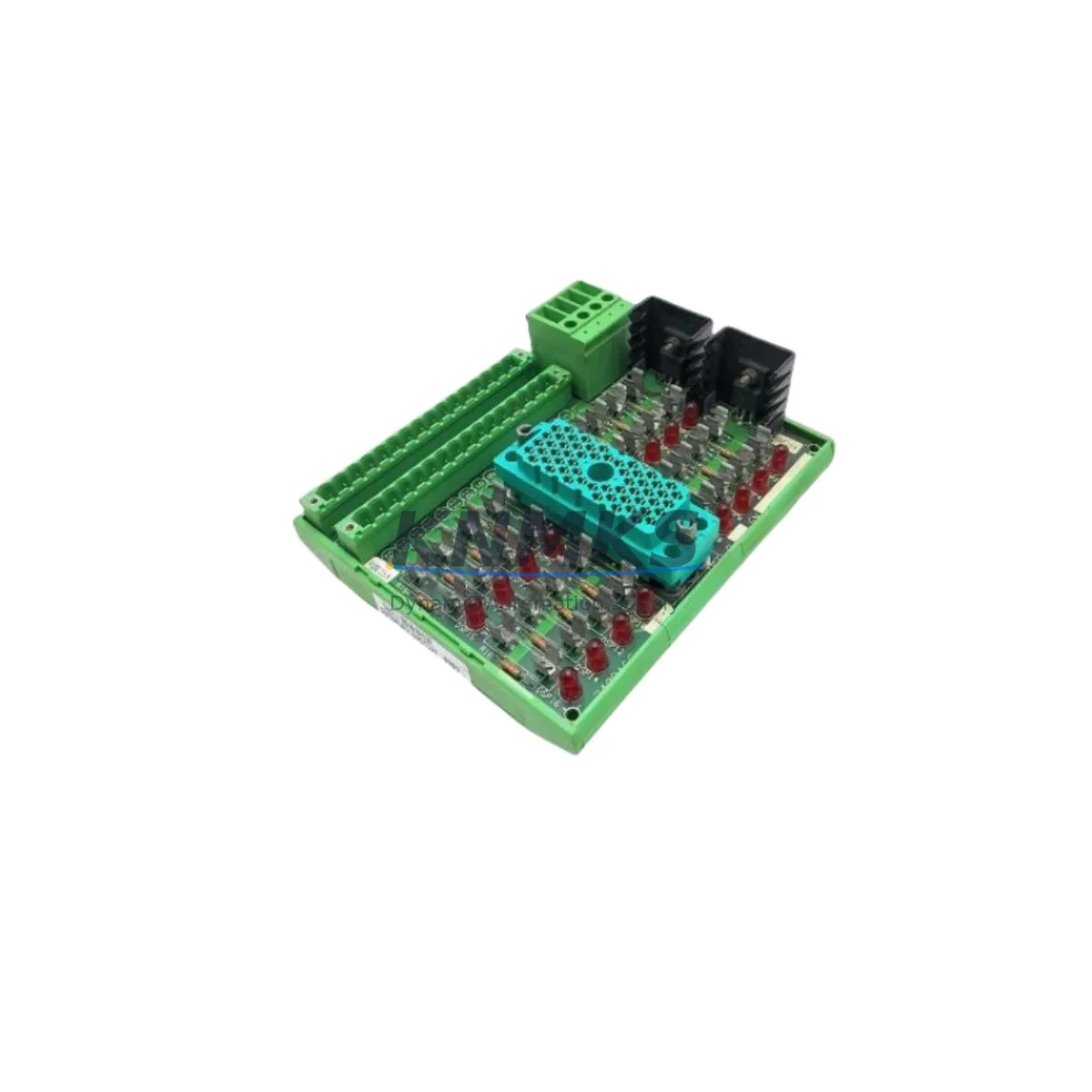

Triconex 9662-810 Fail-Safe Termination Panel for TMR Control

Overview

Triconex 9662-810 Fail-Safe Termination Panel for TMR Control: Fault Protection and Critical Industrial Field Reliability

The Triconex 9662-810 is a safety-grade termination panel engineered for deployment within Tricon Triple Modular Redundant (TMR) safety instrumented systems. Designed to meet the rigorous demands of continuous process industries, this termination panel serves as the critical interface between field wiring and the Tricon I/O modules, ensuring that signal integrity, loop continuity, and fail-safe behavior are maintained even under the most demanding operational conditions.

In high-stakes environments such as petrochemical plants, offshore platforms, power generation facilities, and LNG terminals, the reliability of every connection point within a safety instrumented system (SIS) is non-negotiable. The 9662-810 termination panel is purpose-built to eliminate the risk of signal degradation, loose terminations, and wiring-induced faults that can compromise the integrity of a safety loop. Its robust mechanical construction and surge-protected terminal architecture ensure that field signals arrive at the Tricon processor modules cleanly and without distortion, even in the presence of high electromagnetic interference (EMI), ground loops, or transient voltage spikes common in heavy industrial environments.

When integrated into a Tricon TMR architecture, the 9662-810 works in close coordination with Tricon I/O modules such as the Triconex 3703E Digital Input Module and the Triconex 3805E Analog Output Module, providing a stable, tested termination point that supports the full redundancy model of the TMR platform. The panel’s field-side terminals are designed for reliable multi-conductor connections, reducing the risk of intermittent contact failures that could trigger spurious trips or, worse, mask a genuine process hazard.

In control cabinet environments where space, heat, and cable density are constant challenges, the 9662-810’s compact form factor and organized terminal layout simplify both initial installation and long-term maintenance. Technicians performing loop checks, calibration, or emergency repairs can access individual field terminations without disturbing adjacent circuits — a critical advantage during live plant operations where minimizing intervention scope is essential to safety. This ease of access also supports the use of companion components such as the Triconex 9662-800 Standard Termination Panel in adjacent slots, allowing mixed-signal architectures to be maintained with consistent tooling and procedures.

The 9662-810 is rated for operation across a wide temperature range and is constructed to withstand the vibration, humidity, and particulate exposure typical of field-adjacent control rooms in mining, metallurgy, and water treatment applications. Its terminal blocks are designed to resist loosening under sustained mechanical vibration — a failure mode that has caused unplanned shutdowns in rotating machinery and compressor control applications. For facilities operating Triconex TREX Communication Modules or Triconex 4351B Enhanced Intelligent Field Interface (EIFI) units, the 9662-810 provides a compatible, validated termination solution that preserves the diagnostic transparency of the overall SIS architecture.

From a spare parts and lifecycle management perspective, the Triconex 9662-810 is a high-priority stocking item for any facility running Tricon-based safety systems. Termination panels are subject to wear from repeated field wiring changes, and maintaining a validated spare on-site eliminates the risk of extended downtime during a panel replacement event. KNMKS maintains verified stock of the 9662-810 with full pre-shipment functional testing, ensuring that every unit shipped is ready for immediate installation without requiring additional bench verification at the receiving facility.

All units are covered by a support terms confirmed by quotation from the date of shipment and are supported by KNMKS’s global logistics network for delivery details confirmed by RFQ to petrochemical, power, mining, water treatment, metallurgical, port, and marine vessel control applications worldwide.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust Tricon-based safety cabinet depends on the coordinated reliability of every component in the signal chain. The Triconex 9662-810 anchors the field termination layer, but its effectiveness is amplified when paired with a complete cabinet protection strategy. The Triconex 3703E Digital Input Module receives field device status signals through the 9662-810’s terminals, while the Triconex 3805E Analog Output Module drives final control elements based on the TMR-voted logic output. For power conditioning, the Triconex 8312 Power Supply Module provides the regulated, redundant DC power required to sustain uninterrupted SIS operation during utility fluctuations or switchgear events.

In applications where field communication integrity is critical, the Triconex TREX Communication Module extends the diagnostic reach of the Tricon system to remote I/O nodes, with the 9662-810 ensuring that the local termination layer does not become a single point of failure. For facilities managing complex interlock architectures, the Triconex 4351B Enhanced Intelligent Field Interface (EIFI) provides an additional layer of field-side diagnostics that complements the passive reliability of the termination panel. Together, these components form a layered cabinet protection strategy that addresses signal integrity, power stability, communication continuity, and field-side fault detection — the four pillars of uninterrupted SIS performance.

Critical Industrial Safety Applications

The Triconex 9662-810 is deployed across a broad spectrum of safety-critical industries where control system reliability directly determines process safety and regulatory compliance:

• Petrochemical & Refining: Emergency shutdown (ESD) and high-integrity pressure protection systems (HIPPS) where spurious trips and missed shutdowns both carry severe consequences.
• Power Generation: Turbine protection, boiler safety, and grid-connected generator interlock systems requiring continuous, validated signal paths.
• Mining & Minerals Processing: Conveyor interlock, crusher protection, and ventilation safety systems operating in high-vibration, high-dust environments.
• Water & Wastewater Treatment: Pump protection, chemical dosing interlocks, and overflow prevention systems where signal reliability prevents environmental incidents.
• Metallurgy & Steel: Furnace safety, rolling mill protection, and cooling system interlocks in high-temperature, high-EMI production environments.
• Port & Marine: Cargo handling safety systems, vessel automation, and loading arm interlock panels exposed to salt air, vibration, and wide temperature swings.
• Continuous Manufacturing: Process safety systems in pharmaceutical, food processing, and specialty chemical plants where unplanned downtime carries both safety and regulatory risk.

Safety and Quality FAQ

Q1: What support terms does the Triconex 9662-810 carry?
All Triconex 9662-810 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. This support terms covers manufacturing defects and functional failures under normal operating conditions. KNMKS provides direct technical support and replacement coordination throughout the confirmed support period.

Q2: Is the 9662-810 tested before shipment?
Yes. Every unit undergoes full pre-shipment functional verification at KNMKS’s facility before dispatch. This includes terminal continuity checks, surge protection validation, and physical inspection to confirm the unit meets Triconex OEM specifications. A test report is available upon request.

Q3: Is the Triconex 9662-810 compatible with all Tricon TMR system versions?
The 9662-810 is designed for use with Tricon v9 and v10 TMR safety systems. Compatibility with specific I/O module types and chassis configurations should be verified against the Tricon system documentation or confirmed with KNMKS technical support prior to ordering, particularly for legacy or mixed-version installations.

Q4: Can KNMKS support long-term spare parts supply for the 9662-810?
Yes. KNMKS maintains ongoing stock of the Triconex 9662-810 and supports long-term spare parts planning for facilities with 12- to 36-month procurement horizons. For multi-site or framework supply agreements, contact KNMKS directly to discuss volume availability, lead times, and consignment options.
