TRICONEX 3003 Maintenance-Proven Spare Part for Factory Uptime

Overview

TRICONEX 3003 Maintenance-Proven Spare Part for Factory Uptime

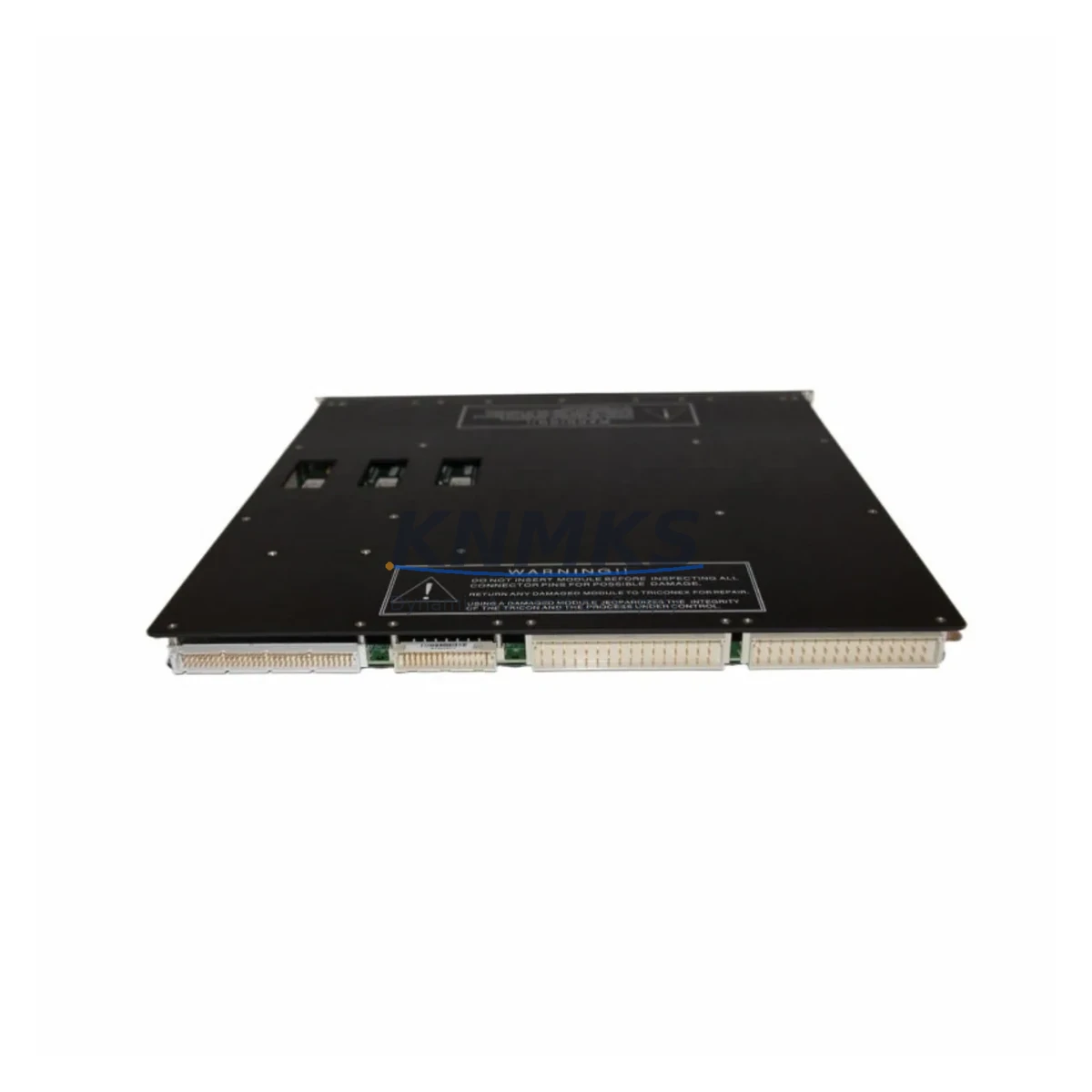

The TRICONEX 3003 is the main processor module for the Tricon Triple Modular Redundant (TMR) Safety PLC platform — one of the most widely deployed safety instrumented systems (SIS) in oil & gas, petrochemical, power generation, and continuous process industries. Maintaining an on-hand spare of the 3003 processor is a foundational element of any credible SIS maintenance strategy. When a processor fault is detected, the TMR architecture allows the system to continue operating on the remaining two legs, but the faulted module must be replaced promptly to restore full redundancy and SIL 3 integrity. Delays in sourcing a verified replacement directly extend the window of reduced safety margin — a risk no maintenance or process safety engineer should accept.

Every TRICONEX 3003 unit supplied by KNMKS is sourced from authorized channels, subjected to pre-shipment functional verification, and shipped with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions. Our inventory is maintained specifically to support emergency breakdown response, planned annual turnarounds, and long-term spare parts programs for facilities running legacy Tricon systems that may no longer be covered by OEM support contracts.

From the perspective of a maintenance engineer, the 3003 processor is not an isolated component — it is the operational core of the Tricon chassis. Its replacement must be coordinated with a clear understanding of the surrounding hardware and firmware environment. From the perspective of a procurement engineer, sourcing a verified 3003 spare from a reliable supplier with documented testing and support terms coverage is a risk-control decision, not merely a purchasing transaction.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the TRICONEX 3003 processor in a live Tricon system requires more than simply swapping the module. A disciplined maintenance engineer will use the replacement event as an opportunity to inspect and verify the condition of all interdependent components in the same chassis and control cabinet. This approach reduces the risk of a secondary fault occurring shortly after the primary repair — a common cause of extended downtime in aging SIS installations.

Begin with the Tricon power supply modules (typically the 8310 or 8311 series). These modules supply regulated DC power to the processor and I/O modules via the backplane. A degraded power module may have contributed to the processor fault or may cause premature failure of the replacement unit. Inspect output voltage levels and ripple characteristics before commissioning the new 3003.

Next, verify the condition of the Tricon I/O modules installed in the same chassis. Digital input modules (such as the 3501 or 3503 series) and digital output modules (such as the 3601 or 3603 series) communicate with the processor via the Tribus backplane. A faulty I/O module can generate spurious diagnostics that complicate post-replacement commissioning. Confirm that all I/O modules report healthy status in TriStation 1131 before returning the system to service.

The Tricon communication modules — including the Enhanced Intelligent Communication Module (EICM) or the Advanced Communication Module (ACM) — should also be inspected. These modules handle Modbus, OPC, and peer-to-peer communication with the DCS or SCADA layer. A communication module with degraded firmware or hardware faults can mask processor diagnostics and delay fault isolation during the next incident.

For facilities using Tricon termination assemblies and field wiring panels, the replacement event is also an appropriate time to inspect terminal blocks, fuse holders, and signal wiring for signs of corrosion, loose terminations, or insulation degradation — particularly in high-humidity or high-vibration environments. Signal integrity at the field termination level directly affects the quality of data processed by the 3003 and its I/O subsystem.

Finally, review the status of the Tricon chassis backplane itself. While backplane failures are relatively rare, they are difficult to diagnose and can cause intermittent processor faults that are misattributed to the processor module. If the 3003 has failed more than once in the same chassis slot within a short interval, backplane integrity should be formally evaluated before installing another replacement unit.

Procurement engineers building a spare parts list for a Tricon-based SIS should consider stocking at minimum one 3003 processor, one power supply module, and one representative I/O module per installed chassis. For critical applications with no tolerable downtime, a complete hot-standby chassis assembly may be justified. KNMKS supports long-term supply agreements for facilities requiring guaranteed availability of Tricon spare parts beyond the OEM’s standard support window.

Site Replacement Workflow

The TRICONEX 3003 is designed for replacement within the TMR architecture without requiring a full system shutdown, provided the replacement procedure is followed correctly. The following workflow reflects standard field practice for maintenance engineers performing a processor module swap in a live Tricon system:

Step 1 — Pre-Replacement Verification: Confirm that the system is operating on two healthy processor legs before initiating replacement. Do not proceed if two or more legs are already faulted. Document the current firmware revision and application program checksum using TriStation 1131.

Step 2 — Spare Part Inspection: Inspect the replacement 3003 module for physical damage. Verify that the firmware revision on the replacement unit matches the installed system. If the revision does not match, consult the Tricon firmware compatibility matrix before proceeding. KNMKS provides firmware revision documentation with each unit shipped.

Step 3 — Module Removal: Follow the Tricon hardware manual procedure for removing the faulted processor module from the chassis. The TMR architecture allows hot removal of a single faulted processor leg without interrupting the safety function, but the procedure must be executed in the correct sequence to avoid triggering a system shutdown.

Step 4 — Module Installation: Insert the replacement 3003 module into the vacated chassis slot. The system will automatically synchronize the new module with the running application program and I/O state. Monitor the synchronization process in TriStation 1131 until the new leg reports a healthy status.

Step 5 — Post-Replacement Validation: Confirm that all three processor legs report healthy status. Verify I/O module diagnostics, communication module status, and application program integrity. Document the replacement in the site maintenance log, including the serial number of the removed module and the replacement unit.

This workflow applies equally to planned replacements during annual turnarounds and emergency replacements during unplanned outages. The key difference is preparation time — a well-maintained spare parts inventory eliminates the sourcing delay that is the primary driver of extended downtime in emergency scenarios.

Spare Parts Support FAQ

Q1: What is the support terms coverage for the TRICONEX 3003 supplied by KNMKS?
All TRICONEX 3003 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and operational failures occurring under normal service conditions consistent with the Tricon hardware specifications. Units that have been physically damaged, modified, or operated outside specified environmental limits are excluded from support terms coverage. Support requests are processed directly through KNMKS; contact [email protected] to initiate a claim.

Q2: How do I verify compatibility between the replacement 3003 and my installed Tricon system?
Compatibility is primarily determined by firmware revision and chassis generation. The 3003 is compatible with Tricon main chassis configurations using the standard 3-slot processor bay. Before ordering, provide KNMKS with your installed firmware revision and chassis model number. Our technical team will confirm compatibility and, where applicable, advise on firmware alignment requirements. Pre-shipment functional testing is performed on all units to verify baseline operational integrity.

Q3: Can KNMKS support long-term spare parts supply for end-of-life Tricon systems?
Yes. KNMKS maintains inventory specifically to support facilities operating legacy Tricon systems that are no longer covered by OEM support contracts. We offer long-term supply agreements that provide guaranteed availability, priority allocation, and fixed pricing for critical spare parts including the 3003 processor, power supply modules, and I/O modules. Contact [email protected] to discuss a supply agreement tailored to your maintenance program.

Q4: What pre-shipment testing is performed on the TRICONEX 3003 before delivery?
Each TRICONEX 3003 unit undergoes functional verification prior to shipment. Testing includes power-on self-test confirmation, backplane communication verification, and firmware revision documentation. Units are shipped in ESD-safe packaging with a test report and relevant documentation. This process ensures that the unit received on-site is ready for installation without requiring additional bench testing, minimizing the time between receipt and return-to-service in emergency replacement scenarios.
