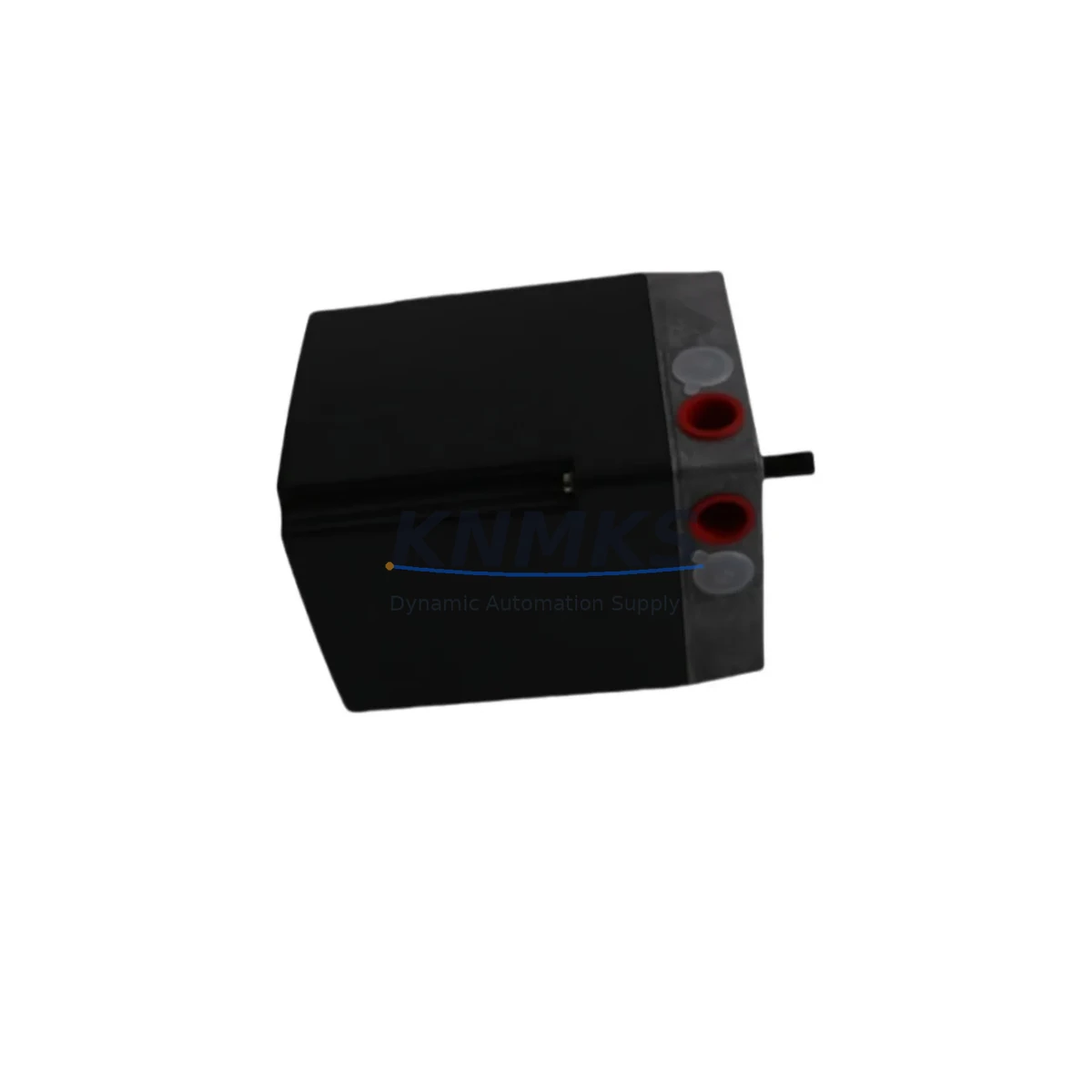

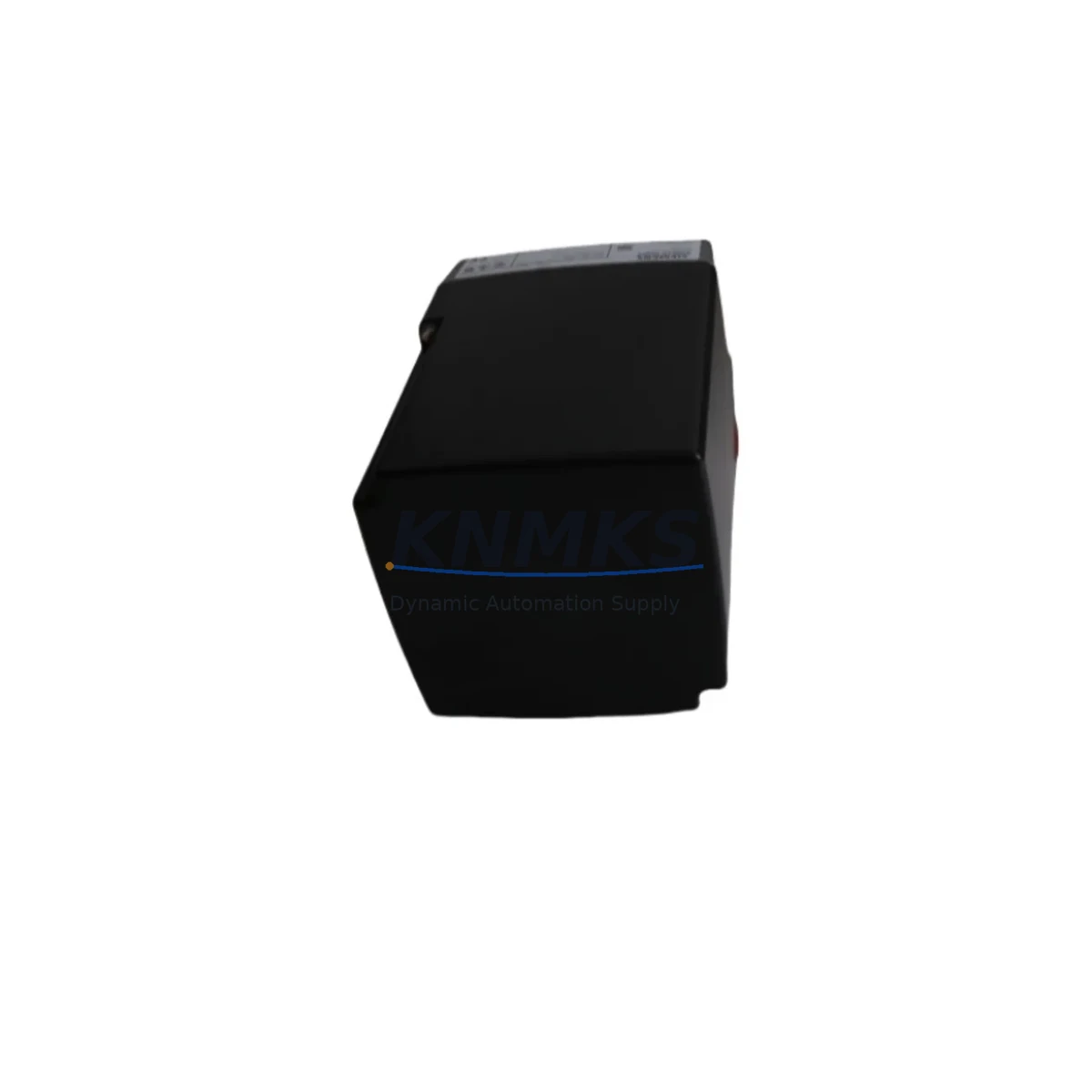

Siemens SQM10.16502 Fail-Safe Rotary Actuator for ICS

Overview

Siemens SQM10.16502 Fail-Safe Rotary Actuator for Industrial Control Reliability

The Siemens SQM10.16502 is a precision-engineered fail-safe rotary actuator from the SQM10 series, purpose-built for demanding industrial control environments where unplanned downtime, control loop interruption, or actuator malfunction can trigger cascading safety incidents. Designed and manufactured in Germany to Siemens’ exacting quality standards, the SQM10.16502 delivers consistent, repeatable torque output across a wide operating temperature range, making it the preferred choice for critical damper control, combustion air regulation, and process flow management in continuous production facilities.

In high-stakes industrial settings — from petrochemical refineries and thermal power stations to metallurgical plants and offshore platforms — the reliability of every actuator in the control loop directly determines operational safety. The SQM10.16502 addresses this challenge with a robust mechanical design that resists signal drift, maintains positional accuracy under electrical noise and supply voltage fluctuations, and returns to a defined fail-safe position upon power loss. This spring-return fail-safe mechanism is critical in combustion management systems, where an actuator that fails in an undefined position can create dangerous fuel-air ratio imbalances or trigger emergency shutdowns.

The SQM10.16502 integrates seamlessly into Siemens LMV (Linkageless Management System) burner control platforms, including the Siemens LMV51 and LMV52 series burner management units, which govern fuel-air ratio, ignition sequencing, and flame supervision in industrial boilers and process heaters. When paired with the Siemens AZL52 display and operating unit, operators gain real-time actuator position feedback and alarm diagnostics, enabling rapid fault identification without interrupting the production process. In multi-actuator combustion systems, the SQM10.16502 works in coordinated tandem with companion actuators such as the Siemens SQM40 or SQM45 series to manage fuel gas valves and secondary air dampers, ensuring that every control axis responds with synchronized precision.

Beyond combustion control, the SQM10.16502 is widely deployed in HVAC damper control for large industrial facilities, where it regulates fresh air intake, exhaust, and recirculation dampers in environments subject to dust accumulation, high humidity, and mechanical vibration. Its IP54-rated enclosure provides reliable protection against particulate ingress and water splash, maintaining electrical integrity in the harsh conditions typical of cement plants, mining operations, and port logistics facilities. The actuator’s internal gear train is engineered for low backlash and high mechanical efficiency, reducing wear-induced position error over extended service cycles — a key factor in facilities that cannot afford frequent maintenance interventions.

For control cabinet integrators, the SQM10.16502 presents a clean, low-current demand profile that minimizes loading on the Siemens SITOP PSU100S or equivalent 24 VDC power supply modules commonly used in industrial control panels. Its compatibility with standard 0–10 V or 4–20 mA control signals means it can be driven directly from Siemens S7-300 or S7-1200 PLC analog output modules without additional signal conditioning hardware, simplifying cabinet wiring and reducing potential points of failure. Surge protection on the signal input lines, such as those provided by Phoenix Contact TRABTECH surge arresters, is recommended in installations near high-voltage switchgear or in outdoor substations where lightning-induced transients are a concern.

Every SQM10.16502 unit supplied by KNMKS undergoes pre-shipment functional verification, including torque output confirmation, fail-safe spring return test, and control signal response check. This ensures that replacement units can be installed and commissioned rapidly during planned maintenance windows or emergency breakdowns, minimizing mean time to repair (MTTR) in critical process environments. KNMKS maintains ready stock of the SQM10.16502 to support urgent procurement requirements, with same-day dispatch available for verified orders.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the SQM10.16502 within a well-engineered control cabinet architecture is essential to realizing its full reliability potential. In industrial boiler control panels, the actuator is typically governed by a Siemens LMV52 burner management unit, which provides closed-loop fuel-air ratio control, integrated safety shutdown logic, and fault logging. The LMV52’s actuator output channels are designed to drive SQM10-series actuators directly, eliminating the need for intermediate relay stages that could introduce additional failure modes.

Power supply stability is a foundational requirement. The Siemens SITOP PSU100S 24 V / 10 A power supply module provides regulated, low-ripple DC power to the control circuit, with built-in overload and short-circuit protection that prevents a downstream fault from propagating to the actuator control loop. In facilities with unstable grid power — common in mining, port, and heavy manufacturing environments — an uninterruptible power supply (UPS) buffer module such as the Siemens SITOP UPS1600 ensures that the SQM10.16502 continues to receive stable control signals during brief mains interruptions, preventing nuisance fail-safe activations that could disrupt the combustion process.

Signal integrity is protected through proper cable routing and, where necessary, the use of shielded twisted-pair cables for the 0–10 V control signal. In high-EMI environments adjacent to variable frequency drives (VFDs) or large motor starters, additional filtering at the analog input of the LMV controller — or the use of 4–20 mA current loop signaling — further reduces susceptibility to induced noise. Surge protection devices, such as those from the Phoenix Contact TRABTECH PT series, are recommended at the cabinet entry point for any signal cables routed through outdoor conduits or across building boundaries.

For facilities implementing IEC 62443 or ISO 13849 safety architectures, the SQM10.16502’s spring-return fail-safe behavior supports the design of safety instrumented functions (SIFs) where the actuator must achieve a defined safe state upon detection of a process hazard. Integration with a Siemens SIMATIC S7-1500F fail-safe PLC via the LMV’s digital I/O interface allows the safety PLC to monitor actuator position feedback and initiate controlled shutdown sequences in response to process alarms, without relying solely on the burner management unit’s internal logic.

Critical Industrial Safety Applications

The SQM10.16502 is deployed across a broad spectrum of critical industrial applications where actuator reliability directly impacts process safety and regulatory compliance.

In petrochemical and refinery environments, the actuator controls combustion air dampers on process heaters and fired reboilers, where precise fuel-air ratio management is essential to prevent incomplete combustion, carbon monoxide accumulation, and furnace pressure excursions. The spring-return fail-safe function ensures that dampers move to a safe position during emergency depressurization or burner management system trips.

In thermal power generation, SQM10.16502 actuators regulate secondary air dampers on auxiliary boilers and fuel oil burners used for startup and low-load operation. Their wide operating temperature range and IP54 protection make them suitable for boiler house environments characterized by high ambient temperatures, steam ingress, and vibration from rotating machinery.

In metallurgical and steel plants, the actuator is used in reheat furnace burner control systems, where consistent combustion quality directly affects product quality and energy efficiency. The actuator’s low backlash and high positional repeatability ensure that fuel-air ratios remain within tight tolerances across multiple burner zones.

In water and wastewater treatment facilities, the SQM10.16502 controls aeration dampers and biogas combustion systems, where reliable actuator operation is required around the clock to maintain treatment process continuity and comply with environmental discharge standards.

In mining and mineral processing operations, the actuator is deployed in dryer burner control systems and ventilation damper control, where dusty, high-humidity conditions demand robust enclosure protection and reliable fail-safe behavior to prevent fire and explosion hazards.

In port and marine applications, including shipboard boiler systems and shore-based cargo heating facilities, the SQM10.16502 provides reliable damper control in environments subject to salt air corrosion, mechanical shock, and wide temperature variation.

Safety and Quality FAQ

Q1: What support terms does KNMKS provide for the Siemens SQM10.16502?
All SQM10.16502 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. This support terms covers defects in materials and workmanship under normal operating conditions. KNMKS provides replacement or repair support for any unit that fails within the confirmed support period, subject to inspection confirming the failure is not attributable to installation error, overvoltage, or mechanical abuse.

Q2: What pre-shipment testing is performed on each unit?
Every SQM10.16502 dispatched by KNMKS undergoes a pre-shipment functional test that includes verification of torque output at rated voltage, confirmation of spring-return fail-safe operation (power-off return to defined position), and control signal response linearity check across the full 0–10 V or 4–20 mA input range. Test results are available upon request for quality-critical procurement processes.

Q3: Is the SQM10.16502 compatible with existing Siemens LMV burner management systems?
Yes. The SQM10.16502 is designed for direct integration with Siemens LMV51 and LMV52 burner management systems, as well as earlier LMV series controllers. It is also compatible with any control system capable of providing a 0–10 V DC or 4–20 mA analog output signal within the specified supply voltage range. Customers replacing older SQM10-series actuators can typically perform a direct mechanical and electrical substitution without modification to the control system wiring.

Q4: Can KNMKS support long-term and emergency supply requirements for the SQM10.16502?
KNMKS maintains dedicated stock of the SQM10.16502 to support both planned maintenance schedules and emergency breakdown procurement. Same-day dispatch is available for verified urgent orders. For facilities with high actuator populations or critical uptime requirements, KNMKS can discuss consignment stock arrangements or scheduled supply agreements to ensure that replacement units are always available when needed.
