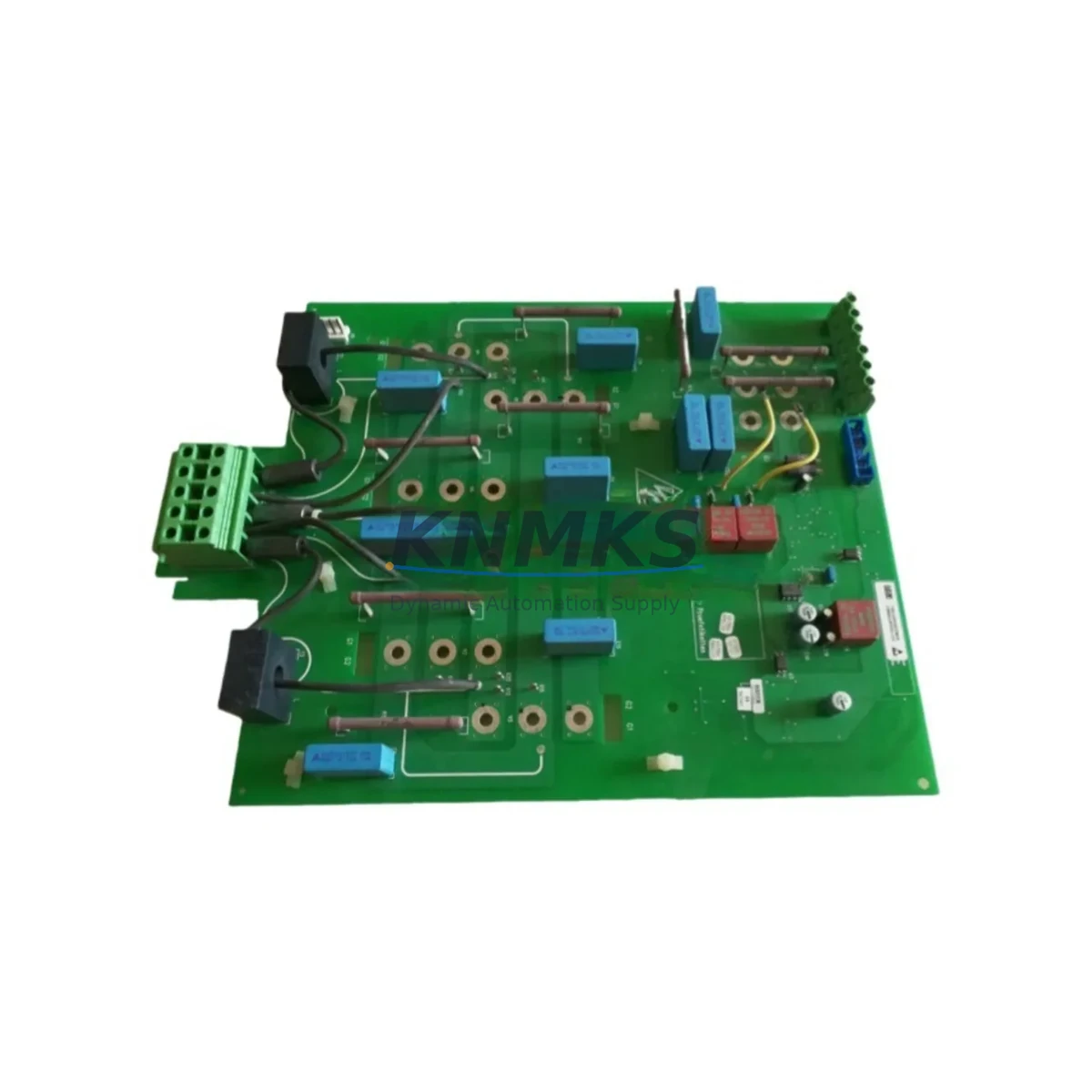

The Siemens C98043-A7010-L2 — cross-referenced as 6RY1703-0CA04 — is an original power supply board (PSU PCB) engineered for the SIMOREG DC Master 6RA70 series of DC drive converters. Deployed across heavy industry, paper mills, steel processing lines, mining hoists, and large-scale material handling systems, this board is the backbone of auxiliary power distribution within the SIMOREG control cabinet. As a maintenance-proven spare part, it enables rapid in-cabinet replacement without drive reconfiguration or firmware re-commissioning, directly supporting factory uptime and minimizing unplanned production loss. Every unit is dispatched from verified inventory, undergoes functional power-on testing prior to shipment, and is backed by a support terms confirmed by quotation from date of dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SIMOREG DC Master drive trips on an auxiliary power fault or fails to initialize, the C98043-A7010-L2 power supply board is the primary diagnostic target. A disciplined maintenance strategy, however, extends well beyond the board itself. Using the same downtime window to inspect adjacent components dramatically reduces the risk of repeat failures and secondary stoppages.

Start with the incoming AC supply fuse links — typically 3-phase fuses rated to the drive’s input current — and the 24 V DC control power fuse on the auxiliary circuit. A blown upstream fuse is frequently the root cause of PSU board failure rather than the board itself. Next, inspect the CUD1 or CUD2 control unit of the 6RA70 drive: if the power supply board has failed due to a transient overvoltage, the control electronics may carry latent damage that surfaces within weeks of restart. Replacing the PSU board without checking the CUD is a common maintenance oversight that leads to repeat downtime.

Inspect the SIMOREG pulse transformer board (C98043-A7007) and the associated thyristor firing board for heat stress, carbon tracking, or cracked solder joints — these components share the same DC bus environment and are subject to the same voltage transients that degrade PSU boards. While the cabinet is open, check all terminal blocks and armature/field circuit wiring for loose connections; high-resistance joints generate localized heat that accelerates board aging and can cause intermittent faults that are difficult to reproduce during commissioning.

For drives integrated into a broader automation architecture, verify the PROFIBUS DP communication module (CBP2) or USS serial interface connections remain intact and undamaged. A communication timeout during restart can mask a successful hardware repair and delay production recovery by hours. If the drive feeds a process with tight speed regulation, confirm the tachometer or encoder feedback wiring and any associated signal isolation module are undamaged — signal noise introduced by a loose shield connection can cause speed instability that is incorrectly attributed to the power supply board.

Procurement engineers managing multiple SIMOREG DC Master installations should maintain a minimum of one C98043-A7010-L2 board per critical drive, alongside a spare CUD1 control unit, a set of input fuse links, and a spare field supply module. For facilities running five or more 6RA70 drives, a consolidated spare parts kit covering the PSU board, the pulse transformer board, and the field supply module provides the fastest recovery path across the widest range of fault scenarios and supports annual shutdown planning without emergency procurement lead times.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Open the main circuit breaker and the control power isolator. Verify zero voltage on all DC bus terminals using a calibrated meter before touching any internal components. Allow the DC bus capacitors a minimum of five minutes to discharge.

Step 2 — Document the existing configuration: Photograph all wiring connections, DIP switch positions, and jumper settings on the existing board. For drives running firmware version 3.x or later, upload the full parameter set to a laptop via STARTER or DriveMonitor before removal. This eliminates re-parameterization risk and reduces restart time.

Step 3 — Remove the faulty board: Disconnect the board’s ribbon cable and power connectors in sequence, noting the orientation and any spacer hardware. The C98043-A7010-L2 is a direct plug-in replacement for the original — no mechanical modification, drilling, or bracket adaptation is required.

Step 4 — Install the replacement board: Seat the new C98043-A7010-L2 firmly into position, reconnect all cables in reverse order, and verify all connector locking tabs are fully engaged. Confirm the 24 V DC auxiliary supply is present at the board’s input terminals before closing the cabinet door.

Step 5 — Power-on verification: Restore control power first and observe the drive’s LED status indicators on the CUD1/CUD2. A steady green confirms auxiliary power is healthy. Restore main power and perform a no-load test run at minimum speed before returning the drive to full production load. Total downtime for a prepared two-person maintenance team is typically under two hours, including documentation and verification steps.

This workflow is compatible with all 6RA70 SIMOREG DC Master variants and does not require drive re-parameterization when replacing the power supply board alone, preserving existing speed loop tuning, ramp settings, and field weakening curves.

Spare Parts Support FAQ

Q1: Is the C98043-A7010-L2 compatible with all SIMOREG DC Master 6RA70 variants?
The C98043-A7010-L2 (6RY1703-0CA04) is designed for the Siemens SIMOREG DC Master 6RA70 series. Compatibility should be confirmed against the drive’s nameplate rating and the original spare parts list for your specific drive order number. Contact our technical team at [email protected] with your full drive order number for a definitive compatibility check before placing an order.

Q2: What testing is performed before shipment?
Every C98043-A7010-L2 board undergoes a functional power-on test in our facility prior to dispatch. Units that fail any stage of testing are quarantined and not shipped. A test report is available upon request for critical or safety-related applications. Boards are packed in anti-static packaging with foam protection to prevent transit damage.

Q3: What does the support terms confirmed by quotation cover, and how are claims processed?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, upstream overvoltage events, or operation outside the specified environmental limits (e.g., ambient temperature exceeding 55 °C). Support requests are processed with a replacement unit dispatched within 5 business days of fault confirmation and return of the defective unit.

Q4: Can you support long-term or blanket purchase orders for ongoing maintenance programs?
Yes. For facilities managing multiple SIMOREG DC Master drives or planning annual maintenance shutdowns, we support blanket purchase orders with staged delivery schedules. Long-term supply agreements lock in pricing and guarantee stock availability for both planned shutdowns and emergency replacement events. Contact [email protected] or call +86 18359268345 to discuss volume requirements and delivery terms.
