ABB 086351-001 Migration-Ready Redundant Power Supply for DCS

Overview

ABB 086351-001 Migration-Ready Redundant Power Supply for Legacy DCS

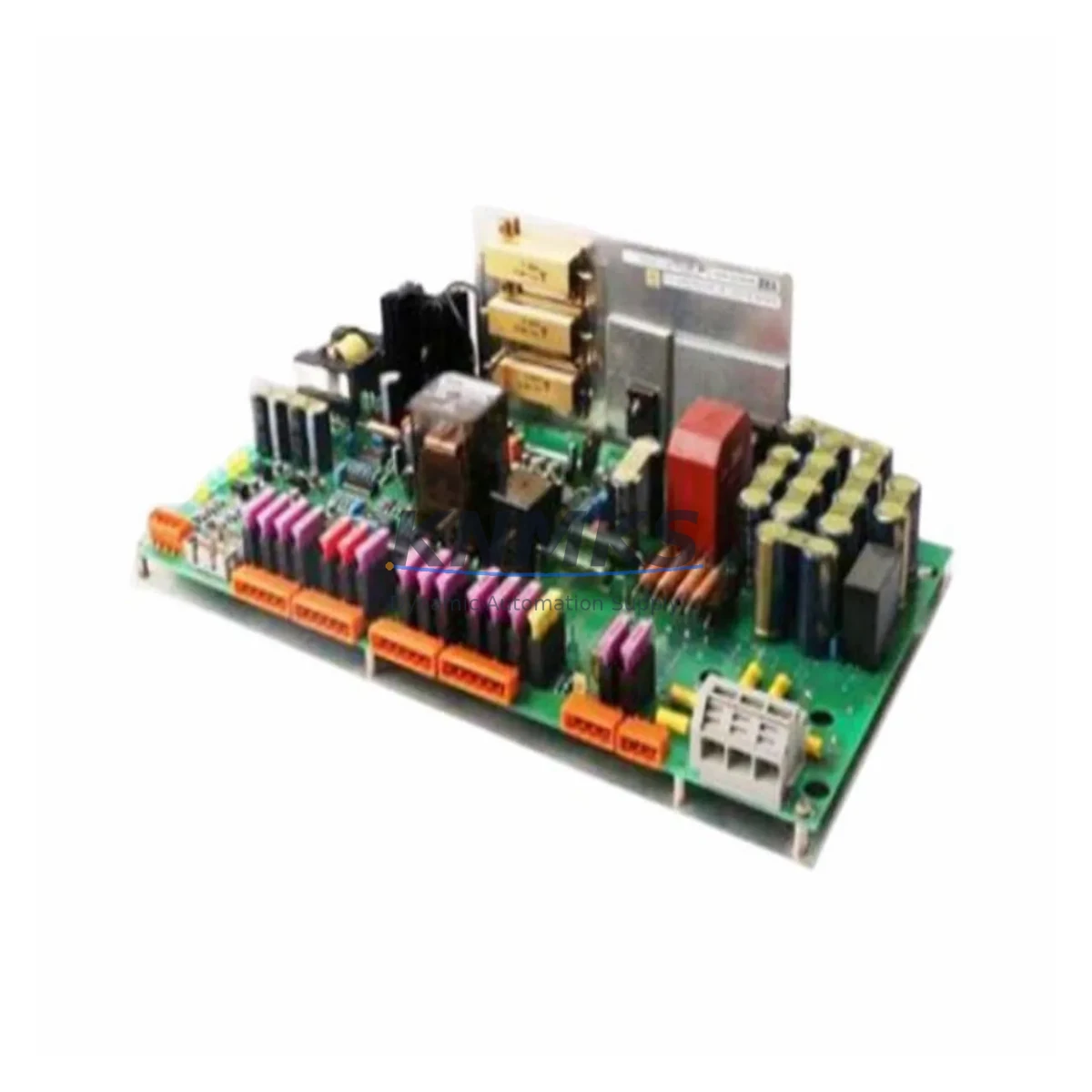

The ABB 086351-001 is a redundant power supply module engineered for continuous-duty operation within ABB Bailey INFI 90 and compatible Distributed Control System (DCS) architectures. As legacy DCS installations approach end-of-support milestones, engineering teams face mounting pressure to source verified replacement power modules that maintain system stability without triggering full platform migrations. The 086351-001 addresses this challenge directly: it is a migration-ready, drop-in replacement that preserves existing backplane wiring, rack geometry, and load-sharing logic while delivering the power rail reliability that critical process environments demand.

Each unit supplied by KNMKS is pre-tested under rated load conditions prior to shipment. Functional verification covers output voltage regulation, redundancy switchover response, and thermal performance across the full operating range. A support terms confirmed by quotation is included with every unit, backed by multi-region stock maintained for emergency dispatch and scheduled outage windows.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a redundant power supply in an operating DCS environment requires careful coordination across multiple system layers. The 086351-001 is most commonly encountered in racks that also house the ABB IMMFP12 multi-function processor module and IMFEC12 field interface modules — both of which draw regulated DC power from the same backplane bus. Before initiating a power module swap, engineers should audit the total rack load: sum the current draw of all installed I/O modules, the processor card, and any communication interface modules such as the INNIS21 INFI-NET interface module, to confirm the replacement unit’s output capacity is not exceeded.

Wiring adaptation is typically minimal for a like-for-like 086351-001 replacement. The AC input terminals accept standard 110 VAC or 220 VAC feeds depending on the installed jumper configuration — verify this setting against the original unit before energizing. The DC output bus connects directly to the backplane; no field wiring changes are required at the I/O terminal blocks or marshalling cabinets. However, if the retrofit is part of a broader control cabinet upgrade that includes adding IMASI23 analog input modules or expanding the I/O count, recalculate the power budget to determine whether a second redundant supply pair is warranted.

For sites migrating from INFI 90 to a modern ABB System 800xA or AC500 PLC platform, the 086351-001 often serves as a bridge solution: it keeps the legacy DCS operational during a phased migration while new controllers and I/O subsystems are commissioned in parallel. In this scenario, the existing INFI 90 operator console and HMI graphics remain live on the legacy power infrastructure, while the new platform is validated offline. This approach minimizes production interruption and allows engineering teams to verify program logic, HMI faceplates, and communication links — including INFI-NET node addressing and MODULBUS segment assignments — before the final cutover.

Signal isolators and surge protection devices installed upstream of the power supply should also be inspected during any retrofit. Degraded isolation on the AC input feed is a common root cause of premature power module failure in older installations. Replacing the 086351-001 without addressing upstream power quality issues may result in repeat failures within a short service interval.

Downtime Control During System Migration

Minimizing unplanned downtime during a DCS power module replacement begins with preparation, not execution. The 086351-001’s hot-standby redundancy architecture allows the failed primary unit to be removed and replaced while the standby unit maintains the backplane bus — provided the standby module is confirmed healthy before the swap begins. Verify the standby status LED and output voltage at the backplane test points before proceeding.

To protect existing program logic during the replacement, ensure the controller module — typically an IMMFP12 or equivalent multi-function processor — remains powered and in RUN mode throughout the swap. Do not cycle rack power unless the standby supply has failed simultaneously, as a full rack power cycle will force the processor into a cold-restart sequence and may require manual program reload from the engineering workstation.

Document the current HMI alarm state and active control loops before beginning work. Operators should be notified to switch affected loops to manual mode where process safety permits. After the replacement unit is seated and the redundancy LED confirms active load sharing, restore automatic control incrementally and verify that all INFI-NET communication links and MODULBUS I/O responses are nominal before closing out the work order.

KNMKS maintains multi-region stock of the 086351-001 specifically to support emergency dispatch scenarios where a failed power module threatens production continuity. Units are available for same-day shipment to minimize the window between fault detection and parts-in-hand. Each unit ships with a pre-test certificate and installation reference sheet to accelerate on-site commissioning.

Retrofit Support FAQ

Q1: Is the 086351-001 a direct drop-in replacement for the original ABB Bailey unit?
Yes. The 086351-001 is a form-fit-function replacement for the original ABB Bailey INFI 90 redundant power supply. It uses the same backplane connector, rack slot footprint, and AC input terminal configuration. No wiring modifications or adapter brackets are required for a standard like-for-like swap.

Q2: What commissioning steps are required after installation?
After seating the module, verify DC output voltage at the backplane test points (typically +5 VDC and +24 VDC rails depending on rack type). Confirm the redundancy status LED indicates active load sharing with the partner supply. Check that all I/O modules in the rack — including any IMASI23 analog inputs or IMFEC12 field interface cards — are reporting correctly on the INFI-NET segment before returning loops to automatic control.

Q3: Does KNMKS provide pre-shipment testing and a support terms?
Yes. Every 086351-001 unit is functionally tested under rated load conditions before shipment. Testing covers output voltage regulation, redundancy switchover response, and thermal stability. A support terms confirmed by quotation is included from the shipment date, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and can emergency orders be accommodated?
The 086351-001 is held in multi-region stock for immediate dispatch. Standard orders ship within one business day. Emergency replacement orders — including weekend and off-hours requests — can be accommodated; contact the sales team directly to confirm availability and arrange expedited freight.
