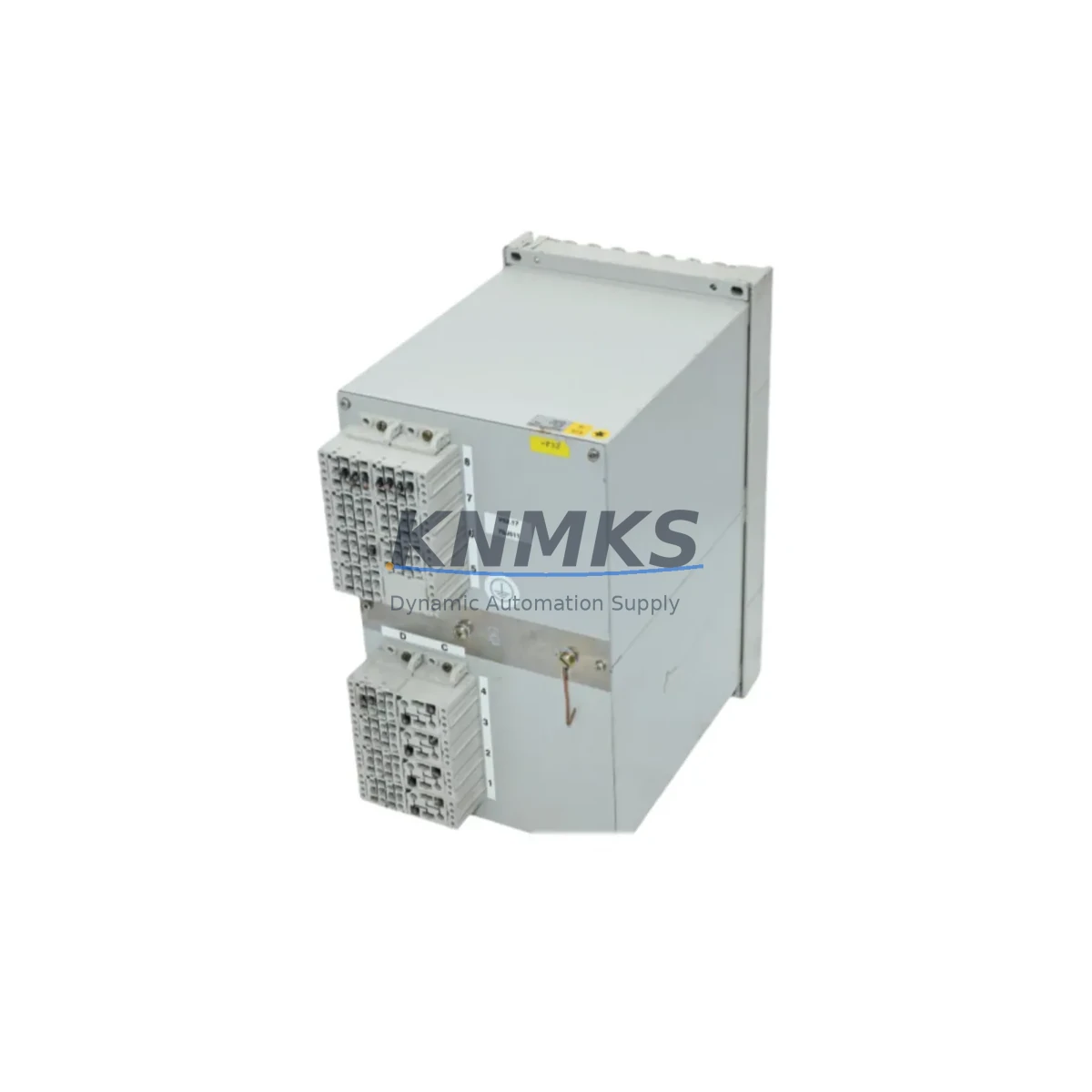

Siemens 7SJ5115-5CA00-0A/HH Migration-Ready Overcurrent Relay

Overview

Siemens 7SJ5115-5CA00-0A/HH Migration-Ready Overcurrent Relay for Legacy Control Systems

The Siemens 7SJ5115-5CA00-0A/HH is a SIPROTEC 4 series numerical overcurrent and earth-fault protection relay engineered for high-reliability applications in medium-voltage switchgear, industrial power distribution, and utility feeder protection. As legacy SIPROTEC 3 and early SIPROTEC 4 installations approach end-of-service life, the 7SJ5115-5CA00-0A/HH has become a primary migration-ready replacement for discontinued models such as the 7SJ511, 7SJ512, and 7SJ513 variants, offering backward-compatible terminal assignments and equivalent protection functions that minimize re-engineering effort during panel retrofits.

This relay supports IEC 61850 GOOSE messaging and DIGSI 4 parameterization, making it directly compatible with existing SIPROTEC 4 substation automation architectures. Engineers migrating from older electromechanical or first-generation numerical relays will find that the 7SJ5115-5CA00-0A/HH retains the same 7SJ51 housing footprint, allowing installation into existing relay panels without mechanical modification. The relay’s configurable I/O matrix, binary inputs, and output relay contacts can be mapped to match legacy wiring schemes, significantly reducing the risk of terminal re-labeling errors during cutover.

Before committing to a retrofit, site engineers should verify the following parameters against the existing installation: auxiliary supply voltage range (the 7SJ5115-5CA00-0A/HH accepts DC 24–250 V / AC 115–230 V depending on order suffix), current transformer secondary ratings (1 A or 5 A), and the number of binary input/output channels required by the existing protection scheme. The relay’s rear terminal layout follows the standard SIPROTEC 4 plug-in connector system, which is compatible with the 7XV5100 test plug and the 7XV5662 serial interface cable used for DIGSI 4 commissioning. If the existing panel uses a 7SJ600 or 7SJ61 series relay, a terminal adapter plate may be required to bridge connector pitch differences.

For substations running IEC 60870-5-103 or PROFIBUS-DP communication protocols on legacy RTU infrastructure, the 7SJ5115-5CA00-0A/HH supports protocol conversion through the SIPROTEC 4 communication module slot. Sites transitioning to IEC 61850 Edition 2 should confirm that the substation’s engineering tool (DIGSI 4.92 or later) and the IED configuration descriptor (ICD) file version are aligned before downloading the new parameter set. Mismatched firmware versions between the relay and the DIGSI 4 project file are a common source of commissioning delays and should be resolved prior to scheduled outage windows.

In multi-feeder protection schemes, the 7SJ5115-5CA00-0A/HH is frequently deployed alongside the 7SJ6016 or 7SJ6026 overcurrent relays for bus coupler and incomer protection, and paired with the 7UT613 differential protection relay for transformer feeder applications. Where distance protection is required on the same panel, the 7SA522 distance relay shares the same SIPROTEC 4 rack mounting system and DIGSI 4 parameterization environment, simplifying multi-relay commissioning. For installations requiring motor protection on the same MCC bus, the 7SJ6016 motor protection variant provides a compatible upgrade path within the same relay family.

Downtime planning for a 7SJ5115-5CA00-0A/HH retrofit should account for: parameter export from the existing relay using DIGSI 4, terminal wiring verification against the as-built drawing set, relay insertion and mechanical securing, parameter download and functional test, and final trip circuit continuity check. With pre-tested relay units shipped from stock, experienced protection engineers typically complete a single-relay swap within a 4–6 hour planned outage window. KNMKS ships each 7SJ5115-5CA00-0A/HH pre-tested against factory acceptance criteria, with a full functional test report included in the delivery package.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 7SJ5115-5CA00-0A/HH retrofit begins with a thorough review of the existing panel’s wiring schedule and protection coordination study. Engineers should collect the current DIGSI 4 project file, the relay’s existing parameter printout, and the trip circuit diagram before the outage window opens. Where the legacy relay uses a 7XV5662 serial interface cable for DIGSI 4 communication, the same cable is compatible with the 7SJ5115-5CA00-0A/HH, eliminating the need for new commissioning tools.

In control cabinets where the 7SJ5115-5CA00-0A/HH is installed alongside a 7SJ6016 feeder protection relay and a 7UT613 transformer differential relay, the SIPROTEC 4 system bus (IEC 61850 GOOSE) allows inter-relay interlocking without additional hardwired logic. This is particularly valuable in retrofit projects where the existing hardwired interlock scheme is complex and re-wiring risk is high. The 7SA522 distance relay, if present in the same panel, shares the same DIGSI 4 project environment, allowing all relay parameters to be managed from a single engineering workstation.

For I/O-intensive applications, the SIPROTEC 4 system supports expansion via the 6MD66 bay controller, which can aggregate binary inputs and outputs from multiple relays in the same switchgear bay. Where signal isolation is required between the relay’s binary inputs and the field wiring — particularly in older installations with mixed AC/DC signal levels — a dedicated signal isolator module should be inserted in the input circuit to prevent false triggering. Installation space in the existing panel should be confirmed against the 7SJ5115-5CA00-0A/HH’s depth dimension (approximately 228 mm behind the panel face) before ordering.

Downtime Control During System Migration

Minimizing unplanned downtime during a protective relay retrofit requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, the existing relay’s parameter set should be exported via DIGSI 4 and archived, the new 7SJ5115-5CA00-0A/HH should be pre-parameterized on the engineering workstation using the exported data, and a full secondary injection test should be completed on the bench unit to verify protection function operation. This pre-commissioning approach reduces in-panel work to mechanical swap, wiring verification, and final trip circuit test — typically achievable within a 4-hour window for a single relay position.

To protect existing program logic during the cutover, the DIGSI 4 parameter export captures all protection settings, I/O assignments, communication addresses, and interlocking logic in a single project file. This file serves as both the configuration backup and the source for the new relay’s parameter download, ensuring that protection coordination settings are preserved exactly. Where the existing relay is integrated into a SCADA system via IEC 60870-5-103, the new relay’s communication address and data point mapping should be verified against the RTU configuration before the outage to avoid SCADA alarm flooding during restoration.

For sites where continuous process control is critical, a parallel energization strategy — where the new relay is wired in parallel with the existing unit before the final cutover — can reduce the live switching window to under 30 minutes. KNMKS recommends requesting a pre-tested unit with a factory test report to eliminate on-site functional testing risk and further compress the outage window. All 7SJ5115-5CA00-0A/HH units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment, with technical support available for commissioning queries.

Retrofit Support FAQ

Q1: Is the 7SJ5115-5CA00-0A/HH a direct drop-in replacement for the 7SJ511 and 7SJ512?
In most panel configurations, yes. The 7SJ5115-5CA00-0A/HH shares the same 7SJ51 housing footprint and SIPROTEC 4 rear connector system as the 7SJ511 and 7SJ512, allowing direct mechanical substitution. Terminal wiring should be verified against the as-built drawing set, as minor I/O assignment differences may require re-mapping in DIGSI 4.

Q2: What firmware version is required for IEC 61850 communication?
IEC 61850 GOOSE and MMS communication requires DIGSI 4 version 4.92 or later and a compatible IEC 61850 communication module installed in the relay’s option slot. Sites upgrading from IEC 60870-5-103 should update the RTU’s data point list to reflect the new IED’s logical node structure before commissioning.

Q3: Does KNMKS provide pre-tested units with a functional test report?
Yes. All 7SJ5115-5CA00-0A/HH units shipped by KNMKS are tested against factory acceptance criteria prior to dispatch. A functional test report is included with each unit. Units are covered by a support terms confirmed by quotation from the date of shipment, with technical support available for installation and commissioning queries at admin@knmks.com.

Q4: What is the typical lead time and stock availability?
KNMKS maintains regional warehouse stock of the 7SJ5115-5CA00-0A/HH to support urgent retrofit and emergency replacement requirements. Standard orders are dispatched within 1–3 business days. For bulk or blanket-stock program inquiries, contact admin@knmks.com or call +86 18359268345 to discuss allocation and pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

7SJ5115-5CA00-0A/HH

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: Siemens 7SJ5115-5CA00-0A/HH
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
