Siemens 6DP1616-8CA Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6DP1616-8CA Maintenance-Proven Spare Part for Factory Uptime

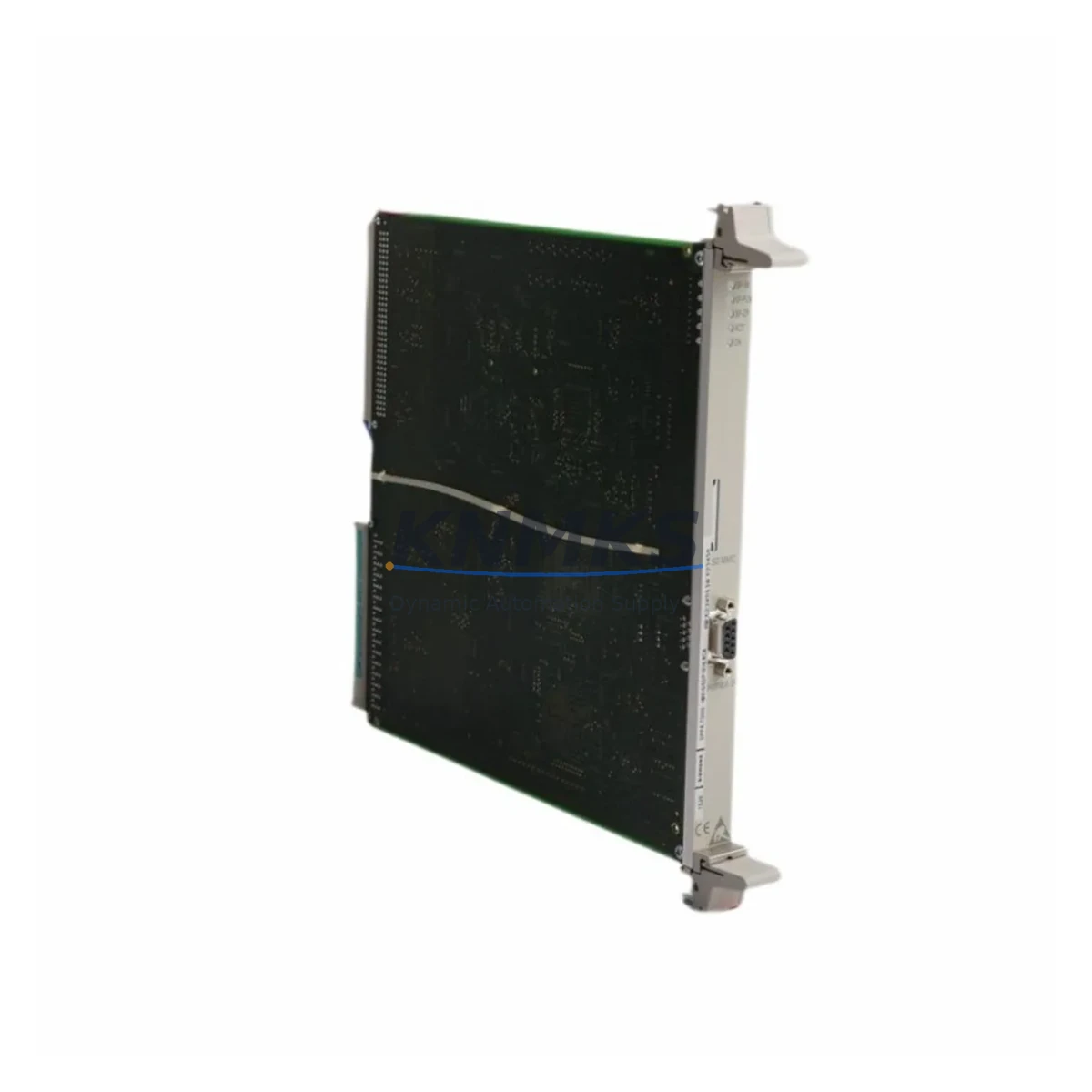

The Siemens 6DP1616-8CA (IM616) is a PROFIBUS DP interface module designed for the SIMATIC TDC and SIMATIC 505 distributed control systems. As a critical communication bridge between the DCS controller and field devices, this module is a high-priority spare for any maintenance engineer responsible for continuous process operations. Whether you are managing a chemical plant, power generation facility, steel mill, or large-scale manufacturing line, keeping a verified 6DP1616-8CA in your spare parts inventory is a proven strategy for minimizing unplanned downtime and protecting production continuity.

At KNMKS, every 6DP1616-8CA unit is sourced from authorized supply chains, individually inspected, and function-tested prior to shipment. Each module ships with a support terms confirmed by quotation and full traceability documentation, giving procurement engineers the confidence they need when sourcing critical DCS components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6DP1616-8CA fails or degrades in a SIMATIC TDC rack, the impact extends well beyond the module itself. Maintenance engineers should treat this replacement as an opportunity to audit the surrounding control architecture. Begin with the TDC backplane and rack power supply — a failing 24 V DC backplane rail is a common root cause of intermittent PROFIBUS communication faults that are often misdiagnosed as module failure. Verify that the rack’s power module (such as the 6DP1611-8AA or equivalent TDC power supply unit) is delivering stable voltage within tolerance before installing the replacement IM616.

Next, inspect the PROFIBUS DP cable termination and bus connectors at both ends of the segment. Degraded bus termination resistors or loose 9-pin Sub-D connectors are a frequent source of cyclic data errors that can trigger module fault codes. If the system uses a SIMATIC TDC CP51M1 or similar communication processor in the same rack, confirm that its firmware version is compatible with the IM616 revision being installed.

For plants running hybrid architectures, the 6DP1616-8CA often operates alongside ET 200M distributed I/O stations connected via PROFIBUS. During the replacement window, it is advisable to inspect the IM153-x interface modules at each ET 200M station for signs of wear, corrosion on the bus connectors, or outdated firmware. Similarly, if the control cabinet houses SIMATIC S7-400 CPUs or S7-300 series PLCs sharing the same PROFIBUS segment, verify their diagnostic buffers for any logged communication warnings that may indicate segment-level issues rather than isolated module failure.

Signal isolation should also be reviewed: any 4–20 mA analog signal isolators or HART multiplexers feeding into the TDC I/O modules should be checked for drift, especially in high-temperature or high-vibration environments. Fuse protection for the 24 V DC supply rail feeding the IM616 and adjacent modules should be inspected and replaced on a scheduled basis — a blown or weakened fuse is often overlooked during fault isolation.

Finally, if the plant operates an OP/TP series HMI panel or a WinCC SCADA station communicating through this PROFIBUS segment, confirm that the HMI connection is restored and all process tags are updating correctly after the module swap. Document the replacement in your CMMS with the new module’s serial number and test results to support future audits and support requests.

Site Replacement Workflow

Replacing the 6DP1616-8CA on-site is a structured process that, when followed correctly, can restore PROFIBUS communication within a single maintenance shift. Begin by placing the affected TDC rack in a safe, de-energized state following your plant’s lockout/tagout (LOTO) procedure. Record the current slot assignment and any DIP switch or parameter settings on the existing module before removal — these settings must be replicated on the replacement unit.

Remove the faulty IM616 by releasing the front panel locking mechanism and sliding the module out of the backplane slot. Inspect the backplane connector pins for damage or oxidation before inserting the replacement 6DP1616-8CA. Seat the module firmly, re-engage the locking mechanism, and reconnect the PROFIBUS DP cable. Re-energize the rack and monitor the module’s LED status indicators: a steady green RUN LED confirms successful initialization and active PROFIBUS communication.

If the system requires parameter download (e.g., via STEP 7 or TDC engineering software), connect the programming device and perform a full download to the module. Verify cyclic data exchange with all slave devices on the segment before returning the system to automatic operation. This workflow is compatible with both hot-standby and single-controller TDC configurations, and does not require a full system restart in most installations — significantly reducing total downtime compared to unplanned emergency repairs.

For sites transitioning away from legacy SIMATIC 505 hardware, the 6DP1616-8CA can serve as a bridge component during phased migration, maintaining PROFIBUS connectivity while newer control tiers are commissioned in parallel. This approach extends the operational life of existing field wiring and I/O infrastructure, deferring capital expenditure while maintaining production output.

Spare Parts Support FAQ

Q1: Is the 6DP1616-8CA still available as a new or refurbished spare?
Yes. KNMKS maintains stock of both new-old-stock (NOS) and professionally refurbished 6DP1616-8CA modules. All refurbished units undergo full functional testing, cleaning, and inspection before shipment. Availability is confirmed at the time of inquiry, and we can advise on lead times for bulk orders.

Q2: How do I verify compatibility before ordering?
The 6DP1616-8CA is designed for SIMATIC TDC and SIMATIC 505 DCS racks. To confirm compatibility, provide your rack model, existing module revision, and PROFIBUS segment configuration. Our technical team will cross-reference your system documentation and confirm fit before shipment. We do not ship without compatibility confirmation for first-time orders.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects, functional failure under normal operating conditions, and DOA (dead-on-arrival) units. It does not cover damage caused by incorrect installation, overvoltage, or physical mishandling. Support requests are processed with return shipping support and priority replacement dispatch.

Q4: Can KNMKS support long-term or recurring procurement for this module?
Yes. We support annual blanket orders, scheduled delivery programs, and consignment stock arrangements for maintenance teams with recurring spare parts requirements. Long-term supply agreements include price stability commitments and priority allocation during periods of market shortage — a critical consideration for obsolete or end-of-life Siemens DCS components.
